AmaMedic Hilux 4D Massage Chair

Save 44% Save 44%
Original price $8,999.00
Original price $8,999.00 - Original price $8,999.00
Original price $8,999.00
Current price $4,999.00
$4,999.00 - $4,999.00
Current price $4,999.00

✓ Authorized AmaMedic Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

AmaMedic | Hilux 4D

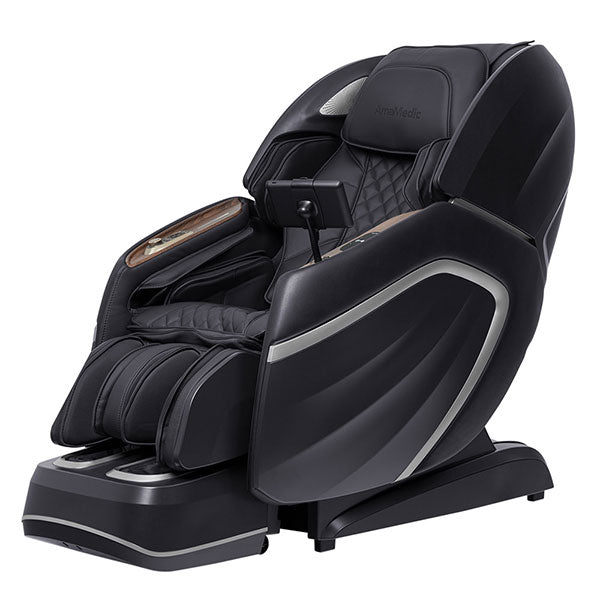

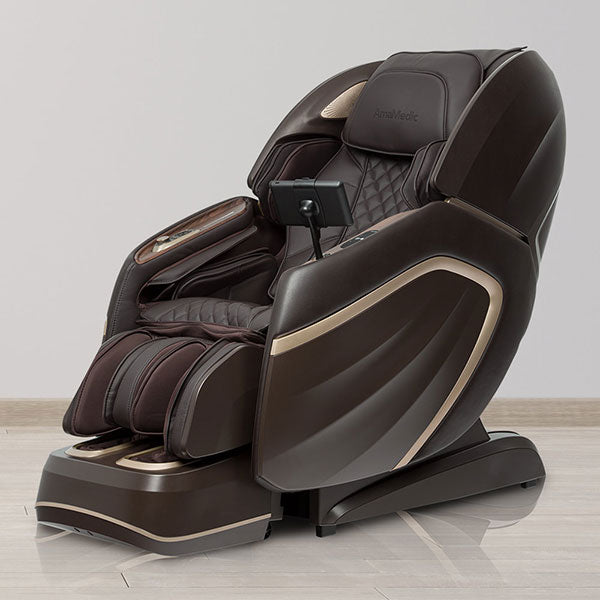

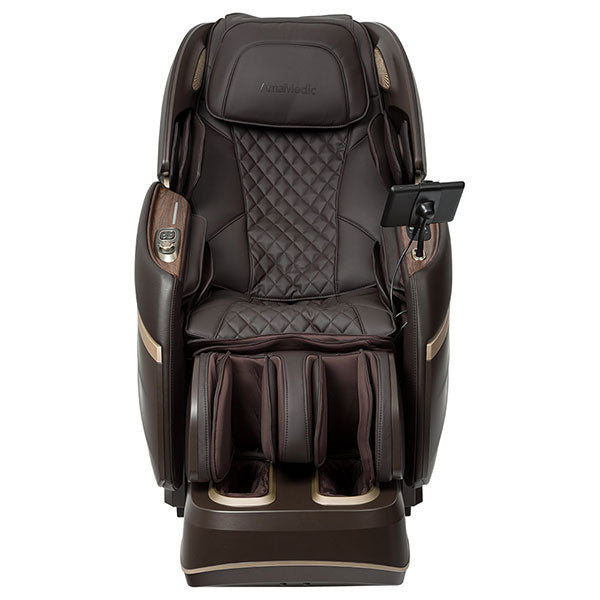

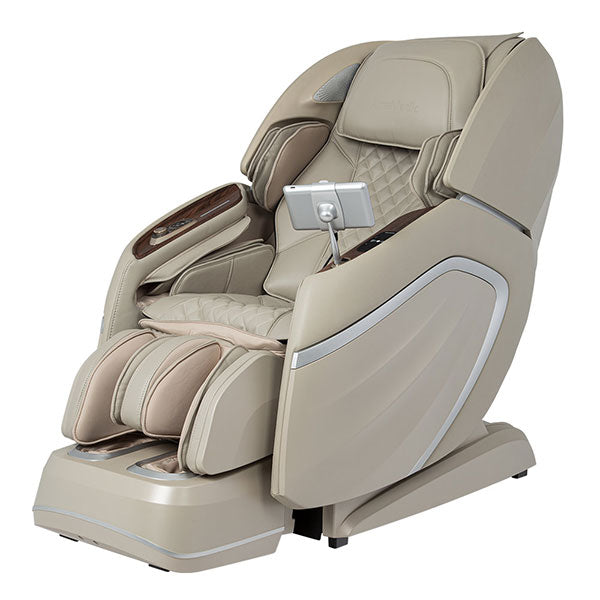

AmaMedic Hilux 4D Massage Chair

The AmaMedic Hilux 4D is a full-body massage chair built around a 4D back mechanism. Four dimensions means the rollers travel up and down, cross side to side, push in and out, and change speed. They run on a 52.8 in. SL-track. It follows the curve of your spine at the top. At the bottom it carries on under the seat. The stroke reaches the glutes and the top of the hamstrings. Eight levels of 4D intensity sit on the controller. The chair takes users up to 270 lb, in black, brown or taupe.

Warmth comes from the back roller itself as it works. It moves down your back with the stroke and never sits in a fixed pad behind you. Air massage runs alongside it at five intensity levels. The shoulder units adjust inwards through three widths on each side, and that range fits one chair to different frames. Heights from 4 ft 9 in. to 6 ft 4 in. are the recommended range.

It weighs 244.6 lb and needs 62.2 in. of length upright, opening to 76.4 in. reclined. Upright it stands 47.6 in. tall and drops to 42.5 in. reclined. Titan Chair LLC backs it for three years.

Mechanism
4D on a 52.8 in. SL-track
Eight intensity levels, neck to under the seat
Heat
Heated back roller
Warmth moves with the rollers, not from a fixed pad
User range
Up to 270 lb
Recommended 4 ft 9 in. to 6 ft 4 in.
Footprint
62.2 in. upright
76.4 in. reclined, 31.8 in. wide, 244.6 lb
Three-year Titan Chair LLC warranty Free freight to the lower 48 Black, brown or taupe Rated to 270 lb
AmaMedic Hilux 4D Massage Chair, the 4D SL-track chair

How it works

Four parts of the chair worth understanding

The mechanism, the track it runs on, the heat in the roller and the air cells around it are what separate this chair from a two-dimensional one.

A 4D mechanism on an SL-track
A 3D mechanism moves up and down, side to side, and in and out. The fourth dimension is speed: the rollers change rhythm through a stroke and do not hold one pace. Eight intensity levels are selectable. The SL-track is the rail the rollers travel, 52.8 in. long, shaped to the curve of the spine at the top and continuing under the seat at the bottom.
Eight 4D levels
Heat in the roller itself
The back roller warms as it works, so the heat arrives where the roller is. It is infrared heat. On a long programme the warm area keeps travelling with the stroke, and no part of the chair holds heat against you once the roller has passed.
Heated back roller
Shoulder units that adjust to the frame
The shoulder massagers push inwards through three widths on each side. Push them fully in on both sides and they release back to the default. That range is what lets one chair suit a 4 ft 9 in. user and a 6 ft 4 in. one without a different model.
Three widths per side
Air massage at five intensities
Airbags sit at the shoulders, arms, waist, pelvis and calves, and compress while the rollers work the back. Five intensity levels are selectable, and the compression sits under the roller programme without competing with it. The footrest extends about 7.1 in. and moves on its own.
Five air levels

On the chair

What the Hilux 4D comes with

Every Hilux 4D leaves the factory on the same specification. Black, brown and taupe differ in the upholstery and in nothing else.

Two-stage zero gravity
Two reclined positions, both fully supported

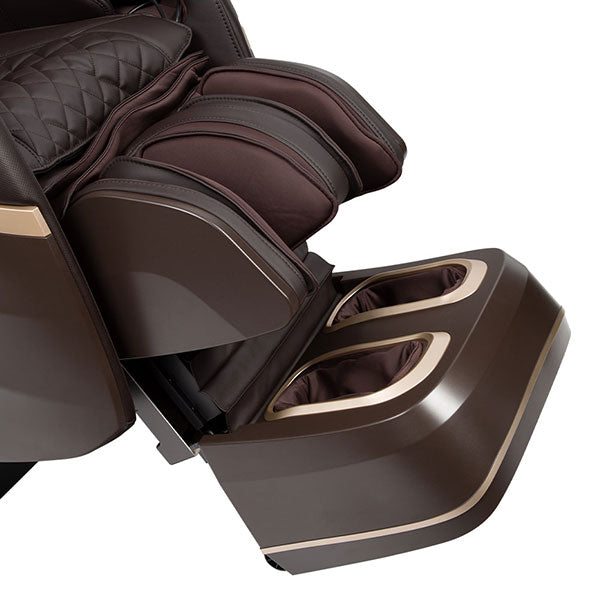

Auto extendable footrest
About 7.1 in. of travel, set without bending down

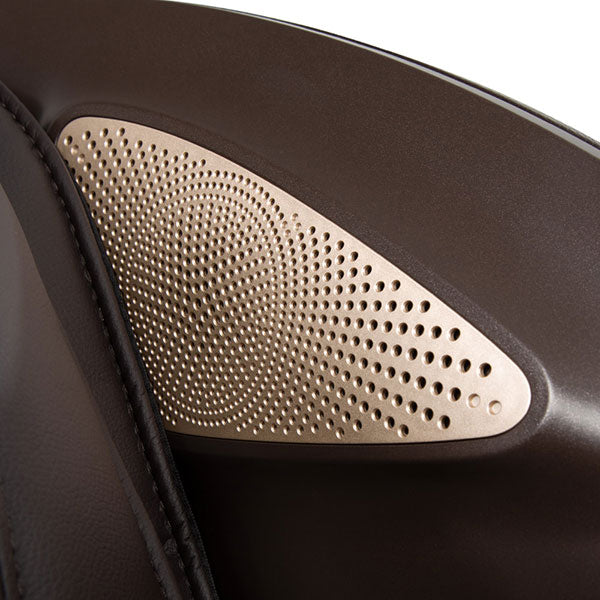

Bluetooth speakers
Your own audio through the chair

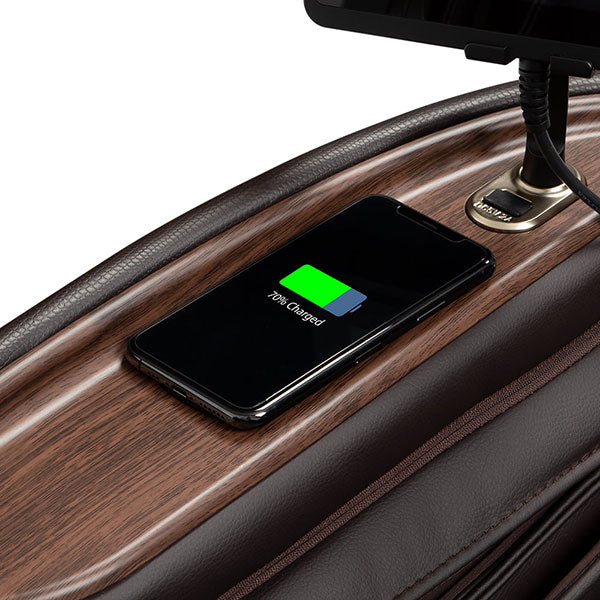

USB charging
A port within reach of the armrest
250W draw
Runs from an ordinary 110-120V outlet
15-minute programmes
The rated session length
Three colourways
Black, brown or taupe
Three-year warranty
Parts and labour in year one, parts in year two
AmaMedic Hilux 4D Massage Chair, the 4D roller and SL-track
Four dimensions

What 4D changes about a back massage

The fourth dimension is the one you notice on a long programme. A stroke that changes pace stops reading as a machine.

  • Rollers move up and down, side to side, in and out, and vary their speed through a stroke
  • Eight levels of 4D intensity, selected on the controller
  • 52.8 in. SL-track: S-shaped at the top to follow the spine, L-shaped at the bottom to continue under the seat
  • Five levels of air massage intensity alongside the roller programme
AmaMedic Hilux 4D Massage Chair, the heated back roller
Heat

Where the warmth comes from

The heat is in the roller, not in a pad behind the backrest. It travels down your back with the stroke and leaves with it.

  • The back roller itself heats, using infrared heat
  • The warm area travels with the stroke from the neck down

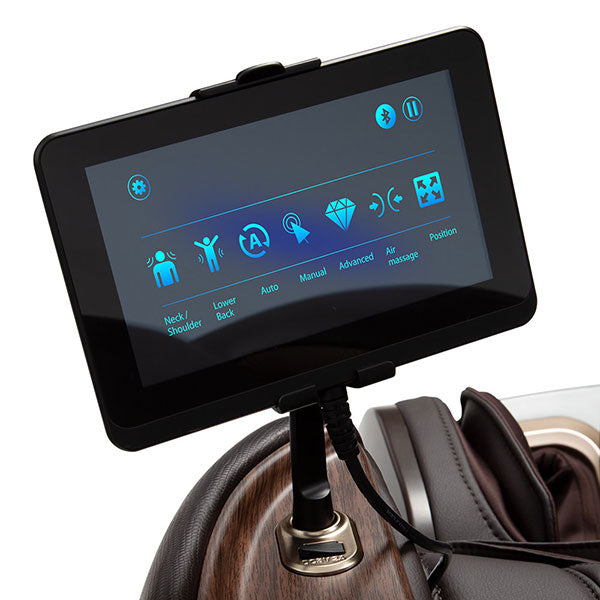

  • Heat is set from the controller alongside the programme
AmaMedic Hilux 4D Massage Chair, the shoulder and foot sections
Height range

Sizing the chair to the user and the room

Height is the figure this chair states outright, and the shoulder units cover the spread around it. The room has to give up 76.4 in. once the backrest goes down.

  • Recommended for users from 4 ft 9 in. to 6 ft 4 in., up to 270 lb
  • Shoulder units adjust through three widths on each side

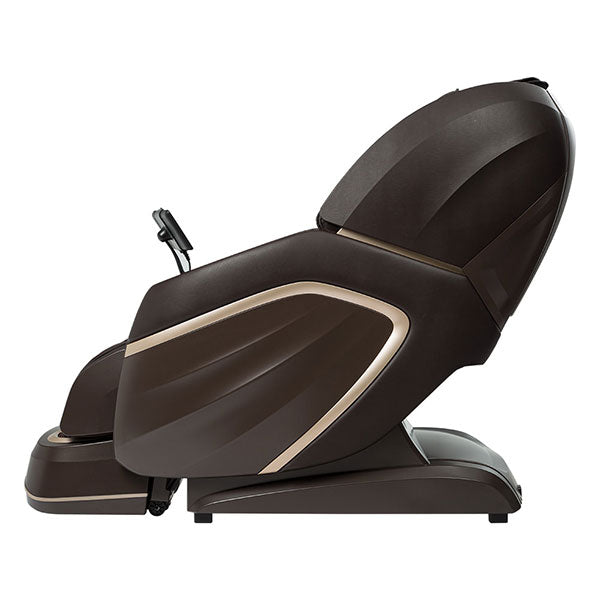

  • 62.2 in. long upright and 31.8 in. wide, standing 47.6 in. tall

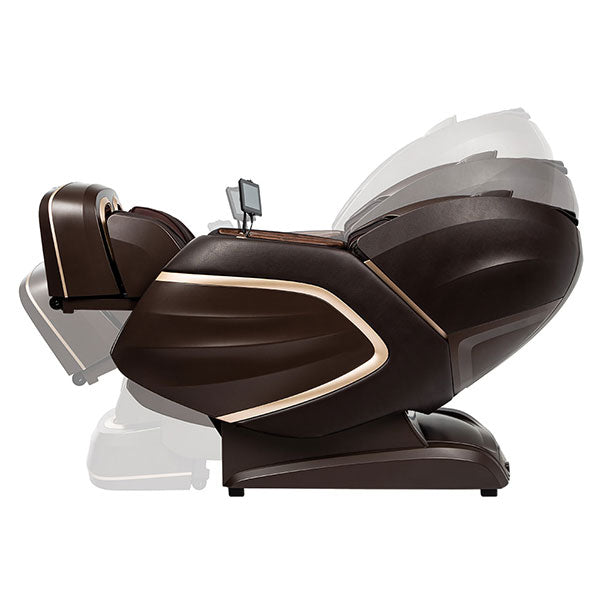

  • 76.4 in. long reclined, dropping to 42.5 in. tall
  • Backrest reclines through approximately 128 to 155 degrees; the footrest through approximately 9 to 75 degrees
  • The chair weighs 244.6 lb, so plan the route into the room before delivery day
AmaMedic Hilux 4D Massage Chair, the assembled 244.6 lb chair
Delivery

Getting 244.6 lb into the room

A standard outlet runs it and the 250W draw needs no dedicated circuit. What takes planning is the weight and the route in.

  • 110-120V, 60Hz, drawing 250W from an ordinary household outlet
  • Rated session length is 15 minutes
  • Free curbside freight to the 48 contiguous states in 7 to 10 days; threshold the same, white glove 10 to 16 days
  • White glove is a two-person team who carry up to two flights of stairs, unpack and install
  • Assembly takes 30 to 90 minutes

The lineup

The four AmaMedic chairs

Four chairs, and the mechanism is what separates them. Two run 4D, one runs 2D, and one uses eight fixed rollers.

AmaMedic R7 LE, the fixed-roller chair in the range
AmaMedic R7 LE
Eight fixed rollers with heat through the back, on a 29 in. wide frame.
8 fixed rollers Up to 250 lb 29 in. doorway
Shop the R7 LE
AmaMedic Vesper 2D, the 2D chair in the range
AmaMedic Vesper 2D
A 2D mechanism with heat at the lower back and calves, 54 in. long upright.
2D mechanism 151.8 lb chair Up to 264 lb
Shop the Vesper 2D
You're Here
AmaMedic Hilux 4D, the 4D chair on an SL-track
AmaMedic Hilux 4D
A 4D mechanism on a 52.8 in. SL-track, with a heated back roller.
4D on an SL-track 52.8 in. track 4 ft 9 in. to 6 ft 4 in.
Currently viewing
AmaMedic Ai Revive 4D, the chair with voice control
AmaMedic Ai Revive 4D
A 4D mechanism with voice control, and a scan that sets the rollers.
4D on an SL-style track Voice control 20 auto modes
Shop the Ai Revive 4D

Questions

Frequently asked questions

It means the rollers move in three directions and change speed as they go. A 3D mechanism moves up and down, side to side, and in and out; the fourth dimension is rhythm. The Hilux has eight selectable levels of it.
52.8 in. It is an SL-track, which means S-shaped at the top to follow the curve of your spine and L-shaped at the bottom so the stroke carries on under the seat and does not stop at the lower back.
4 ft 9 in. to 6 ft 4 in. is the recommended height range, and the rating is 270 lb. The shoulder units adjust through three widths on each side.
62.2 in. long and 31.8 in. wide upright, opening to 76.4 in. long when reclined. Measure against the reclined length and leave room to walk past it.
An ordinary household outlet. It runs on 110-120V at 60Hz and draws 250W, so no dedicated circuit and no electrician. Nothing else is needed beyond the outlet and the floor space.
The chair in parts for assembly, with its power cable and its remote tablet. The Bluetooth speakers, the USB port, the shoulder massagers and the heated back roller are all built into the chair itself.
Anyone over 270 lb, and anyone outside the 4 ft 9 in. to 6 ft 4 in. range the shoulder units are set for. A room that cannot give up 76.4 in. of length is the other reason to look at a shorter chair in the range.
Free curbside delivery by freight to the 48 contiguous states in 7 to 10 days. Threshold delivery puts it just inside the door on the same timing; white glove is a two-person team who carry it up to two flights of stairs, unpack and install, at 10 to 16 days.
Yes, and it takes 30 to 90 minutes. Check the box dimensions against your doorway before delivery day; this chair weighs 244.6 lb.
Three years, provided by Titan Chair LLC and not by AmaMedic. Parts and labour are covered in year one, parts in year two, and the structural framework for three years. Shipping costs, transit damage, modifications and commercial use are excluded.
  • Mechanism: 4D rollers, eight intensity levels
  • Track: SL-track, 52.8 in.
  • Air massage: Five intensity levels
  • Heat: Heated back roller, infrared
  • Power supply: 110-120V
  • Rated frequency: 60Hz
  • Rated power: 250W
  • Session length: 15 minutes
  • Dimensions upright: 31.8 in. W x 62.2 in. L x 47.6 in. H
  • Dimensions reclined: 31.8 in. W x 76.4 in. L x 42.5 in. H
  • Chair weight: 244.6 lb
  • Maximum user weight: 270 lb
  • Recommended user height: 4 ft 9 in. to 6 ft 4 in.
  • Footrest extension: Approx. 7.1 in., automatic
  • Recline angles: Backrest approx. 128 to 155; footrest approx. 9 to 75
  • Two-stage zero gravity: Two reclined positions, both fully supported
  • Auto extendable footrest: About 7.1 in. of travel, set without bending down
  • Bluetooth speakers: Your own audio through the chair
  • USB charging: A port within reach of the armrest
  • 250W draw: Runs from an ordinary 110-120V outlet
  • 15-minute programmes: The rated session length
  • Three colourways: Black, brown or taupe
  • Three-year warranty: Parts and labour in year one, parts in year two
  • Massage chair: AmaMedic Hilux 4D, packed for assembly
  • Remote tablet: Docks in the armrest
  • Power cable: For a 110-120V, 60Hz household outlet
  • Not included: Assembly, which takes 30 to 90 minutes
  • Not included: A phone for the Bluetooth speakers and the USB port
