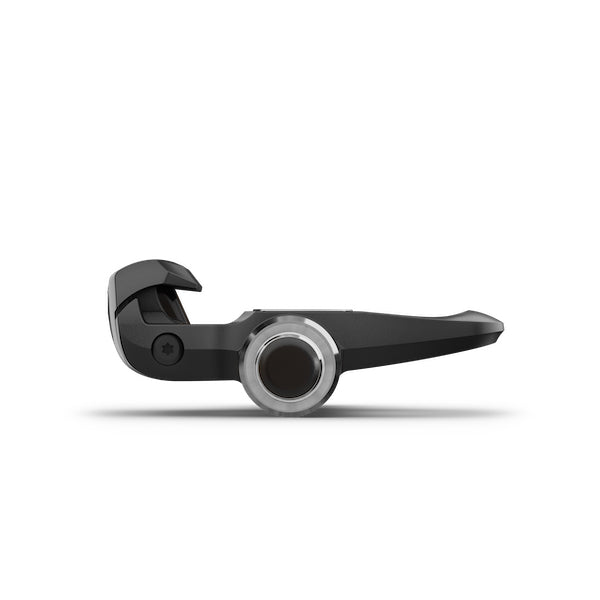

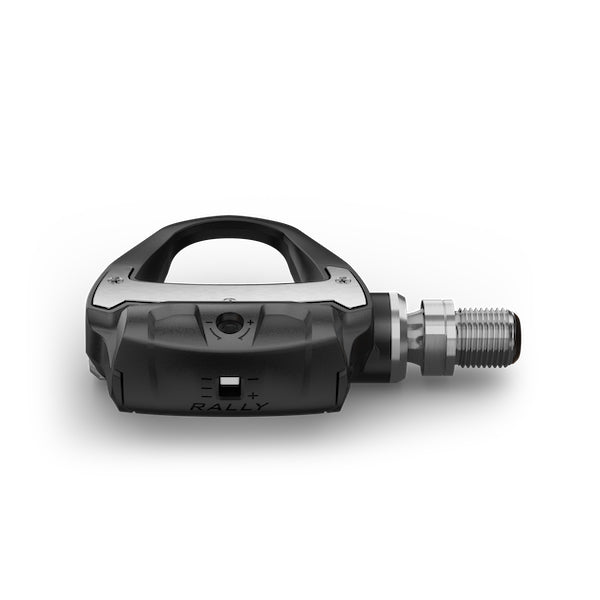

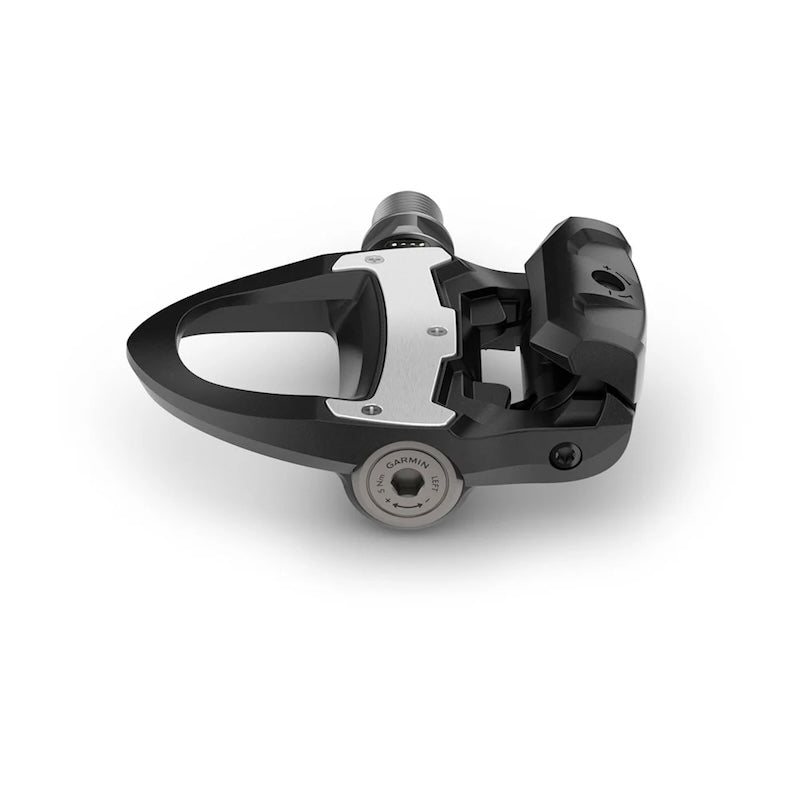

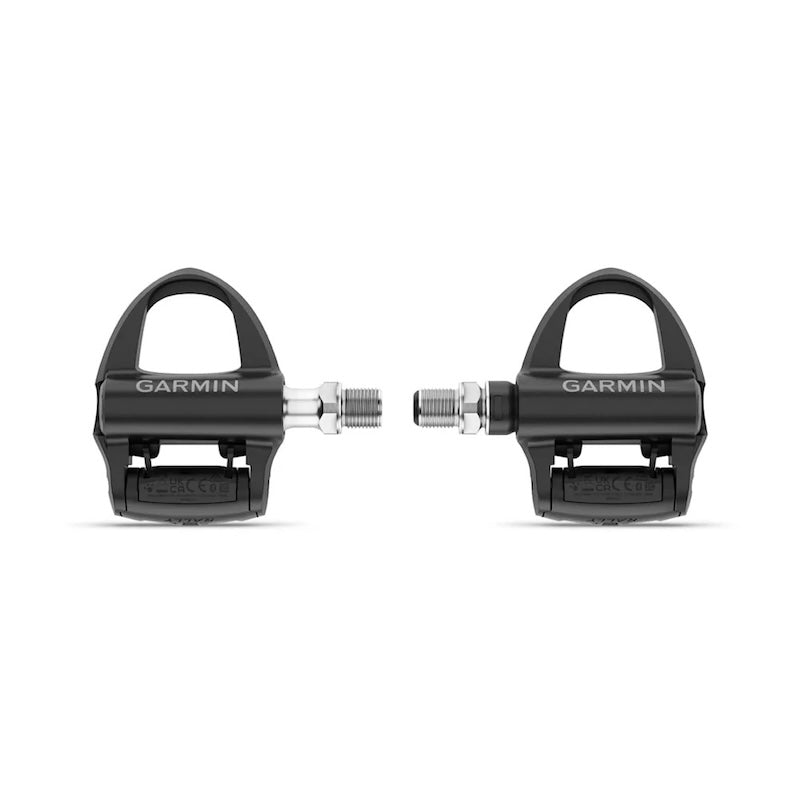

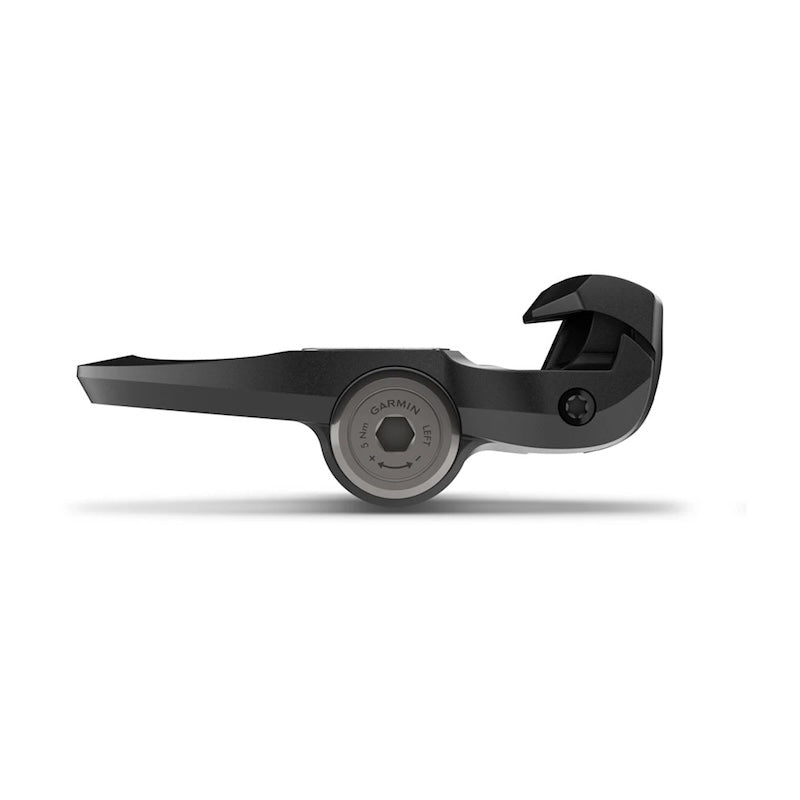

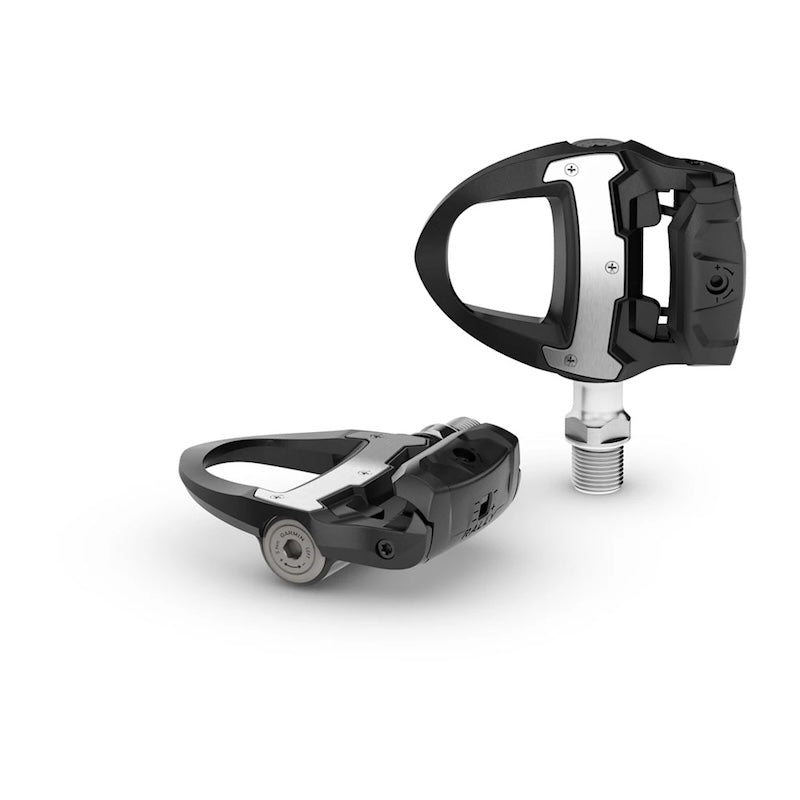

Garmin Rally RS110 Single-Sensing Power Meter
The Garmin Rally RS110 is a single-sensing road power meter pedal that delivers professional-grade accuracy and performance data for road cyclists at an accessible entry point. Featuring a reimagined strain gauge and added gyroscope, the Rally RS110 measures power and cadence to within +/- 1% accuracy — the same level of precision found in the dual-sensing XC210 — making it one of the most accurate single-sided power meters available for road cycling.
Compatible with SHIMANO SPD-SL cleats and oval chain rings, the RS110 installs like any standard pedal and pairs with the Pedal IQ smart calibration system, which monitors temperature changes and other variables to alert you exactly when calibration is needed, ensuring your data stays reliable session after session. When you're ready to unlock advanced cycling dynamics and left/right power balance, the RS110 is fully upgradeable to a dual-sensing system by simply adding the right-side sensor — no need to replace your existing hardware.
Wrapped in a lightweight all-carbon design with a pro-level aesthetic, the Rally RS110 is built to perform as well as it looks. The rechargeable pedals offer up to 90 hours of ride time per charge, with rapid charging that delivers 12 hours of ride time from just 15 minutes of charging — and a travel mode that puts the pedals to sleep to conserve battery during transport. The removable power sensor transfers quickly between Rally 110 and 210 road or off-road pedal bodies (sold separately or as a bundle), so one power meter investment works across your entire bike lineup year-round. Sync seamlessly with any compatible Garmin Edge cycling computer or the Garmin Connect app for automatic data uploads and firmware updates, and push your training data directly to Strava, TrainingPeaks, TrainerRoad, and the Tacx Training app for indoor riding sessions. For road cyclists who want a highly accurate, upgradeable, and transfer-ready power meter pedal with a carbon build, the Garmin Rally RS110 is the smartest starting point.
Specifications
General
- Weight: 320 g (11.3 oz)
- Stack Height: 12.2 mm (0.48")
- Adjustable Release Tension: Yes
- Water Rating: IPX7
- Maximum Rider Weight: 231.5 lbs (105 kg)
- Cleat Type: SHIMANO SPD-SL
- Q-Factor: 53 mm (55 mm with provided 2 mm washer)
- Quick Change Pedal Body: Compatible with all Rally 110/210 pedal bodies; 4 wrench flats
- Pedal Body Materials: Carbon material based design
- Force Data: Yes
- Battery Type: Rechargeable lithium-ion
- Quick Charge: 12 hours of use from 15 minutes of charging (USB-C required)
- Accuracy (+/-): 1%
- Battery Life: Up to 90 hours
- Temperature Compensation: Yes
- Oval Chainring Compatible: Yes
- Measurement Location: Spindle
- Field Calibration: Yes
- Communication: ANT+®, Bluetooth® and USB (USB-C compliant)
- Pedal IQ™ Smart Calibration: Yes
- Travel Mode: Yes
Garmin Connect™
- Garmin Connect™ Compatible: Yes
Features
- Easy to Transfer
This pedal-based power meter installs like any other pedal and can be quickly transferred between bikes. The removable power sensor is compatible with Rally 110 or 210 road or off-road pedal bodies (additional pedal bodies sold separately or as part of a bundle). - Reliable Readings
Gain deeper insights into your riding and training with accurate power and cadence measurements. - Highly Accurate
A redesigned strain gauge and integrated gyroscope provide responsive readings with accuracy within +/- 1%. - Pedal IQ™ Smart Calibration
Receive alerts when calibration is needed based on factors such as temperature changes since the last calibration when paired with compatible Garmin devices. - Long Battery Life
Rechargeable pedals deliver up to 90 hours of ride time. Quick charging provides up to 12 hours of use with just 15 minutes of charging, while travel mode conserves battery during transport. - Durable Carbon Design
Built with an all-new carbon construction that is lighter, stronger, and designed with a sleek, professional look. - Force Data Analysis
Gain insights into the relationship between power and cadence to better understand your cycling performance. - Fully Connected
Pair with compatible Edge® cycling computers and the Garmin Connect™ app for easy data uploads and software updates. - Upgradeable System
Upgrade later to a dual-sensing system to unlock additional cycling metrics and advanced performance insights. - Train With Your Favorite Apps
Sync your ride data with platforms such as Strava, TrainingPeaks®, TrainerRoad, and more while viewing detailed performance insights in Garmin Connect. - Oval Chainring Compatible
Works seamlessly with oval chainrings to maintain accurate power measurements. - Tacx® Training Compatible
Connect to the Tacx Training™ desktop app to ride famous routes, complete workouts, and enhance indoor training sessions.
What's Included
- Rally RS110 pedal-based power meter
- Charging clip and charging cable
- SHIMANO SPD-SL compatible cleats
- Hardware
- Documentation
