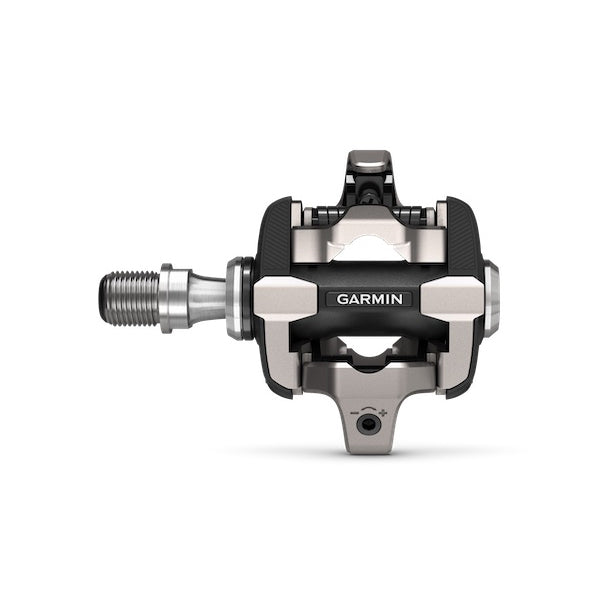

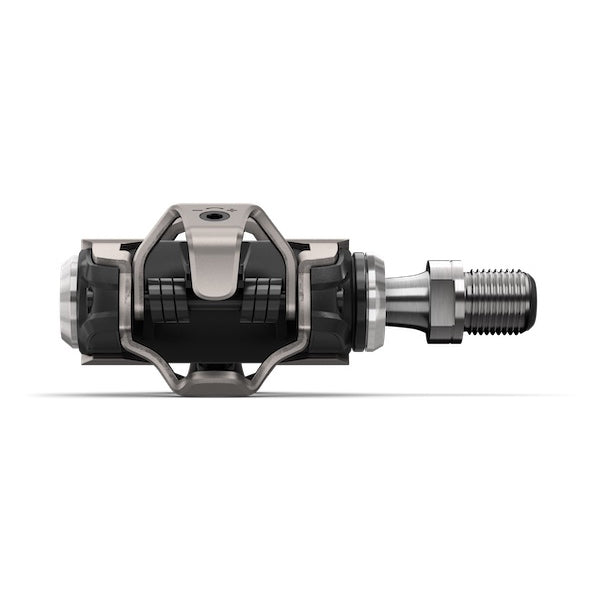

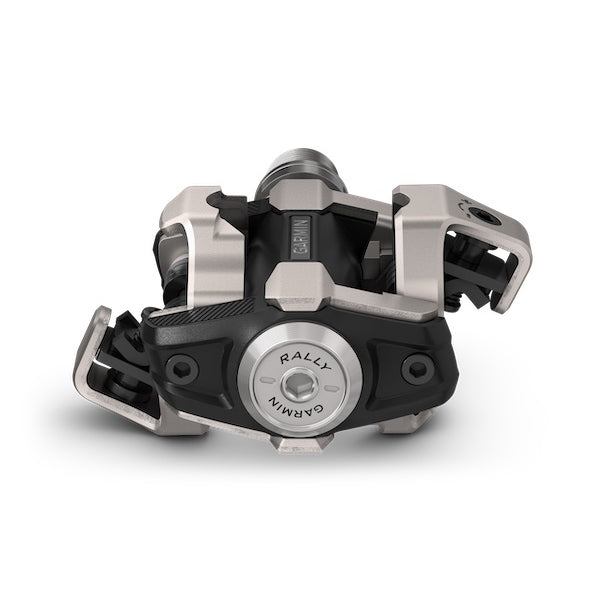

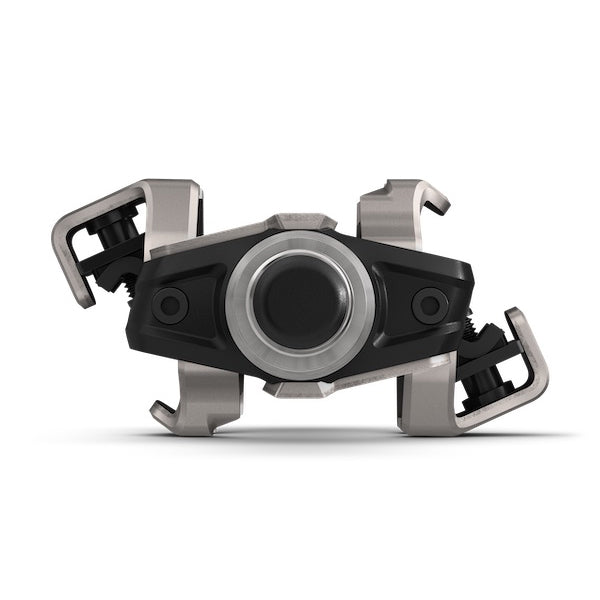

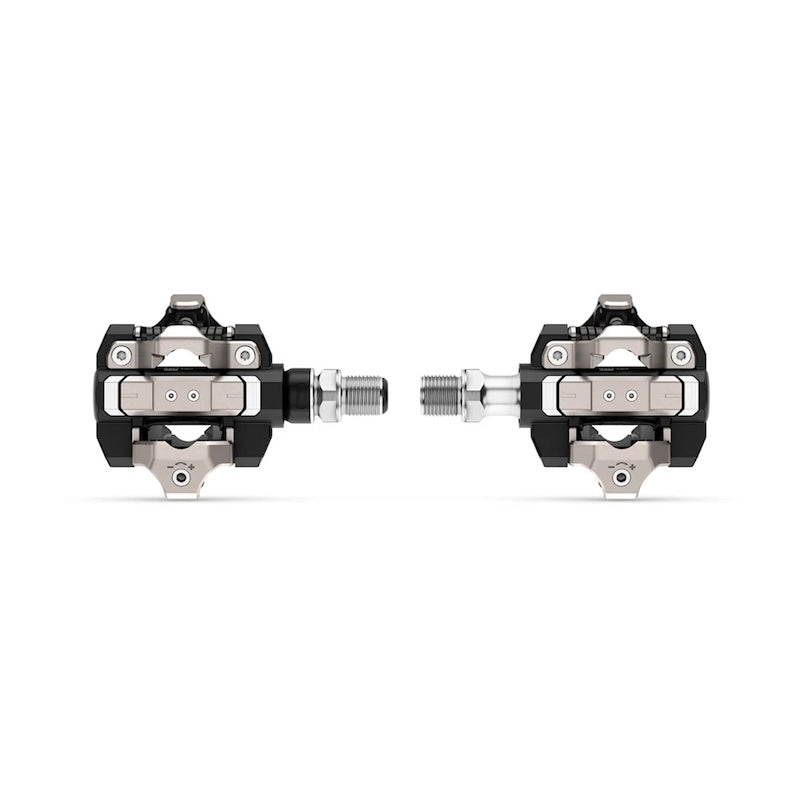

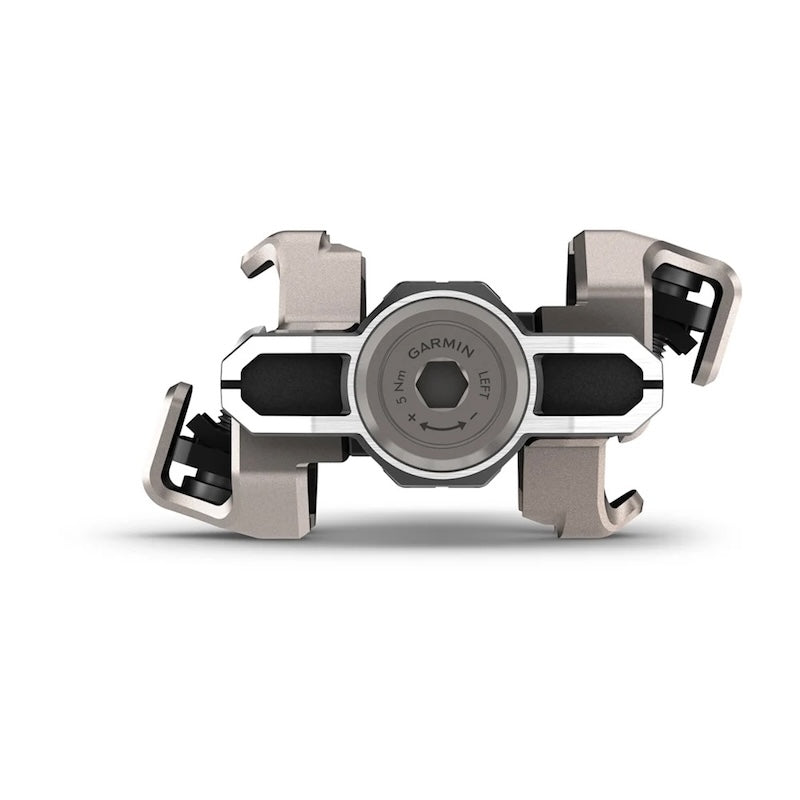

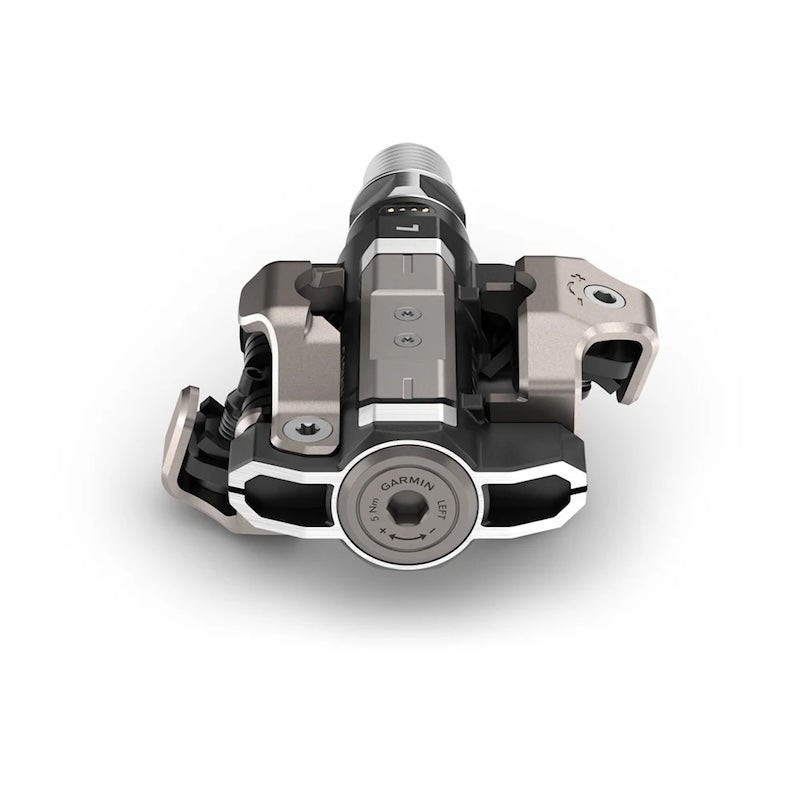

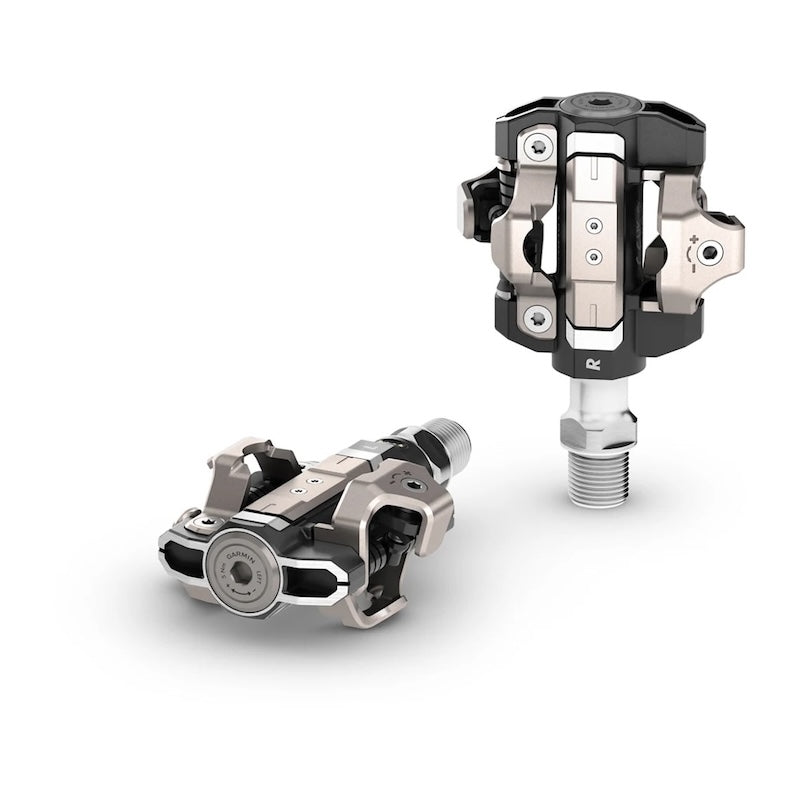

Garmin Rally XC110 Power Single-Sensing Power Meter
The Garmin Rally XC110 is a single-sided power meter pedal built specifically for off-road cycling — including mountain biking, gravel, and cyclocross — delivering accurate power and cadence measurement in a trail-ready pedal that installs and transfers between bikes as easily as any standard pedal. Compatible with SHIMANO SPD cleats, the Rally XC110 measures force on the left pedal and doubles it to calculate total power output, giving cyclists the performance data they need to train with precision and race with confidence.
With up to 120 hours of battery life, the XC110 is engineered for long training blocks, back-to-back rides, and demanding race schedules without interruption. When you're ready to unlock deeper performance metrics, the Rally XC110 is fully upgradeable to a dual-sensing system by adding the right-side pedal sensor (sold separately) — no need to replace your existing unit.
Designed for cyclists who ride more than one bike, the Rally XC110 features a transferable spindle that moves quickly between builds — road, gravel, cyclocross, and more — making it one of the most versatile and cost-effective power meter solutions available. The sensors are housed inside the pedal body for maximum protection against the mud, debris, and impacts of off-road riding, and the pedal has been rigorously tested for long-term reliability in harsh conditions. Pair the XC110 with any Garmin Edge cycling computer or the free Garmin Connect app for seamless firmware updates, automatic data sync, and integration with popular third-party training platforms including Strava, TrainingPeaks, and Zwift. For off-road cyclists looking for a reliable, transferable, and upgradeable power meter pedal with proven Garmin accuracy, the Rally XC110 is the clear choice.
Specifications
General
- Weight: 444 g (15.7 oz)
- Stack Height: 11.5 mm (0.45")
- Adjustable Release Tension: Yes
- Water Rating: IPX7
- Maximum Rider Weight: 231.5 lbs (105 kg)
- Cleat Type: SHIMANO SPD
- Q-Factor: 53 mm (55 mm with provided 2 mm washer)
- Quick Change Pedal Body: Compatible with all Rally 110/210 pedal bodies; 4 wrench flats
- Pedal Body Materials: All metal pedal body
- Force Data: Yes
- Battery Type: Rechargeable lithium-ion
- Quick Charge: 12 hours of use from 15 minutes of charging (USB-C required)
- Accuracy (+/-): 1%
- Battery Life: Up to 90 hours
- Temperature Compensation: Yes
- Oval Chainring Compatible: Yes
- Measurement Location: Spindle
- Field Calibration: Yes
- Communication: ANT+®, Bluetooth®, and USB (USB-C compliant)
- Pedal IQ™ Smart Calibration: Yes
- Travel Mode: Yes
Garmin Connect™
- Garmin Connect™ Compatible: Yes
Features
- Impeccably Designed Pedal
Rally power meters are rigorously tested for reliability. Sensors are housed inside the pedal for a clean design that installs like a standard pedal and can be easily transferred between bikes. - Reliable Readings
Measures cadence and force on the left pedal to calculate total power output. Riders can upgrade later to the dual-sensing system (sold separately) for additional metrics. - Cleat Compatibility
Designed to work with SHIMANO SPD cleats for a comfortable and familiar riding experience. - Transferable Spindle
Ride across road, gravel, cyclocross and more with a transferable spindle compatible with Rally™ RS and Rally™ RK pedal body kits (sold separately). - Battery Life
Up to 120 hours of battery life to support long rides and extended training sessions. - Fully Connected
Pair with compatible Edge cycling computers and the Garmin Connect™ app for easy data uploads and software updates. - More Ways to Train
Sync power data with third-party training platforms such as Strava, TrainingPeaks®, TrainerRoad and more.
What's Included
- Rally XC110 pedal-based power meter
- Charging clip and charging cable
- SHIMANO SPD compatible cleats
- Hardware
- Documentation
