HUUM Wood Stove Barrel Chimney Kit

Sauna Barrel Wood Stove Chimney Kit

This barrel chimney set is designed to extend straight up through the ceiling and is designed for use with HUUM wood-fired sauna stoves inside Barrel saunas. The set includes a single-wall 0.25m pipe, a welded chimney base, a double-wall 0.5-meter chimney, a cover plate in two parts for the ceiling, double-wall straight pipe 1 meter, universal rubber roof flashing, a rain collar, and a chimney cap.

Features

• Through ceiling
• Compatible with all HUUM wood sauna stoves
• Stainless steel
• Designed for Barrel sauna use
• Mounts in vertical position
• Works with smaller fireplaces
• Designed, engineered, and made in Estonia
• Limited 5-year warranty

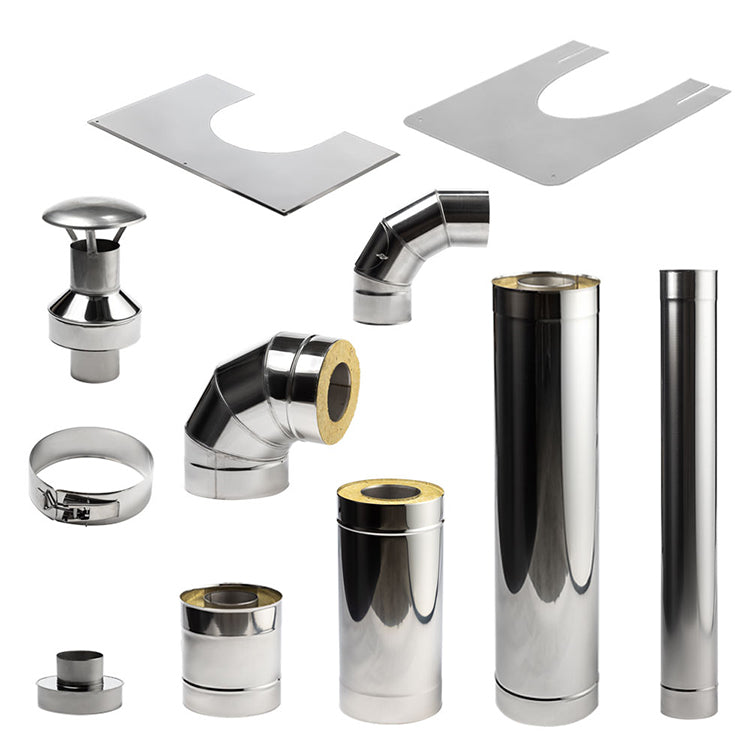

What's Included

• Single-wall pipe
• Welded chimney base
• Double-wall chimney
• Inclined ceiling cover plates (2 parts)
• Double-wall straight pipe
• Universal rubber roof flashing
• Rain collar
• Chimney cap
• Installation manual
• 5 year limited warranty

Specifications

• Single-wall pipe length: 9.8" (250mm)
• Double-wall chimney length: 19.7" (500mm)
• Double-wall straight pipe length: 39.37" (1000mm)
• Roof Flashing material: Universal rubber
• Material: Stainless Steel
• Total Length: 78.7" (2000mm)
