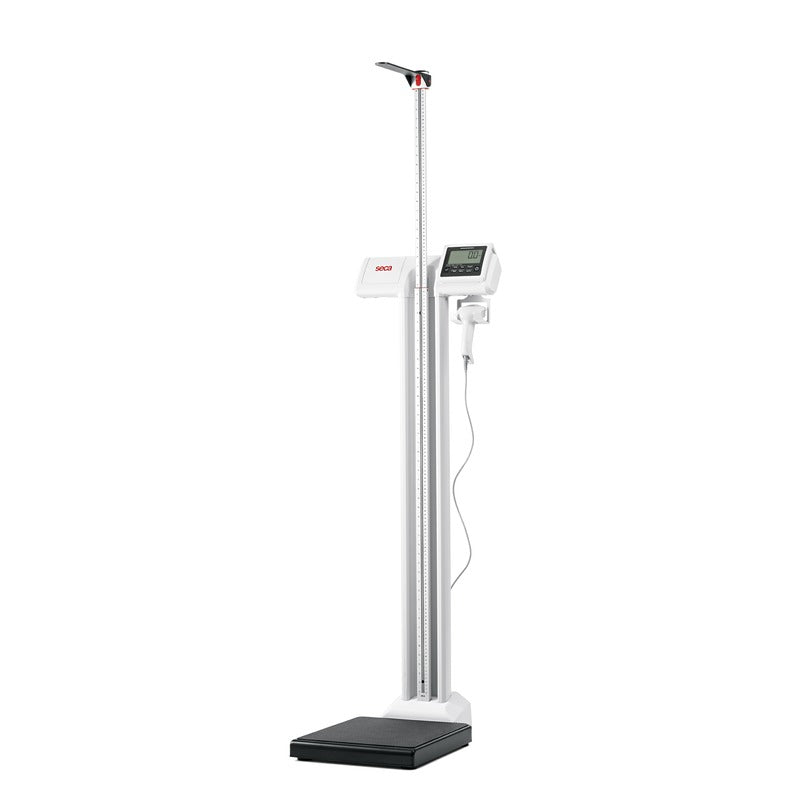

seca 787 Digital Column Scale with Digital Measuring Rod and EMR Connectivity

seca 787 Digital Column Scale with Digital Measuring Rod and EMR Connectivity

Name: seca 787 Digital Column Scale with Digital Measuring Rod and EMR Connectivity
Brand: Seca
SKU: 787-1821-004
Price: 539.0 USD
Availability: InStock

by Seca

$539.00 - $539.00

$539.00

$539.00 - $539.00

$539.00

✓ Authorized Seca Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

Seca · Column Scale · 787

The networked column scale that sends height and weight straight to the EMR.

A tilt-proof full-metal platform, a digital measuring rod with extra-long range, a two-line eye-level display, and EMR-validated transmission — pushed to your record system over the network when paired with the seca 452 module.

The 787 sits in the same physical chassis as the 777 — single-piece column, full-metal base, 8-year warranty — but it adds the parts that matter when readings have to land in a chart instead of a notebook. The digital measuring rod replaces the mechanical one. The display shows weight and height on the same screen, with BMI calculated automatically. At the press of a button, the values move from the scale into the EMR with patient and user identification handled by an optional barcode scanner.

Four pieces of hardware engineered to feed a digital workflow

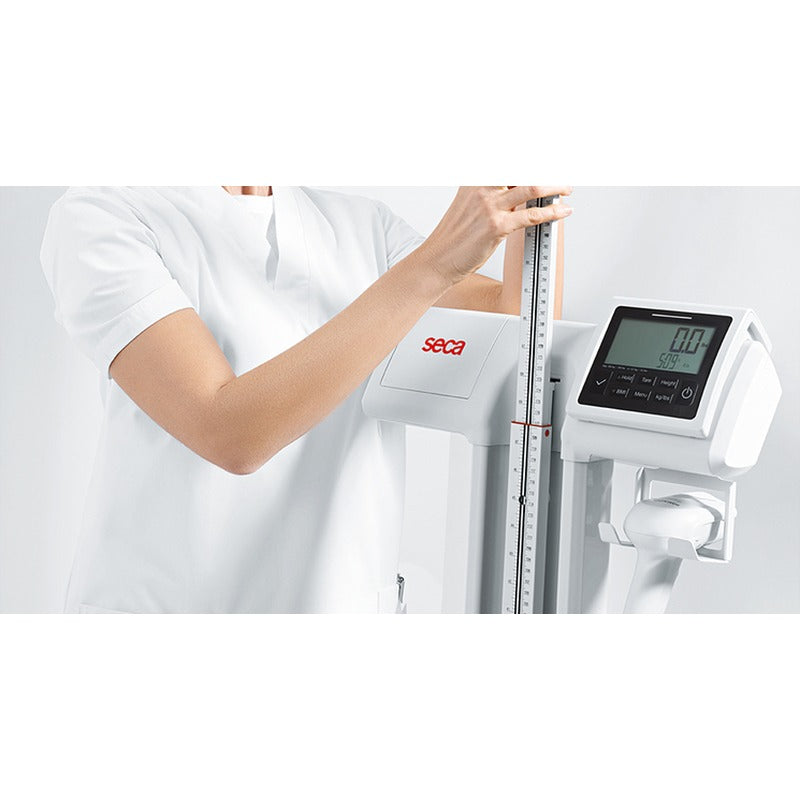

Digital measuring rod

Total range 4 – 90 in (10 – 230 cm), with the digital reading active across 48 – 90 in (122 – 230 cm) and 1/8 in (1 mm) graduation. Height appears on the display the moment it's set — no eyeballing a tape, no transcription step.

Two-line eye-level display

Weight and height shown simultaneously. Auto-BMI computes the index from both values without leaving the screen, so the clinician reads three numbers at one glance instead of switching contexts.

EMR-validated transmission

Measured values are validated for direct delivery into Electronic Medical Record systems. At the push of a button, weight, height, and BMI move from the scale to the EMR — no manual entry, no transmission errors.

Damping + Auto-HOLD

Adjustable damping settles the reading even when the patient sways, and Auto-HOLD locks the value automatically at the right moment. Quick reads on calm patients, stable reads on patients who can't hold still.

Why clinics specify the 787 over a non-networked scale

Eliminates transcription as a failure mode

A USB barcode scanner identifies patient and user, the network module sends the reading directly into the EMR, and the measurement is correctly assigned at the source — not reconciled later by someone reading handwriting.

One screen, three values

Weight, height, and Auto-BMI on a single display means the clinician finishes the measurement in one read instead of three.

Built like the 777, but networked

Tilt-proof full-metal platform, single-piece column, large rubber-coated castors, and the same 8-year warranty — four times the industry standard.

Scales with your network plan

Add the seca 452 interface module when you're ready to connect over Wi-Fi or Ethernet. The scale is prepared for it from day one; you choose when to switch the link on.

Specifications

Scale

Capacity550 lbs / 250 kg

Graduation0.2 lb / 100 g

Overall (W × H × D)16.1 × 53.4 × 22.7 in (410 × 1,356 × 576 mm)

Platform (W × H × D)13.8 × 2.3 × 16.5 in (350 × 59 × 418 mm)

Net weight28.4 lbs / 12.9 kg

DisplayEye-level, two-line — weight and height simultaneously

Measuring rod (included)

Total range4 – 90 in (10 – 230 cm)

Digital range48 – 90 in (122 – 230 cm)

Graduation1/8 in / 1 mm

Power & connectivity

Power supply6 × AA batteries; power adapter (seca 401) optional

InterfacesWi-Fi / Ethernet — optional with seca 452 module

EMREMR-validated — direct transmission of measured values into Electronic Medical Record systems

Functions

Measurement controlsTARE, HOLD, Auto-HOLD, Automatic switch-off

Unitslbs/kg switch-over (and lock), cm/inch switch-over

CalculationsAuto-BMI

DampingAdjustable

MobilityTransport castors — large, rubber-coated

Warranty

Coverage8 years — four times the industry standard

Optional accessories

Network moduleseca 452 — Wi-Fi / Ethernet interface for EMR integration

Handrailseca 477 — 16.9 × 44.2 × 12.2 in, 8.8 lbs

Pediatric pandaseca 459 — Panda bear "Bao Bao" for measuring children

Power adapterseca 401

Barcode scannerAvailable from a third-party vendor; not included

Frequently asked questions

Same chassis, same capacity, same warranty. The 787 adds: a digital measuring rod, a two-line display that shows weight and height simultaneously, Auto-BMI, Auto-HOLD with adjustable damping, and EMR-validated transmission over Wi-Fi or Ethernet via the optional seca 452 module. Choose the 787 when readings need to land in an EMR; choose the 777 when a USB-to-PC connection or no connection at all is sufficient.

The 787 is validated to send measured values directly into Electronic Medical Record systems — at the push of a button, height, weight, and BMI move to the EMR where they're available to every authorised user immediately. Manual transcription drops out of the workflow.

By adding the seca 452 interface module, which provides Wi-Fi or Ethernet connectivity. The 787 is prepared for the 452 from the factory — install the module when you're ready to bring the scale onto the network.

Through a USB barcode scanner (available from a third-party vendor, not included). Scanning the patient wristband and user badge binds the measurement to the right record at the source, eliminating misassignment.

Eight years — four times the industry standard. Seca engineers the 787 against an internal endurance benchmark of more than ten years of daily clinical use.

Yes. Total range is 4 – 90 in (10 – 230 cm) with 1/8 in (1 mm) graduation. The digital portion covers 48 – 90 in (122 – 230 cm) — below that, height is read on the rod itself. The optional seca 459 panda bear is a pediatric accessory for measuring children.

Yes. The tilt-proof full-metal platform keeps the surface level when a patient steps on at the edge. For patients needing extra support, the optional seca 477 handrail mounts to the scale.

No. The 787 runs on 6 × AA batteries. A power adapter (seca 401) is available as an optional accessory.

Scale

Capacity: 550 lbs / 250 kg

Graduation: 0.2 lb / 100 g

Overall (W×H×D): 16.1 × 53.4 × 22.7 in (410 × 1,356 × 576 mm)

Platform (W×H×D): 13.8 × 2.3 × 16.5 in (350 × 59 × 418 mm)

Net Weight: 28 lbs / 12.7 kg

Display: Two-line eye-level — simultaneous height and weight

Digital Measuring Rod

Range: 0.4–90.5 in (1–230 cm)

Graduation: 1/8 in / 1 mm

Power & Connectivity

Power: 6 × AA batteries; power adapter (seca 401) optional

Interfaces: Wi-Fi, Ethernet via seca 452 module; USB

EMR: EMR-validated — transmits height, weight, BMI to electronic records

Functions

Measurement: TARE, HOLD

Calculations: BMI

Units: lbs/kg with switch-over lock

Mobility: Large rubber-coated transport castors

Warranty

Coverage: 8 years — four times the industry standard

Optional Accessories

Network module: seca 452 — Wi-Fi/Ethernet for EMR transmission

Handrail: seca 477

Pediatric panda: seca 459 — Panda bear 'Bao Bao'

Power adapter: seca 401

550 lbs / 250 kg capacity with 0.2 lb / 100 g graduation
Digital measuring rod: 0.4–90.5 in (1–230 cm), 1/8 in / 1 mm graduation — simultaneous height and weight on the two-line display
EMR-validated — transmits height, weight, and BMI directly to electronic records over Wi-Fi or Ethernet via seca 452 module
Tilt-proof full-metal platform — stable for bariatric patients at the platform edge
Eye-level two-line display shows height and weight at the same time
Single-piece column — rigid under hand pressure, no section joints
Large rubber-coated transport castors and wide wheelbase for room-to-room mobility
BMI auto-calculation
8-year warranty — four times the industry standard
Covers pediatrics to bariatric patients on one instrument

seca 787 column scale unit
Integrated digital measuring rod
6 × AA batteries
