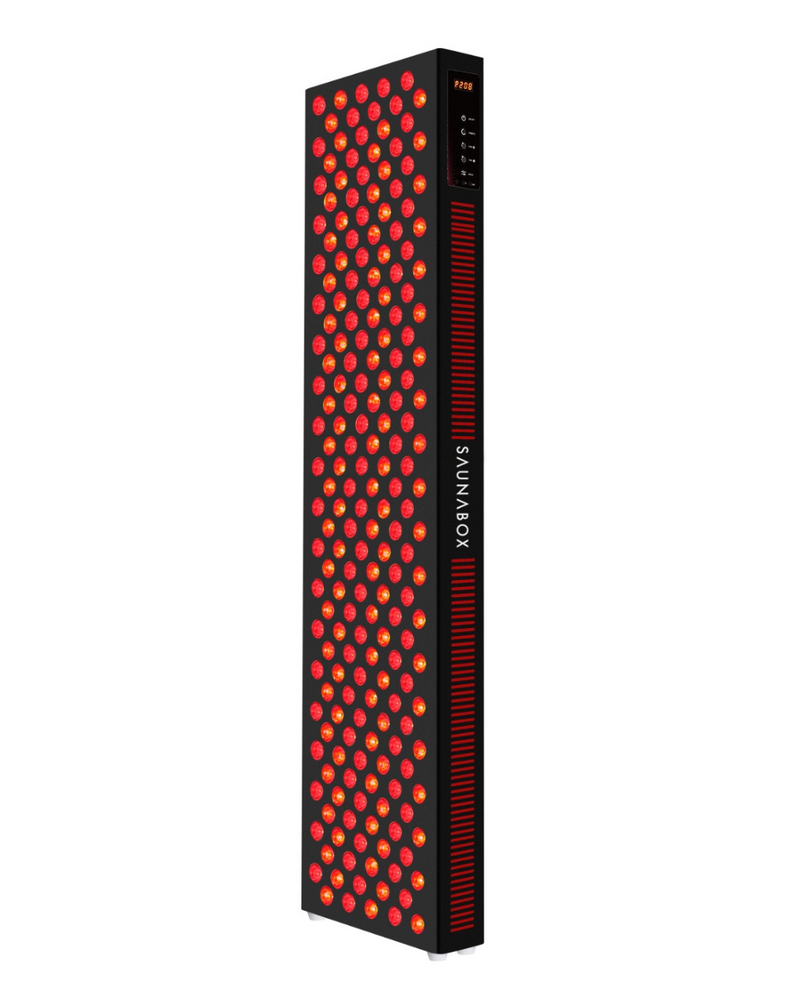

SaunaBox Nova XL, tall slim panel with grid of red lights

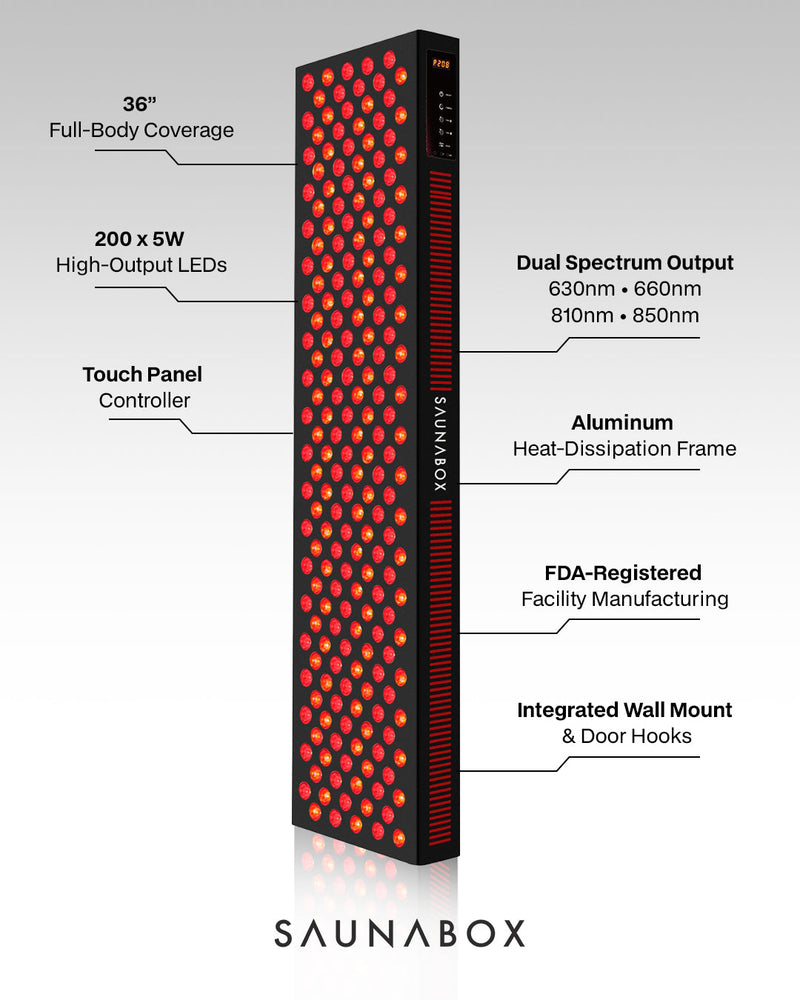

SaunaBox Nova XL, tall panel with six labelled specifications
SaunaBox Nova XL, wavelength chart comparing eight bands
SaunaBox Nova XL, man sitting cross-legged beside the wall-mounted panel

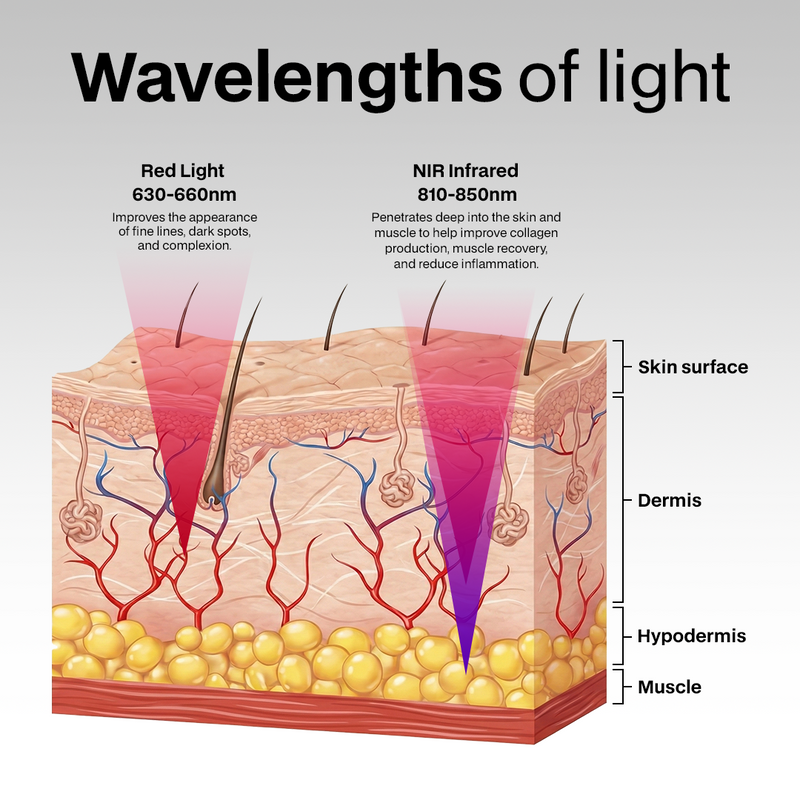

SaunaBox Nova XL, wavelengths of light layer diagram
SaunaBox Nova XL, wall panel lighting a woman training with a kettlebell

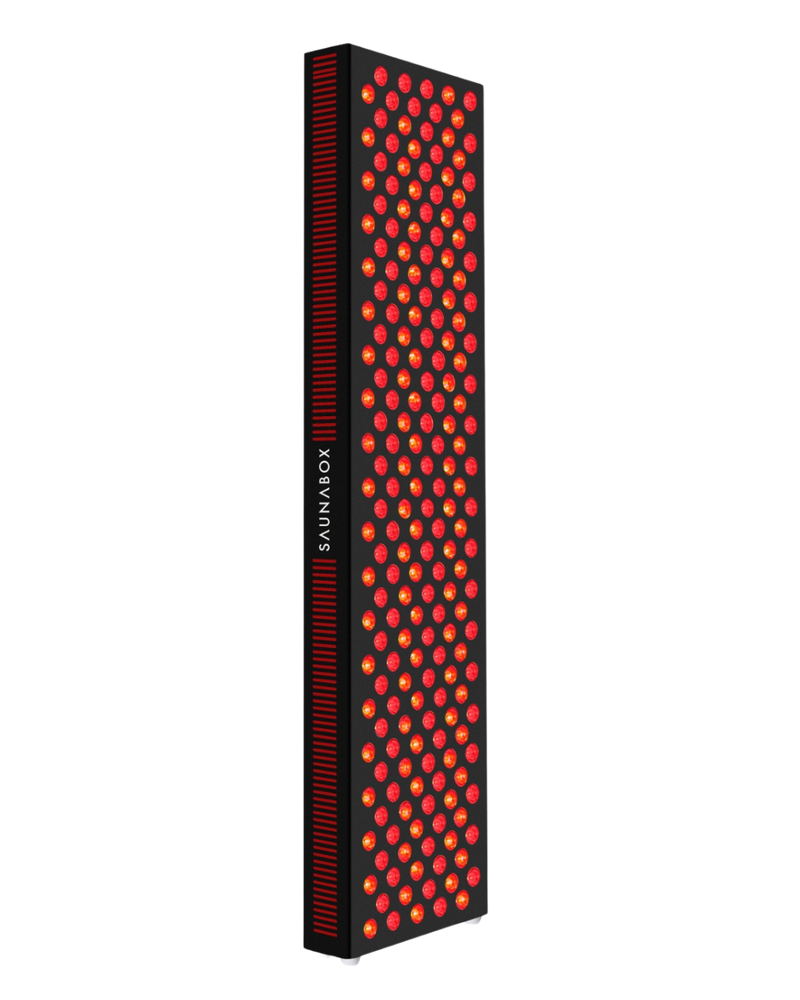

SaunaBox Nova XL, tall panel standing at a slight tilt on white
SaunaBox Nova XL, woman seated on a mat beside the panel at a sunset window
SaunaBox Nova XL, wall-mounted panel by a sunset window
SaunaBox Nova XL, woman in a low lunge beside the wall panel
SaunaBox Nova XL, tall slim panel with grid of red lights
SaunaBox Nova XL, tall panel with six labelled specifications
SaunaBox Nova XL, wavelength chart comparing eight bands
SaunaBox Nova XL, man sitting cross-legged beside the wall-mounted panel
SaunaBox Nova XL, wavelengths of light layer diagram
SaunaBox Nova XL, wall panel lighting a woman training with a kettlebell
SaunaBox Nova XL, tall panel standing at a slight tilt on white
SaunaBox Nova XL, woman seated on a mat beside the panel at a sunset window
SaunaBox Nova XL, wall-mounted panel by a sunset window
SaunaBox Nova XL, woman in a low lunge beside the wall panel

SaunaBox Nova XL: Full Body Red Light Panel with Near Infrared

by SAUNABOX
Save 38% Save 38%
$1,299.00
$1,299.00 - $1,299.00
$1,299.00
$799.00
$799.00 - $799.00
$799.00

✓ Authorized SAUNABOX Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

SaunaBox Nova XL red light

SaunaBox Nova XL: Full Body Red Light Panel with Near Infrared

The SaunaBox Nova XL: Full Body Red Light Panel with Near Infrared is a full-body red light panel that covers 36 inches top to bottom with four wavelengths at once. Red bands at 630 and 660nm work at the surface. Near-infrared bands at 810 and 850nm reach into the deeper tissue, so one session covers both layers. Its 200 LEDs draw 315W from a standard 110/120V outlet, so a full-body session needs no special wiring. It mounts on a wall or over a door with the included hardware.

An aluminum heat-dissipation frame keeps the full-body Nova XL silent under load. It is manufactured in an FDA-registered facility with ultra-low EMF components and is CE, FCC and RoHS certified.

Wavelengths
630-850nm
630, 660, 810 and 850nm
LEDs
200 x 5W
315W actual draw
Irradiance
194 mW/cm²
at 3 in.
Size
36 x 9.1 in.
2.6 in. deep
Four wavelengths Floor stand included Door and wall mount Protective eyewear
SaunaBox Nova XL, wall panel lighting a woman training with a kettlebell

Nova XL light

How it works

Red and near-infrared bands
The two red wavelengths target surface-level effects: collagen, skin tone and fibroblast activity. The two near-infrared wavelengths penetrate deeper into muscle, joint and connective tissue, and all four run in parallel so one session reaches both layers.
630, 660, 810, 850nm
LED density
The 5W diodes run the full length of the panel. The rated LED power class is 1000W, while the actual outlet draw is 315W thanks to efficient driver design.
1000W LED power class
Focusing lens for deeper penetration
The precision 30° optical lens concentrates output where you are actually treating, and higher irradiance means the same dose in less time.
30° lens
Aluminum heat-dissipation frame
The frame keeps the panel quiet and the LEDs at their rated output across the session, with zero noise from a fan.
Silent running

Where the light goes

Key features

Skin health and collagen
Red bands for skin tone and elasticity
Muscle recovery
Near-infrared after physical activity
Reduced inflammation
All four bands, skin and soft tissue
Circulation and energy
Mitochondrial ATP and oxygen delivery

Using the Nova XL

How to use it

SaunaBox Nova XL, woman in a low lunge beside the wall panel
Full-body coverage

The whole body in one session

The panel is sized to treat the whole torso, both quads or the full back in a single session, so you do not have to treat one area and then move the panel for the next. All four wavelengths run together the whole time.

At 12 in., roughly 1-2 minutes covers skin and collagen work and 3-9 minutes covers deeper tissue and joints, which keeps a daily session short.

  • Irradiance of 194 mW/cm² at 3 in., 142 at 6 in. and 117 at 9 in.
  • Still 107 at 12 in. and 94 at 18 in.
SaunaBox Nova XL, wall-mounted panel by a sunset window
Mounting and controls

Wall, door or floor stand

Wall-mount the panel where you want a permanent dose station, hang it from an over-the-door hook when space is tight, or set it on the included floor stand. The touch-panel controller on the front handles session start, session length and diode band selection at your fingertips.

  • Integrated wall mount and door hooks
  • Touch panel controller

SaunaBox Nova panels

How it compares

The Desktop Nova covers the face and spot areas with two wavelengths; the XL covers the body with four.

SaunaBox Nova Desktop, red light panel on its desktop stand
Nova Desktop
A compact red light panel for the face and targeted areas.
60 x 5W LEDs 660nm + 850nm 12.3 x 9 in. Desk stand and wall mount
Shop the Nova Desktop
You're Here
SaunaBox Nova XL, tall slim panel with grid of red lights
Nova XL
A full-body panel with four wavelengths.
200 x 5W LEDs 630, 660, 810 and 850nm 36 x 9.1 in. Wall mount
Currently viewing

Nova XL questions

Frequently asked questions

The Nova XL red light panel, a power cable, the adjustable door and wall mount, a floor stand, protection eyewear and a user guide with distance, session length and mounting guidance.
The Nova XL adds 630 and 810nm to the 660 and 850nm of the Desktop Nova, spreads them across 200 LEDs where the Desktop has 60, and covers 36 inches for full-body work in a single dose. The Desktop Nova is sized for the face, joints or spot treatments, and both are manufactured in an FDA-registered facility with a 30° focusing lens.
The red band stimulates fibroblast activity and boosts collagen and elastin, for firmer skin and a visible reduction in the appearance of wrinkles, fine lines and sagging, and helps fade the look of sun damage, acne scars and pigmentation. The near-infrared band penetrates deeper into muscles, joints and connective tissue to support cellular repair and speed recovery after physical activity, reducing oxidative stress, increasing ATP production and easing muscle soreness. All four wavelengths modulate inflammatory markers and improve microcirculation to reduce inflammation in skin and soft tissues. Activating cytochrome c oxidase in the mitochondria helps cells work more efficiently, with better delivery of oxygen and nutrients to deeper tissues.
Stand 6-18 in. away. Closer gives higher intensity and deeper penetration, and stepping back spreads a gentler dose over the full coverage area.
Red and near-infrared light are non-invasive and non-UV, and the Nova XL is CE, FCC and RoHS certified. Included protection eyewear is recommended for direct-view sessions.
No. The Nova XL plugs into any standard 110/120V outlet.
Use it 4-6 days per week, in a morning routine or after a workout; the full-body coverage keeps daily sessions time-efficient.
Yes. You'll feel a gentle warmth from the red light. The near-infrared penetrates deeper and works below the surface without a perceptible sensation, so the effect shows up afterward, not during.
The panel measures 36 x 9.1 x 2.6 in. (91 x 23 x 6.6 cm). It goes on a wall with the integrated mount or over a door with the hooks.
SaunaBox backs the Nova XL with a 1-year limited warranty. It covers defects in materials and workmanship.
  • Device type: Full-body red light therapy panel
  • Wavelengths: 630nm, 660nm (red) + 810nm, 850nm (near-infrared)
  • LEDs: 200 x 5W diodes
  • LED power class: 1,000 W
  • Actual power draw: 315 W
  • Beam angle: 30° focusing lens
  • Irradiance (max, panel center): 194 mW/cm² at 3 in.; 142 at 6 in.; 117 at 9 in.; 107 at 12 in.; 94 at 18 in.
  • Use distance: 6-18 in.
  • Session guide: At 12 in., roughly 1-2 minutes for skin and collagen and 3-9 minutes for deeper tissue and joints; 4-6 days a week
  • EMF: Ultra-low EMF components
  • Panel size: 36 x 9.1 x 2.6 in (91 x 23 x 6.6 cm)
  • Frame: Aluminum heat-dissipation
  • Outlet: Standard 110/120V
  • Controller: Touch panel
  • Mounting: Integrated wall mount + door hooks; floor stand included
  • Facility: Manufactured in an FDA-registered facility
  • Certifications: CE, FCC and RoHS
  • Warranty: 1-year limited warranty on materials and workmanship
  • Wavelengths: 630nm and 660nm red + 810nm and 850nm near-infrared, running in parallel
  • Coverage: 36 in. of full-body coverage in one session
  • LEDs: 200 x 5W LEDs, 1000W LED power class, 315W actual draw
  • Focusing lens: 30° lens concentrates output at 6-18 in.
  • Frame: Aluminum heat-dissipation frame, silent running
  • Mounting: Integrated wall mount and door hooks, plus a floor stand
  • Manufacturing: Manufactured in an FDA-registered facility with ultra-low EMF components; CE, FCC and RoHS certified
  • Panel: The Nova XL red light panel: 200 x 5W LEDs, 630/660/810/850 nm four-wavelength spectrum, 30° focusing lens, aluminum heat-dissipation frame
  • Power cable: Standard 110/120V outlet plug
  • Mount: Adjustable door / wall mount that mounts the panel to a door or wall for hands-free full-body sessions
  • Floor stand: Nova XL floor stand
  • Eyewear: Protection eyewear for direct-view sessions
  • User guide: Distance recommendations, session length guidance, mount instructions
