Wahoo SPEEDPLAY NANO

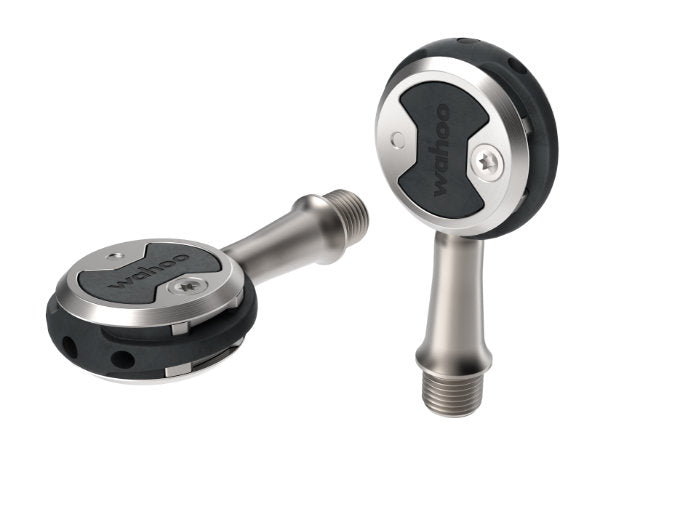

Wahoo SPEEDPLAY NANO Titanium Pedals

The Wahoo SPEEDPLAY NANO Titanium Pedals take titanium and carbon into a pair of featherweight dual-sided road pedals, built for sprint finishes, categorized climbs and hard training days. The titanium spindle and carbon composite body bring the pair down to 168 g, less weight to haul up every climb. Both faces take the cleat, so you clip in without looking down. On a 3-hole shoe the integrated cleat gives an 11.5 mm stack height, bringing your foot close to the axle for direct power transfer. The Standard Tension cleat in the box adjusts fore-aft, side to side and rotationally to dial in your fit.

Triple sealed cartridge and needle bearings keep upkeep to a minimum, and the slim body leans to 39 degrees through a corner before it nears the ground. Riders up to 180 lb (82 kg) can use the NANO.

WEIGHT
168 g
per pair
STACK HEIGHT
11.5 mm
3-hole shoe
FLOAT
0° to 15°
adjustable
RIDER WEIGHT
180 lb
82 kg
Titanium spindle Dual-Sided Entry 3-Axis Cleat Adjustability Carbon composite body

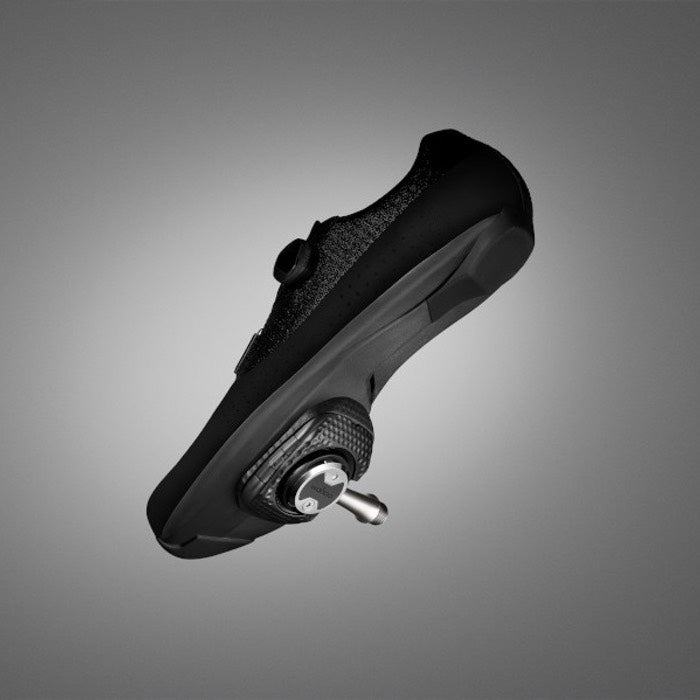

Wahoo SPEEDPLAY NANO Titanium Pedals, pedal fitted to a carbon shoe sole

Inside the NANO

How it works

Titanium and carbon
The spindle is titanium and the body is a carbon composite. The pairing makes the NANO light enough for race day while staying strong under a full sprint.
168 g per pair
Integrated profile

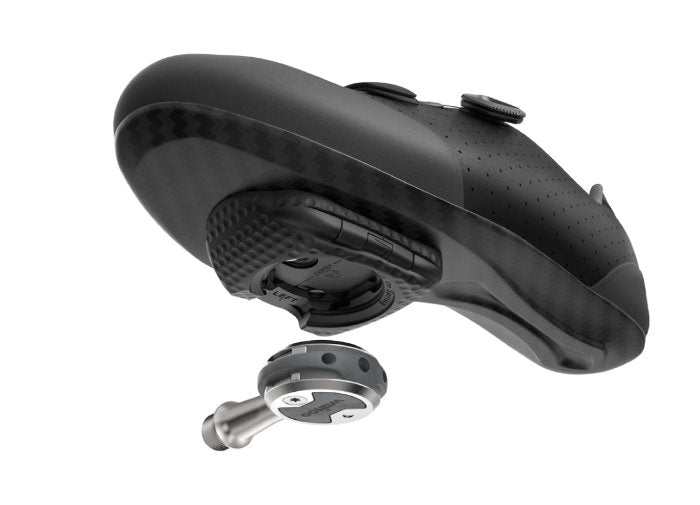

The pedal and the Standard Tension cleat lock together into one streamlined shape. Stack height, the gap between shoe and spindle, is 11.5 mm on a 3-hole shoe and 8.5 mm with a 4-hole sole.
11.5 mm stack

What you get

Key features

Dual-Sided Entry
Clip in from either face
Rotational Free Float
Set anywhere from 0 to 15 degrees
Micro-adjustable release
Release angle from 0 to 7.5 degrees
Walkable cleat
Slim cleat with a grippy rubber texture

Setting up the NANO

How to use it

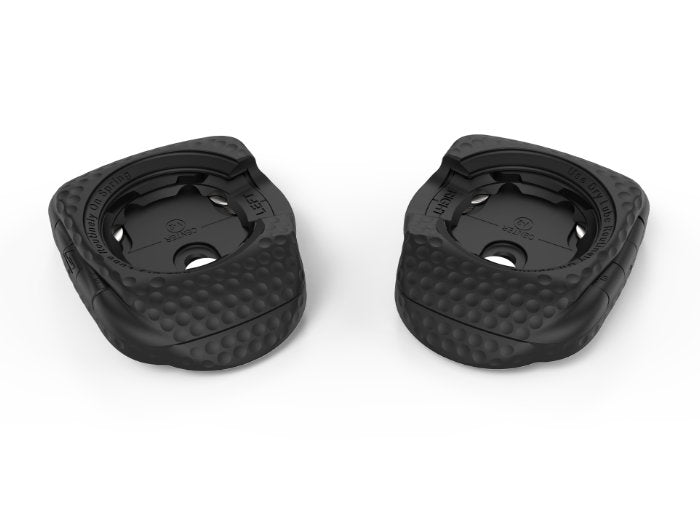

Wahoo SPEEDPLAY NANO Titanium Pedals, Standard Tension cleat pair
Cleat fit

Dial the cleat to your foot

3-Axis Cleat Adjustability moves the cleat fore-aft, left-right and rotationally, each one set on its own. Fit the cleat to a standard 3-hole road shoe, then fine tune it until your knee and foot track the way you want.

  • Up to 13 mm of fore-aft cleat adjustment
  • Left-right and rotational adjustment on the same cleat
  • A 4-hole adaptor plate is available separately

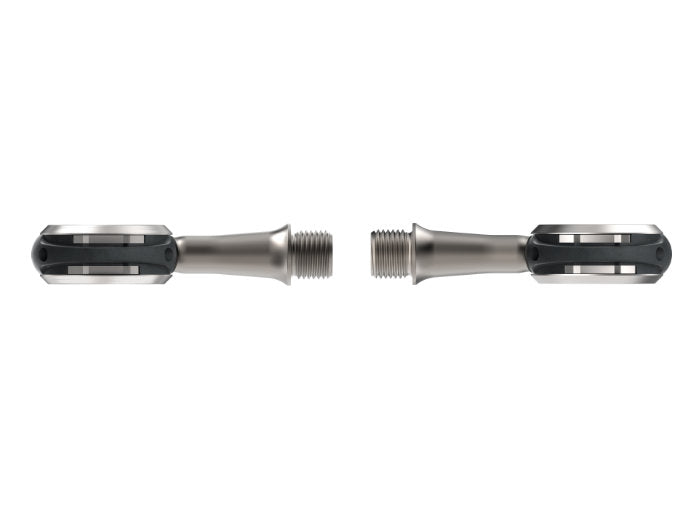

Wahoo SPEEDPLAY NANO Titanium Pedals, slim pedal edge profile
On the road

Lean in and keep pedaling

The thin edge of the NANO gives 39 degrees of cornering clearance, so you can keep turning the cranks through a tight bend. Up to 15 degrees of float lets the heel pivot around the pedal center as you ride.

  • 53 mm Q factor (how far apart your feet are on the bike)
  • Triple sealed cartridge and needle bearings

SPEEDPLAY road pedals

How it compares

You're Here
Wahoo SPEEDPLAY NANO, titanium spindle road pedals
Wahoo SPEEDPLAY NANO
Titanium-spindle road pedals, the lightest SPEEDPLAY.
Titanium spindle 168 g per pair Rider up to 180 lb
Currently viewing
Wahoo SPEEDPLAY ZERO, stainless steel spindle road pedals
Wahoo SPEEDPLAY ZERO
Stainless steel road pedals with four spindle lengths.
Stainless steel spindle 222 g per pair No rider weight limit
Shop the SPEEDPLAY ZERO
Wahoo SPEEDPLAY AERO, stainless steel pedals with an aero profile
Wahoo SPEEDPLAY AERO
Stainless steel road pedals shaped for an aerodynamic profile.
Stainless steel spindle 224 g per pair No rider weight limit
Shop the SPEEDPLAY AERO
Wahoo SPEEDPLAY COMP, chromoly spindle road pedals
Wahoo SPEEDPLAY COMP
Chromoly-spindle road pedals that come with easy tension cleats.
Chromoly spindle 232 g per pair No rider weight limit
Shop the SPEEDPLAY COMP

SPEEDPLAY NANO

Frequently asked questions

The left and right pedals, a Standard Tension cleat assembly with cleat surrounds and a walkable adaptor, a screw packet, a quick start guide and an important product information guide.
The NANO is rated to a maximum rider weight of 180 lb (82 kg).
The cleat bolts straight onto a standard 3-hole road shoe. For a 4-hole sole you will need the 4-hole adaptor plate, sold separately, and the stack height then measures 8.5 mm.
A titanium spindle, a carbon composite body and triple sealed cartridge and needle bearings.
Yes. The Easy Tension cleat, sold separately, works with the NANO and gives less resistance when you unclip.
Mount the cleat to the shoe, then set fore-aft, left-right and rotational position independently. The release angle adjusts from 0 to 7.5 degrees in small steps.
No, these are road cycling pedals. Riding off-road can damage the cleats or pack debris into them, and the cleats work best kept clean before and during every ride.
Wahoo backs the SPEEDPLAY NANO with a one-year warranty.
  • Weight: 168 g per pair
  • Stack height: 11.5 mm (3-hole), 8.5 mm (4-hole)
  • Q factor: 53 mm
  • Spindle material: Titanium
  • Body material: Carbon composite
  • Bearings: Triple sealed cartridge and needle bearings
  • Cornering clearance: 39°
  • Maximum rider weight: 180 lb (82 kg)
  • Float: Adjustable from 0° to 15°
  • Release angle: Micro-adjustable from 0° to 7.5°
  • Cleat fore-aft adjustment: Up to 13 mm
  • Cleats: Standard Tension included, Easy Tension compatible
  • Shoe fit: 3-hole road shoes; 4-hole adaptor plate sold separately
  • Dimensions: 3.9 x 2 x 2 in.
  • Part number: WFPRN1S53
  • Titanium spindle: Carbon composite body, 168 g per pair
  • Dual-Sided Entry: Clip in from either side of the pedal
  • Integrated profile: Pedal and Standard Tension cleat form one streamlined shape
  • Stack height: 11.5 mm on a 3-hole shoe, 8.5 mm on a 4-hole shoe
  • 3-Axis Cleat Adjustability: Fore-aft, left-right and rotational adjustment
  • Rotational Free Float: Micro-adjustable from 0 to 15 degrees
  • Cornering clearance: 39 degrees
  • Warranty: One year from Wahoo
  • Left and right pedals
  • Cleat assembly (Standard Tension)
  • Screw packet
  • Quick start guide
  • Important product information guide
