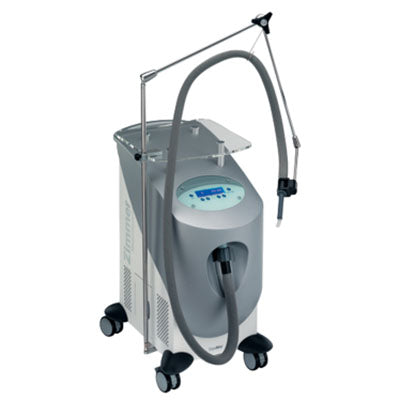

Cryo Mini Cryotherapy Device
The Cryo Mini offers a smaller footprint yet provides the same incomparable quality as its full-size counterpart, the
Cryo 6. The device cools with cold air. It is therefore always ready for use without the need for add-on supplies or
consumables. Unlike with other cooling methods, such as contact cooling, cryogen spray or ice packs, the Cryo Mini
can cool the epidermis before, during and after the laser energy has been applied, without interfering with the
laser beam. The robust chiller delivers 1300L of air per minute. It filters and cools regular room air down to -10°C
with a closed loop circuit. The Mini Cryo is the perfect chiller to complement an array of laser procedures.
With the Cryo Mini, Zimmer MedizinSystems offers this compact, flexible option for short and less painful treatments.
The skin cooling system can provide temporary relief from cosmetic injections. Likewise, the application of cold air
during laser treatments can lead to a distinct reduction in pain and may reduce thermal tissue damage. Whether
Laser, IPL applications or injections, cold air is designed to effectively reduce pain. As a result, treatments can
be tolerated significantly better.
Articulating Arm
Available for your Cryo Mini is an optional articulating arm. The articulating arm gives gentle support to the
hose, allowing hands-free operation for the practitioner. The same immediate relief begins for the patient when
you position the articulating arm over the treatment area and press start.
Easy Maintenance
Maintenance is easy! Just vacuum the air filter (don’t remove) and empty the condensation collector once a week.
The Cryo Mini chiller unit performs additional self-maintenance every time you power it on with an automatic
self-test of operational components.
Plexiglas Top Platform
The Cryo Mini flat Plexiglas top platform provides a convenient location for an IPL system, smoke evacuator,
laser, or storage for other items. Handy shelving right where you need it during procedures!
Control Panel
The clear LCD display and ergonomically designed touch keypad represents the latest technological development. A
large display clearly indicates all treatment parameters. By the push of a button, the operator can easily
change the 9-speed therapy fan, adjust the treatment time, and start and stop the Cryo Mini unit.
Cryo Mini Hose
The Zimmer MedizinSystems Cryo Mini has a lightweight treatment hose that measures around 6 feet in length. This
treatment tube allows the cold air to be delivered from the CryoCooler to the treatment site. A focusing tip can
be connected to the end of the hose to provide more specific cooling to a smaller targeted area.
Compact, Portable, Convenient
This lower capacity, more compact chiller device is ideal for smaller treatment rooms. The unit is lighter than
the Cryo 6 and is very easy to transport when needed. The handy custom designed Plexiglas top, hands-free
operation, 9 speed fan, lightweight treatment hose and easy maintenance combine to provide the ultimate in
convenience and control for practitioners.
Specifications
Delivers Cold Air Down To -10°C Power Supply 120 V / 50-60 Hz Max. Power Consumption During Therapy 1 KW Standby-Mode
100 W/h Cooling Duration Short Term Plexiglas Top
Treatment Hose Length 6 ft. Housing Dimensions H 25″ / W 13″ / L 23″ Weight 75 lbs. Cooling Fans 9 levels, ~ 1300l /
min Device Class EN 60601-1 I, Type B MDD / MPG Class IIa Limited 1 Year Warranty
