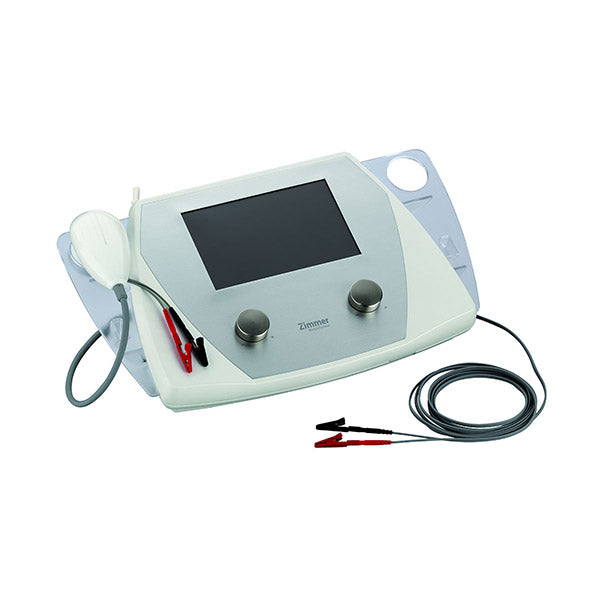

Soleo SonoStim Combination Therapy Device
Ever wondered how to treat with ultrasound at the correct depth – right where the problem is? Introducing the
SoleoSonoStim with patented SonoSwing.
With therapeutic ultrasound, the depth of penetration is dependent on the carrier frequency. Most ultrasounds on the
market have two such frequencies – one for surface treatment, and one for depth. You can only select one or the
other – with no variation in between.
The Soleo SonoStim allows you to run both frequencies through the same sound head in the same treatment, and you can
select the percentage for each frequency. You can “swing” through the treatment range from surface to depth to
anywhere in between! That is SonoSwing
Lower frequencies (0.8 to 1.5 MHz) are optimally effective at greater depths, while higher frequencies (2.4 to 3.0
MHz) act more on the surface.
Features
- 2 channel electrotherapy unit
- Multiple waveforms with complete customization
- Touch screen interface
- “Fast path” option allowing for ultimate customization
- Pre-set programs with clinical indications for quick reference
- Multi-frequency ultrasound unit with patented SonoSwing technology ranging from 0.8 – 2.4 MHz
- 2 sound head sizes available (1cm and 5 cm; unit comes standard with 5 cm)
- Coupling light for correct contact
Designed to meet all your requirements
- Speed: direct access via simple, innovative menus
- Simplicity: large, professionally designed color touch screen with intuitive interface
- Safety: all treatment parameters are visible at a glance
- Efficiency: over 50 years of experience condensed into a detailed treatment guide
- Creativity: your individualized treatments stored in memory
- Preference: direct access to your preferred programs via the “FastPath” button
Memory
The SD memory card allows programs and individualized 1 or 2 channel or combination treatments to be stored. A
modern solution enabling practitioners to utilize the full capacity of the SonoStim and easily monitor patients’
treatment parameters.
Treatment Guide
Quick access to more than 300 treatment recommendations by anatomical references for treating acute and chronic
pain, muscle reeducation and more.
Specific Programs
The combination of Sono and Stim allows unparalleled flexibility and variety of treatment programs. In addition
to ultrasound therapy and electrotherapy, SonoStim offers outstanding specific combined treatments. An
undeniable therapeutic bonus.
Channel Menu
Intuitive programming makes starting treatment quick and easy. A simple touch gives the user access to any type
of stimulation: 1 or 2 Channel Synchronized Alternate Separate
Individualized Treatment
Each patient’s treatment parameters can be unique. Using active windows, it is now possible to modify or adapt
the parameters in a matter of seconds and store them on the SD memory card.
Specific Programs
All current waveforms including: Monophasic, Biphasic, TENS, Medium Frequency, Interferential, High Volt,
Micro-Current, Premodulated IFC.
Applicator with Coupling Light
A coupling light gives you a visual to make sure you have appropriate contact. Now all you need is a green light and
you are ready to go. The SoleoSono with SonoSwing – the ultimate in ultrasound therapy!
SoleoSono includes a high quality, multi-frequency ergonomic ultrasound applicator. It is equipped with a coupling
light and adjustable audible signal to indicate appropriate contact for optimum treatment. A green light indicates
correct contact.
When coupling is not 100%, the screen will also indicate the percentage of transfer.
Technical Data
Ultrasound Applicator
- 1 socket for one 5 cm² multi-frequency water tight head
- optional 1 cm² applicator available
Frequencies
- 0.8 MHz: deep effect
- 2.4 MHz: superficial effect
Maximum power emission 3 W / cm² for the 5 cm² applicator Programs 9 programs Modes Continuous and pulsed 20 Hz, 50
Hz, 100 Hz Pulse: 1/2, 1/3, 1/5, 1/10
Electrotherapy
Synchronized, Alternate, Separate, Sequential Current Types Monophasic, Biphasic, TENS, Medium Frequency,
Inferential, High Volt, Micro Current, Premodulated IFC Channels 2 independent channels (programs, intensities,
parameters) Programs More than 50 specific programs Specific Modules Muscle rehabilitation / Sports rehabilitation
Hardware
SD memory card 1GB SD memory card / 120 memory entries + favorites entries Accessory Support 2 supports supplied with
all versions Dimensions Width 13 in / Height 5.1 in / Depth 8.7 in / Weight 4.4 lb Optional Accessories Move Carts,
designed for Soleoline with a special magnetic holder for improved cable management
