Luxury Spas Largo 3-Person Hot Tub

Save 33% Save 33%
Original price $8,835.00
Original price $8,835.00 - Original price $8,835.00
Original price $8,835.00
Current price $5,890.00
$5,890.00 - $5,890.00
Current price $5,890.00

✓ Authorized Luxury Spas Dealer
✓ Lowest Price Guaranteed
FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

$400 Off Summer Sale with Code: LUXURY400

Hardwired 240V Largo

Luxury Spas Largo 3-Person Hot Tub

This is the hardwired Largo. It runs on a dedicated 50 amp 240V circuit at 7,350 watts, and it is a different product from the Luxury Spas Largo 3-Person Plug & Play, which is sold under its own separate listing. If you need a spa that runs from an outlet, this page is the wrong one. Check the model name on your order before you buy.

Two side-by-side full lounger seats and a bonus bucket seat sit in a silver white marble interior, 63 inches across, with stainless steel grab bars on both sides. Thirty adjustable jets are fed by a 3 HP jet pump while a separate 1 HP circulation pump keeps water moving between soaks. Balboa controls it, with Bluetooth and a premium sound system built in.

Seating
3 Person
2 loungers, 1 bucket seat
Jets
30
Back, foot and leg
Pumps
Two
3 HP jet, 1 HP circulation
Supply
7,350 W
Hardwired 50 A 240V
Bluetooth sound system Four lighting zones Multi-layer foam insulation 10 Year Luxury Spas Warranty

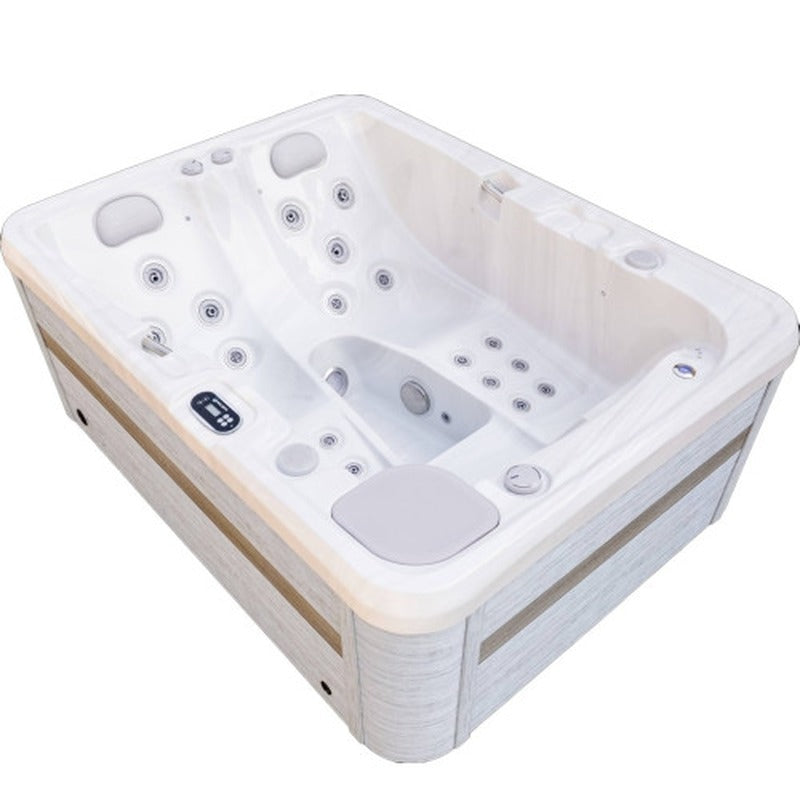

Luxury Spas Largo 3-Person Hot Tub shown from the front

The Equipment List

Two Pumps, Four Light Zones, One 240V Feed

The Largo is the only three-person spa in this line with a circulation pump separate from the jet pump, and its lighting is split across four zones. Everything on it runs from a single hardwired supply.

3 HP Jet Pump Plus a 1 HP Circulation Pump
Two motors divide the work. The 3 HP unit exists only to push the jets. The 1 HP circulation pump turns the water over continuously between sessions, so filtration is never competing with jet pressure.
3 HP + 1 HP
💨
30 Adjustable Jets
Luxury Spas groups the Largo's thirty jets at the back, foot and leg positions for mid-to-lower body coverage. Each one is adjustable by hand at the face.
30 jets
🎵
Balboa Control With Bluetooth Audio
The Balboa operating system handles heat, pumps and lights. Bluetooth connectivity and a premium sound system are part of the build, pairing to a phone from inside the spa.
Bluetooth
Hardwired, Not Plug and Play
7,350 watts on one dedicated 50 amp 240V circuit, wired in by an electrician. The separately listed Largo Plug & Play is a different spa with its own electrical specification.
50 A / 240 V

Why Athletes Choose This

What the Largo Adds

Eight items on the Largo's specification that its three-person siblings do not all carry.

🛌
Two full loungers plus a bucket seat
Seating
🔧
Stainless steel grab bars on both sides
Entry and exit
💡
Underwater, step, waterline and fountain lighting
Four zones
🎵
Premium Bluetooth sound system fitted
Audio
🔄
Circulation never stops for the jets
Second pump
🎣
Multi-layer foam insulation
Heat retention
Silver white marble interior finish
Appearance
🎁
UV-rated cover and steps supplied
$495 value

Seating, Sound, Lighting

Three Parts of the Largo Worth Reading

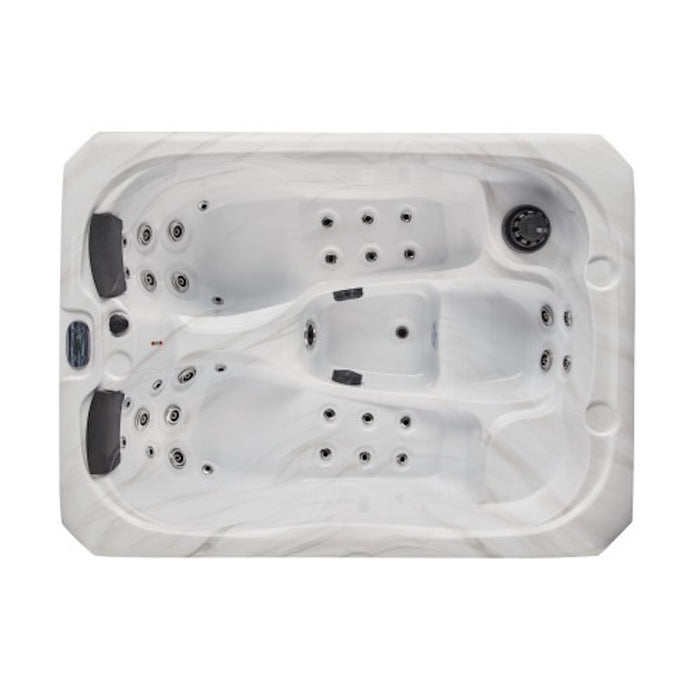

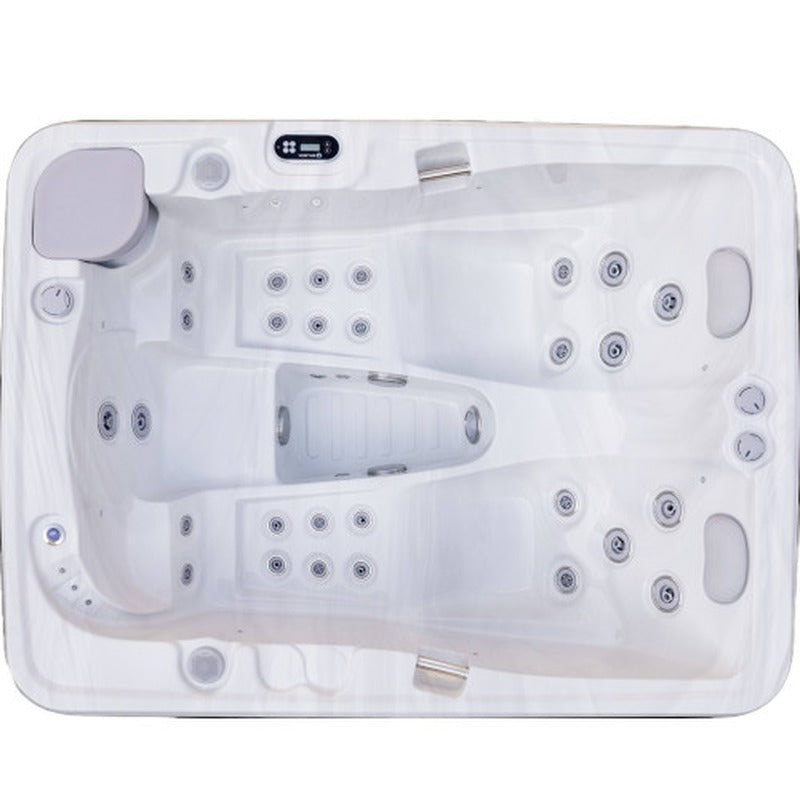

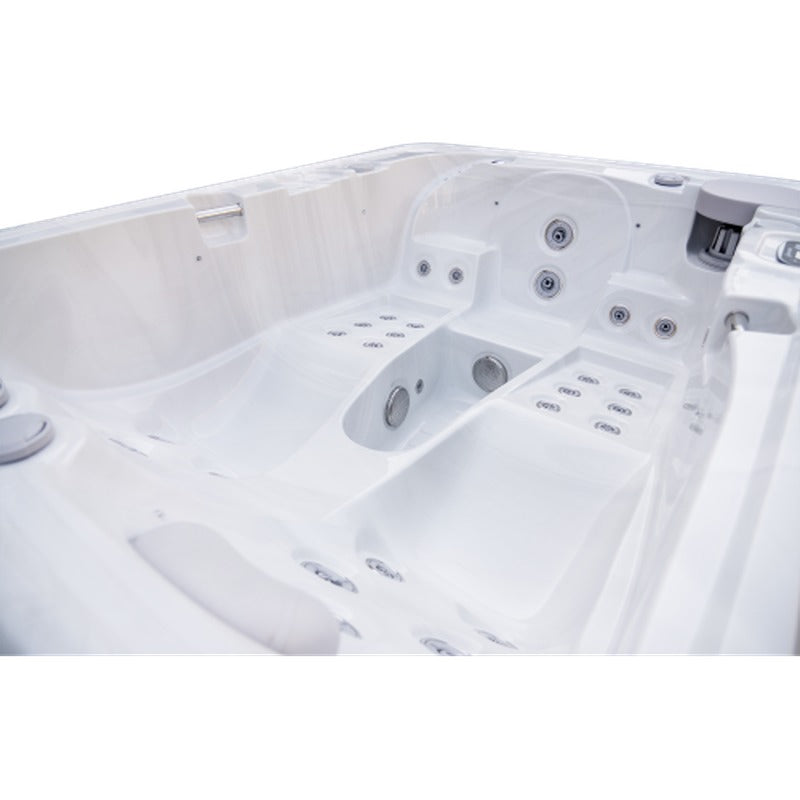

Luxury Spas Largo 3-Person Hot Tub interior seating and jets
Seating Layout

Two Loungers Side by Side, Plus One Bucket Seat

The Largo's shell is moulded with two full-length loungers alongside each other, so two people can both stretch out at the same time, with a bucket seat as the third position. Grab bars in stainless steel are fitted on each side of the shell for stepping in and out.

  • 2 ultra-comfortable side-by-side lounge seats
  • Bonus bucket seat as the third position
  • Silver white marble interior
  • 2 cushioned neck pillows
  • 63 inches wide, with stainless steel grab bars both sides
Twin Loungers Bucket Seat Grab Bars
Luxury Spas Largo 3-Person Hot Tub control panel and cabinet detail
Two-Pump Plumbing

Jet Pressure and Circulation Kept Separate

The Largo splits jet duty from filtration duty: a 3 HP jet pump for the thirty jets, and a 1 HP circulation pump running continuously for water clarity. A 5.5kW titanium heater works across the Largo's compact water volume, and a Hydrozone ozonator plus an advanced filtration system handle sanitising between filter cycles.

  • 3 HP jet pump for 30 adjustable jets
  • Separate 1 HP circulation pump
  • 5.5kW titanium heater
  • Hydrozone ozonator reduces chemical handling
  • Advanced water filtration system
Two Pumps Titanium Heater Ozonator

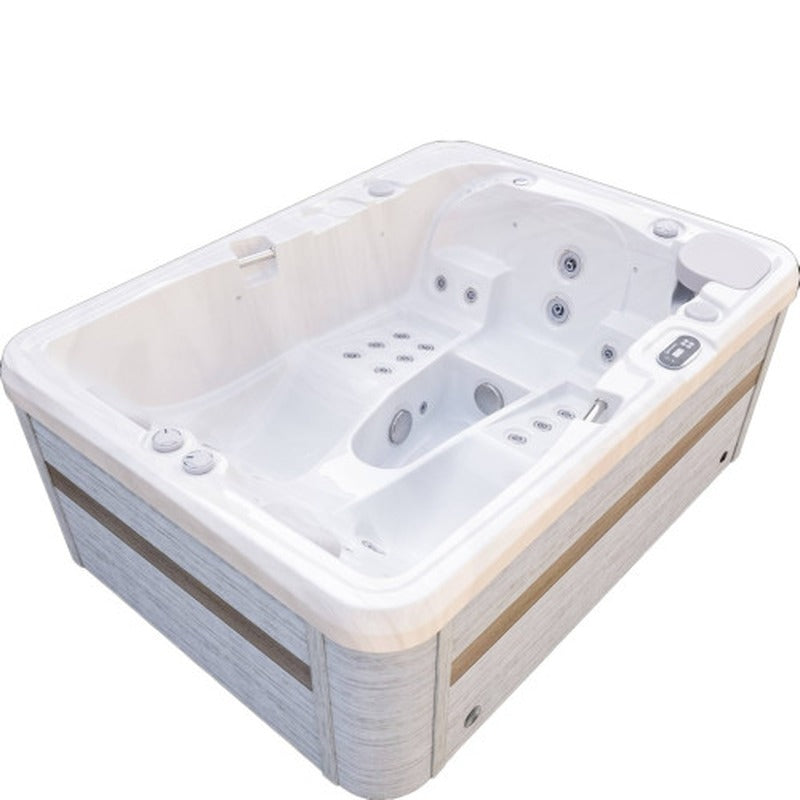

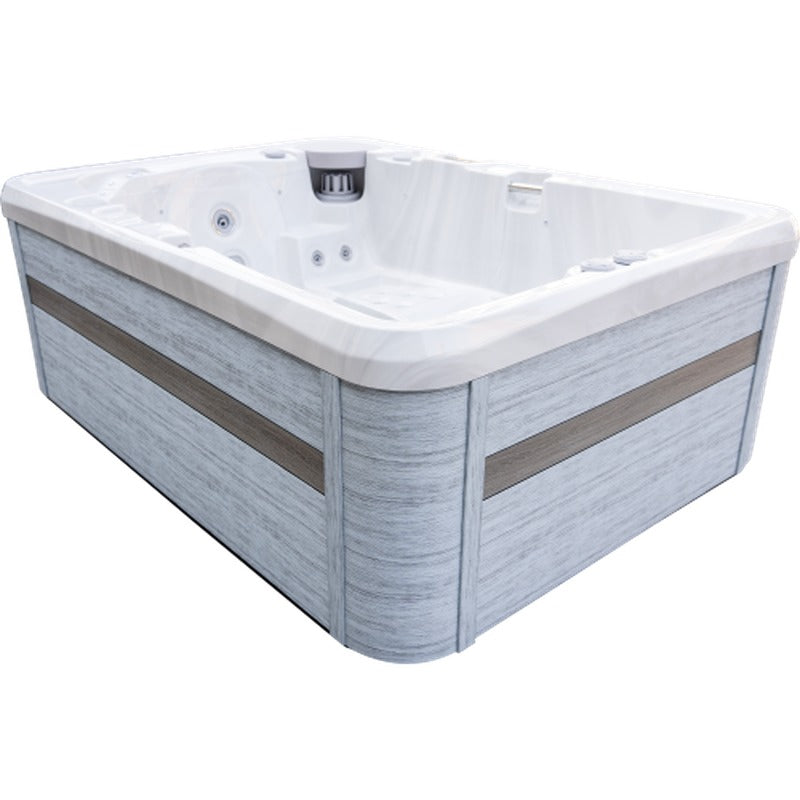

Luxury Spas Largo 3-Person Hot Tub shown from the side
Light and Sound

Four Lighting Zones and a Sound System

Lighting on the Largo is not one underwater LED. There is colour-changing underwater lighting, LED lights on the steps, perimeter lights along the waterline, and backlit lighting on the fountain. Add the premium Bluetooth sound system and the spa is set up for company as readily as for a quiet evening.

  • Colour-changing underwater LED lighting
  • LED step lights
  • Waterline perimeter lighting
  • Backlit fountain lighting
  • Premium Bluetooth sound system
  • Energy efficient multi-layer foam insulation
4 Light Zones Fountain Multi-Layer Foam

Where the Largo Sits

Against the Other Hardwired Mid-Size Spas

Every spa on this row is hardwired to a 50 amp 240V circuit. The Largo is the only one of the four with two pumps. Do not confuse it with the separately listed Largo Plug & Play, which is not shown here.

Luxury Spas Riley 3-Person Hot Tub shown from the front
Riley 3-Person
Long and narrow at 77 by 52 inches, 26 jets, 165 gallons, one pump.
26 jets 165 gallons 77 x 52 x 31 in
Shop the Riley 3-Person
You're Here
Luxury Spas Largo 3-Person Hot Tub shown from the front
Largo 3-Person (Hardwired)
Twin loungers plus a bucket seat, two pumps, four lighting zones, Bluetooth audio.
30 jets 3 HP + 1 HP pumps 63 in wide
Currently viewing
Luxury Spas Casey 3-Person Hot Tub shown from the front
Casey 3-Person
One lounger, 47 stainless steel jets, 278 gallons, separate filtration pump.
47 jets 278 gallons 501 lbs dry
Shop the Casey 3-Person
Luxury Spas Regal 4-Person Hot Tub shown from the front
Regal 4-Person
A fourth seat: side-by-side loungers with two reclined bonus seats, 39 jets.
4 seats 39 jets 2.5 HP pump
Shop the Regal 4-Person

Questions

Frequently Asked Questions

This listing is the hardwired Largo. It requires a dedicated 50 amp 240V circuit and cannot be run from a household outlet. Luxury Spas also makes a Largo 3-Person Plug & Play, which we sell as a separate product with its own page, its own specification and its own electrical requirements. The two share a name and nothing else is safe to assume. If you were sent here looking for the plug-in version, go back and select the Plug & Play listing; if you have already ordered and are unsure which one is on the invoice, contact us and we will check the SKU before it ships.
Width is 63 inches and every source we hold agrees on that. Length and height do not agree: the product description and the feature list both give 83 by 63 by 31 inches, while the specification metafield reads 85 inches long by 63 wide by 36 high. We quote the 83 by 63 by 31 figure because two sources carry it, but if you are pouring a pad, building a surround or working to a tight clearance, ask us to confirm the dimensions with Luxury Spas in writing first.
Because filtration and jet pressure are different jobs. The 3 HP jet pump only runs when you want the jets. The 1 HP circulation pump keeps water passing through the filter and the ozonator all day at low power. On a single-pump spa such as the Riley or the Regal, one motor covers both duties.
Luxury Spas does not publish a water capacity or a dry weight for the Largo. We would rather tell you that than estimate. If you need either figure for a deck load calculation, ask and we will request it from the manufacturer.
At the back, feet and legs, which Luxury Spas describes as mid-to-lower body coverage. All 30 jets are adjustable, so pressure at each one is set by hand.
A phone or tablet. Bluetooth connectivity is part of the Balboa control package and feeds the premium sound system built into the spa, so there is nothing to add and no external speaker to weatherproof.
Colour-changing underwater LED lighting, LED step lights, waterline perimeter lights and backlit fountain lighting. They are listed as separate items on the Largo's feature set.
Yes. Luxury Spas fits stainless steel grab bars on each side of the Largo as part of the build, which is worth knowing if anyone using the spa is unsteady on a wet step.
With energy efficient multi-layer foam insulation, which is the construction Luxury Spas names on this model. It fills the space between the shell and the cabinet, and the insulated cover adds the top surface.
One dedicated 50 amp 240V circuit carrying 7,350 watts, installed by a licensed electrician and finished before the spa is delivered. Because this is a hardwired model there is no interim option of plugging it in while you wait for the electrician.
Yes. A UV-rated spa cover and steps are supplied with the Largo, a package Luxury Spas values at $495.
The Largo gives you two full loungers side by side, a second pump and four lighting zones. The Casey gives you far more jets, 47 against 30, and a much larger fill at 278 gallons, but only one lounge seat. Twin loungers and lighting point to the Largo; jet count and water volume point to the Casey.
Luxury Spas backs the Largo with its advertised 10 Year Warranty. We publish the length only; the schedule of covered components sits in the manufacturer's own document and we will send it over on request.
Two cautions. The PDF currently attached to this listing is a Luxury Spas manual for a different model, and there is a second Largo in the range with a different electrical specification. Contact us for the manual that matches the hardwired 240V Largo so you are not commissioning the spa from paperwork for another product.
  • Dimensions: 85" L x 63"W x 36"H
  • Exterior Product Dimensions
  • Exterior Height: 36
  • Exterior Width: 63
  • Exterior Length: 85

Power Requirements

  • 7350 Watts. Requires 50 amp 240V circuit

  • Dimensions: 83" x 63" x 31"
  • Seats 3 People
  • 2 Ultra Comfortable Lounge Seats
  • 3 HP Jet Pump plus Separate Circulation Pump
  • Balboa Operating System
  • 30 Adjustable Massage Jets
  • Premium Bluetooth Sound System
  • 2 Cushioned Neck Pillows
  • Color Changing Underwater Lighting
  • LED Step Lights, Fountain Lights and Waterline Lights
  • 5.5kW Titanium Heater
  • Hydrozone Ozonator Reduces Maintenance
  • Advanced Water Filtration System
  • Energy Efficient Multi-Layer Foam Insulation
  • UV Rated Spa Cover and Steps included

UV-rated insulated spa cover and premium steps are included (A $495 value!)



This warranty covers all Luxury Spas USA branded hot tubs which are purchased directly
from Luxury Spas USA Ltd. This warranty certificate is non-transferable.


Shell Warranty - 10 years


Luxury Spas USA warrant the shell against water loss to the customer arising from
structural failure for a period of 10 years. Luxury Spas USA warrants the acrylic shell
surface against water loss arising from defects in materials, including cracks, blisters,
peeling and delamination for a period of 5 years. The warranty coverage includes all parts
and labor necessary for repair.


Electrical Equipment and Plumbing - 2 years


Luxury Spas USA warrant all major spa components – specifically, the pumps, the heater
and the control system – against malfunction arising from defects in materials and
workmanship, for a period of 2 years. The electrical equipment and plumbing warranty
covers the parts only necessary for repair. Labor is not covered under the major spa
component warranty. Water leaks from pump and plumbing unions are not included under
the warranty coverage.


Spa Components - 2 years


Luxury Spas USA warrant all other spa components, including but not limited to LED lights,
fuses, topside control unit, diverter caps, cover clips, and jet inserts against malfunction
arising from defects in material and workmanship for a period of 2 years to the customer.
Includes only parts necessary for repair. Labor costs are not included.


Spa Cover Warranty


Luxury Spas USA warrant the spa cover to be free from defects in material for 30 days from
the date of delivery as they are open to elements and/or chemical damage.


Warranty Terms


All warranties apply to the original customer, at the original address that the spa was
installed. Your limited warranty does not include the cost of shipping parts back to Luxury
Spas USA, or to an authorized repair center. This warranty does not include costs incurred
using non-authorized repair centers. Customers must have written consent from Luxury
Spas USA before proceeding with any repair that is to be reimbursed by Luxury Spas USA.
In all cases, Luxury Spas USA has sole responsibility for determining the cause and nature
of a fault. Luxury Spas USA reserve the right to provide a replacement spa of equivalent
value if we deem it to be necessary. In such a circumstance, the customer shall be
responsible for the cost of moving and installing the new spa into position.


Performance


The Customer must report any discovered fault to Luxury Spas USA within 10 business
days. A Luxury Spas technical representative will then diagnose the issue over the
telephone and may suggest possible solutions for the customer to attempt. If after these
suggestions fail to resolve the issue, Luxury Spas will then arrange for a repair technician to
visit the site. If the repair technician is sent out and discovers there is no issue, or the issue
is not manufacturing related, then customer will be responsible for the service call. If a
manufacturing related issue is discovered there is no charge for the technician visit. If the
technician determines that any fault is not covered under this warranty, the customer is
solely responsible for the cost of any parts and or labor charges.


Additional Warranties


The spa cover, steps, light bulbs, headrests, skirt and filter are warranted to be free of
defects in workmanship or materials for thirty (30) days from the date of delivery. All other
factory-installed components, including but not limited to the cabinet, frame, LED light
system, stereo and related components, speakers, skimmer, and jets, are warranted against
malfunction due to defects in workmanship or materials for one year from the date of
purchase.


Exclusions


This Limited Warranty is void if Luxury Spas or its designated representative determines
that the spa has been subjected to alteration, neglect, misuse or abuse, or freight damage
caused by the common carrier; or if the failure is caused by accident, acts of God or other
causes beyond the control of Luxury Spas. Neglect, misuse and abuse include any
installation, operation or maintenance of the spa other than in accordance with the
instructions contained in the owner’s manual provided with the spa, including but not
limited to the failure to maintain proper water chemistry and chemical balance and the use
of abrasive or improper cleaners. This Limited Warranty does not provide coverage for any
item attached to or installed on the spa after the date of sale or for gaining access to any
component for repair or replacement. Spa units used in a commercial application are
excluded from any coverage whatsoever.


Damage to headrest pillows reported beyond the day of delivery will not be covered under
warranty. Headrest pillows are to be removed from the spa when not in use.
Warranty service will be provided only if the original invoice or sales receipt is presented
with the defective product within the guarantee period. We may refuse free-of-charge
guarantee service if these documents are not presented or if they are incomplete or
illegible.


Disclaimers


Except as specifically provided by the law, Luxury Spas and its representatives shall not be
liable for any injury, loss, cost or other damage, whether incidental or consequential,
arising out of any defect covered by this Limited Warranty, including, without limitation,
loss of use of the spa and cost for removal of defective product, even if Luxury Spas has
been advised of the possibility of such damage. The liability of Luxury Spas under this
Limited Warranty, if any, shall not exceed the original amount paid for the defective
product. Coverage under this Limited Warranty shall commence as of the original date of
purchase and the duration of such coverage shall not extend for any reason whatsoever
beyond the stated time periods. These disclaimers shall be equally applicable to any service
provided by Luxury Spas USA and its representative.
