Luxury Spas Riley 3-Person Hot Tub

Save 33% Save 33%
Original price $7,485.00
Original price $7,485.00 - Original price $7,485.00
Original price $7,485.00
Current price $4,990.00
$4,990.00 - $4,990.00
Current price $4,990.00

✓ Authorized Luxury Spas Dealer
✓ Lowest Price Guaranteed
FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

$400 Off Summer Sale with Code: LUXURY400

Three-Seat Hardwired Spa

Luxury Spas Riley 3-Person Hot Tub

The Riley is the long, narrow shell in the three-person group: 77 inches from end to end, 52 inches across, 31 inches tall. Two spacious lounge seats run the length of it in a cloud grey interior, so there is room to straighten your legs for the length of a soak.

It holds 165 gallons and weighs 370 lbs dry. A 3 HP multi-speed jet pump drives 26 jets grouped at the back, feet and legs. The rest is standard hardwired equipment for this line: 5.5kW titanium heater, Balboa controller, ozone sterilization, and 7,350 watts on a 50 amp 240V circuit.

Capacity
3 Person
Two lounge seats
Jets
26
3 HP jet pump
Water
165 gal
370 lbs dry
Shell
77 x 52 in
31 in high
77 inch exterior length Built-in freeze protection 7,350 W on 50 amp 240V 10 Year Luxury Spas Warranty

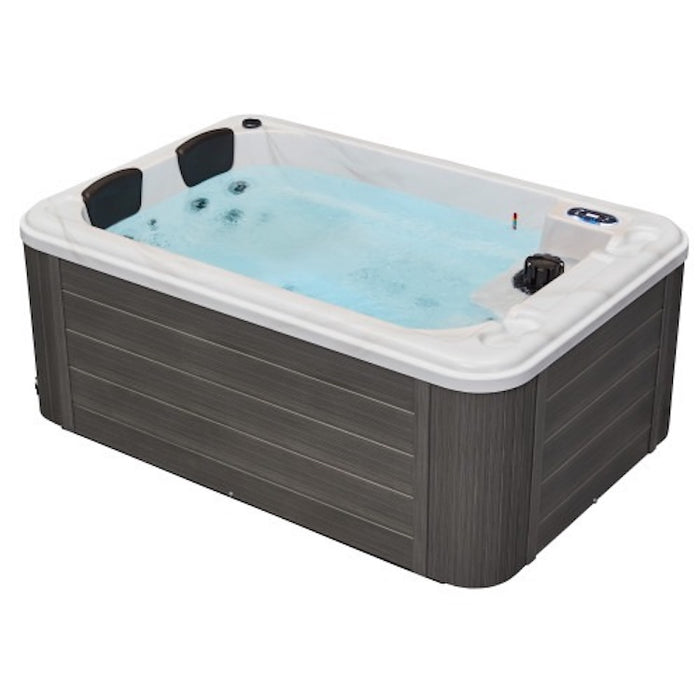

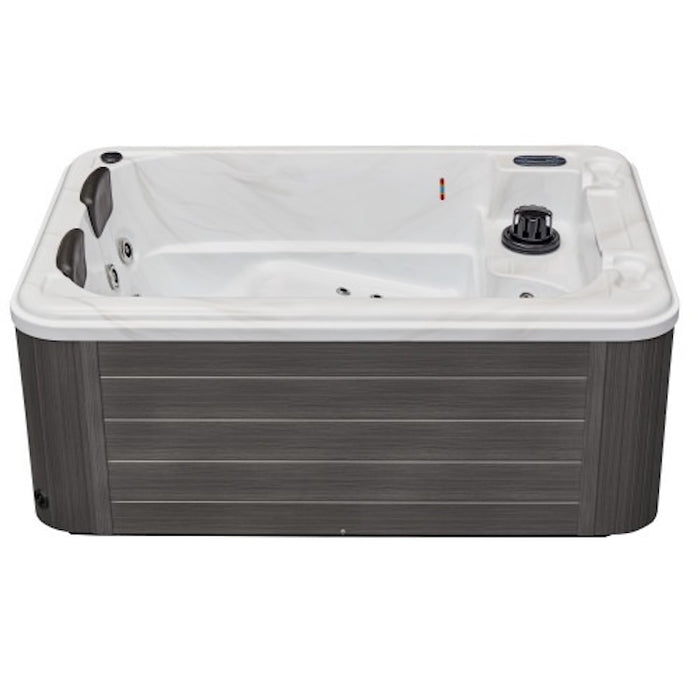

Luxury Spas Riley 3-Person Hot Tub shown from the front

Numbers That Separate It

26 Jets on a 3 HP Pump

Three-person spas in this range differ mostly in jet count, water volume and how the shell is proportioned. Here is where the Riley lands on each.

💨
26 Jets, Lower Body Weighted

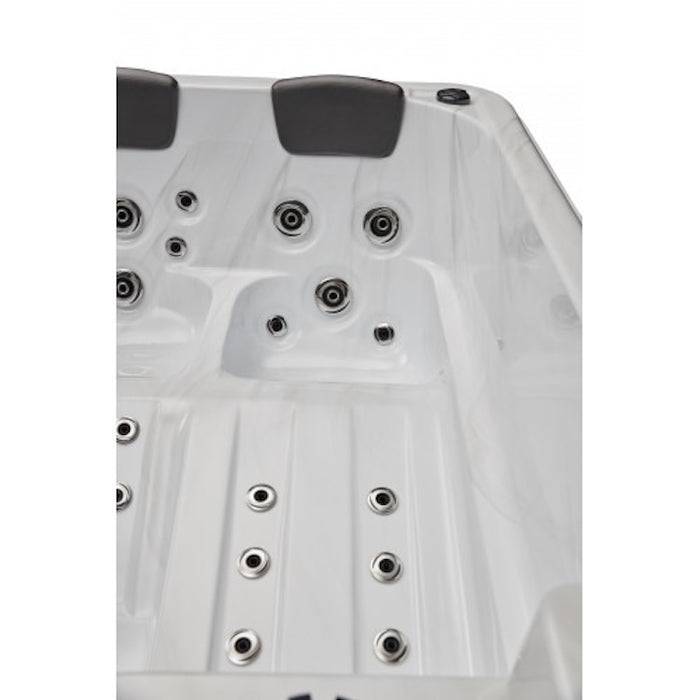

Luxury Spas places the Riley's jets at the back, feet and legs. That distribution suits a lounge seat, where your legs are extended in front of you for the whole soak.
26 jets
🔧
3 HP Multi-Speed Jet Pump
The same 3 HP pump fitted to larger models in the line, working here against 165 gallons. Its low speed carries the filtration duty between soaks.
3 HP
🔥
5.5kW Titanium Element, 165 Gallons
Heat-up time is a function of element output against water volume. 165 gallons is a modest body of water for a 5.5kW titanium heater to bring to temperature.
165 gal
🔌
Hardwired at 7,350 Watts
One dedicated 50 amp 240V circuit, terminated at the spa by a licensed electrician. Freeze protection and ozone dosing both depend on that supply staying live year-round.
50 A / 240 V

Why Athletes Choose This

Why the Riley Suits Long Soaks

Eight specifics from the Riley's own data, and what each one means once the spa is on your pad.

📏
77 inches long for extended legs
Proportions
👥
Two full lounge seats, rated for three
Seating
💨
26 jets at back, foot and leg
Jet placement
💧
165 gallons to heat and treat
Heating
🚚
370 lbs empty, 52 inches across
Access
🌈

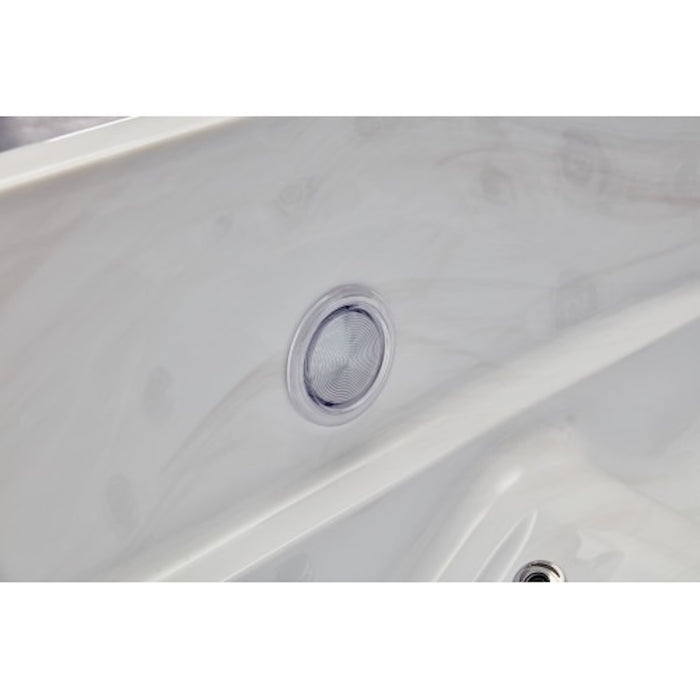

Multi-colour underwater LED system
Lighting
💧
Ozone sterilization on every filter cycle
Water care
🎁
Cover and steps in the price
$495 value

The Riley in Detail

Length, Jets, Running Gear

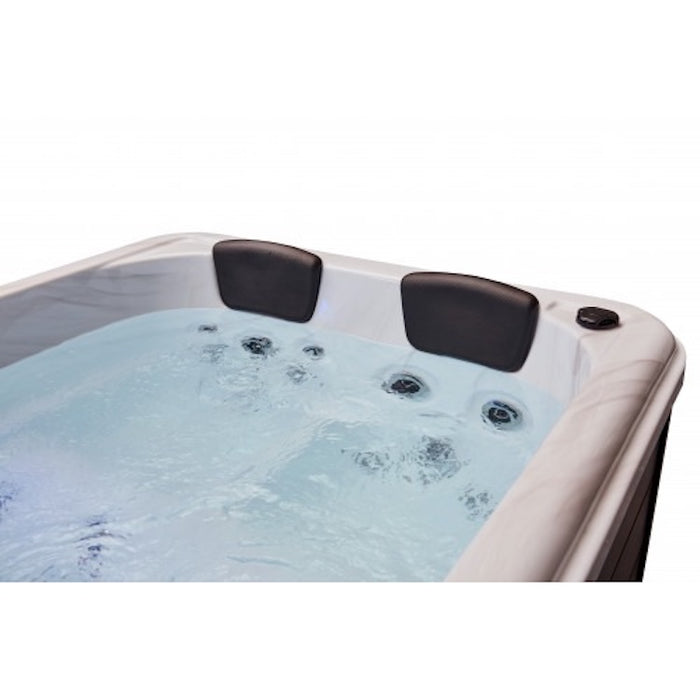

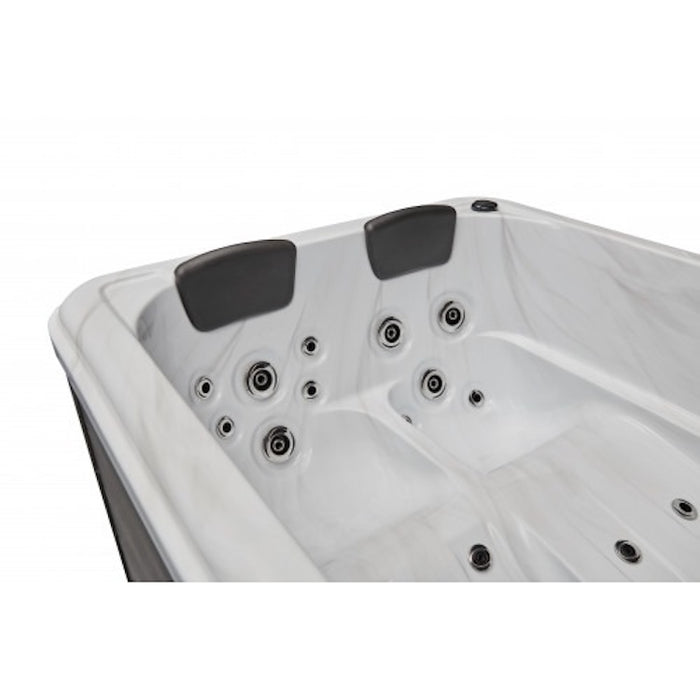

Luxury Spas Riley 3-Person Hot Tub interior seating and jets
77 x 52 x 31 in

A Long Shell, Not a Wide One

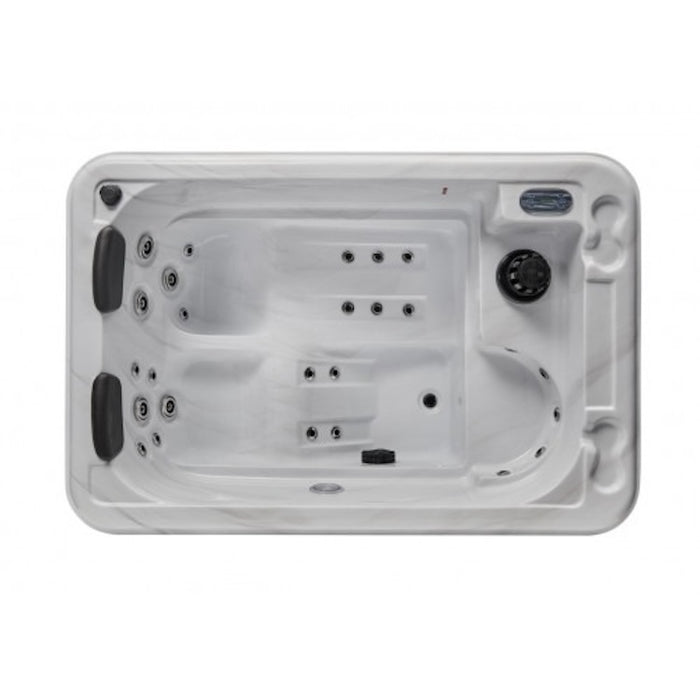

Luxury Spas builds the Riley 77 inches long and 52 inches across, with 31 inches of shell height. The proportion matters: length is what lets a lounge seat work properly, and 52 inches of width keeps the spa through most side gates and along most deck edges.

  • 77 in exterior depth, 52 in exterior width, 31 in exterior height
  • Two spacious lounge seats in cloud grey

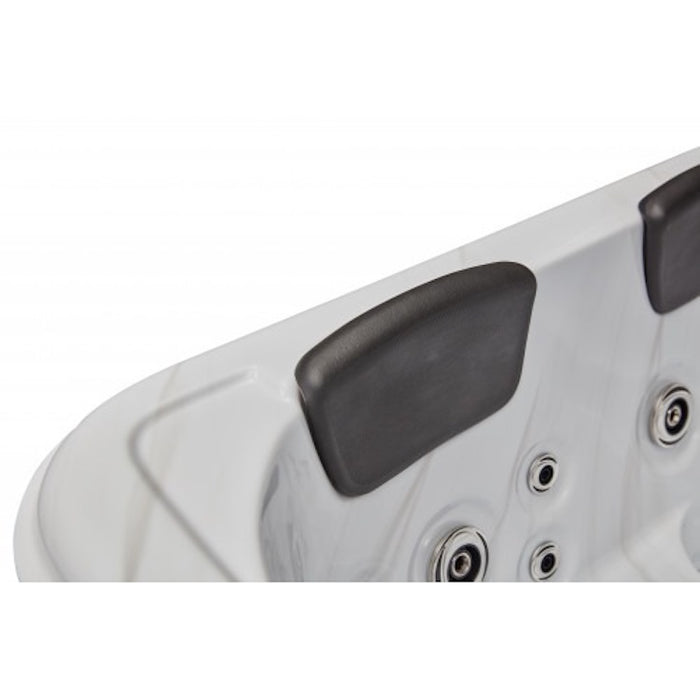

  • 2 cushioned neck pillows
  • 370 lbs dry weight
3 Person Capacity Two Loungers 31 in Shell

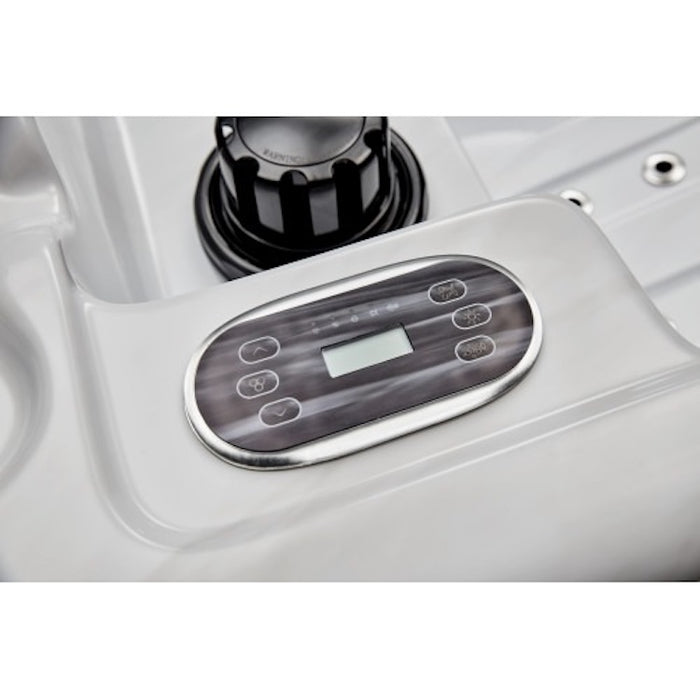

Luxury Spas Riley 3-Person Hot Tub control panel and cabinet detail
Jets and Pump

26 Jets Against 165 Gallons

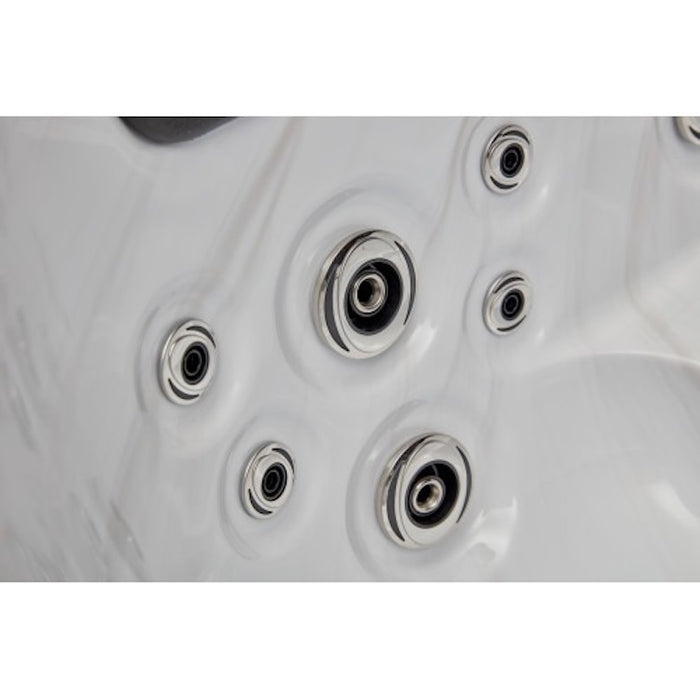

A 3 HP multi-speed jet pump supplies all 26 jets at high speed. Because the Riley's water volume is 165 gallons, that pump is moving a comparatively small body of water, and each jet gets a fair share of the flow. Dropping to low speed converts the same pump into the circulation system for filtering.

  • 26 powerful massage jets
  • 3 HP multi-speed jet pump
  • 165 gallon water capacity
  • Balboa operating system
  • 5.5kW titanium heater
26 Jets 3 HP Pump 165 Gallons

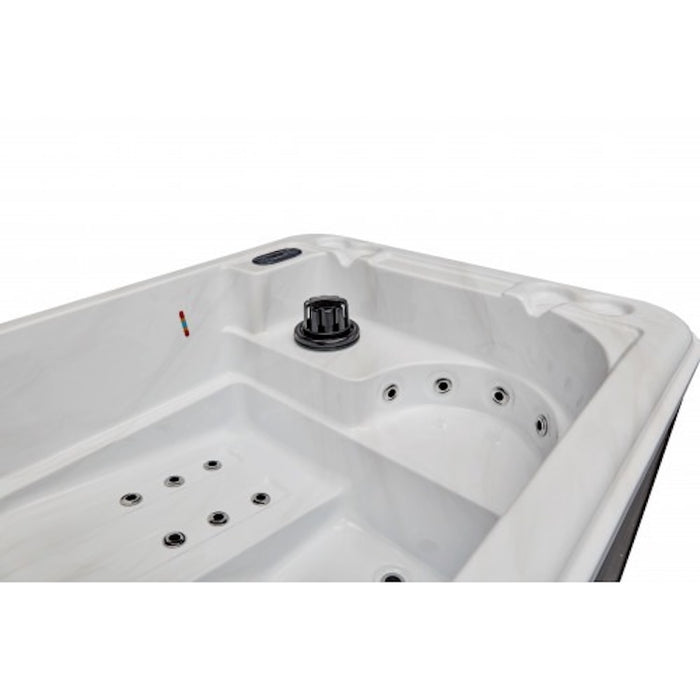

Luxury Spas Riley 3-Person Hot Tub shown from the side
Water, Weather, Light

Sterilization, Freeze Protection, LEDs

Between soaks the Riley looks after itself. Ozone sterilization treats the circulating water, the filtration system catches what ozone cannot, and freeze protection starts the pump when the water temperature falls toward danger. The multi-colour underwater LED system is controlled from the same topside panel.

  • Ozone sterilization system
  • Water filtration system
  • Built-in freeze protection

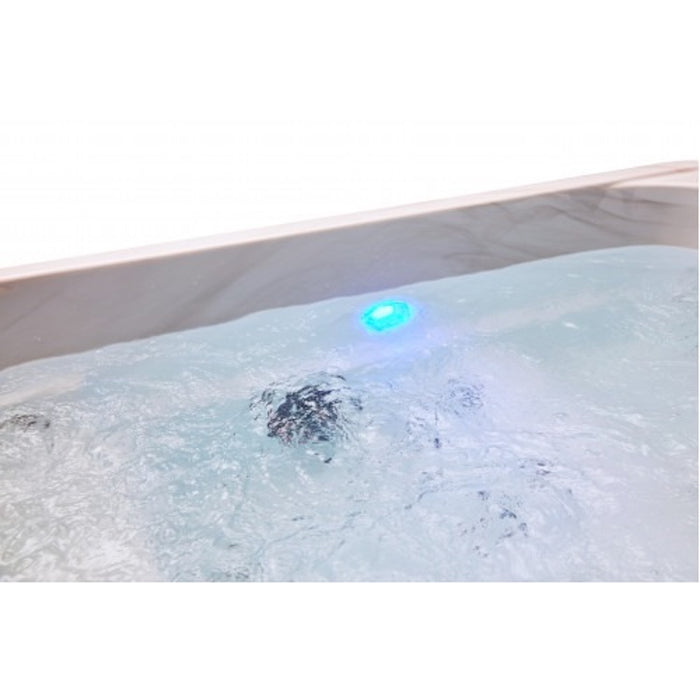

  • Multi-colour underwater LED lighting
  • Premium steps and a UV-rated insulated cover in the box
Ozone System Freeze Protection Cover & Steps

The Mid-Size Hardwired Models

Four Spas, 26 to 47 Jets

All four take a 50 amp 240V feed and a 5.5kW titanium heater. Jet count, water volume and how the seats are arranged are what actually change between them.

You're Here
Luxury Spas Riley 3-Person Hot Tub shown from the front
Riley 3-Person
The long narrow one: 77 by 52 inches, two loungers, 26 jets, 165 gallons.
77 x 52 x 31 in 26 jets 165 gallons
Currently viewing
Luxury Spas Largo 3-Person Hot Tub shown from the front
Largo 3-Person
Two loungers plus a bucket seat, 30 jets, two pumps, Bluetooth audio. Hardwired version.
30 jets Two pumps Bluetooth sound
Shop the Largo 3-Person
Luxury Spas Casey 3-Person Hot Tub shown from the front
Casey 3-Person
The jet-heavy one: 47 stainless steel jets and 278 gallons in a 79 inch shell.
47 jets 278 gallons 79 x 59 x 32 in
Shop the Casey 3-Person
Luxury Spas Regal 4-Person Hot Tub shown from the front
Regal 4-Person
Four seats: side-by-side loungers plus two reclined bonus seats, 39 jets.
4 seats 39 jets 195 gallons
Shop the Regal 4-Person

Questions

Frequently Asked Questions

Luxury Spas rates the shell at 3 person capacity and names two spacious lounge seats. It does not describe the third position in its published specification, so we will not invent one. If the third seat matters to your decision, ask us and we will confirm the layout with the manufacturer.
26 jets, positioned at the back, feet and legs. The description and the feature list agree on that total, which is not something we can say about every model in this range.
Shell height is 31 inches, which is the figure Luxury Spas quotes when it calls the Riley a deep soak. Filled water level sits below the rim, so treat 31 inches as the cabinet dimension for planning, not as water depth.
A licensed electrician runs one dedicated 50 amp 240V circuit to the spa location. Total load is 7,350 watts. Have this finished before the spa arrives so it can be filled and commissioned the same day.
165 gallons of water and 370 lbs dry. Filled and occupied, the load on your pad or deck is several times the dry figure, so check the deck rating with a builder if the spa is not going on concrete.
It is a small volume for a 5.5kW titanium heater. Luxury Spas does not publish a heat-up rate for the Riley and it varies with ambient air and cover fit, so we are not going to quote hours. The relationship holds: less water, less time.
The Riley's feature list does not specify a cabinet insulation type, unlike some models in this line where full foam or multi-layer foam is named. We are leaving it unstated. Contact us and we will get the construction confirmed by Luxury Spas.
Its narrow dimension is 52 inches. That is the number to measure your access against, along with the 31 inch height if the spa travels upright and 77 inches of length for any corner it has to turn.
Yes, freeze protection is built in. The controller circulates water when temperature drops far enough, which keeps the plumbing from sitting still in the cold. It only works with the breaker on.
A UV-rated insulated cover and premium steps, together valued at $495 by Luxury Spas. Note that the Riley's feature list mentions only the cover; the description and the included-items field both confirm steps as well.
No. Audio is not part of the Riley's specification. If Bluetooth and speakers are on your list, the Largo and the Casey both include a premium Bluetooth sound system.
The Casey is the bigger, denser spa: 47 stainless steel jets and 278 gallons in a 79 by 59 inch shell, with a separate filtration pump and Bluetooth audio. The Riley trades that for a smaller footprint, 165 gallons and 26 jets. If patio space or fill volume is the constraint, the Riley is the one that fits.
The manufacturer's warranty on this spa runs 10 years as advertised by Luxury Spas. What it covers is set out in their own paperwork, which we will email you on request.
The file on this listing is a manual for a different Luxury Spas model. Ask us and we will source the correct one; do not follow the attached PDF for start-up procedures.
  • Dimensions: 77"L x 52W" x 31"H
  • Exterior Product Dimensions :
  • Exterior Height: 31"
  • Exterior Width: 52"
  • Exterior Depth: 77"
  • Dry Weight: 370 lbs.
  • Water Capacity: 165 Gallons

Power Requirements

  • 7350 Total Watts. Requires 50 amp 240V circuit.



  • 3 Person Capacity
  • Multi Speed Pump
  • 3 HP Jet Pump
  • 26 Powerful Massage Jets
  • 2 Cushioned Neck Pillows
  • Color Changing LED Lighting
  • 5.5kW Titanium Heater
  • Balboa Operating System
  • Ozone Sterilization System
  • Water Filtration System
  • Built In Freeze Protection
  • UV Rated Spa Cover Included

UV-rated insulated spa cover and premium steps are included (A $495 value!)



This warranty covers all Luxury Spas USA branded hot tubs which are purchased directly
from Luxury Spas USA Ltd. This warranty certificate is non-transferable.


Shell Warranty - 10 years


Luxury Spas USA warrant the shell against water loss to the customer arising from
structural failure for a period of 10 years. Luxury Spas USA warrants the acrylic shell
surface against water loss arising from defects in materials, including cracks, blisters,
peeling and delamination for a period of 5 years. The warranty coverage includes all parts
and labor necessary for repair.


Electrical Equipment and Plumbing - 2 years


Luxury Spas USA warrant all major spa components – specifically, the pumps, the heater
and the control system – against malfunction arising from defects in materials and
workmanship, for a period of 2 years. The electrical equipment and plumbing warranty
covers the parts only necessary for repair. Labor is not covered under the major spa
component warranty. Water leaks from pump and plumbing unions are not included under
the warranty coverage.


Spa Components - 2 years


Luxury Spas USA warrant all other spa components, including but not limited to LED lights,
fuses, topside control unit, diverter caps, cover clips, and jet inserts against malfunction
arising from defects in material and workmanship for a period of 2 years to the customer.
Includes only parts necessary for repair. Labor costs are not included.


Spa Cover Warranty


Luxury Spas USA warrant the spa cover to be free from defects in material for 30 days from
the date of delivery as they are open to elements and/or chemical damage.


Warranty Terms


All warranties apply to the original customer, at the original address that the spa was
installed. Your limited warranty does not include the cost of shipping parts back to Luxury
Spas USA, or to an authorized repair center. This warranty does not include costs incurred
using non-authorized repair centers. Customers must have written consent from Luxury
Spas USA before proceeding with any repair that is to be reimbursed by Luxury Spas USA.
In all cases, Luxury Spas USA has sole responsibility for determining the cause and nature
of a fault. Luxury Spas USA reserve the right to provide a replacement spa of equivalent
value if we deem it to be necessary. In such a circumstance, the customer shall be
responsible for the cost of moving and installing the new spa into position.


Performance


The Customer must report any discovered fault to Luxury Spas USA within 10 business
days. A Luxury Spas technical representative will then diagnose the issue over the
telephone and may suggest possible solutions for the customer to attempt. If after these
suggestions fail to resolve the issue, Luxury Spas will then arrange for a repair technician to
visit the site. If the repair technician is sent out and discovers there is no issue, or the issue
is not manufacturing related, then customer will be responsible for the service call. If a
manufacturing related issue is discovered there is no charge for the technician visit. If the
technician determines that any fault is not covered under this warranty, the customer is
solely responsible for the cost of any parts and or labor charges.


Additional Warranties


The spa cover, steps, light bulbs, headrests, skirt and filter are warranted to be free of
defects in workmanship or materials for thirty (30) days from the date of delivery. All other
factory-installed components, including but not limited to the cabinet, frame, LED light
system, stereo and related components, speakers, skimmer, and jets, are warranted against
malfunction due to defects in workmanship or materials for one year from the date of
purchase.


Exclusions


This Limited Warranty is void if Luxury Spas or its designated representative determines
that the spa has been subjected to alteration, neglect, misuse or abuse, or freight damage
caused by the common carrier; or if the failure is caused by accident, acts of God or other
causes beyond the control of Luxury Spas. Neglect, misuse and abuse include any
installation, operation or maintenance of the spa other than in accordance with the
instructions contained in the owner’s manual provided with the spa, including but not
limited to the failure to maintain proper water chemistry and chemical balance and the use
of abrasive or improper cleaners. This Limited Warranty does not provide coverage for any
item attached to or installed on the spa after the date of sale or for gaining access to any
component for repair or replacement. Spa units used in a commercial application are
excluded from any coverage whatsoever.


Damage to headrest pillows reported beyond the day of delivery will not be covered under
warranty. Headrest pillows are to be removed from the spa when not in use.
Warranty service will be provided only if the original invoice or sales receipt is presented
with the defective product within the guarantee period. We may refuse free-of-charge
guarantee service if these documents are not presented or if they are incomplete or
illegible.


Disclaimers


Except as specifically provided by the law, Luxury Spas and its representatives shall not be
liable for any injury, loss, cost or other damage, whether incidental or consequential,
arising out of any defect covered by this Limited Warranty, including, without limitation,
loss of use of the spa and cost for removal of defective product, even if Luxury Spas has
been advised of the possibility of such damage. The liability of Luxury Spas under this
Limited Warranty, if any, shall not exceed the original amount paid for the defective
product. Coverage under this Limited Warranty shall commence as of the original date of
purchase and the duration of such coverage shall not extend for any reason whatsoever
beyond the stated time periods. These disclaimers shall be equally applicable to any service
provided by Luxury Spas USA and its representative.
