Chattanooga Vectra Neo Ultrasound Module
Chattanooga Vectra Neo Ultrasound Module
Chattanooga Vectra Neo Ultrasound Module
Chattanooga Vectra Neo Ultrasound Module
Chattanooga Vectra Neo Ultrasound Module
Chattanooga Vectra Neo Ultrasound Module

Chattanooga Vectra Neo Ultrasound Module

by Chattanooga
$567.00 - $567.00
$567.00
$567.00 - $567.00
$567.00

✓ Authorized Chattanooga Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

10% Off Black Friday Sale with Code: CHATT10

Chattanooga Vectra Neo

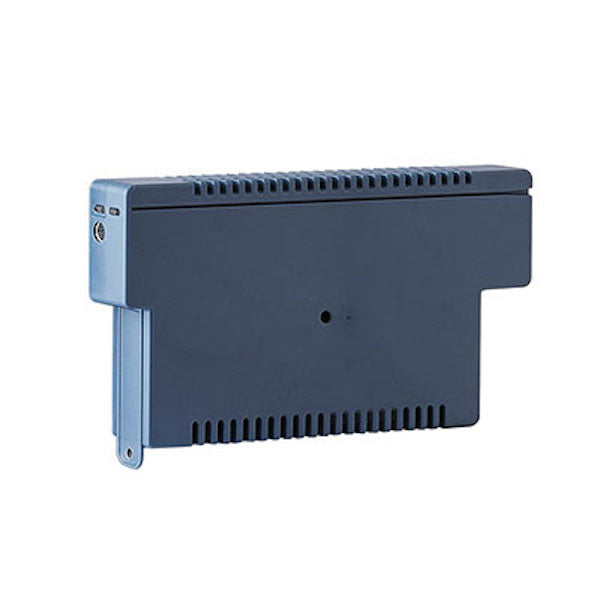

Chattanooga Vectra Neo Ultrasound Module

The Chattanooga Vectra Neo Ultrasound Module is the ultrasound module that gives a Vectra Neo its therapeutic ultrasound, driving a Vectra sound head at 1 MHz and 3.3 MHz, both plus or minus 5 percent. Amplitude runs 0 to 2.5 W/cm2 in continuous or pulsed output, with duty cycles of 10, 20 and 50 percent alongside continuous. The beam nonuniformity ratio, a measure of how evenly the head spreads its output, is 5:1 maximum. The module measures 11.12 x 6.34 x 1.43 in., weighs 1 lb and installs in a side bay of the Neo head with no manual configuration.

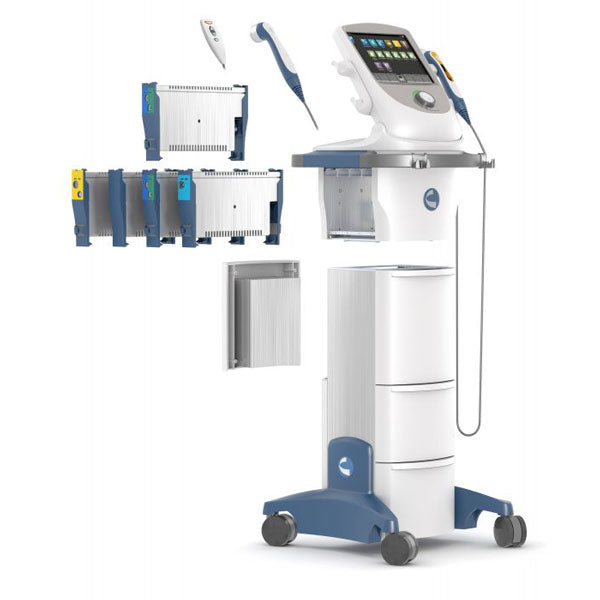

It fits the Chattanooga Vectra Neo Electrotherapy System, and it slides out again if the module has to move to a second Neo. The sound head is a separate order: the applicators are the Vectra ultrasound head applicators, in 1, 2, 5 and 10 cm2. Output power follows the head you fit, from 0-1.5 W on the 1 cm2 up to 0-15 W at 1 MHz on the 10 cm2, with the 5 cm2 head sitting at 0-6 W on both frequencies.

Chattanooga Vectra Neo Ultrasound Module, 1 and 3.3 MHz ultrasound
  • Module width: 11.12 in.
  • Module depth: 6.34 in.
  • Module height: 1.43 in.
  • Module weight: 1 lb
  • Frequencies: 1 MHz and 3.3 MHz, plus or minus 5 percent
  • Amplitude: 0 to 2.5 W/cm2, continuous and pulsed
  • Beam nonuniformity ratio: 5:1 maximum
  • Output power, 10 cm2 head: 0-15 W at 1 MHz; 0-10 W at 3.3 MHz
  • Output power, 5 cm2 head: 0-6 W at both frequencies
  • Output power, 1 cm2 head: 0-1.5 W at 3.3 MHz
  • Part number: 70002
  • What it adds: Therapeutic ultrasound to a Vectra Neo
  • Fits: Chattanooga Vectra Neo, base unit 6000
  • Sound head: Sold separately, parts 27333 / 27334 / 27335 / 27336

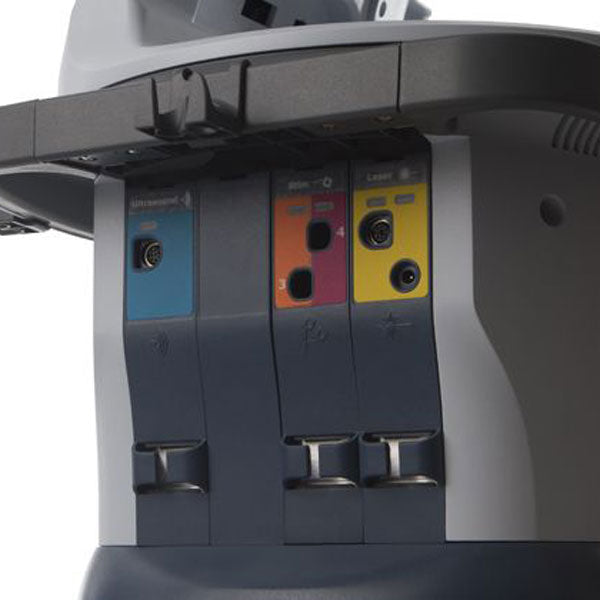

  • Mounting: Slide-in module bay on the side of the head
  • Installation: Plug-and-play, no manual configuration
  • Duty cycles: 10, 20 and 50 percent plus continuous
  • Ultrasound module: Vectra Neo Ultrasound Module
  • Sound head: Not included; Vectra ultrasound head applicators in 1, 2, 5 and 10 cm2 are sold separately
