Chattanooga Continuum 2 Channel Electrotherapy System
Chattanooga Continuum 2 Channel Electrotherapy System
Chattanooga Continuum 2 Channel Electrotherapy System
Chattanooga Continuum 2 Channel Electrotherapy System
Chattanooga Continuum 2 Channel Electrotherapy System
Chattanooga Continuum 2 Channel Electrotherapy System
Chattanooga Continuum 2 Channel Electrotherapy System
Chattanooga Continuum 2 Channel Electrotherapy System
Chattanooga Continuum 2 Channel Electrotherapy System
Chattanooga Continuum 2 Channel Electrotherapy System

Chattanooga Continuum 2 Channel Electrotherapy System

by Chattanooga
$375.00 - $445.00
$445.00
$375.00 - $445.00
$445.00

✓ Authorized Chattanooga Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

10% Off Fall Sale with Code: CHATT10

Chattanooga Continuum

Chattanooga Continuum 2 Channel Electrotherapy System

The Chattanooga Continuum 2 Channel Electrotherapy System is a portable TENS and NMES device that puts both forms of electrical stimulation in one handheld unit. Its two channels run independently in a 1+1 function. One can run a TENS program on one region while the other runs an NMES program somewhere else at the same time. Thirteen preset programs and two custom regimens cover NMES on large and small muscle groups and TENS by body region. Balanced waveforms deliver a strong contraction. At 226.8 g on two AA cells, it travels with the patient. Order the device on its own, or as the kit with a hand switch.

The unit measures 1.26 x 3.3 x 4.5 in. (32 x 84 x 114 mm) with its two AA cells in place, and it carries a belt clip and a built-in, pull-out kickstand. It is an FDA Class II device with a Type BF applied part and an IP22 ingress rating.

Channels
2 independent
1+1 function
Programs
13 preset
Plus 2 customizable
Output
100 Vpeak
At 1000 ohm; 50 Vpeak at 500 ohm
Weight
226.8 g
With batteries fitted
TENS and NMES in one unit Two AA cells Hand switch in the kit Electrodes sold separately
Chattanooga Continuum, a seated session with electrodes on the knee

Output

How it works

A clinician sets each Continuum treatment by pulse rate, pulse width, treatment time and amplitude, on two channels that work independently.

Output on each channel
Amplitude is set separately on each of the two independent channels, and both are driven from the same keypad and the same pair of AA cells. Output is rated at 100 Vpeak into 1000 ohm and 50 Vpeak into 500 ohm. A peak-voltage output figure does not convert directly to the rating of a stimulator measured in milliamps.
100 Vpeak
Pulse settings on every program
Pulse rate covers 2-150 Hz across all regimens. Pulse width defaults to 300 microseconds and is adjustable from 48 to 400. Waveform is symmetrical or asymmetrical on the NMES side and modulated on the TENS SMP and TENS MOD regimens. Ramp is adjustable on the programs that use it. Treatment time runs 5-60 min or continuous, with a 30 min default that a clinician can override on any program.
48 to 400 microseconds
Preset and custom programs
The NMES side covers large and small muscle groups, with default pulse rates from 35 to 80 Hz and a custom or switch-driven program on each. The TENS side is named for the region: knee, shoulder, back, hand and foot, each defaulting to 100 Hz.
2 customizable
Battery power and operating range
Two AA alkaline or rechargeable NiMH cells, 3.0 V DC +/-10 percent. The unit warns at 2.07 V typical and shuts down at 1.77 V typical, so a tired cell ends a session cleanly. Take the batteries out for extended storage. Operating range is 50 to 104 F (10 to 40 C) and storage is -40 to 158 F (-40 to 70 C). It is built to EN 60601-1, UL 60601-1 and CAN/CSA C22.2 No. 601.1, with ETL classification 9900900.
2 x AA

Built to travel

Key features

Independent channel control and customizable programs give clinicians flexibility in choosing treatment settings, in a body small enough to clip to a belt.

Strong contraction
Balanced waveforms deliver muscle stimulation on the NMES programs, symmetrical or asymmetrical.

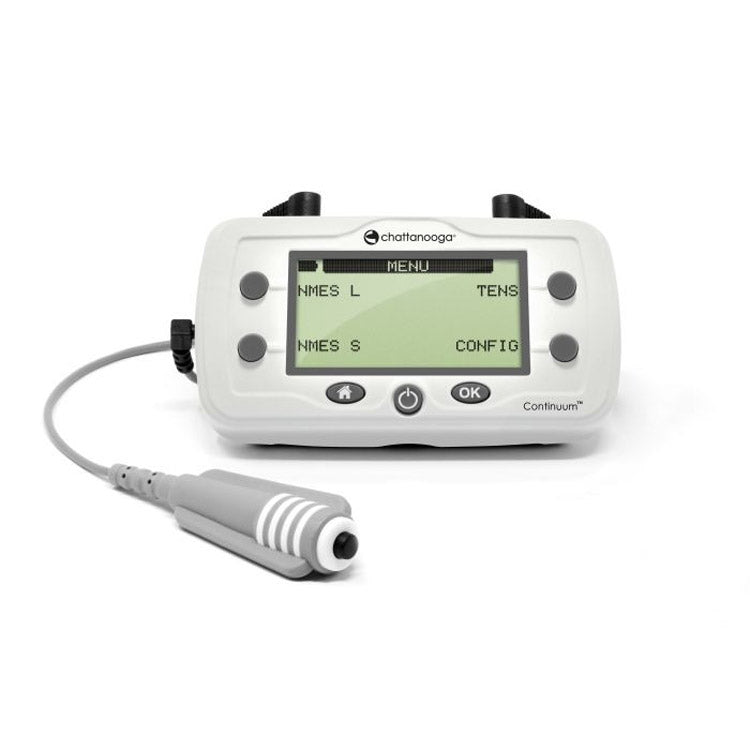

Hand switch for easy activation
A hand switch starts the switch-driven programs from the hand, without reaching for the keypad.
Belt clip and kickstand
It clips to a belt and stands on a built-in kickstand.
Touch-proof lead wires
A 100 cm lead wire assembly with a touch-proof connection serves each channel.

In detail

How to use it

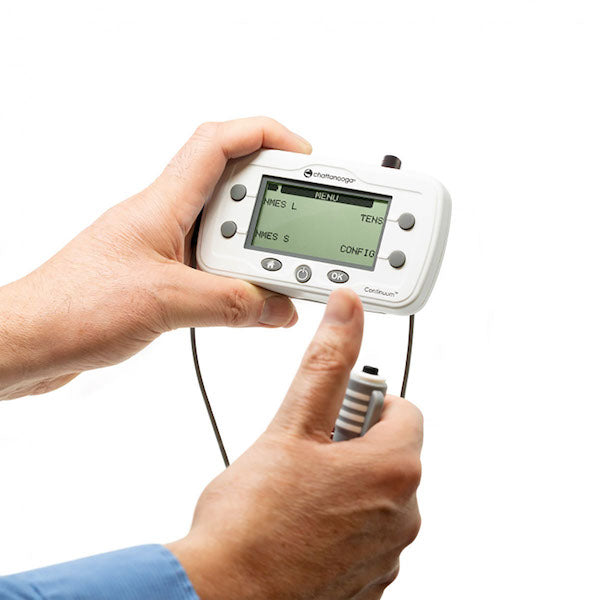

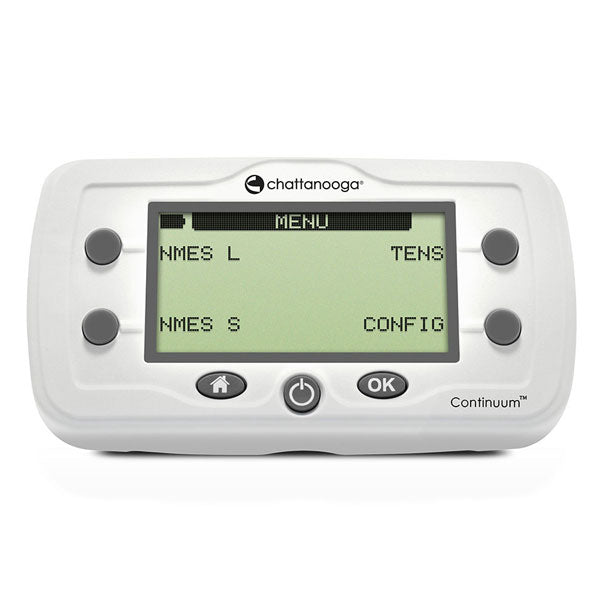

Chattanooga Continuum, the keypad and program display
Programs

Programs and their defaults

Large muscle programs default to 50 Hz or 80 Hz, and the first small muscle program defaults to 35 Hz. On time is 9-12 s on the large muscle programs and 10 s on the small ones. The TENS side has knee, shoulder, back, hand and foot, all defaulting to 100 Hz, plus a fully adjustable custom position that holds whatever you set into it.

  • Pulse rate range 2-150 Hz on every program
  • Treatment time 5-60 min or continuous, 30 min default
  • Pulse width adjustable 48 to 400 microseconds, 300 default
  • Waveform symmetrical or asymmetrical on the NMES regimens
Large and small muscle TENS by region 1+1 channels
Chattanooga Continuum, worn by a patient while walking
Switches

Switches and electrodes

Two of the programs are built around a switch: the large muscle custom or switch position, and the small muscle custom or remote position. A hand switch ships inside the kit, and the optional alternative is a heel and foot switch, sold separately. The foot switch puts the trigger under the patient's foot, so both of their hands stay free while they move.

  • Hand switch, supplied with the kit
  • Heel and foot switch, optional and sold separately
  • Lead wire assembly, 100 cm, touch-proof connection
  • Dura-Stick Plus self-adhesive electrodes, matched to 5 x 5 cm or 16 cm2 minimum
  • Transport pouch, in the kit
Hand switch Optional heel switch Touch-proof leads

Continuum

Videos

The range

How it compares

A Continuum drives two electrode channels from two AA cells, the VitalStim Plus adds two sEMG channels and runs on four, and the Vectra Genisys TranSport Laser is an optical device with its own recalibration schedule.

Chattanooga VitalStim Plus, handheld stim and sEMG unit
VitalStim Plus
Handheld four-channel stimulator with two sEMG channels, running on four AA cells.
2 channel sEMG and 4 channel electrotherapy 0 to 25 mA constant current; 70 V (+0/-5 V) maximum Power: 6 V, 4 x 1.5 V AA cells Weight: 0.75 lb (0.34 kg)
Shop the VitalStim Plus
You're Here
Chattanooga Continuum two-channel stimulator
Continuum
A 226.8 g two-channel unit with thirteen preset programs, two of them customizable, on two AA batteries.
2 independent channels 100 Vpeak at 1000 ohm; 50 Vpeak at 500 ohm Pulse rate: 2 to 150 Hz Warranty: 3 years from initial date of purchase, excluding accessories
Currently viewing
Chattanooga Vectra Genisys Transport Laser console
Vectra Genisys Transport Laser
Class 3B laser, 100 to 1440 mW by applicator, with annual recalibration required.
100 to 1440 mW optical, by applicator 8 Hz to 10,000 Hz plus continuous Battery runtime: 2 to 5 hours continuous use Warranty: 2 years on the unit; 1 year on applicators
Shop the Vectra Genisys Transport Laser

Questions

Frequently asked questions

No. It is a portable two-channel TENS and NMES stimulator that drives electrode pairs. It has no motor and no joint carriage, and it takes no soft-goods patient kit.

Yes. The two channels are independent and carry a 1+1 function, so each channel can run the same program as the other or a different one. Which program goes on which channel is a clinical decision.

9-12 sec on the large muscle positions and 10 sec on the small muscle positions, with ramp adjustable on the programs that use it.

Contraindicated in patients with a demand-type implanted pacemaker or defibrillator, for any transcerebral electrode placement, and for any electrode placement that applies current to the carotid sinus region. For TENS, use is also contraindicated in undiagnosed pain syndromes, until etiology is established. For functional electrical stimulation it adds assisting paraplegic patients into the standing position. Read the manual in full before use.

A two-channel Continuum drives two electrode pairs, which is one region with two pairs or two regions at once. A four-channel handheld such as the VitalStim Plus doubles that to four pairs and carries two sEMG channels for measurement alongside them. The Continuum has no sEMG channel and no third or fourth channel, and the channel count is fixed in the hardware.

No. Electrodes are not part of the Continuum in either configuration. The size to match is a square 5 x 5 cm (2 in. x 2 in.) electrode, or a carbon electrode of at least 16 cm2. Self-adhesive electrodes are single-patient items and come by the box as a repeat order.

The Continuum comes as the device on its own or as the kit with a hand switch. The kit contains the device, a set of two lead wires (pin cables), the hand switch and a transport pouch, along with the user manual and the practical guide. The heel and foot switch triggers stimulation from under the foot on the two switch-driven positions and is sold separately, as are the AA cells.

IP22, alongside a Type BF applied part and an FDA Class II classification. Keep the Continuum dry in use, in transport and in storage, and follow the cleaning method in the manual. The body has no sealed compartment beyond the battery door.

Three years from the initial date of purchase, covering defects in workmanship and materials and excluding accessories. Electrodes, lead wires and the switches are accessories and sit outside that term.

  • Output amplitude at 1000 ohm: 100 Vpeak
  • Output amplitude at 500 ohm: 50 Vpeak
  • Output rating basis: Peak voltage into 1000 ohm and 500 ohm loads
  • Pulse rate: 2-150 Hz, all regimens
  • Pulse width: 48-400 microseconds adjustable, 300 microsecond default
  • Treatment time: 5-60 min or continuous, 30 min default
  • On time, NMES: 9-12 sec large muscle; 10 sec small muscle
  • Dimensions: 1.26 x 3.3 x 4.5 in. (32 x 84 x 114 mm)
  • Weight: 226.8 g with batteries
  • Battery: Two AA alkaline or rechargeable NiMH, 3.0 V DC +/-10%
  • Low battery thresholds: Warning at 2.07 V typical; shutdown at 1.77 V typical
  • Applied part: Type BF
  • Ingress rating: IP22
  • Operating temperature: 50-104 F (10-40 C)
  • Storage temperature: -40-158 F (-40-70 C)
  • Warranty: Three years from initial date of purchase, excluding accessories
  • Configurations: Device only (2600-DEV) or kit with hand switch (2600-KIT)
  • Device type: Portable two-channel TENS and NMES electrical stimulator
  • Channels: 2 independent channels, 1+1 function
  • Programs: 13 pre-set programs plus 2 fully customizable
  • NMES programs: Four large muscle and four small muscle positions, custom and switch included
  • TENS programs: Knee, shoulder, back, hand, foot and custom
  • Waveform: Symmetrical or asymmetrical (NMES); modulated (TENS SMP and TENS MOD)
  • Switch control: Hand switch 2630 supplied; heel and foot switch 2645 optional
  • Lead wire: Continuum lead wire assembly 2615, 100 cm, touch-proof connection
  • Electrodes: Not included; 5 x 5 cm square or carbon electrode of at least 16 cm2
  • Carrying: Belt clip, built-in kickstand and transport pouch
  • Device classification: FDA Class II device with a Type BF applied part and an IP22 ingress rating
  • Contraindications: Demand-type implanted pacemaker or defibrillator, transcerebral placement, carotid sinus placement
  • Kit contents: Device, two pin cables, hand switch, transport pouch, user manual and practical guide
  • Device: Continuum two-channel stimulator, with belt clip and kickstand
  • Hand switch: Kit configuration only
  • Lead wires: Set of two pin cables, kit configuration
  • Transport pouch: Kit configuration
  • Documentation: User manual and practical guide
  • Electrodes: Not included
  • Heel and foot switch: Not included; sold separately
  • Batteries: Two AA cells, not included
