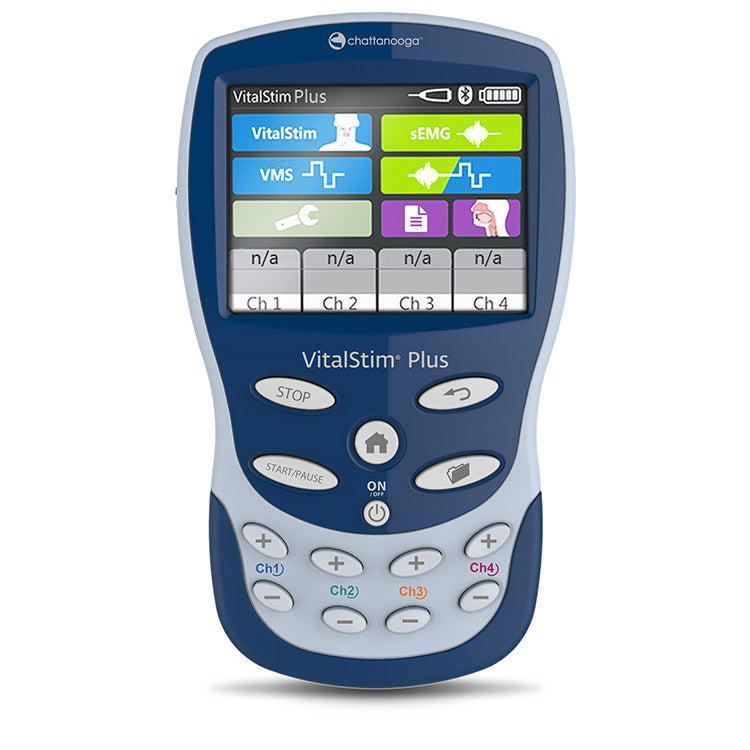

Chattanooga VitalStim Plus Electrotherapy and sEMG Biofeedback System

The Chattanooga VitalStim Plus Electrotherapy and sEMG Biofeedback System is a handheld swallowing therapy unit that pairs neuromuscular electrical stimulation (NMES) with sEMG biofeedback, which reads muscle activity through surface electrodes and plays it back as a trace on screen and a tone. It is built for clinicians working with patients with dysphagia. Up to four channels stimulate together in VitalStim co-contraction mode. VMS opens phase duration, frequency and work and rest times for protocols of your own. In sEMG plus Triggered Stim, stimulation starts once the patient's own effort reaches a set threshold, adding intensity to the exercise. VitalStim Plus certification training covers the techniques approved for it.

The colour display carries built-in instructional videos on therapeutic exercises and electrode placements, and an anatomical image library covering swallowing anatomy, pathology and treatment imagery. Bluetooth mirrors that screen to a laptop or tablet, where the patient can watch their own muscle activity during the session. Treatment data saves and exports for tracking progress across sessions.

Electrodes sold separately Micro SD and Bluetooth export Certification training course

Chattanooga VitalStim Plus, a clinician working with a seated patient

Output and control

How it works

VitalStim Plus carries two waveforms, one fixed and one adjustable, alongside a two-channel sEMG front end that reads the patient's own muscle activity.

The Fixed VitalStim Waveform

A symmetrical square biphasic waveform with a 100 microsecond interphase interval pulse, fixed at every setting: 0-25 mA constant current, phase duration 300 microseconds at 10 percent accuracy, frequency 80 pps at 5 percent accuracy, cycle time 57 s on and 1 s off, ramp 2 s, treatment time 60 min. In this mode up to four channels deliver stimulation concurrently and pause at the same time. Nothing in the waveform itself is adjustable, so the operator sets intensity and chooses the channels and the rest is fixed.

80 pps fixed

The Adjustable VMS Waveform

Symmetrical biphasic with a 100 microsecond interphase interval, 0-25 mA constant current, phase duration 60 to 300 microseconds, frequency 1-80 pps, user-defined on and off times of 1-99 s each, ramp 0-3 s and treatment time 1-240 min. It is a low skin load waveform, intended for applications requiring high intensities. That 1-240 min window is four times the fixed VitalStim treatment time, so VMS is the mode with room to build a protocol in.

1-240 min

The sEMG Front End

The sEMG side shows electrical muscle signals on screen with amplified audio feedback, across a range of 0.2 to 2000 microvolt RMS continuous, sensitivity 0.1 microvolt RMS, accuracy 6 percent of the microvolt reading plus or minus 0.3 microvolt. Two of the four modes use it: sEMG on its own, and sEMG with triggered stimulation, where the unit switches to stimulation once the patient's own muscle activity crosses a set threshold. The reference EMG lead wire ships with the system while the reference EMG electrode is a separate order.

0.1 microvolt

Where the Treatment Data Goes

Up to six user-defined protocols can be stored in the VMS and sEMG plus VMS modalities. A micro SD card slot holds saved treatment summaries, and therapy information exports to a PC for the clinical file. Bluetooth mirrors the colour display onto a computer or tablet through a downloadable PC application, with Bluetooth switched on by default in the settings. A stored protocol carries the parameters you set, so a repeat session starts from the same numbers.

6 protocols

In the room

Key features

A handheld that moves between patient rooms on four AA cells, with the teaching material for each session built into its own screen.

Pocket-sized at 0.75 lb

3.8 in. wide by 1.4 in. deep. At 6.2 in. tall, it goes in a coat pocket with the stand and stylus.

Runs on AA cells

Four AA cells give 6 V with no mains lead and no charging dock, and the unit works wherever the patient happens to be.

Stored protocols

Six user-defined protocols in the VMS and sEMG plus VMS modalities. The VitalStim waveform itself is fixed.

Warranty on the unit

24 months from original consumer purchase, with repair or replacement within 30 days of return.

Education videos

Built-in videos demonstrate therapeutic exercises and electrode placements on the handheld itself.

Anatomical library

Swallowing anatomy, pathology and treatment imagery sit in an image library on the colour display.

Audio feedback on sEMG

Muscle signals come back as amplified sound as well as a trace on the colour display.

Stylus entry

A stylus works the colour display for every parameter, from waveform choice to work and rest times.

In detail

How to use it

Chattanooga VitalStim Plus, sEMG feedback on screen during a session

Modes

The Patient's Own Effort Triggers the Fourth Mode

VitalStim Treatment runs the fixed waveform in co-contraction, with up to four channels stimulating concurrently and pausing together. VMS Treatment opens the parameters: phase duration, frequency, and work and rest times. sEMG Treatment reads muscle activity and shows it on the colour screen, with amplified audio feedback. sEMG plus Triggered Stim waits for the patient's own effort to cross a set threshold and then switches the unit over to stimulation. Two of the four modes therefore respond to what the patient does, and two are set entirely at the operator's hand.

VitalStim: co-contraction on up to four concurrent channels
VMS: phase duration, frequency and work and rest times
sEMG: muscle signals on screen and as sound
sEMG plus Triggered Stim: stimulation at a set threshold
Education videos for exercises and electrode placements

4 modes 0-25 mA 4 channels

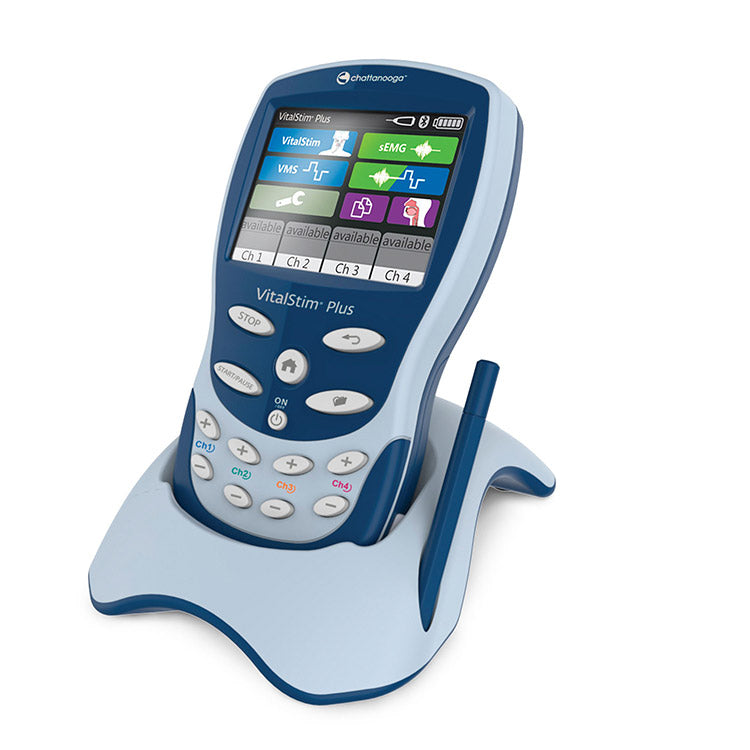

Chattanooga VitalStim Plus, the handheld standing on its stand

Hardware

The Handheld and Its Stand

The VitalStim Plus is a 6.2 in. handheld with a colour display worked by stylus, and it stands upright on its own stand through a session. A hand switch, a rubber sleeve and a spare battery door come in the carton, and four AA cells behind that door power the whole unit. Treatment summaries save to a micro SD card, ready to export to a PC.

Colour display with stylus entry
Stand and stylus in the carton
Hand switch, part 13-8085
Rubber sleeve, part 13-8090
Micro SD card slot for treatment data

Hand switch Own stand AA powered

Chattanooga VitalStim Plus, electrodes placed on the neck

Fitment

Only a VitalStim Electrode Takes the Current Load

One consumable attaches to this system: the VitalStim electrode, built to transmit the high current load and current density of the VitalStim Therapy protocol, a much higher load on the electrode than a typical NMES application in physical medicine and rehabilitation. Each electrode is a single-patient item, used on one patient only.

VitalStim Plus electrodes, adult and small
Adult size in packs of 12, 30, 50 and 100
Small size, sold as youth, in a pack of 12

Adult and youth Single patient 5 pack sizes

The range

How it compares

The VitalStim Plus, the Continuum and the Vectra Genisys TranSport Laser are portable Chattanooga units built for different modalities, each with its own format, power source and output.

You're Here

VitalStim Plus

Handheld four-channel stimulator with two sEMG channels, running on four AA cells.

2 channel sEMG and 4 channel electrotherapy 0 to 25 mA constant current; 70 V (+0/-5 V) maximum Power: 6 V, 4 x 1.5 V AA cells Weight: 0.75 lb (0.34 kg)

Currently viewing

Continuum

A 226.8 g two-channel unit with thirteen preset programs, two of them customizable, on two AA batteries.

2 independent channels 100 Vpeak at 1000 ohm; 50 Vpeak at 500 ohm Pulse rate: 2 to 150 Hz Warranty: 3 years from initial date of purchase, excluding accessories

Shop the Continuum

Vectra Genisys Transport Laser

Class 3B laser, 100 to 1440 mW by applicator, with annual recalibration required.

100 to 1440 mW optical, by applicator 8 Hz to 10,000 Hz plus continuous Battery runtime: 2 to 5 hours continuous use Warranty: 2 years on the unit; 1 year on applicators

Shop the Vectra Genisys Transport Laser

Questions

Frequently asked questions

No. VitalStim electrodes are an optional accessory, sold as VitalStim Plus electrodes: adult in packs of 12, 30, 50 and 100, and small in a pack of 12. The reference EMG electrode for the sEMG side is a separate order too.

No. The VitalStim electrode is built to transmit the high current load and current density of the VitalStim Therapy protocol. Use only the lead wires and electrodes recommended for this system.

Yes. VitalStim Plus certification training covers the accessories and techniques approved for the system, and use of other accessories and/or techniques not approved under the VitalStim Plus certification training may result in death, injury, or adverse effects. The certification course is arranged with Chattanooga.

The unit, snap lead wires, the reference EMG lead wire, a hand switch, a stand, a stylus, a rubber sleeve and a battery door. Electrodes and the reference EMG electrode are sold separately.

The device should NOT be used where there are cancerous lesions in the treatment area; over swollen, infected or inflamed areas or skin eruptions; in patients with demand-style cardiac pacemakers or other implanted electronic devices; over the carotid sinus, particularly with known sensitivity; in severely demented patients with continuous verbalisation; with significant reflux and feeding-tube dependence; in drug-toxicity-induced dysphagia; with undiagnosed syndromes; with serious infectious disease; and in pregnancy, where safety has not been established. Read the manual in full before the first treatment.

Stimulation should not be applied transcerebrally or over the carotid sinus. Caution is advised for patients with suspected or diagnosed epilepsy; electronic monitoring equipment may not operate properly during stimulation. Long term effects of chronic electrical stimulation are unknown. The unit must not be operated in the vicinity of therapeutic microwave or RF shortwave diathermy, and it must not be dropped on hard surfaces or submerged in water.

The VitalStim waveform is fixed and the VMS waveform is adjustable. VitalStim runs a 300 microsecond phase at 80 pps on a 57 s on, 1 s off cycle for 60 min, across up to four channels in co-contraction. VMS lets you set 60 to 300 microseconds, 1 to 80 pps, work and rest times of 1 to 99 s and a treatment time up to 240 min.

3.8 x 1.4 x 6.2 in. (9.6 x 3.6 x 16 cm) and 0.75 lb (0.34 kg), powered by four 1.5 V AA cells for a 6 V input. There is no mains lead and no charging dock.

Two years (24 months) from the date of original consumer purchase, with repair or replacement at no charge within 30 days of return. Quote the serial number on the back of the unit on any claim.

Output intensity: 0-25 mA constant current, both waveforms
Maximum output voltage: 70 V (+0/-5 V)
VitalStim phase duration: 300 microseconds (10% accuracy)
VitalStim frequency: 80 pps (5% accuracy)
VitalStim cycle time: On 57 s, off 1 s; ramp 2 s; treatment time 60 min
VMS phase duration: 60-300 microseconds (10% accuracy)
VMS frequency: 1-80 pps (5% accuracy)
VMS cycle time: User defined, on and off 1-99 s; ramp 0-3 s; treatment time 1-240 min
sEMG range: 0.2 to 2000 microvolt RMS, continuous
sEMG sensitivity: 0.1 microvolt RMS
sEMG accuracy: 6% of microvolt reading +/- 0.3 microvolt
Dimensions: 3.8 x 1.4 x 6.2 in. (9.6 x 3.6 x 16 cm)
Weight: 0.75 lb (0.34 kg)
Power input: 6 V, 4 x 1.5 V AA cells
Reference EMG electrode: 13-8082, sold separately from the system
Warranty: Two years (24 months) from date of original consumer purchase

Part number: 5923-3, VitalStim Plus Electrotherapy System
Configuration: 2 channel sEMG and 4 channel electrotherapy in one handheld unit
Treatment modes: VitalStim (co-contraction), VMS, sEMG, sEMG plus Triggered Stim
VitalStim waveform: Symmetrical square biphasic with 100 microsecond interphase interval; fixed parameters
VMS waveform: Symmetrical biphasic with 100 microsecond interphase interval; adjustable parameters
Concurrent channels: Up to four channels stimulate concurrently and pause together in VitalStim mode
Protocol storage: Up to six user-defined protocols (VMS and sEMG plus VMS)
Data: Micro SD card slot; therapy information exports to PC
Bluetooth: Screen mirroring to a computer or tablet via a downloadable PC application
Display: Colour display with stylus entry; mirrors over Bluetooth
Education videos: Therapeutic exercises and electrode placements, built in
Anatomical library: Swallowing anatomy, pathology and treatment imagery
Electrodes: Not included; VitalStim electrodes 59000 / 59005 / 59042 / 59043 / 59044 sold separately
In the box: Unit, snap lead wires 25-8080, reference EMG lead wire 13-8083, hand switch 13-8085, stand 13-8088, stylus 13-8089, rubber sleeve 13-8090, battery door 13-8075
Training: Use of other accessories and/or techniques not approved under the VitalStim Plus certification training may result in death, injury, or adverse effects

Unit: VitalStim Plus handheld
Lead wires: Snap lead wires 25-8080 and reference EMG lead wire 13-8083
Controls: Hand switch 13-8085 and stylus 13-8089
Stand: Stand 13-8088
Sleeve and battery door: Rubber sleeve 13-8090 and battery door 13-8075
Electrodes: Not included; VitalStim Plus electrodes sold separately
Reference EMG electrode: Not included; 13-8082 sold separately
