Radial shock transmitter

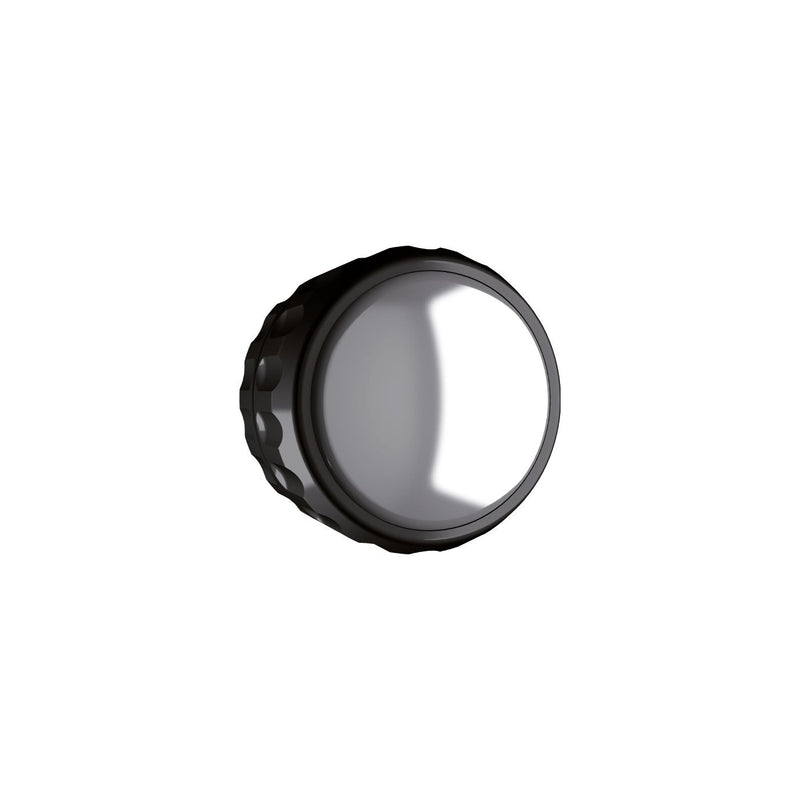

Chattanooga D35-S Shock Transmitter (35mm, 0-60mm Depth Of Penetration, Steel)

The Chattanooga D35-S Shock Transmitter (35mm, 0-60mm Depth Of Penetration, Steel) is a radial shockwave transmitter with the largest face of the D-ACTOR heads, a 35 mm steel disc made for large muscles and connective tissue. That wide face reaches 0 to 60 mm deep, with intensity rated 6 out of 10. The FALCON handpiece of the Intelect RPW 2 and the R-SW handpiece of the Intelect Mobile 2 RPW both take it, new or open-box. Sold singly, it is also one of the heads in the cased set of nine.

Every D-ACTOR head shares one thread, so the D35-S screws onto the same handpiece as the 20 mm D20-S and the 15 mm DI15, and one handpiece runs them all. Chattanooga warrants transmitters for one year or one million shocks, whichever occurs first, and the surface can reach 47 deg C in use. The face is the surface that wears, so it is wiped down and inspected between patients and retired when the strike face no longer sits flat against the skin.
