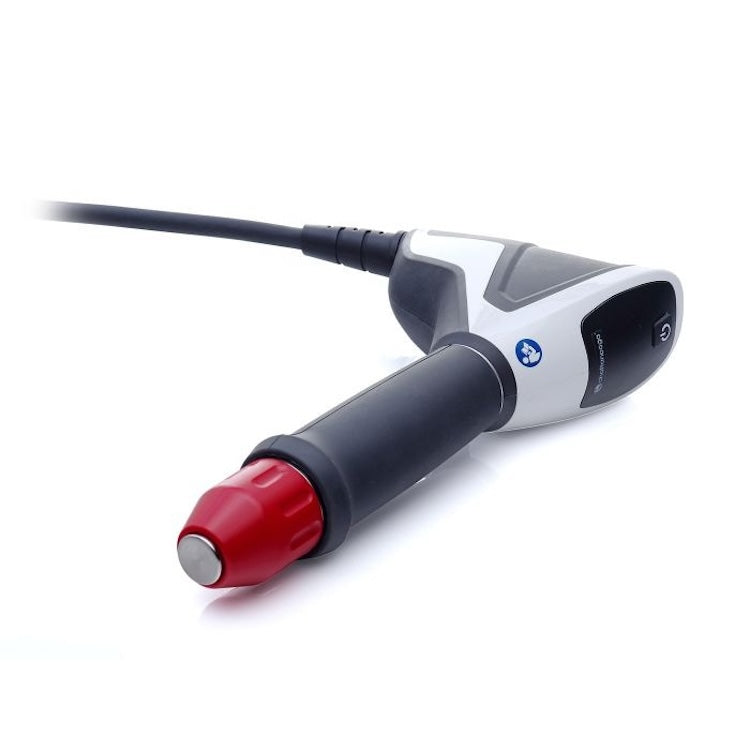

Radial pressure waves, generated ballistically. A compressor drives a projectile down a guiding tube inside the FALCON handpiece, the projectile strikes the back of the transmitter head, and the head passes the pressure wave into whatever it is held against. Output is metered in bar, 0.3 to 5.0 in 0.1 bar steps, at 1 to 21 Hz, single pulse or continuous. A focused machine such as the Intelect Focus Shockwave meters in mJ/mm2, which is why no setting carries from one type to the other and why the two ranges share no parts.

This equipment is to be used only by a trained medical professional, and the device shall not be sold OTC to non professional users. The intended user profile names physical therapists, occupational therapists, athletic trainers, chiropractors, osteopaths, podiatrists and medical doctors. No device-specific training course is attached to the RPW 2 as a condition of use, which is where it differs from the Intelect Focus Shockwave and its mandatory course.

The device must not be used where there is: brain or spinal column in the treatment area; any body part during pregnancy; direct application over cancerous tumors or malignant lesions; polyneuropathy areas, particularly in diabetic patients; treatment within six weeks of a local cortisone injection; haemophilia, thrombosis, deep vein thrombosis or coagulation disorders; a patient taking anticoagulants; neoplastic tissues or space-occupying lesions; reduced thermal sensitivity, unless a physician is notified; or proximity to large vessels, the spinal column or the head, the face excepted. Read the instructions for use in full before the first treatment.

0.3 to 5.0 bar in 0.1 bar increments, 1 to 21 Hz on the FALCON handpiece, single pulse or continuous. The optional V-ACTOR HF vibration handpiece runs 1 to 50 Hz. Pulse width is approximately 6 to 12 ms and amplitude approximately 2 mm at 3 bar, idling and without coupling. The portable Mobile 2 ties its frequency ceiling to pressure, dropping to 15 Hz at 4.6 bar and 12 Hz at 5.0 bar, while the RPW 2 holds 21 Hz all the way up.

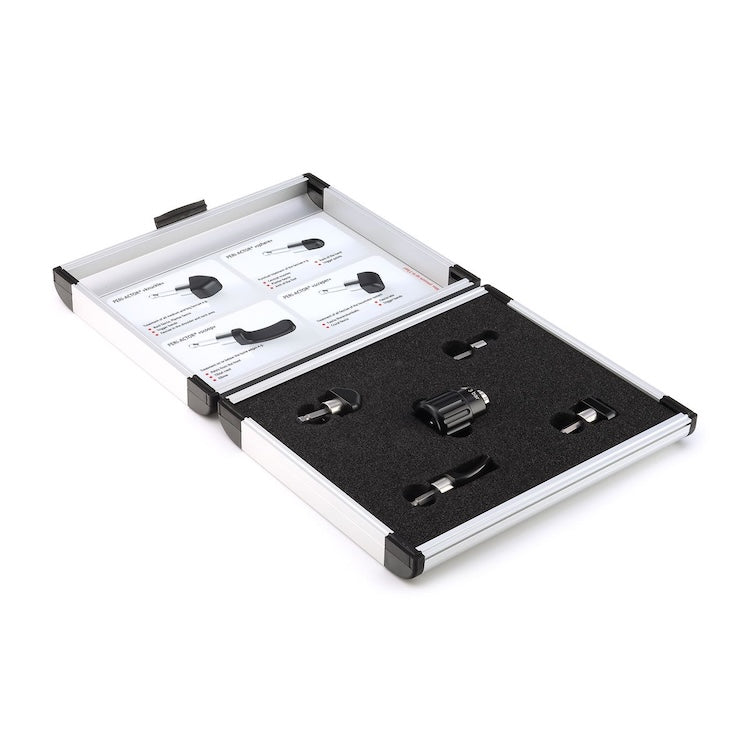

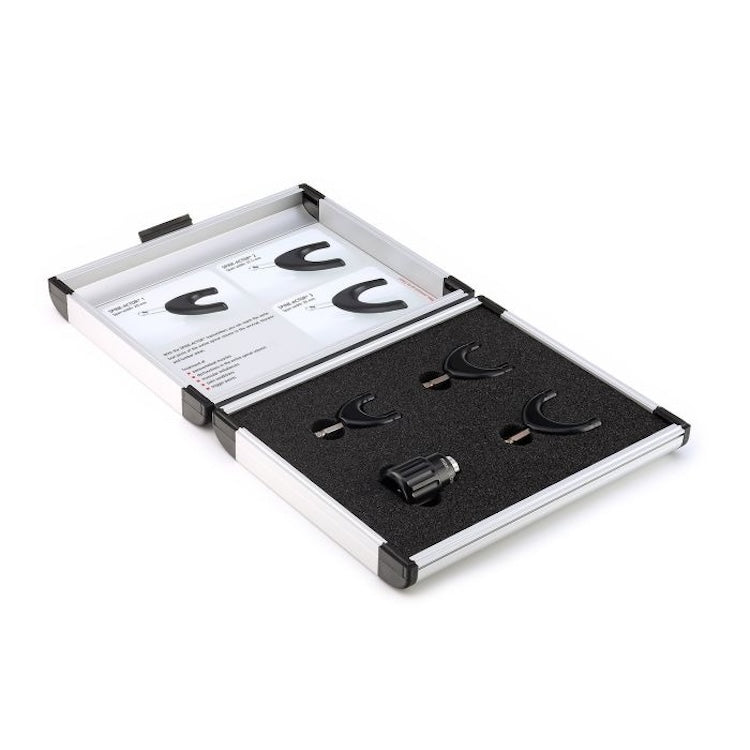

The FALCON accepts A6, T10, C15, DI15, F15, D20-S, D35-S, D20-T, Ro40 and R15, plus the Peri-Actor, Spine-Actor and Atlas heads. Nine of them come individually or as the cased set of nine in its fitted case. Every one of those heads also pairs with the Intelect Mobile 2 RPW, so a clinic running both machines buys one set of heads and keeps one shelf of spares for both rooms.

21 interchangeable transmitter attachments exist across the range, and ten individual heads fit the FALCON, alongside the Peri-Actor and Spine-Actor sets. Buy against the head list, by diameter and by depth of penetration, because those two figures decide which head goes on the handpiece for a given treatment. The nine sold individually cover 10 mm, 15 mm, 20 mm and 35 mm faces in steel, ceramic, titanium, Teflon and a soft tip.

No. The Mobile 2 parts table carries only the R-SW handpiece set and the V-ACTOR II set, while the FALCON appears only in RPW 2 documentation. The same split runs through the service parts, because the short-shaft revision kit holds FALCON projectiles and guiding tubes and will not service an R-SW handpiece. Transmitter heads cross over between the two machines, but handpieces and their internals stay on the machine they were built for.

Three terms run at once: three years (36 months) on the control device from the date of original consumer purchase; two years or three million shocks on the handpiece, whichever occurs first, valid only where the handpiece is revised every one million shocks; and one year or one million shocks on shock transmitters. Buying the unit new makes you the original consumer purchaser, so all three clocks start with your purchase. Exclusions include parts or labour furnished by anyone other than Chattanooga, the selling dealer or a certified company service technician.

Replacing the projectile, guiding tube and O-rings inside the handpiece. The Revision Kit Falcon Handpiece, Short Shaft holds two projectiles, two short guiding tubes, two O-ring sets and an O-ring guide, and one ships in the kit. The handpiece warranty is valid only in case proper revision of the handpiece is performed every 1 million shocks, so revision is a warranty condition and not optional maintenance.

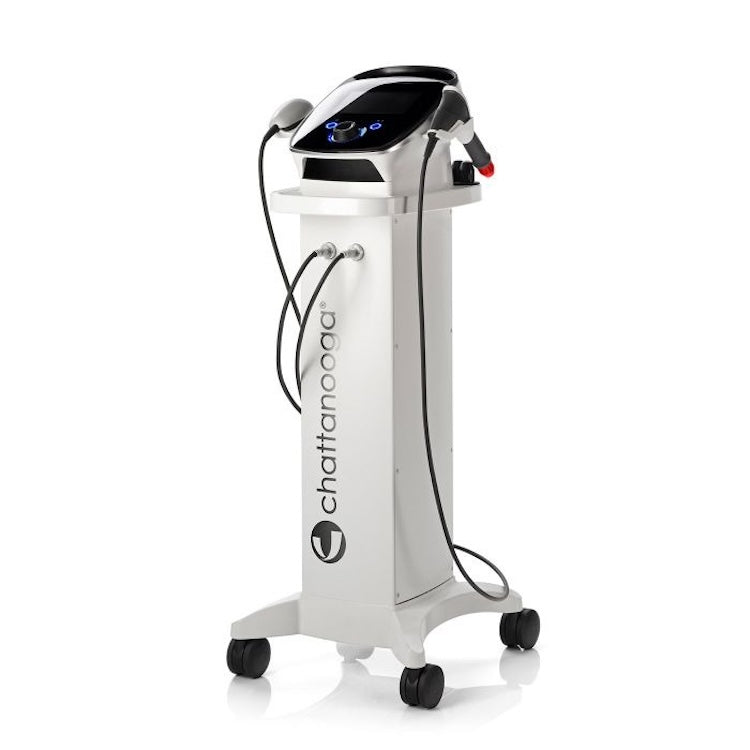

The standard configuration with one handset weighs 32 kg (72 lb), the device on its own 29 kg (64 lb), and the unit is also quoted at 66.14 lb. The trolley stands 43.31 in. high on a 16.15 x 16.54 in. footprint, or 420 mm wide, 410 mm deep and 1140 mm high, so measure a doorway and a lift against the taller figure. Trolley safe working load is 5 kg (11 lb), which covers gel bottles and a transmitter tray and nothing heavier.

120 VAC at 50 to 60 Hz, 350 VA, protected by two T6.3A H 250V 5x20 mm fuses. It is a Class I, Type B device conforming to EN/IEC 60601-1, CAN/CSA-C22.2 No.601.1 and UL Std. No 60601-1, and Chattanooga classes it IIa under MDD 93/42/EEC. Portable RF communications equipment should be kept at least 30 cm (12 in.) away, and the room should hold at least 35 percent relative humidity for ESD.

The standard accessory list runs Conductor transmission gel in 8.5 oz (250 ml) bottles, 24 per case; the Ro40 Beam D-ACTOR transmitter at 15 mm; the D20-S standard D-ACTOR transmitter at 20 mm; the Revision Kit Falcon Handpiece Short Shaft; a power cord; and a USB drive. The trolley also carries the gel cup and holder, the RPW pouch, the transmitter tray, the cable holder, the water reservoir and the quick start guide. Two transmitter heads in that list are wear items, so plan a first reorder around them.

Water-based deionised ultrasonic gel is the coupling medium, supplied as Conductor transmission gel in 8.5 oz (250 ml) bottles, 24 to a case, and the trolley carries a gel cup and holder and a water reservoir to keep it at the operator's hand. Transmitter heads are the fastest-moving wear item, covered for one year or one million shocks, whichever occurs first, and the surface of a transmitter can reach 47 deg C in use. The handpiece is the next item in line, with revision every one million shocks replacing the projectile, guiding tube and O-rings out of the short-shaft revision kit. Budget gel by the case, transmitter heads by the pair, and one revision kit for every million shocks the FALCON fires.

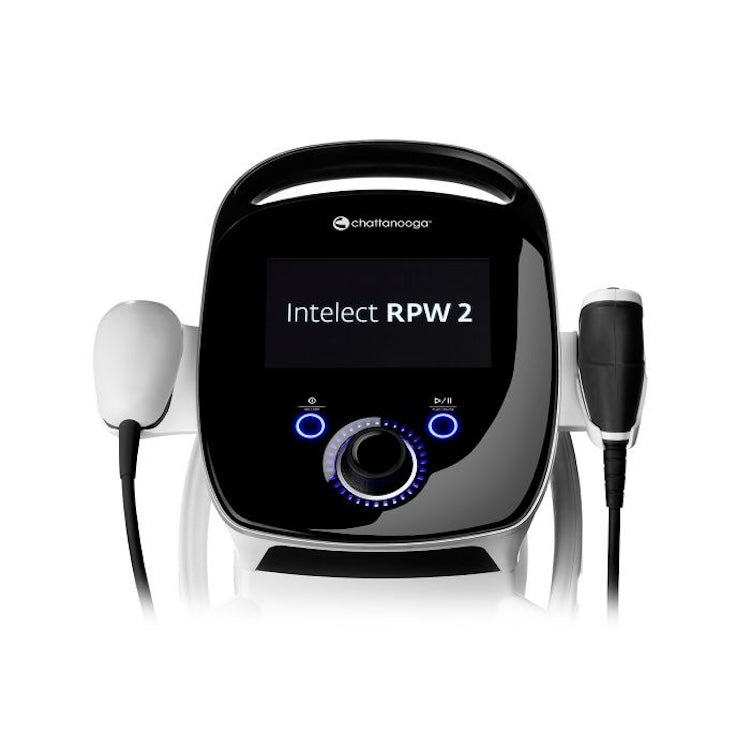

Yes, by two routes. Bluetooth runs 2400 MHz to 2483.5 MHz with GFSK modulation at up to 2 Mbps and ERP +6 dBm, and a USB drive ships in the kit, with the Intelect Connect App moving patient data from the device to a PC. The 7 in. 800 x 480 pixel colour capacitive touch screen carries the on-board protocol library alongside that, with its anatomical and pathological views and its transmitter guidance, so the settings and the record sit on the same console. The portable Intelect Mobile 2 RPW carries neither route, which is one of the working differences between the two radial machines.

The limits that govern a session: offer the patient hearing protection before each use; do not apply more than 300 shocks to the same spot; interrupt therapy after a maximum of 6000 pulses to let the transmitter cool; the surface of the transmitter can reach 47 deg C and extended skin contact can cause minor burns; do not trigger pulses unless the transmitter is in contact with the treatment zone. The device must not be used in water, and it is not built for an oxygen-rich environment.

The hardware is identical either way, down to the same FALCON handpiece and the same standard accessory list. Buying new makes you the original consumer purchaser, so all three warranty terms run their full length from the date of your purchase: three years on the control device, two years or three million shocks on the handpiece, one year or one million shocks on transmitters. On the open-box unit the remaining term depends on the individual machine, so tell us which one you are looking at and we will read the handpiece shock counter and check the carton against the standard accessory list before anything ships.
