Chattanooga Intelect Ultrasound Applicator

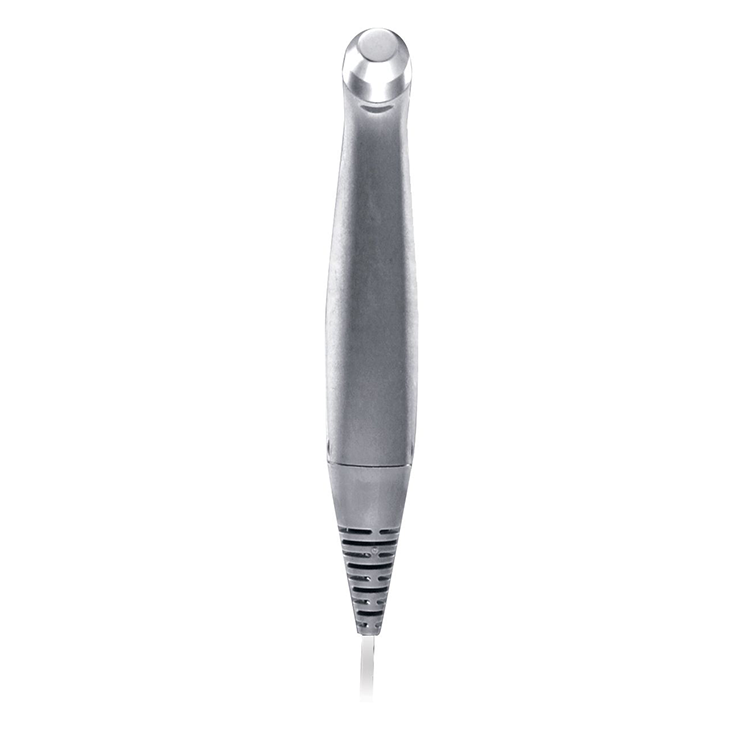

The Chattanooga Intelect Ultrasound Applicator is the pre-calibrated ultrasound applicator for the first-generation Intelect TranSport, built in four sound head sizes: 1, 2, 5 and 10 cm2. Heads swap on the same console, and the size you fit sets the output ceiling. That ceiling runs from 0 to 2 W on the 1 cm2 up to 0 to 20 W at 1 MHz on the 10 cm2. The 1 cm2 head runs at 3.3 MHz only, while the other three switch between 1 MHz and 3.3 MHz.

Effective radiating area is 0.7 to 1, 1.4 to 2, 3.5 to 5 and 6.8 to 10 cm2 in size order, and the beam nonuniformity ratio is 5.0:1 maximum on all four heads. At 3.3 MHz the 10 cm2 head runs 0 to 10 W. The heads fit the Intelect TranSport Ultrasound and the Intelect TranSport Combo, and the 5 cm2 head ships as standard with both, so the 1, 2 and 10 cm2 sizes are the ones you add. Chattanooga warrants each applicator for 12 months.

  • ERA, 1 cm2 head: 0.7-1 cm2
  • ERA, 2 cm2 head: 1.4-2 cm2
  • ERA, 5 cm2 head: 3.5-5 cm2
  • ERA, 10 cm2 head: 6.8-10 cm2
  • Frequencies: 1 MHz and 3.3 MHz, selectable
  • Beam nonuniformity ratio: 5.0:1 maximum
  • Output power, 1, 2 and 5 cm2 heads: 0-2 W, 0-4 W and 0-10 W
  • Output power, 10 cm2 head: 0-20 W at 1 MHz; 0-10 W at 3.3 MHz
  • Applicator warranty: 12 months
  • Part numbers: 27381 (1 cm2), 27382 (2 cm2), 27383 (5 cm2), 27384 (10 cm2)
  • Generation: First-generation Intelect TranSport Ultrasound (2782) and TranSport Combo (2738)
  • Calibration: Pre-calibrated, interchangeable on the same console
  • Supplied with those machines: 5 cm2 head, 27383
  • 1 cm2 head: 3.3 MHz only
  • Intelect Transport 2: Takes its own Transport 2 Ultrasound Applicator
