Chattanooga Saunders Lumbar Traction Device
Chattanooga Saunders Lumbar Traction Device
Chattanooga Saunders Lumbar Traction Device
Chattanooga Saunders Lumbar Traction Device
Chattanooga Saunders Lumbar Traction Device
Chattanooga Saunders Lumbar Traction Device
Chattanooga Saunders Lumbar Traction Device
Chattanooga Saunders Lumbar Traction Device
Chattanooga Saunders Lumbar Traction Device
Chattanooga Saunders Lumbar Traction Device

Chattanooga Saunders Lumbar Traction Device

by Chattanooga
$499.00 - $499.00
$499.00
$499.00 - $499.00
$499.00

✓ Authorized Chattanooga Dealer
✓ Lowest Price Guaranteed
✓ FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

10% Off Fall Sale with Code: CHATT10

Chattanooga Saunders

Chattanooga Saunders Lumbar Traction Device

The Chattanooga Saunders Lumbar Traction Device is a lumbar home traction device built on a smooth, friction-free surface for consistent, controlled traction. You strap into an upper thoracic harness and a lower pelvic harness, lie on your back on the device, and squeeze a hand pump. The pump drives a pneumatic cylinder that moves the two halves of a split table apart. An easy-to-read gauge shows the force as it builds. A blow-off valve prevents excessive pressure, and it arrives complete in its own carrying case.

Hand pump with a pressure gauge Comes complete, no assembly required No mains power needed

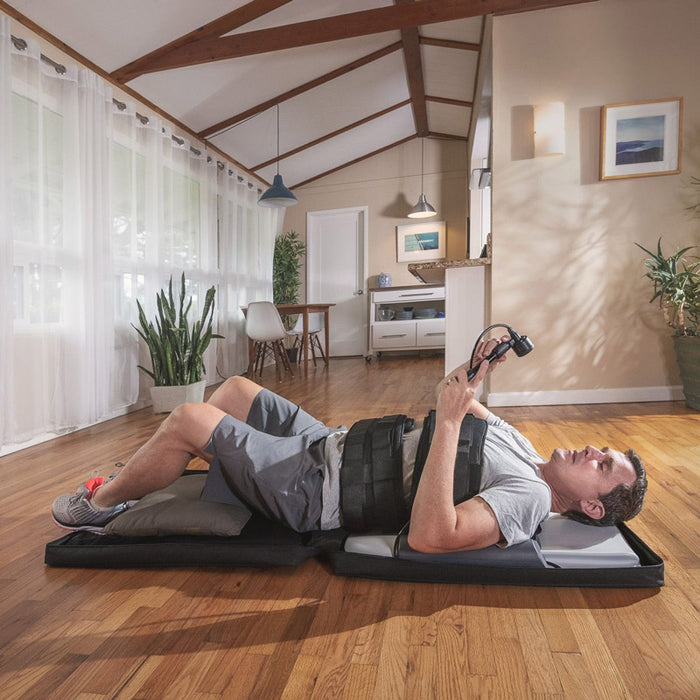

Chattanooga Saunders Lumbar Traction Device, in use on a living-room floor

The device

How it works

A hand pump makes the force and valves hold its ceiling, so the device needs no motor and no outlet at home.

Valves that cap the force
Pressure relief valves and a blow-off valve limit maximum force to 200 lb (90 kg), the ceiling the hardware holds whatever happens at the pump. The patented pneumatic system is built for accurate, consistent force and leak-free performance, which keeps the gauge reading true over a course of daily sessions.
200 lb max
Split table on a friction-free surface
The upper and lower halves are separate platforms and the lower half rides on a friction-free track, an actively moving surface that follows the shape of clinic traction.
Split table
A pump that clicks into place
The patented hand pump seats with a simple click-in-place mechanism before the first squeeze, and the easy-to-read pressure gauge on it shows the force at all times.
Gauge on the pump
It packs into a wheeled case

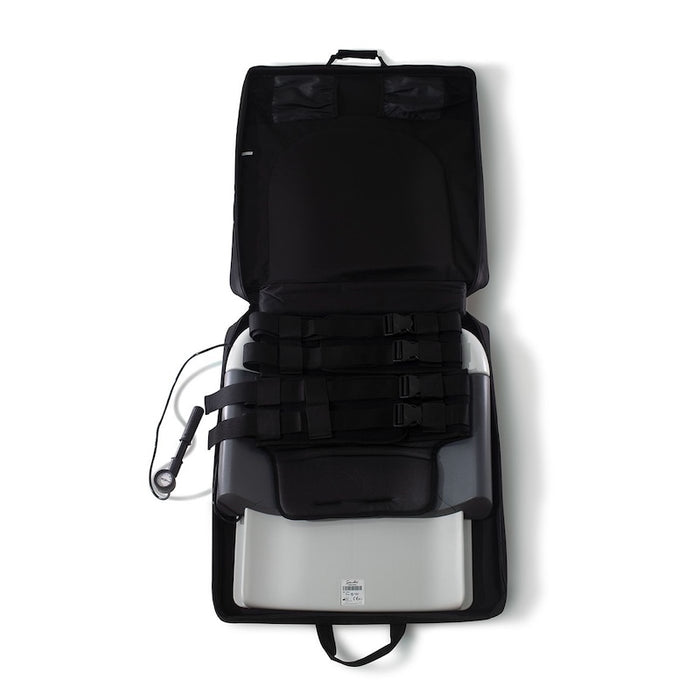

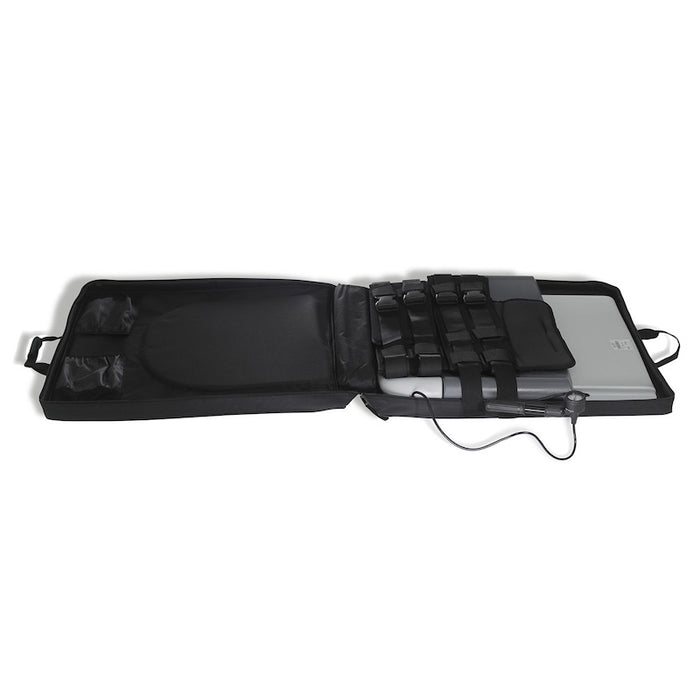

It packs into a carrying case with detachable wheels, so it rolls from room to room and the wheels come off for storage.
Wheeled case

Saunders at home

Key features

The HomeTrac arrives ready to use, keeps its straps in order between sessions and extends to fit a larger frame.

Non-slip harnesses
The upper thoracic and lower pelvic harnesses are non-slip, and belt organizers keep the straps from tangling between sessions.
Belt extension kit
A Belt Extension Kit, sold separately, lengthens the upper thoracic and lower pelvic harnesses beyond the range the supplied straps cover.
Warranty
One year from date of purchase, covering defects in workmanship and materials.
Arrives assembled
It comes complete, with no assembly required, ready to lay out on the floor for the first session.

In detail

How to use it

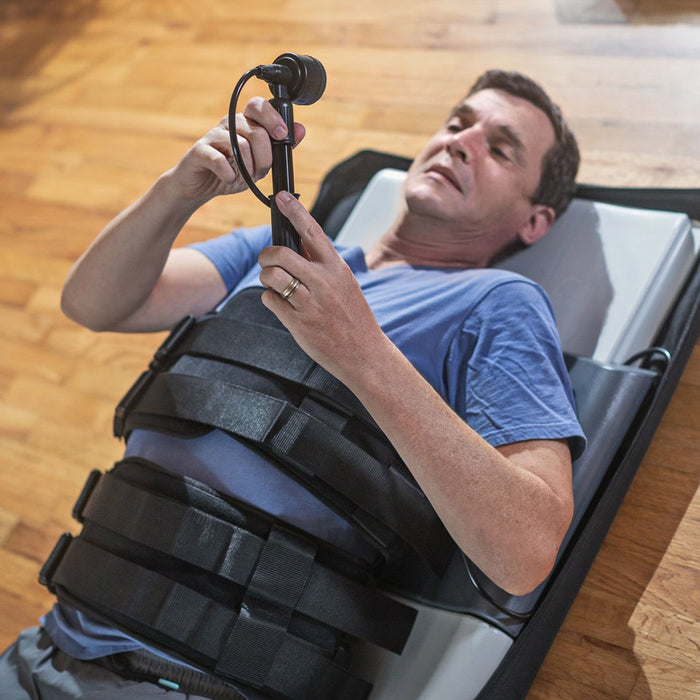

Chattanooga Saunders Lumbar Traction Device, working the hand pump
Pump

Working the hand pump

Squeeze the pump and the gauge climbs with the force; open the valve and the force comes off. The gauge shows the force at every point while a session runs.

  • Easy-to-read pressure gauge on the pump
  • Pressure relief valves and a blow-off valve
  • Click-in-place pump fitting
Gauge on the pump Relief valves Hand pump

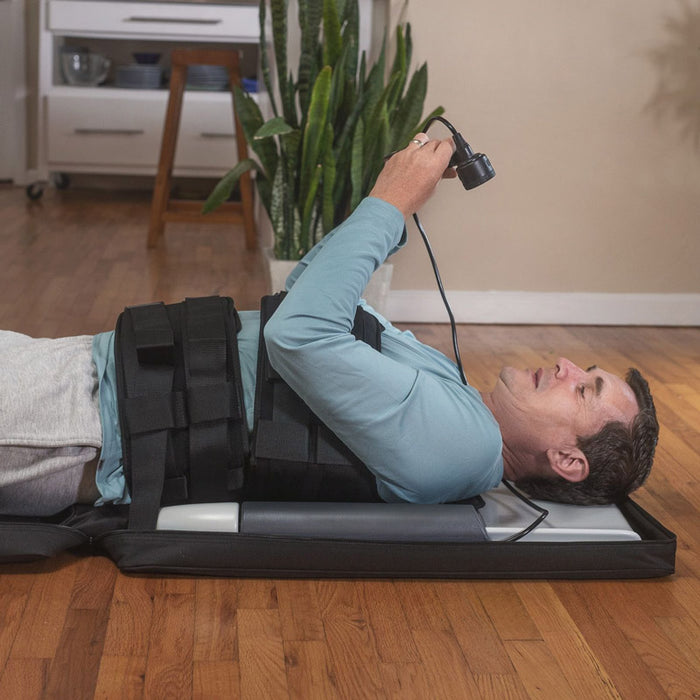

Chattanooga Saunders Lumbar Traction Device, lying supine in the harnesses
Position

Lying in the harnesses

Lie on your back on the floor and strap into both harnesses: the upper thoracic harness holds the chest against the top platform and the lower pelvic harness carries the hips on the moving half. Three positions are set from there: lumbar flexion with pillows under the knees, neutral, and extension with rolled towels or wedges under the pelvis.

  • Upper thoracic harness and lower pelvic harness
  • Belt organizer for the straps
  • Lower platform on a friction-free track
  • Used on the floor, in the space of your own length
Two harnesses Three positions Floor use

Saunders lumbar

Videos

The Saunders range

How it compares

The Saunders Lumbar Traction Device is the hand-pumped home unit for the lower back. The clinical cervical device and the TX Traction Unit are clinic equipment: an applicator and the powered head that pulls it.

Chattanooga Saunders clinical cervical traction device
Saunders Cervical, clinical
Clevis-mounted cervical attachment for Triton and TX units, with the clevis in the box.
Clinical Cervical Traction System Patient fit: one size fits most Fits Triton, TX, and TX with TX Bracket variants Clevis attachment supplied with the device
Shop the Saunders Cervical, clinical
You're Here
Chattanooga Saunders lumbar home traction device with harnesses and hand pump
Saunders Lumbar HomeTrac
A split-table pneumatic home unit whose relief valves cap force at 200 lb (90 kg).
Hand-pumped, used on the floor at home Maximum force up to 200 lb (90 kg) Hand pump with pressure relief valves Warranty: 1 year from date of purchase
Currently viewing
Chattanooga TX Traction Unit traction head
TX Traction Unit
Monochrome touch screen, 10 stored protocols, Patient Data Cards holding 14 sessions.
0 to 200 lb (0 to 90 kg / 0 to 890 N) High contrast monochrome touch screen Up to 10 user-defined treatment protocols Patient Data Cards: up to 14 treatment sessions
Shop the TX Traction Unit

Questions

Frequently asked questions

Up to 200 lb (90 kg) at the device maximum, held there by pressure relief valves and a blow-off valve.

As guidance, 20 to 40 lb for women and 25 to 40 lb for men, for 8 to 20 minutes a session, 1 to 4 times daily. The shorter window is 8 to 12 minutes, starting daily at the beginning of a course. Static traction is preferred, and intermittent traction holds for at least 60 seconds.

The Saunders Lumbar Traction device, upper and lower harnesses, a hand pump with gauge, a carrying case with wheels, and a belt organizer, with the user's guide.

No. It is self-contained and used on the floor, with no motor, no mains supply and no traction head. The hand pump is the force source and the gauge is the readout.

The non-slip harnesses adjust around the chest and the pelvis, and the Belt Extension Kit lengthens both beyond the range the supplied straps cover. The device is used on the floor, so the room it needs is the length of a person lying on their back.

The upper and lower halves are separate platforms and the lower half rides on a friction-free track, so the lower body is carried on a moving surface while the thorax stays put. That moving surface keeps the motion smooth and consistent from one session to the next.

Use is contraindicated for acute or traumatic injury, rheumatoid arthritis, spinal instability, spinal cord compression, fracture, malignancy, infections and inflammatory diseases. Traction should never cause pain: discontinue the session if pain occurs, and follow the health care provider's recommendations precisely.

The device carries a warranty of one year from date of purchase, covering defects in workmanship and materials.

The upper and lower harness kit (199630), either harness on its own, the lumbar hand pump kit (199633), the belt extension kit (199635), the wheel kit (199634) and a replacement user's guide.

No. This is the lumbar home device. The Saunders Cervical Traction Device with Case is the same hand-pumped idea for the neck, supplied with a shoulder bag, and the Chattanooga Saunders Cervical Traction Device is a clinic accessory that mounts to a powered traction head.

  • Part number: 199603
  • Maximum traction force: Up to 200 lb (90 kg)
  • Force limiting: Pressure relief valves limiting maximum force to 200 lb (90 kg)
  • Harness kit: 199630 upper and lower harness kit
  • Belt extension kit: 199635
  • Wheel kit: 199634
  • Hand pump kit: 199633
  • Force display: Easy-to-read pressure gauge on the hand pump
  • Lower platform: Rides on a friction-free track
  • Warranty: One year from date of purchase
  • User's guide: 360369
  • Type: Self-contained pneumatic lumbar traction device for home use
  • Force generation: Hand pump driving a pneumatic cylinder
  • Force display: Pressure gauge on the pump
  • Force limiting: Pressure relief valves and a blow-off valve
  • Table design: Split table; the lower half rides on a friction-free track
  • Harnesses: Upper thoracic and lower pelvic, non-slip, with belt organizer
  • Assembly: Comes complete, no assembly required
  • Transport: Carrying case with detachable wheels
  • Traction unit, table or clevis: Not required
  • Mains power: Not required
  • Warning: Traction should never cause pain; discontinue if pain occurs
  • Traction device: Split table, fully assembled
  • Harnesses: Upper thoracic and lower pelvic, non-slip, with belt organizer
  • Hand pump: With pressure gauge
  • Carrying case: With detachable wheels
  • Documentation: User's guide
