Chattanooga Saunders Cervical Traction Device
Chattanooga Saunders Cervical Traction Device
Chattanooga Saunders Cervical Traction Device
Chattanooga Saunders Cervical Traction Device
Chattanooga Saunders Cervical Traction Device
Chattanooga Saunders Cervical Traction Device

Chattanooga Saunders Cervical Traction Device

by Chattanooga
$630.00 - $630.00
$630.00
$630.00 - $630.00
$630.00

✓ Authorized Chattanooga Dealer
✓ Lowest Price Guaranteed
✓ FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

10% Off Fall Sale with Code: CHATT10

Chattanooga Saunders

Chattanooga Saunders Cervical Traction Device

The Chattanooga Saunders Cervical Traction Device is a clinical cervical traction applicator that pulls at the base of the occiput when it is attached to a Chattanooga traction unit. It is a head pad, a neck carriage running on a low-friction track, a pair of neck wedges and a head strap. The pull comes from the traction unit and is taken at the back of the head. No chin halter is used, and nothing loads the jaw. The clevis that couples it to the head is included, and it comes in three mounting versions: TX 1-7, TRUE-EZE and TRITON.

It works with a Chattanooga traction head and a table with a traction pedestal, both sold separately, and it is also known as the Clinical Cervical Traction System.

Mounting
Clevis
Couples to the traction head
Wedge placement
1.5 in.
3.81 cm below the occipital bone
Patient fit
One size fits most
Strap and carriage adjust
Traction angle
Set at the pedestal
Table pedestal height
Fits Triton and TX traction units Horizontal and unilateral setups Traction unit and table sold separately

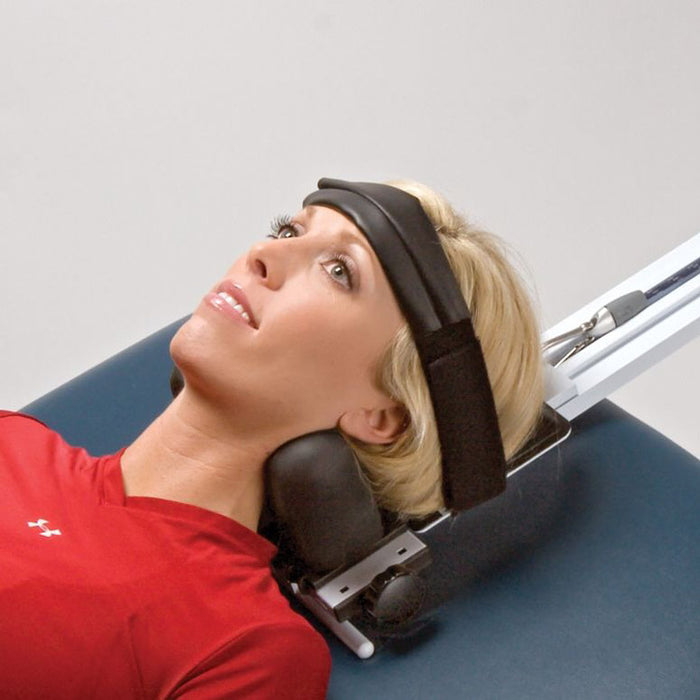

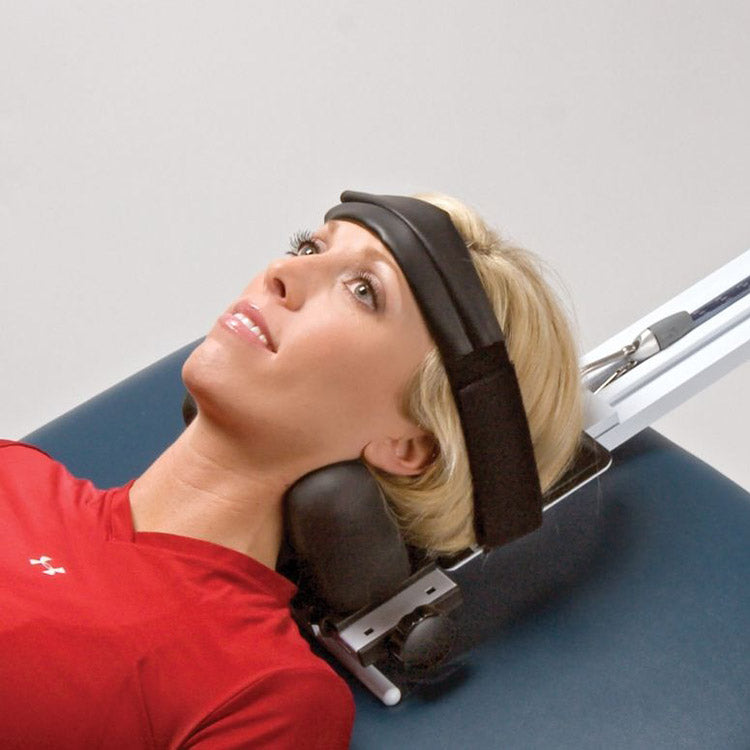

Chattanooga Saunders Cervical Traction Device, in use with a patient lying down

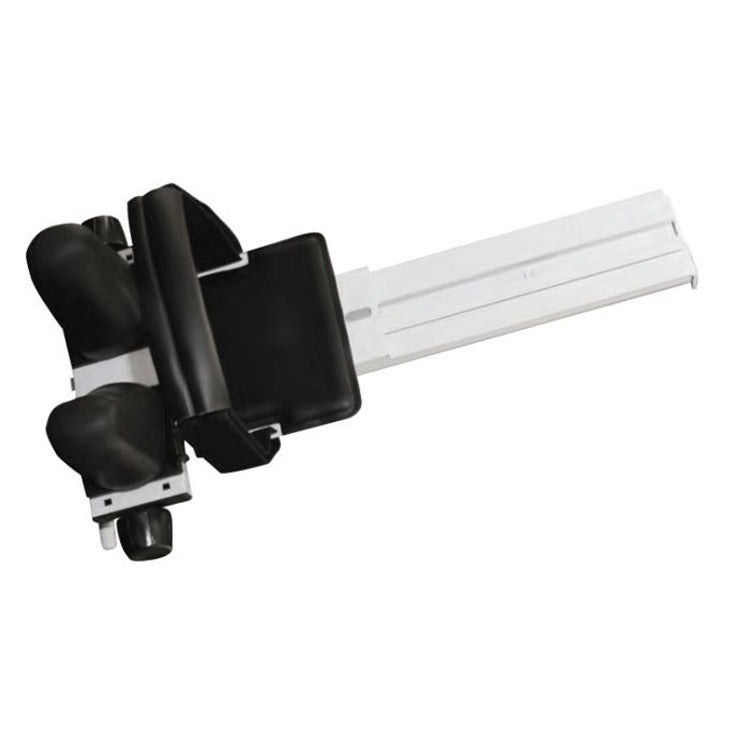

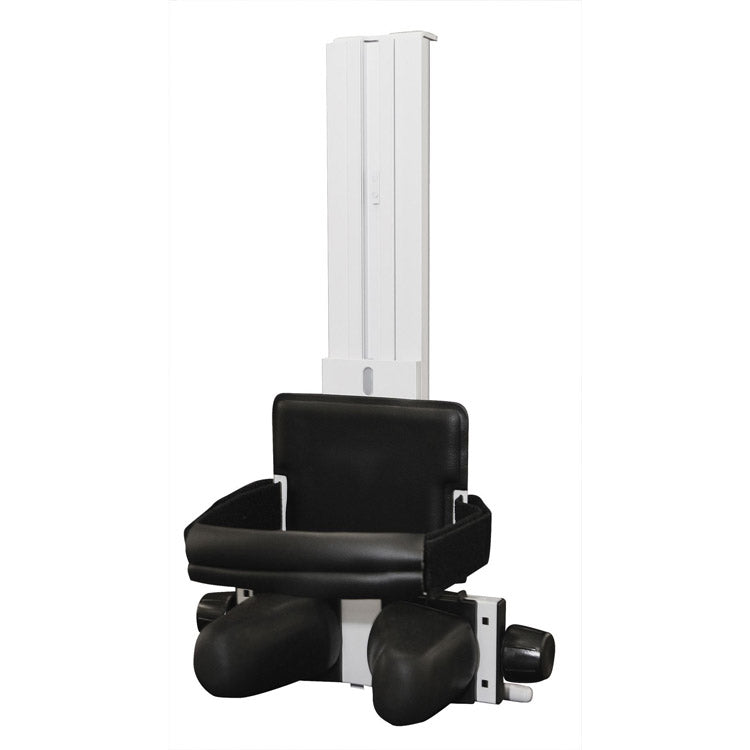

The applicator

How it works

The wedge position, the mounting and the height of the table pedestal decide how the pull reaches the patient.

Wedges at 1.5 in. below the occiput
The neck wedges are placed at the mid-cervical region, approximately 1.5 in. (3.81 cm) below the occipital bone. The placement sets where on the skull the pull is taken, and marking it on the carriage makes the setup repeatable from one session to the next.
1.5 in.
Clevis mounting
Older heads mount as Triton, TX, and TX with TX Bracket variants, and newer heads take a simplified attachment through clevis attachment slots. The clevis itself is supplied with the device, and each of the three mounting versions matches its own head.
Triton and TX
Angle set at the pedestal
There is no angle adjustment on the applicator itself. The traction angle is set by adjusting the height of the table's traction pedestal, and the applicator follows whatever angle the table gives it.
Pedestal height
A single fastener size
Assembly uses 1/4-20 x 5/8 in. socket head cap screws throughout, so one hex key services the whole applicator. DJO, LLC of Vista, California is the legal manufacturer, working to an ISO 13485 certified quality system.
1/4-20 hardware

Saunders clinical

Key features

A Saunders clinical device stays on the traction table between patients, with one carriage for every setup and its clevis supplied.

Clevis included
The clevis attachment ships with the device. A separately sold clevis package is a spare, or the bracket that lets a second traction table take the same applicator.
Horizontal and unilateral
The same carriage serves horizontal and unilateral traction setups, with no second applicator for either.
Low-friction carriage
The neck carriage runs on a low-friction track and moves with the pull from the traction head.
Patient-contact surfaces
The head pad, the two neck wedges and the head strap touch the patient and wipe down between patients.

The Saunders range

How it compares

The clinical cervical device mounts to a powered traction head such as the TX Traction Unit. The Saunders Lumbar Traction Device is a self-contained home unit worked from a hand pump.

You're Here
Chattanooga Saunders clinical cervical traction device
Saunders Cervical, clinical
Clevis-mounted cervical attachment for Triton and TX units, with the clevis in the box.
Clinical Cervical Traction System Patient fit: one size fits most Fits Triton, TX, and TX with TX Bracket variants Clevis attachment supplied with the device
Currently viewing
Chattanooga Saunders lumbar home traction device with harnesses and hand pump
Saunders Lumbar HomeTrac
A split-table pneumatic home unit whose relief valves cap force at 200 lb (90 kg).
Hand-pumped, used on the floor at home Maximum force up to 200 lb (90 kg) Hand pump with pressure relief valves Warranty: 1 year from date of purchase
Shop the Saunders Lumbar HomeTrac
Chattanooga TX Traction Unit traction head
TX Traction Unit
Monochrome touch screen, 10 stored protocols, Patient Data Cards holding 14 sessions.
0 to 200 lb (0 to 90 kg / 0 to 890 N) High contrast monochrome touch screen Up to 10 user-defined treatment protocols Patient Data Cards: up to 14 treatment sessions
Shop the TX Traction Unit

Questions

Frequently asked questions

No. It is the cervical applicator that a traction machine pulls on. It has no motor, no gauge and no controls. A Chattanooga TX Traction Unit or Triton Traction Unit generates and regulates the force, and this device carries it to the patient's head.

Triton, TX, and TX with TX Bracket variants for older models, and a simplified attachment through clevis attachment slots for newer ones. It comes in three mounting versions, TX 1-7, TRUE-EZE and TRITON, each matching its own head. It carries the pull from a TX Traction Unit or a Triton Traction Unit on a Galaxy TTET-300, Galaxy TTET-400, Triton 6M or Triton 6E traction table.

The head pad, the neck carriage on its low-friction track, a pair of neck wedges, the head strap and the clevis attachment, with the instructions for use. The traction head, the traction cord and the table are sold separately.

Patient fit is one size fits most. The head strap and the neck carriage take up the difference between one patient and the next, and the wedges are positioned to each patient at the mid-cervical region.

Mount it to the powered traction head through the clevis, set the neck wedges, fit the head strap, and set force, hold and rest on the traction unit doing the pulling. The Patient Interrupt Switch on the traction unit must be in the patient's grasp throughout the traction therapy.

Yes. It ships inside the TX Traction Kits, inside the TX kit that carries knee bolsters in place of the flexion stool, and inside the Triton DTS Advanced Accessory Package. The Triton DTS Basic package is the DTS unit, the QuikWrap belting and a pair of knee bolsters, and this device with the Stabilizer pressure biofeedback unit makes up the whole difference between Basic and Advanced.

No. The Saunders Cervical Traction Device with Case is a self-contained pneumatic unit with its own hand pump, gauge and carry case, built for home use. This clinical device has no pump and no gauge and mounts to a powered traction head through its clevis.

Traction is contraindicated for a list that includes structural disease from tumor or infection, vascular compromise, acute strains, sprains, inflammation, joint instability, pregnancy, osteoporosis, hiatus hernia, claustrophobia, and cardiac or pulmonary problems. The full contraindication and warning list ships with the traction unit that pulls the applicator.

  • Reference number: REF 7040
  • Neck wedge placement: 1.5 in. (3.81 cm) below the occipital bone
  • Patient fit: One size fits most
  • Assembly hardware: 1/4-20 x 5/8 in. socket head cap screws
  • Force setting: Set and held at the traction head, which runs 0 to 200 lb
  • Head pad: Contoured pad with an aperture for the traction rope
  • Neck carriage: Runs on a low-friction track
  • Clevis: Supplied with the 7040; spare is part 48039
  • Head strap: Adjustable; no chin halter used
  • Handling: Wipe the pad, wedges and strap down between patients
  • Legal manufacturer: DJO, LLC, Vista, CA
  • Quality system: ISO 13485 certified
  • What it is: Cervical applicator for a Chattanooga traction head
  • Pull point: Base of the occiput, through a neck carriage and wedges
  • Head halter: None used
  • In the box: Saunders cervical unit and clevis attachment
  • Compatible traction units: Triton, TX, and TX with TX Bracket variants
  • Mounting versions: TX 1-7, TRUE-EZE and TRITON
  • Traction angle: Set by the height of the table's traction pedestal
  • Traction directions: Horizontal and unilateral, on the same carriage
  • Traction unit and table: Not included
  • Bundles that already include it: TX kits 8200 to 8205, kit 8206, Triton DTS Advanced package 8250
  • Patient-contact surfaces: Head pad, two neck wedges and head strap
  • Patient Interrupt Switch: On the traction unit; stays in the patient's grasp throughout traction
  • Cervical applicator: Head pad, neck carriage, neck wedges and head strap
  • Clevis: Included, for attachment to the traction head
  • Instructions for use: Included
  • Traction unit and table: Not included; sold separately
