Luxury Spas Estes 5-Person Hot Tub

Save 33% Save 33%
Original price $10,485.00
Original price $10,485.00 - Original price $10,485.00
Original price $10,485.00
Current price $6,990.00
$6,990.00 - $6,990.00
Current price $6,990.00

✓ Authorized Luxury Spas Dealer
✓ Lowest Price Guaranteed
FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

$400 Off Summer Sale with Code: LUXURY400

396 Gallons On Two 3HP Pumps

Luxury Spas Estes 5-Person Hot Tub

Water volume is the Estes' headline number. At 396 gallons it carries more water than any other five-person Luxury Spas model, roughly 46 gallons past the next one up and nearly 150 past the smallest. Two full lounge seats and three bucket seats share it, in a silver white marble interior 83 inches square and 35 inches tall.

Two separate 3HP pumps feed 54 adjustable jets across the back, legs and feet, so seats can run at pressure at the same time. A third pump does nothing but circulate, keeping the 396 gallons moving through filtration between soaks. Heating is a 5.5kW titanium element, and total connected load is 10,230 watts on a 50 amp 240V circuit.

Water Capacity
396 gal
Largest of the six
Pumps
2 x 3HP
Plus circulation pump
Jets
54
Back, leg and foot
Shell
83 x 83 in
35 in tall, 850 lbs dry
2 full lounge seats 10,230 W on 50 amp 240V LED slice waterfall 10 Year Luxury Spas Warranty

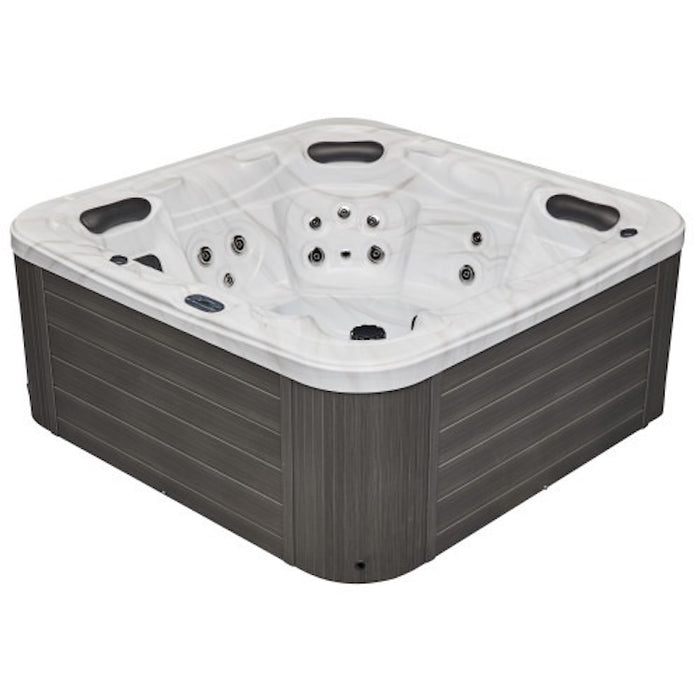

Luxury Spas Estes 5-Person Hot Tub shown from the front

The Numbers Behind It

Pump Power Against Water Volume

A jet is only as strong as the pump behind it and the volume it has to move. The Estes pairs the largest fill in this range with the most horsepower Luxury Spas fits to a five-person spa.

💧
396 Gallons
More water means the temperature and the chemistry move more slowly, which is easier on both. It also means a deeper, steadier body of water for five people to sit in without the level dropping noticeably as they get in.
Largest fill of the six
Two 3HP Pumps
Three horsepower each, running independently. Splitting 54 jets across two motors is what lets several seats hold pressure at once, so one occupant turning up their jets does not drain another's.
3HP + 3HP
🔃
A Third Pump For Filtration
The circulation pump is separate from both jet pumps, so filtration continues while the jets are off and the spa sits covered. It draws far less current than a jet pump running at speed.
Separate circ pump
🔥
5.5kW Titanium Heater
Titanium is used for the heater element because it resists corrosion from treated water better than stainless. It has 396 gallons to bring up, the largest thermal load in the five-person line.
10,230 W total

Why Athletes Choose This

Reasons The Estes Gets Picked

Two full loungers means two people can extend their legs at once. That, and the pump specification, is what people who compare the Estes against the rest of the range end up choosing it for.

🛌
Two full-length lounge seats
Seating
Dual 3HP pumps drive 54 jets
Jet pressure
💧
396 gallons, the deepest fill here
Water volume
🔃
Filtration keeps running with jets off
Water care
🌊
LED slice waterfall over the shell edge
Ambience
🔊
Waterproof Bluetooth system fitted
Audio
🏠
Square 83 inch footprint suits most decks
Installation
🎁
Cover and steps included with every unit
$495 value

Closer Look

Seats, Pumps, Water Care

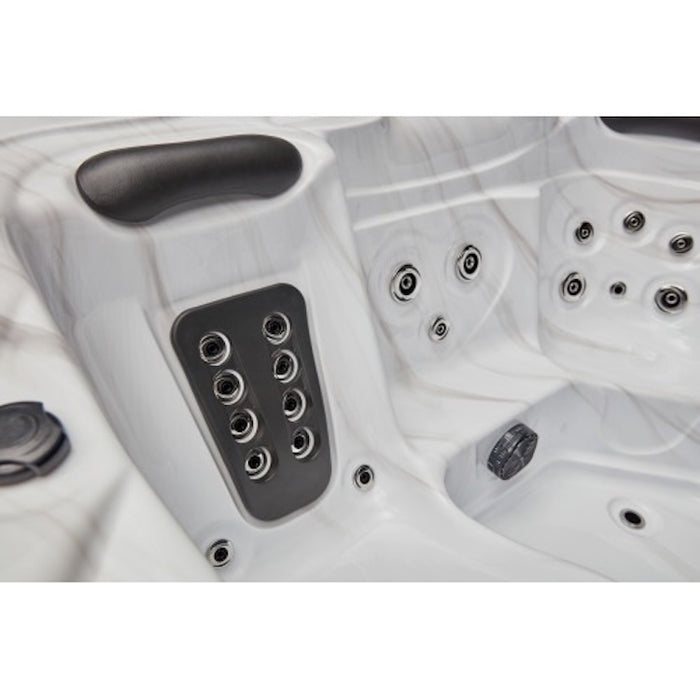

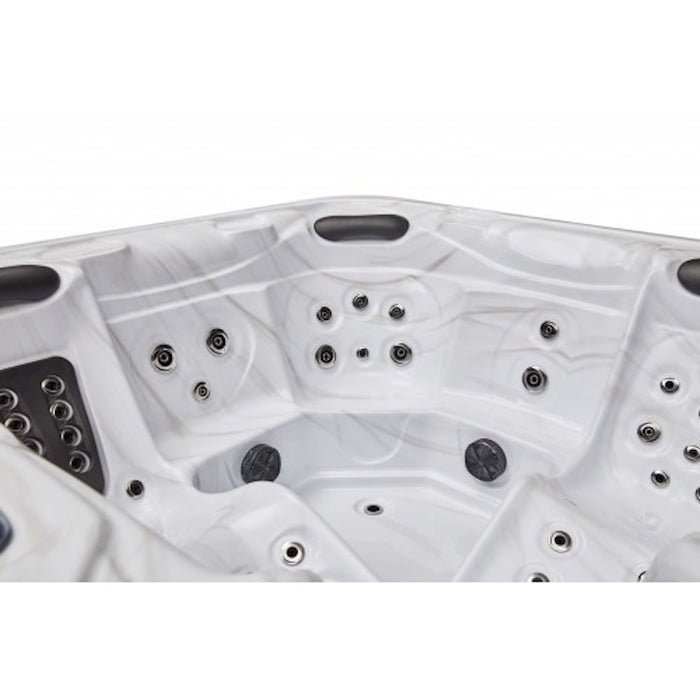

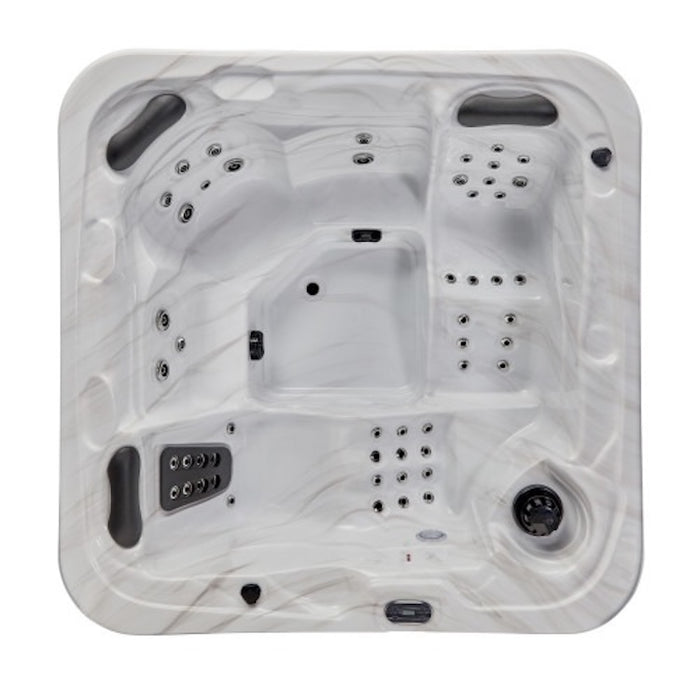

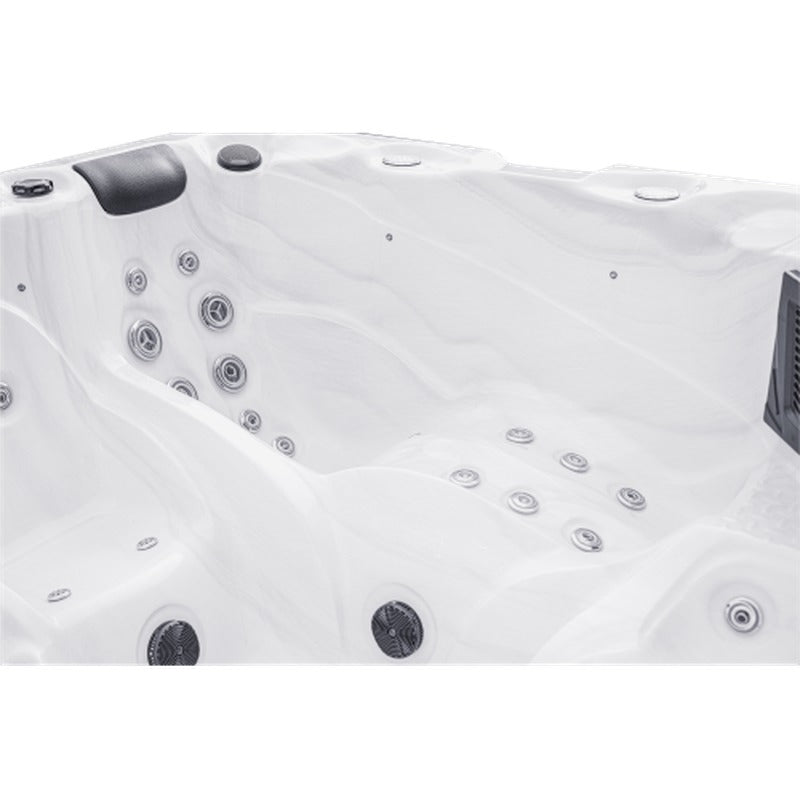

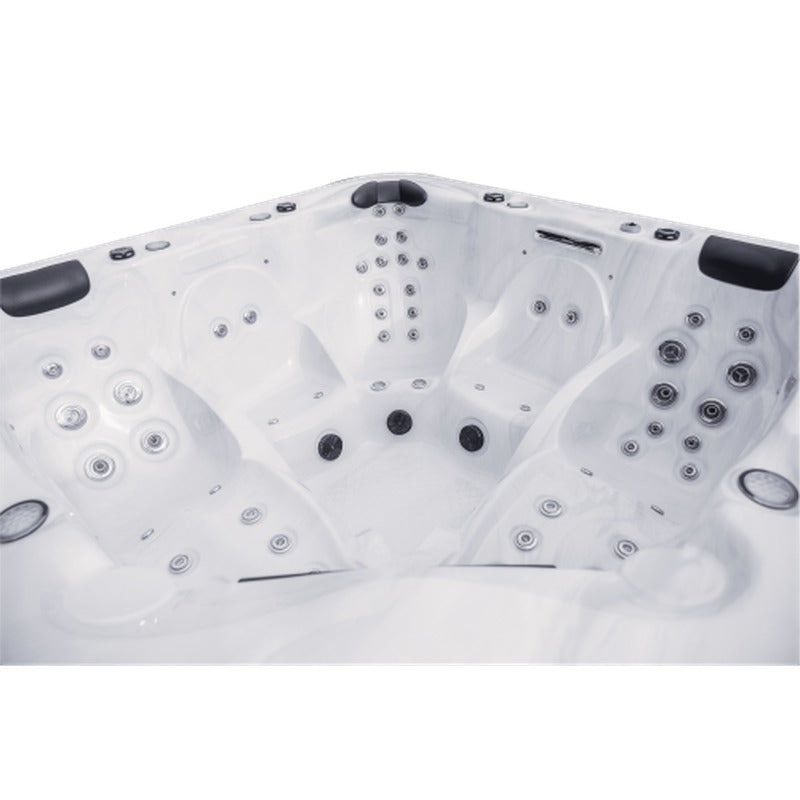

Luxury Spas Estes 5-Person Hot Tub interior seating and jets
2 Loungers + 3 Buckets

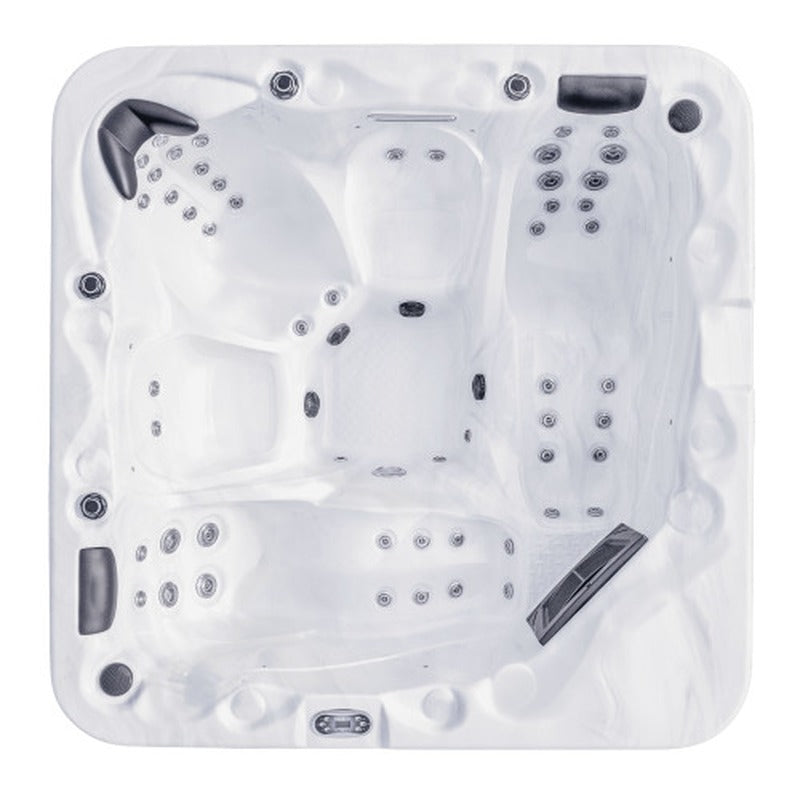

Five Seats, Two Of Them Full Length

A full lounge seat takes up a lot of shell, which is why most spas this size fit one. The Estes fits two, and still has three bucket seats around them. Three cushioned neck pillows are supplied so both loungers and one upright position have support.

  • Two ultra-comfortable full lounge seats
  • Three bucket seats
  • Silver white marble interior
  • 3 cushioned neck pillows
  • 83 x 83 x 35 in shell, 850 lbs dry
5 Person Capacity Two Full Loungers 35 in Shell Height

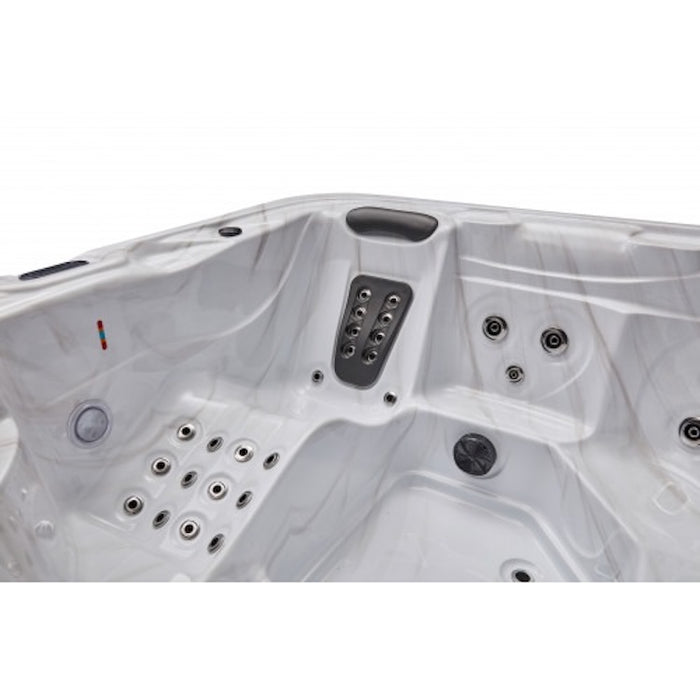

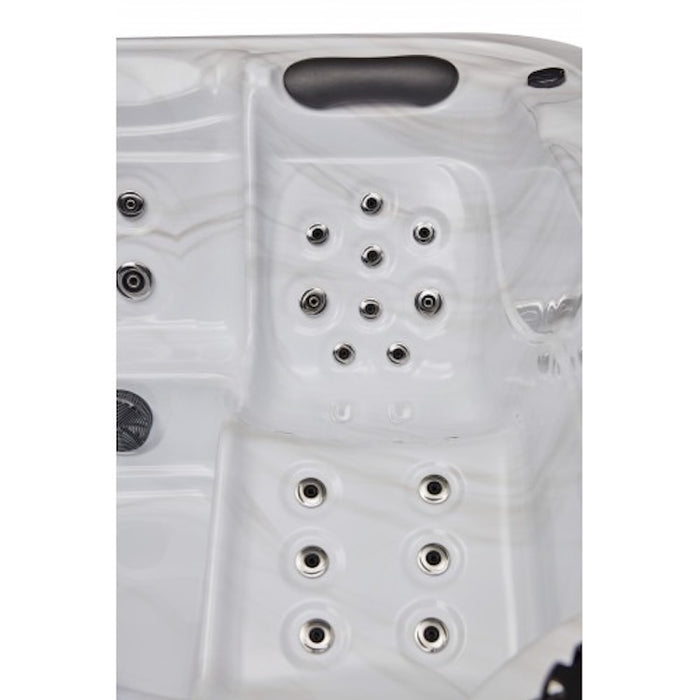

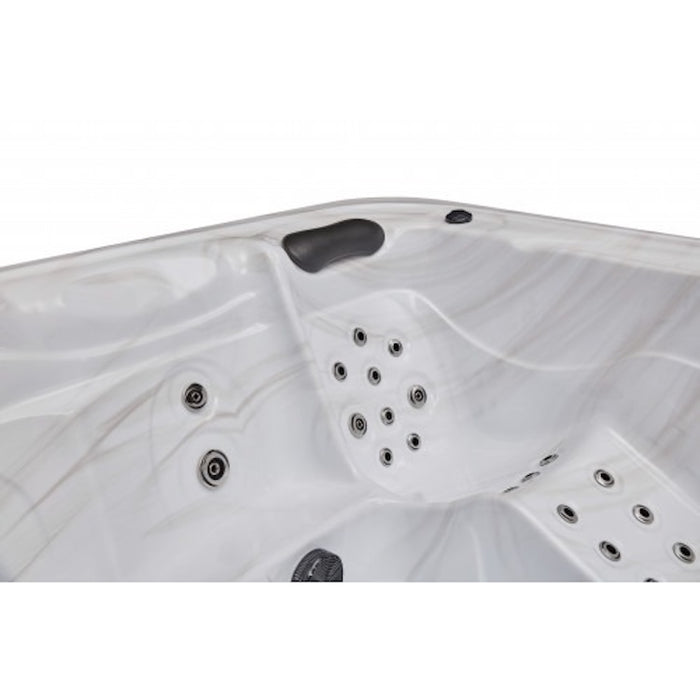

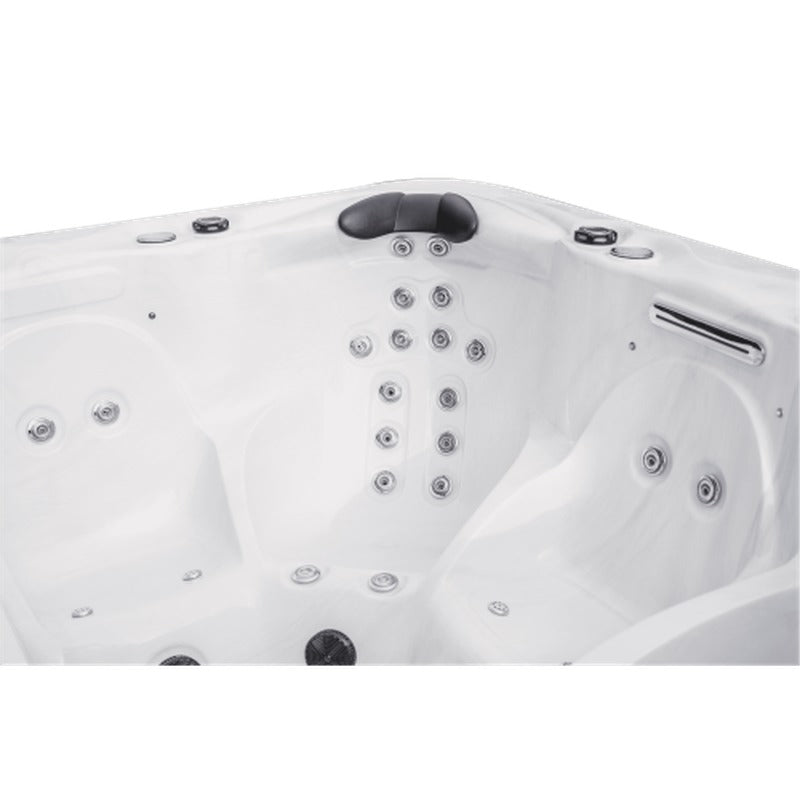

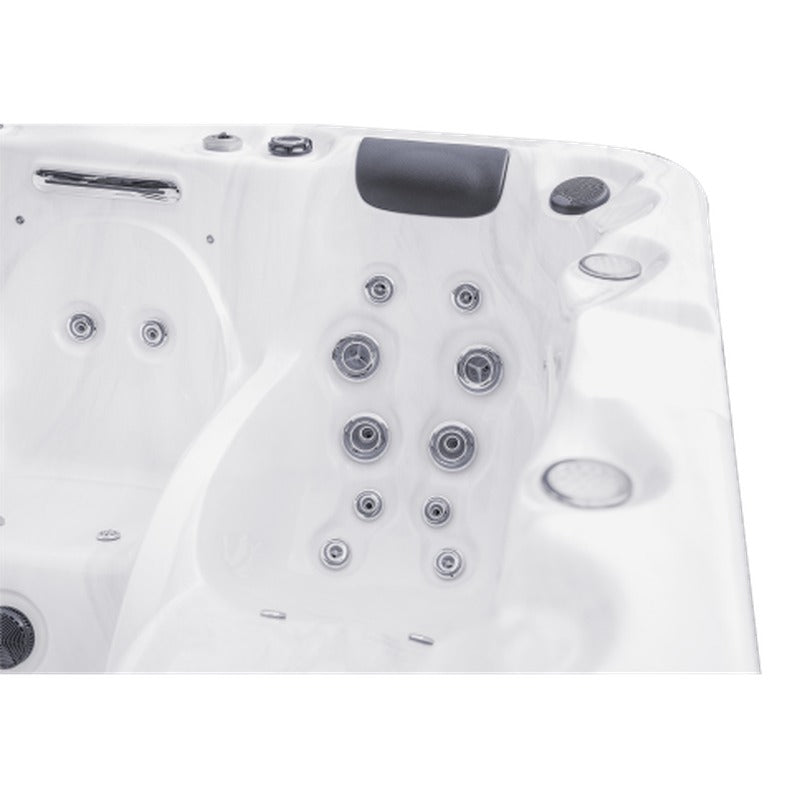

Luxury Spas Estes 5-Person Hot Tub interior detail
Three Pumps

54 Jets Split Across Two Motors

Each 3HP pump serves its own group of jets. Turn both on and the whole shell is live; turn one on and you concentrate the flow into fewer outlets at higher pressure. The circulation pump is wired independently of both and runs its own filtration cycle, so the 396 gallons keep moving while the spa is closed.

  • 54 adjustable massage jets
  • (2) 3HP jet pumps
  • Separate circulation pump
  • Back, leg and foot jet groups
  • US Balboa operating system
54 Jets 2 x 3HP 396 Gallons

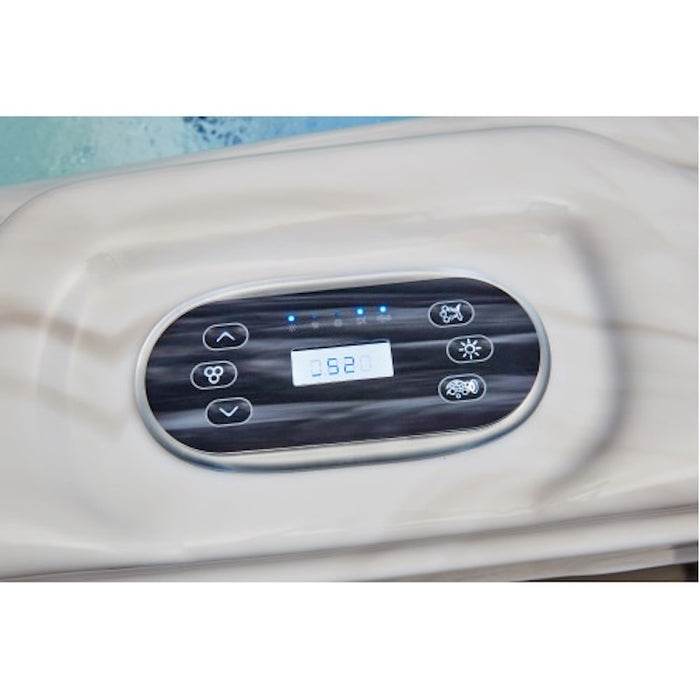

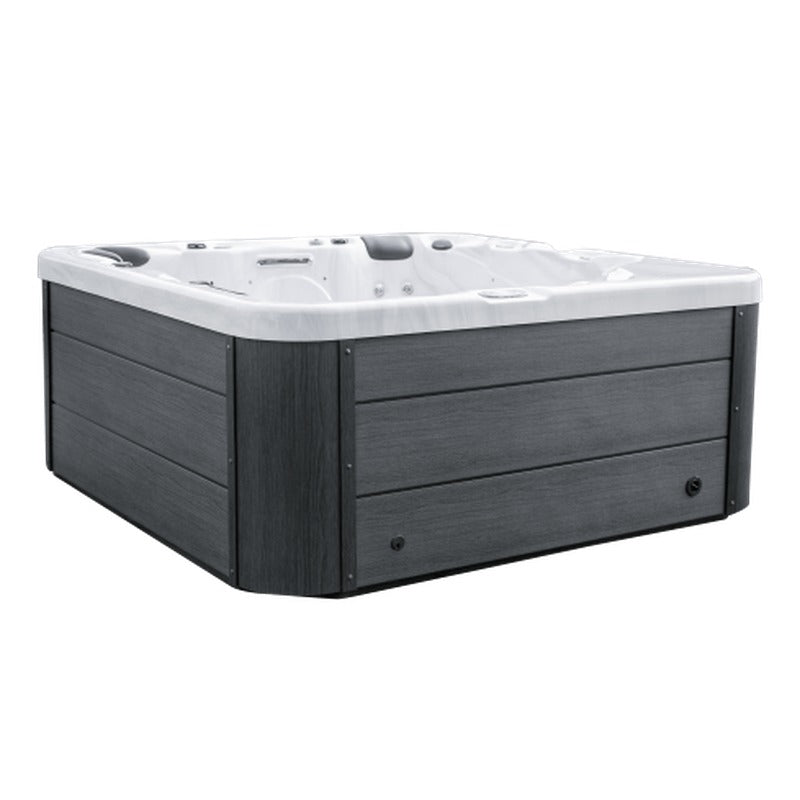

Luxury Spas Estes 5-Person Hot Tub cabinet and control panel detail
Water, Light, Sound

Ozone, Filtration And The Slice Waterfall

An ozone cleaning system works on the circulating water and the filtration system handles solids, which together cut how much sanitizer the 396 gallons need. On the visible side, the LED slice waterfall pours a lit sheet of water back into the shell, and color-changing underwater LEDs light the seats from below.

  • Ozone cleaning system
  • Advanced water filtration system
  • LED slice waterfall
  • Color-changing underwater LED lighting
  • Premium waterproof Bluetooth sound system
  • No-rot polystyrene skirt
Ozone Cleaning LED Waterfall Bluetooth Audio

The Five-Person Range

Six Models, Ranked By Water And Power

Every one of these seats five and takes the same 50 amp feed. Below they are set side by side on the two things that determine how a spa feels to sit in: how much water it holds and how much pump is behind the jets.

Luxury Spas Social 5-Person Hot Tub shown from the front
Social 5-Person
Smallest fill at 250 gallons, one multi-speed jet pump, 7,350 watts.
250 gallons 1 jet pump 51 jets
Shop the Social 5-Person
You're Here
Luxury Spas Estes 5-Person Hot Tub shown from the front
Estes 5-Person
The most water and the most horsepower in the range: 396 gallons on two 3HP pumps.
396 gallons 2 x 3HP 54 jets
Currently viewing
Luxury Spas Liberty 5-Person Hot Tub shown from the front
Liberty 5-Person
Same 3HP pump pair and 10,230 watts, 350 gallons, built around a lit waterfall column.
350 gallons 2 x 3 hp 51 jets
Shop the Liberty 5-Person
Luxury Spas Danika 5-Person Hot Tub shown from the front
Danika 5-Person
Smaller 2.5HP pump pair plus an air pump, 9,250 watts, 68 jets in a rectangular shell.
2 x 2.5HP 9,250 W 68 jets
Shop the Danika 5-Person
Luxury Spas Infinity 5-Person Hot Tub shown from the front
Infinity 5-Person
2HP pumps spread across 77 jets, 9,850 watts, water column and pop-up fountains.
2 x 2HP 77 jets 9,850 W
Shop the Infinity 5-Person
Luxury Spas Galley 5-Person Hot Tub shown from the front
Galley 5-Person
2HP pumps, 9,450 watts, and the tallest shell of the six at 39 inches.
2 x 2HP 69 jets 39 in tall
Shop the Galley 5-Person

Questions

Frequently Asked Questions

A bigger body of water changes temperature and chemistry more slowly. Five people getting in displaces a smaller proportion of it, so the level and the heat hold steadier. The trade is a longer initial heat-up and more chemical volume to dose. 396 gallons is the largest fill among the six five-person models.
Use 83 x 83 x 35 inches. That is the figure in both the description and the feature list. One line in the specification table lists exterior width and depth as 85 inches, which conflicts with the 83 inch dimension quoted everywhere else. Plan your pad for 85 inches to be safe and ask us to confirm the exact cabinet dimension before you build anything fixed around it.
54 adjustable massage jets, grouped for back, leg and foot coverage. Each jet is adjustable, so you can shut down outlets you are not using and push that flow into the ones you are.
Independent flow to a second bank of jets. With one pump, jets across the shell share a single supply and pressure falls as more open up. With two 3HP pumps the Estes drives two banks at once. It is the highest horsepower figure Luxury Spas fits to a five-person spa, matched only by the Liberty.
Yes. The separate circulation pump is not one of the jet pumps, so it can keep water moving through the filter and past the ozone injector while the spa sits covered.
A narrow slot outlet that returns water as a thin lit sheet. On the Estes it is combined with color-changing underwater LEDs, so the falling water picks up the light in the shell.
A dedicated 50 amp 240V circuit, run by a licensed electrician before delivery. The Estes' total connected load is 10,230 watts, the highest in the five-person range along with the Liberty.
850 lbs dry. Filled, 396 gallons of water adds roughly 3,300 lbs, so a full Estes with five people in it is well over 5,000 lbs. Concrete is the straightforward answer; a deck needs an engineer's opinion.
Luxury Spas does not name an insulation type for the Estes in either the description or the feature list, which it does for several other models in this line. We are not going to guess at it. Contact us and we will get the cabinet construction confirmed by the manufacturer.
No, it is a no-rot polystyrene skirt. It does not need the annual sealing or staining that a timber cabinet does.
A UV-rated insulated cover and premium steps, valued together at $495 by Luxury Spas, plus the three cushioned neck pillows fitted in the shell.
Mechanically they are close: both run two 3 horsepower pumps, a separate circulation pump, a 5.5kW titanium heater and 10,230 watts. The Estes has more water at 396 gallons against 350, and two full loungers against one. The Liberty puts its money into the lit cascading waterfall column, LED cupholders and a four-speaker sound system. Seating and volume against ambience and audio.
The Infinity has more jets, 77 against 54, but they run on 2HP pumps, and it adds an air bubble pump and water features. The Estes concentrates its budget in pump power and fill volume. If you want maximum pressure per jet, the Estes; if you want maximum jet coverage and water features, the Infinity.
Luxury Spas advertises a 10 year warranty. Their own paperwork sets out what it covers, and we will forward it if you ask.
No. The PDF on this listing belongs to a different Luxury Spas model. Ask us for the correct Estes manual and do not use the attached file for start-up or wiring.
  • Dimensions: 83" W x 83" x 35"
  • Exterior Product Dimensions:
  • Exterior Height: 35"
  • Exterior Width: 85"
  • Exterior Depth: 85"
  • Dry Weight: 850 lbs.
  • Water Capacity:  396 gallons

Power Requirements

  • 10230 Total Watts. Requires 50 amp 240V circuit.



  • Dimensions: 83" x 83" x 35"
  • 5 Person Capacity
  • 2 Ultra Comfortable Lounge Seats
  • 54 Powerful Massage Jets
  • (2) 3HP Pumps
  • Separate Circulation Pump
  • 3 Cushioned Neck Pillows
  • Color Changing LED Lighting and LED Waterfall
  • Premium Waterproof Bluetooth Sound System
  • US Balboa Operating System
  • 5.5kW Titanium Heater
  • Ozone Cleaning System
  • Advanced Water Filtration System
  • No-Rot Polystyrene Skirt
  • UV Rated Insulated Cover and Steps Included

UV-rated insulated spa cover and premium steps are included (A $495 value!)



This warranty covers all Luxury Spas USA branded hot tubs which are purchased directly
from Luxury Spas USA Ltd. This warranty certificate is non-transferable.


Shell Warranty - 10 years


Luxury Spas USA warrant the shell against water loss to the customer arising from
structural failure for a period of 10 years. Luxury Spas USA warrants the acrylic shell
surface against water loss arising from defects in materials, including cracks, blisters,
peeling and delamination for a period of 5 years. The warranty coverage includes all parts
and labor necessary for repair.


Electrical Equipment and Plumbing - 2 years


Luxury Spas USA warrant all major spa components – specifically, the pumps, the heater
and the control system – against malfunction arising from defects in materials and
workmanship, for a period of 2 years. The electrical equipment and plumbing warranty
covers the parts only necessary for repair. Labor is not covered under the major spa
component warranty. Water leaks from pump and plumbing unions are not included under
the warranty coverage.


Spa Components - 2 years


Luxury Spas USA warrant all other spa components, including but not limited to LED lights,
fuses, topside control unit, diverter caps, cover clips, and jet inserts against malfunction
arising from defects in material and workmanship for a period of 2 years to the customer.
Includes only parts necessary for repair. Labor costs are not included.


Spa Cover Warranty


Luxury Spas USA warrant the spa cover to be free from defects in material for 30 days from
the date of delivery as they are open to elements and/or chemical damage.


Warranty Terms


All warranties apply to the original customer, at the original address that the spa was
installed. Your limited warranty does not include the cost of shipping parts back to Luxury
Spas USA, or to an authorized repair center. This warranty does not include costs incurred
using non-authorized repair centers. Customers must have written consent from Luxury
Spas USA before proceeding with any repair that is to be reimbursed by Luxury Spas USA.
In all cases, Luxury Spas USA has sole responsibility for determining the cause and nature
of a fault. Luxury Spas USA reserve the right to provide a replacement spa of equivalent
value if we deem it to be necessary. In such a circumstance, the customer shall be
responsible for the cost of moving and installing the new spa into position.


Performance


The Customer must report any discovered fault to Luxury Spas USA within 10 business
days. A Luxury Spas technical representative will then diagnose the issue over the
telephone and may suggest possible solutions for the customer to attempt. If after these
suggestions fail to resolve the issue, Luxury Spas will then arrange for a repair technician to
visit the site. If the repair technician is sent out and discovers there is no issue, or the issue
is not manufacturing related, then customer will be responsible for the service call. If a
manufacturing related issue is discovered there is no charge for the technician visit. If the
technician determines that any fault is not covered under this warranty, the customer is
solely responsible for the cost of any parts and or labor charges.


Additional Warranties


The spa cover, steps, light bulbs, headrests, skirt and filter are warranted to be free of
defects in workmanship or materials for thirty (30) days from the date of delivery. All other
factory-installed components, including but not limited to the cabinet, frame, LED light
system, stereo and related components, speakers, skimmer, and jets, are warranted against
malfunction due to defects in workmanship or materials for one year from the date of
purchase.


Exclusions


This Limited Warranty is void if Luxury Spas or its designated representative determines
that the spa has been subjected to alteration, neglect, misuse or abuse, or freight damage
caused by the common carrier; or if the failure is caused by accident, acts of God or other
causes beyond the control of Luxury Spas. Neglect, misuse and abuse include any
installation, operation or maintenance of the spa other than in accordance with the
instructions contained in the owner’s manual provided with the spa, including but not
limited to the failure to maintain proper water chemistry and chemical balance and the use
of abrasive or improper cleaners. This Limited Warranty does not provide coverage for any
item attached to or installed on the spa after the date of sale or for gaining access to any
component for repair or replacement. Spa units used in a commercial application are
excluded from any coverage whatsoever.


Damage to headrest pillows reported beyond the day of delivery will not be covered under
warranty. Headrest pillows are to be removed from the spa when not in use.
Warranty service will be provided only if the original invoice or sales receipt is presented
with the defective product within the guarantee period. We may refuse free-of-charge
guarantee service if these documents are not presented or if they are incomplete or
illegible.


Disclaimers


Except as specifically provided by the law, Luxury Spas and its representatives shall not be
liable for any injury, loss, cost or other damage, whether incidental or consequential,
arising out of any defect covered by this Limited Warranty, including, without limitation,
loss of use of the spa and cost for removal of defective product, even if Luxury Spas has
been advised of the possibility of such damage. The liability of Luxury Spas under this
Limited Warranty, if any, shall not exceed the original amount paid for the defective
product. Coverage under this Limited Warranty shall commence as of the original date of
purchase and the duration of such coverage shall not extend for any reason whatsoever
beyond the stated time periods. These disclaimers shall be equally applicable to any service
provided by Luxury Spas USA and its representative.
