Luxury Spas Largo 3 Person Plug and Play Hot Tub
Luxury Spas Largo 3 Person Plug and Play Hot Tub
Luxury Spas Largo 3 Person Plug and Play Hot Tub
Luxury Spas Largo 3 Person Plug and Play Hot Tub
Luxury Spas Largo 3 Person Plug and Play Hot Tub
Luxury Spas Largo 3 Person Plug and Play Hot Tub
Luxury Spas Largo 3 Person Plug and Play Hot Tub
Luxury Spas Largo 3 Person Plug and Play Hot Tub
Luxury Spas Largo 3 Person Plug and Play Hot Tub
Luxury Spas Largo 3 Person Plug and Play Hot Tub
Luxury Spas Largo 3 Person Plug and Play Hot Tub
Luxury Spas Largo 3 Person Plug and Play Hot Tub

Luxury Spas Largo 3 Person Plug and Play Hot Tub

by Luxury Spas
Save 26% Save 26%
$7,935.00
$7,935.00 - $7,935.00
$7,935.00
$5,890.00
$5,890.00 - $5,890.00
$5,890.00

✓ Authorized Luxury Spas Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

$400 Off End of Summer Sale with Code: LUXURY400

The Plug-In Largo

Luxury Spas Largo 3 Person Plug and Play Hot Tub

Read this line before anything else. Luxury Spas sells two spas called Largo: this plug-and-play model, which runs from a standard 15-amp, 120V household outlet, and a separate hardwired Largo that needs a dedicated 240V circuit installed by an electrician. They are different products on different listings with different specifications. Check for the words Plug and Play in the title before you order.

This one seats three across two side-by-side full loungers and a bonus bucket seat, so two people can lie flat at the same time. Twenty adjustable jets cover the back, legs and feet from a 2 HP multi-speed pump, a 1,400-watt titanium heater and a Hydrozone ozonator handle heat and water, and the cabinet measures 85 by 63 by 31 inches.

Seating
2 Loungers
Plus a bonus bucket seat
Jets
20
Back, legs and feet
Cabinet
85 x 63 in
31 in high
Supply
120V / 15 A
Outlet, not hardwired
Stainless steel grab bars Bluetooth sound system Three lighting zones 10 Year Luxury Spas Warranty

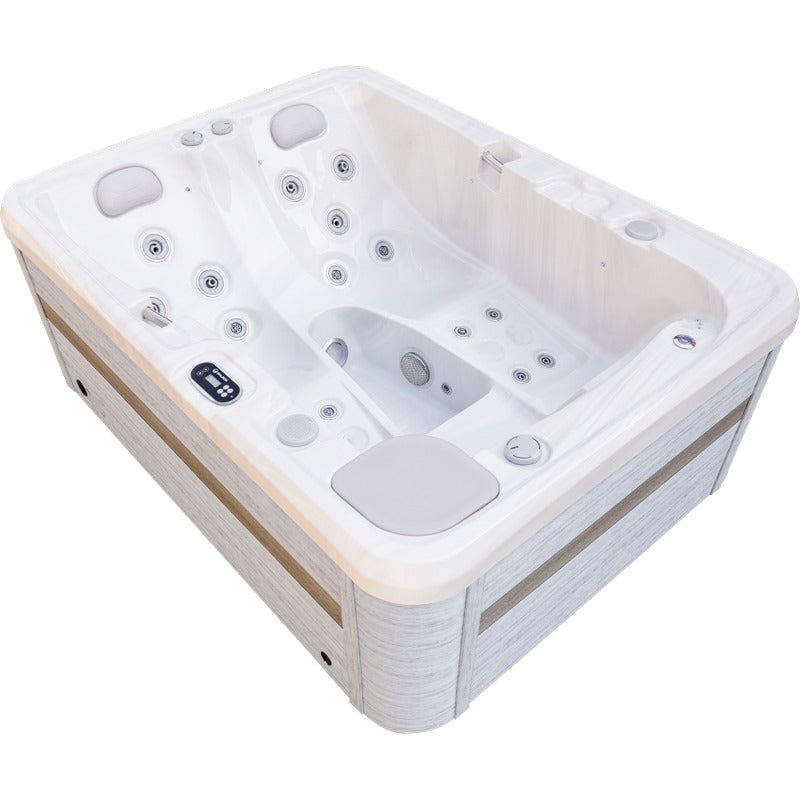

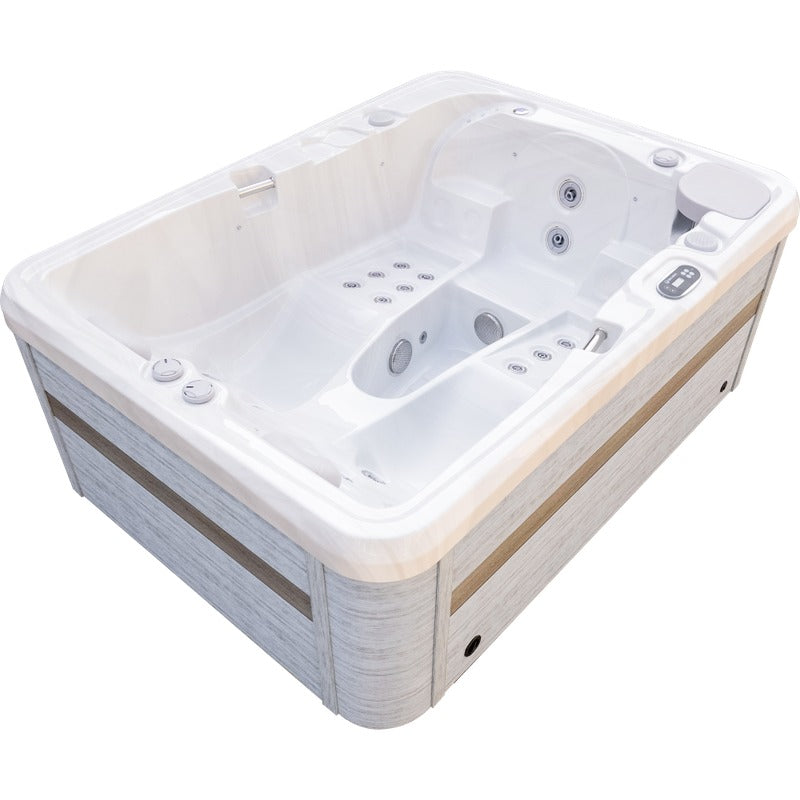

Luxury Spas Largo 3 Person Plug and Play Hot Tub shown from the front

What Makes This One Different

Twin Loungers on a Household Outlet

Full lounge seating usually arrives with a hardwired 240V circuit attached to it. On this Largo the loungers come with a plug.

🛌
Two Full Loungers, Side by Side
The shell is moulded with two complete lounger seats alongside one another and a bucket seat as the third position. Two people stretch out at full length at the same time, which no other spa in the plug-and-play range allows.
2 + 1 seats
🥋
Jets at the Back, Legs and Feet
Twenty adjustable jets are placed for the lower body as well as the back, which is what lounge seating is for: your legs and feet sit out in front of you, level with the jet faces.
20 jets
💡
Three Lighting Zones
Multi-colour underwater LEDs, perimeter lighting along the waterline and backlit fountain lighting are each listed separately on this spa. That is more lighting hardware than any other outlet-powered model in the range carries.
3 zones
🔌
Standard 15-Amp Circuit, No Dedicated Wiring
Luxury Spas states that this Largo installs on any standard 15-amp, 120V circuit with no dedicated wiring required. The hardwired Largo is the model that needs an electrician. Confirm the circuit specification with us before delivery.
120V / 15 A

Why Athletes Choose This

Eight Things on This Largo's Build Sheet

Specific to the Plug and Play Largo. The hardwired Largo has its own build sheet and its own page.

🛌
Two side-by-side full loungers plus a bucket seat
Seating
🔧
Stainless steel grab bars on both sides
Entry and exit
🥋
Jet positions for the legs and feet as well as the back
Lower body
🎵
Bluetooth sound system integrated
Audio
💡
Underwater, waterline and fountain lighting
Three zones
🧺
Hydrozone ozonator for cleaner water
Water care
🔌
Plugs in, so no dedicated circuit is needed
120V / 15 A
🎁
UV-rated insulated cover and premium steps
$495 value

Seating, Water, Wiring

Layout, Equipment and the Name Problem

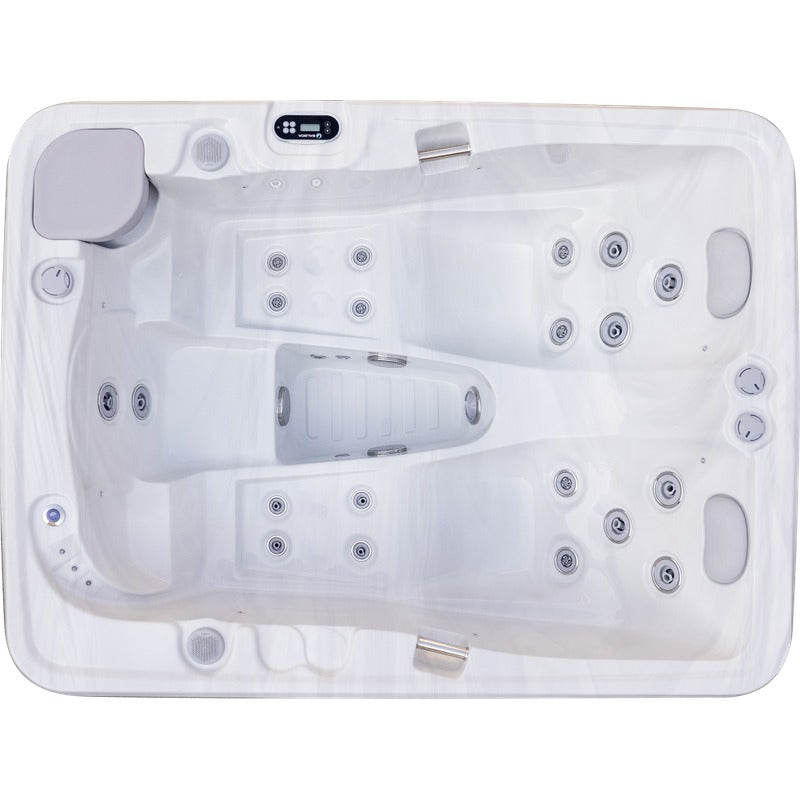

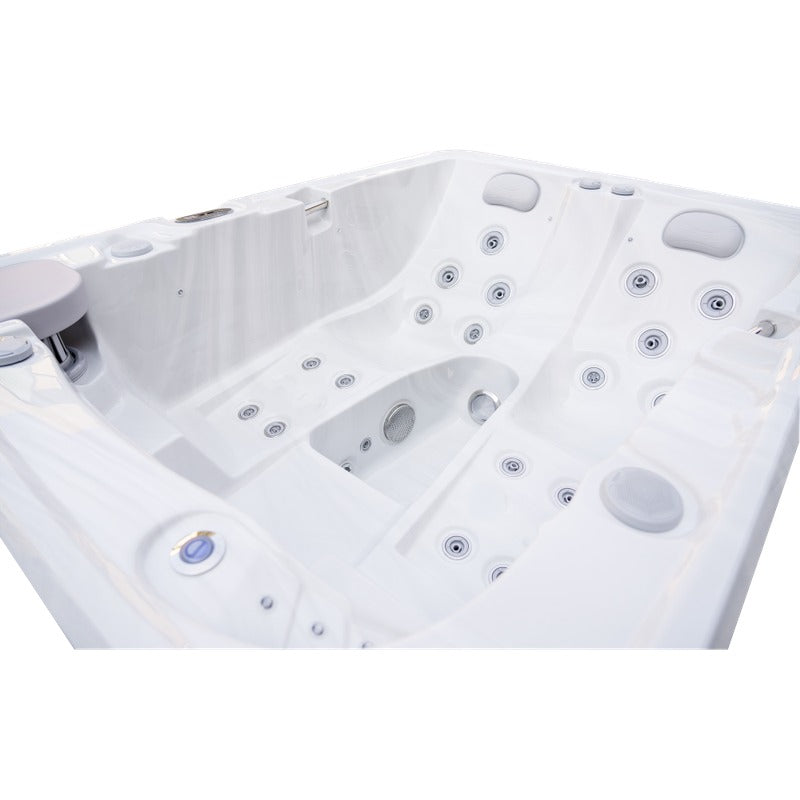

Luxury Spas Largo 3 Person Plug and Play Hot Tub interior seating and jets
The Layout

Two People Lying Flat, One Sitting Up

The 63-inch width is what makes the twin-lounger layout possible: two full-length seats side by side, with a bucket seat for a third bather. Stainless steel grab bars are fitted on both sides for stepping in and out, and two cushioned neck pillows are supplied.

  • 2 side-by-side full loungers
  • Bonus bucket seat as the third position
  • Stainless steel grab bars on both sides
  • 2 cushioned neck pillows
  • Cabinet 85 in L x 63 in W x 31 in H
Twin Loungers Bucket Seat Grab Bars
Luxury Spas Largo 3 Person Plug and Play Hot Tub control panel and cabinet detail
Equipment Bay

One Pump, One Titanium Element, US Balboa Control

A single 2 HP multi-speed pump feeds all twenty jets, under the US Balboa operating system. The 1,400-watt titanium heater holds temperature at 120V, and the Hydrozone ozonator treats water while the spa sits covered. Everything in this bay is sized for a plug-in installation.

  • 2 HP multi-speed pump
  • US Balboa operating system
  • 1,400-watt titanium heater
  • Hydrozone ozonator
  • 20 adjustable hydrotherapy jets
2 HP Titanium Heater Hydrozone

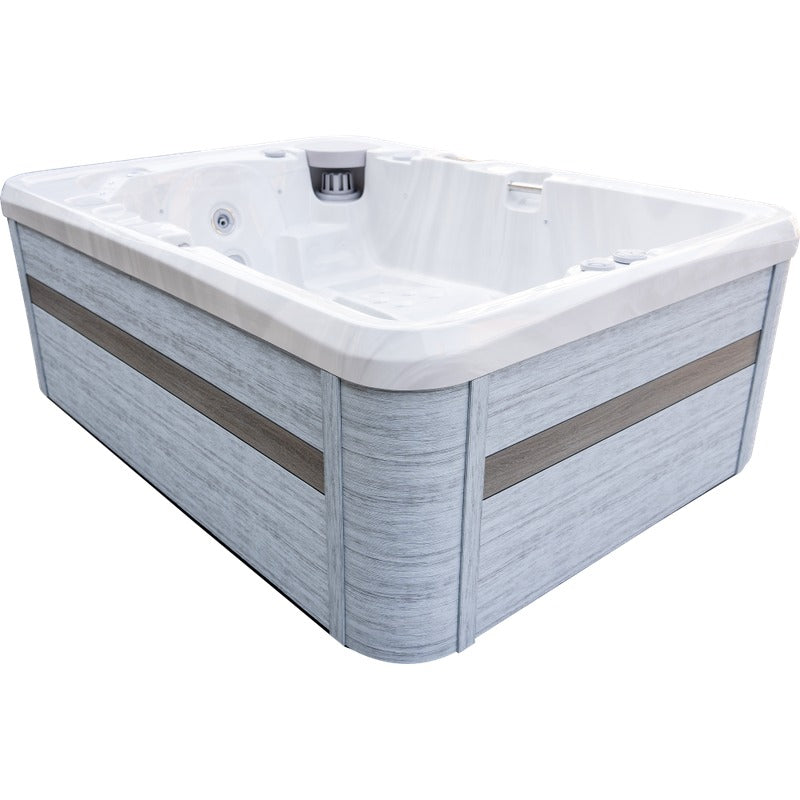

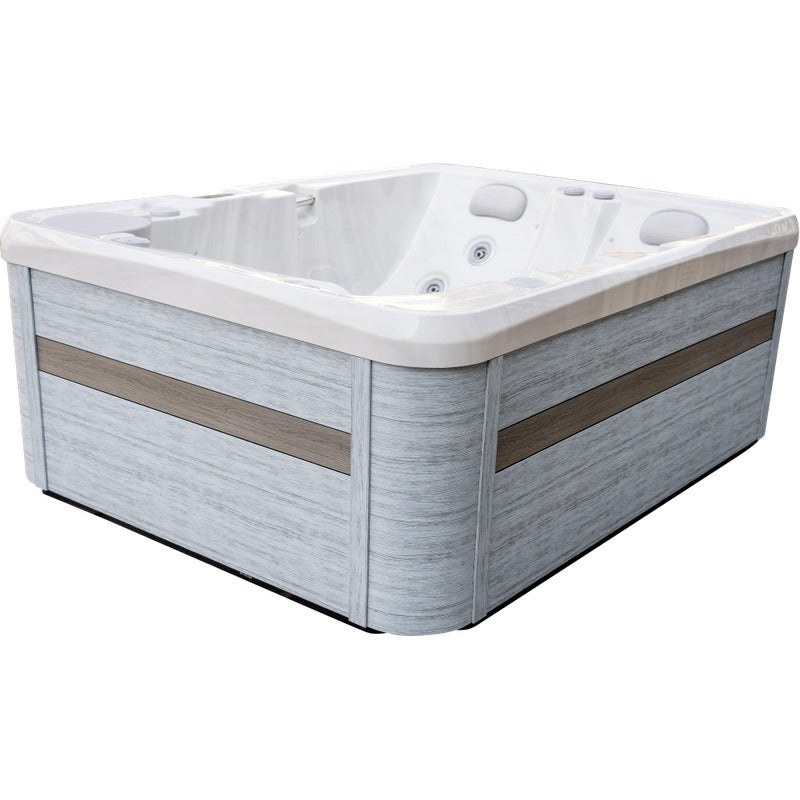

Luxury Spas Largo 3 Person Plug and Play Hot Tub shown from the side
Two Largos, One Choice

Make Sure You Are Buying This One

The hardwired Largo is a separate product with a separate listing, and it requires a dedicated 240V circuit put in by an electrician before it can be filled. This Plug and Play Largo runs from a standard 15-amp, 120V circuit. Our specification tab for this model also carries a 120V / 240V Hybrid label with no 240V figures behind it, so treat the 120V outlet as the specification and confirm anything else with us in writing before an electrician quotes work.

  • This listing: Largo 3 Person Plug and Play, on a standard 15-amp 120V circuit
  • The other listing: Largo 3-Person, hardwired to a dedicated 240V circuit
  • Different handles, different specifications, different install
  • No 240V circuit size or wattage is published for this plug-in model
  • Ask us to confirm the electrical requirement before any wiring is booked
Plug In Check the Title Confirm Before Wiring

Where This Largo Sits

The Outlet-Powered Line, Side by Side

These five spas all run from a household outlet or convert to 240V. The hardwired Largo is not one of them and does not appear on this row.

Luxury Spas Lacey 1 Person Plug and Play Hot Tub shown from the front
Lacey 1-Person Plug & Play
One lounger for one bather, 21 jets, and the smallest footprint in the range.
1 seat 21 jets 416 lbs
Shop the Lacey 1-Person
Luxury Spas Solace 3-Person Plug N Play Hot Tub shown from the front
Solace 3-Person Hybrid
Upright seating for three in 165 gallons, with a 240V conversion available.
25 jets 165 gallons 79 x 59 x 29 in
Shop the Solace 3-Person
Luxury Spas Allure 3 Person Plug and Play Hot Tub shown from the front
Allure 3-Person Plug & Play
The upright three-seat alternative, with three pillows and a Hydrazone ozonator.
20 jets 34 in high 572 lbs
Shop the Allure 3-Person
You're Here
Luxury Spas Largo 3 Person Plug and Play Hot Tub shown from the front
Largo 3-Person Plug & Play
The only plug-in spa here with two full loungers side by side and grab bars.
2 loungers 20 jets 85 x 63 x 31 in
Currently viewing
Luxury Spas Tahoe 4-Person Hybrid Hot Tub shown from the front
Tahoe 4-Person Hybrid
Four seats built for company, 24 back jets, and LED lighted cup holders.
4 seats 24 jets 120V / 240V
Shop the Tahoe 4-Person

Questions

Frequently Asked Questions

Luxury Spas builds two spas under the Largo name and we list both. This page is the Largo 3 Person Plug and Play: it runs from a standard 15-amp, 120V household circuit with no dedicated wiring. The other listing is the Largo 3-Person Hot Tub, a hardwired spa that needs a dedicated 240V circuit installed by an electrician before it can be used, and it has a different jet count, a different pump arrangement and a different heater. They share a name and a general shape, and nothing else should be assumed. Look for the words Plug and Play in the product title, in your cart and on your order confirmation. If you have already ordered and are unsure which one is on the invoice, contact us and we will check the SKU before it ships.
A standard 15-amp, 120V circuit, which is how Luxury Spas describes it in this model's own description, with no dedicated wiring required. The 1,400-watt titanium heater is matched to that supply. Check what else is on the same breaker before delivery, and ask us if you want the requirement confirmed by the manufacturer first.
We cannot confirm that from what we hold, so we are not going to imply it. The description for this Largo describes one supply, the 15-amp 120V circuit. The specification tab adds a 120V / 240V Hybrid label with no 240V circuit size, no 240V wattage and no conversion procedure, and the identical label sits on other models in this range. Of the five spas on the plug-and-play row, the Solace and the Tahoe are the two whose own descriptions set out a 120V-to-240V conversion. If a conversion matters to you, ask us to confirm it in writing with Luxury Spas before you buy, and do not book an electrician on the basis of the hybrid label alone.
85 inches long, 63 inches wide, 31 inches high. The description and the specification tab agree on those figures for the Plug and Play model. Do not take dimensions from the hardwired Largo listing; the two spas are measured separately and the figures there do not apply here.
Luxury Spas publishes neither a dry weight nor a water capacity for this model, and we would rather say so than borrow the numbers from another Largo. If you need a filled weight for a deck or balcony load calculation, contact us and we will request both figures from the manufacturer before you order.
Yes, that is the point of this shell. It carries two side-by-side full loungers across its 63-inch width, plus a bonus bucket seat for a third person sitting upright. Among the outlet-powered spas Luxury Spas makes, this is the only layout that offers it.
Across the back, legs and feet. Lounge seating puts your lower body in front of the jets, so the leg and foot positions are usable in a way they are not from an upright bench seat. All twenty are adjustable at the face.
Multi-colour underwater LED lighting, perimeter waterline illumination and backlit fountain lighting. Each is listed as its own feature on this spa, which is more lighting hardware than the Lacey, Solace or Allure carry.
Yes, stainless steel grab bars on both sides are part of the build. On a spa with lounge seating you are getting up from a reclined position on a wet surface, so a fixed handhold on either side is worth having.
A filter catches particles. The Hydrozone ozonator injects ozone into the circulating water to oxidise what a filter cannot trap, which is what reduces the chemical you add by hand. Luxury Spas fits it as standard here and pairs it with the 1,400-watt titanium heater on the same plumbing loop.
Yes. The sound system is integrated and pairs with a phone. Along with the Allure, this Largo is one of two outlet-powered Luxury Spas models with audio built in.
A UV-rated insulated spa cover and premium entry steps, a $495 value together according to Luxury Spas. Those are the items we can confirm. Two cushioned neck pillows are also listed on this model's build; if the packing list matters to you, ask us to confirm it in writing before you order.
Seating shape against seat count. This Largo gives you two full loungers and lower-body jets for three people. The Tahoe gives you four upright seats and a description that sets out a 120V-to-240V conversion, which is useful if you may want more heater output later. Lying flat points here; seating four points to the Tahoe.
Luxury Spas advertises a 10 Year Warranty on these spas. We publish the term only. The list of covered components and their individual periods is in the manufacturer's warranty document, which we will send on request.
No manual PDF is attached to this listing, and this is the one product in the range where using the wrong document could get you into real trouble: the hardwired Largo manual describes a 240V installation that does not apply to this spa. Ask us for the manual that matches the Largo 3 Person Plug and Play specifically.

Dimensions

Exterior: 85" L × 63" W × 31" H

Electrical

Power: 120V / 240V Hybrid

Circuit required: 15-amp standard outlet

Performance

Jets: 20 adjustable hydrotherapy jets

Pump: 2 HP multi-speed

Heater: 1,400-watt titanium

Controls: US Balboa operating system

Sanitation: Hydrozone ozonator

  • 3-person capacity — 2 side-by-side full loungers plus bonus bucket seat
  • 20 adjustable hydrotherapy jets targeting back, legs, and feet
  • 2 HP multi-speed pump with US Balboa operating system
  • 1,400-watt titanium heater with Hydrozone ozonator for clean water
  • Integrated Bluetooth® sound system
  • Multi-color underwater LED lighting, waterline illumination, and fountain backlighting
  • Stainless steel grab bars on both sides for safe entry and exit
  • 2 cushioned neck pillows
  • Plug-and-play installation — standard 15-amp, 120V outlet
  • UV-rated insulated spa cover and premium entry steps included ($495 value)
  • UV-rated insulated spa cover
  • Premium entry steps
  • 2 cushioned neck pillows
