Osaki 4D Helix LE Massage Chair

Name: Osaki 4D Helix LE Massage Chair
Brand: Osaki
SKU: OSAKI-HELIX-BL
Price: 3499.0 USD
Availability: InStock

by Osaki

Save 13%

$3,999.00

$3,999.00 - $3,999.00

$3,999.00

$3,499.00

$3,499.00 - $3,499.00

$3,499.00

✓ Authorized Osaki Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

Quantity

Osaki | 4D Helix LE

Osaki 4D Helix LE Massage Chair

The Osaki 4D Helix LE is a 4D massage chair, which means the rollers add depth and then vary the speed of that push inside one stroke. The money here went into the back rollers. The mechanism runs on positioning gears that hold the roller head to millimeter accuracy. That gives controlled pressure at one point you choose. Before any of that starts, automatic body scanning reads your shape and size. It positions the rollers to your own frame. The rollers run a laser-crafted steel SL-track from your neck and shoulders down to your legs. One continuous pass, with no break where your back meets the seat.

An airbag is the bladder that inflates and deflates to squeeze a limb, and 22 air cells sit around the track for full body air massage. They run three patterns: kneading, pulsing and alternating. A lumbar heating pad holds roughly 75 to 83 degrees F. Zero gravity is the recline that lifts your knees above your heart, and the Helix LE holds two stages of it before the rollers begin. Space saving construction brings the chair to a full recline with 8 in. behind it. Fifteen auto programs and 6 manual techniques come off a touchscreen controller, armrest shortcut panels or your voice. The cabin carries Bluetooth speakers, a wireless charging pad and a USB-C port. Underneath, dual-row foot rollers turn against your soles and the footrest extends on its own by up to 5.7 in. The Helix LE takes a user up to 270 lb, weighs 165.4 lb, and comes in Black, Brown and Taupe.

SL-track, neck to legs 15 auto, 6 manual programs Footrest extends 5.7 in. Voice control and wireless charging

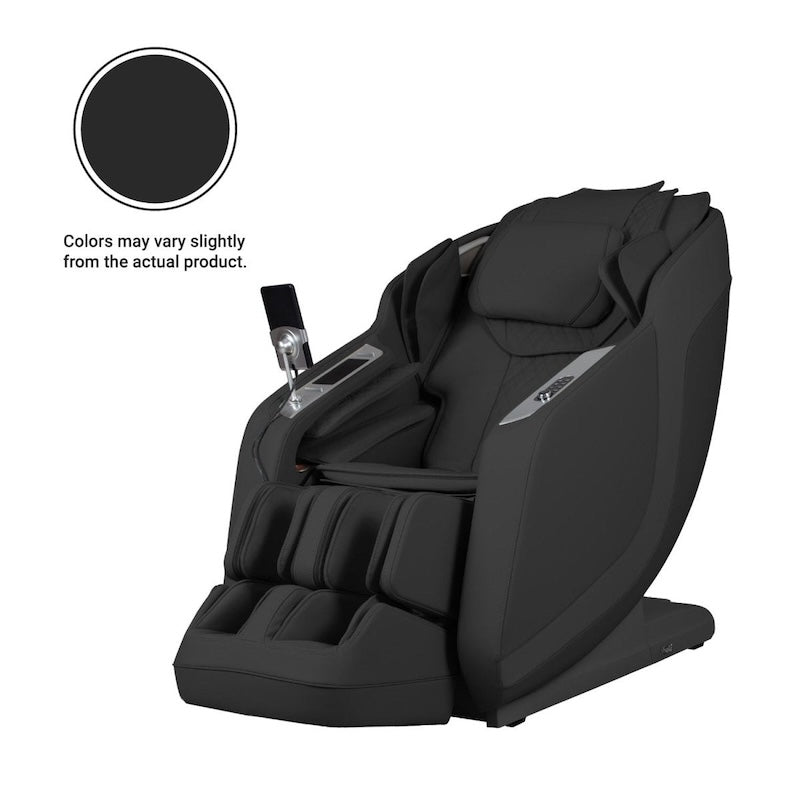

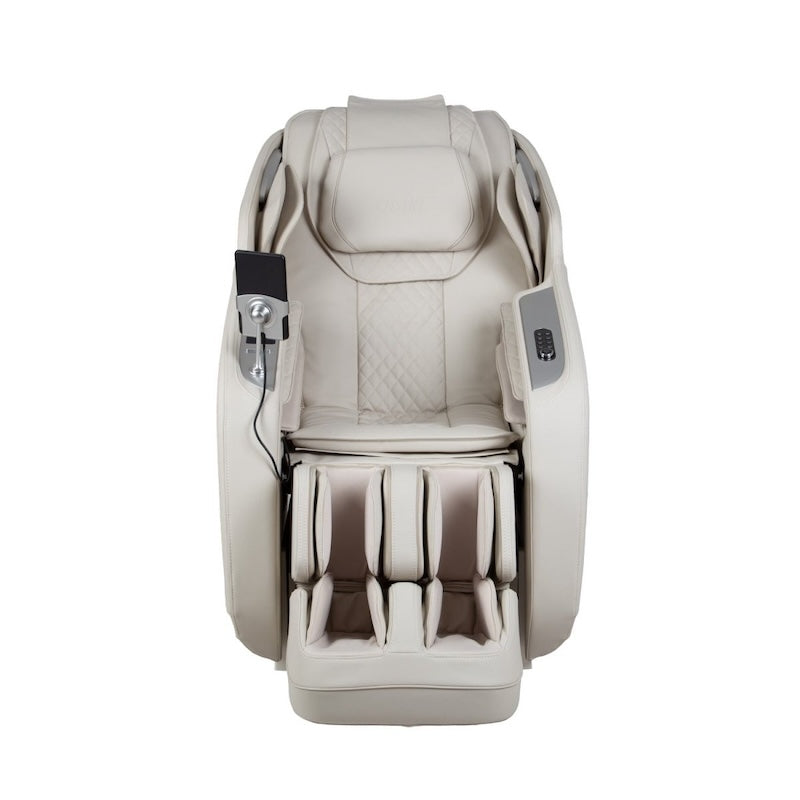

Osaki 4D Helix LE massage chair front view

Inside the chair

Precision Rollers on a Mapped Track

Four systems decide where the pressure lands on the Helix LE and how deep it runs. The positioning gears carry the roller head, and the track sets the path that head travels. The scan aims it at your back, and the recline unloads your spine before it starts.

4D Positioning-Gear Rollers

A 2D mechanism moves the rollers up and down the track and side to side across it, always the same distance from your back. A 3D mechanism adds in-and-out movement, which means depth becomes a number you set. The Helix LE is 4D, changing the speed of that in-and-out movement inside a stroke, and it drives the head through positioning gears that hold it to millimeter-level accuracy. The result is pressure held on one point of your back, where a less precise mechanism sweeps a wide band of it at a single setting.

Millimeter accuracy

Laser-Crafted Steel SL-Track

The rollers travel one continuous rail of laser-crafted steel that follows the natural curve of your body from your neck and shoulders, through your spine and down to your legs. An S-track is the shorter rail that follows the curve of the spine and finishes at your lower back, so the stroke ends where the seat begins. An L-track is the rail that carries on past the tailbone and out under the seat. An SL-track is that same unbroken run, named for both of the shapes along it, which is why one pass here covers your neck and your legs without a break at the hips.

Neck to legs

Automatic Body Scan

Body scanning reads your shape and size and positions the rollers against your back before the program runs, so the stroke lands along your own shoulder line and spine. On a 4D chair the scan carries more weight than it does on a 2D chair, because the mechanism is also deciding how far forward to push and how fast. Every one of those decisions is measured from the map the scan produced.

Roller mapping

2-Stage Zero Gravity

The Helix LE holds two zero gravity recline positions, both lifting your knees above your heart so your weight sits across the whole backrest. Both stages come off one button on the controller, so you can pick a shallow position for a short session and the deeper one when the air cells are running. Space saving construction slides the base forward as the backrest lowers, which is how the chair reaches either position with 8 in. behind it.

Two recline stages

The list

The Rocking Motion Moves the Whole Chair

The eight worth knowing before this one lands in your living room.

4D positioning-gear rollers

Millimeter-level accuracy

Laser-crafted steel SL-track

Neck and shoulders to legs

22 air cell compression

Kneading, pulsing, alternating

Lumbar heating

Roughly 75 to 83 degrees F

Dual-row foot rollers

Two rotating rollers per side

Rocking chair motion

The whole chair moves

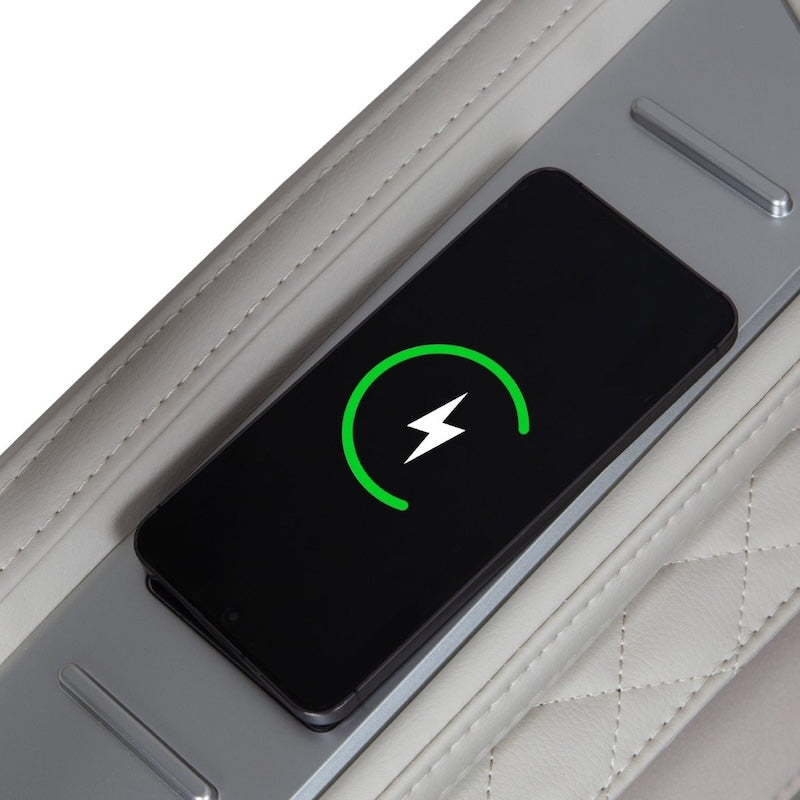

Voice control and wireless charging

Plus a USB-C port

Triple safety design

Anti-pinch, stop, auto reset

Closer look

Why Two Rollers Under Each Foot?

Osaki 4D Helix LE massage chair airbag and shoulder detail

Air and heat

Twenty-Two Air Cells and Three Airbag Patterns

The roller track is the rail the roller unit travels along, and 22 air cells sit at the points it has no way of reaching. They inflate and release around you while the rollers work your back. The cells run three patterns you can pick between: kneading, pulsing and alternating, so the squeeze is a slow build in one pattern and a quicker on-off rhythm in another. A heating pad at the lumbar runs roughly 75 to 83 degrees F and switches on independently of whichever program the chair is running. You can leave heat on the lower back through a full session or through none of it. Twenty-two cells is a moderate count, and on the Helix LE the compression is a companion to the roller work in a way it is not on chairs that lead with air.

22 air cells for full body compression
Kneading, pulsing and alternating airbag patterns
Lumbar heat at roughly 75 to 83 degrees F
Heat runs independently of the program

22 air cells 3 airbag patterns Lumbar heat

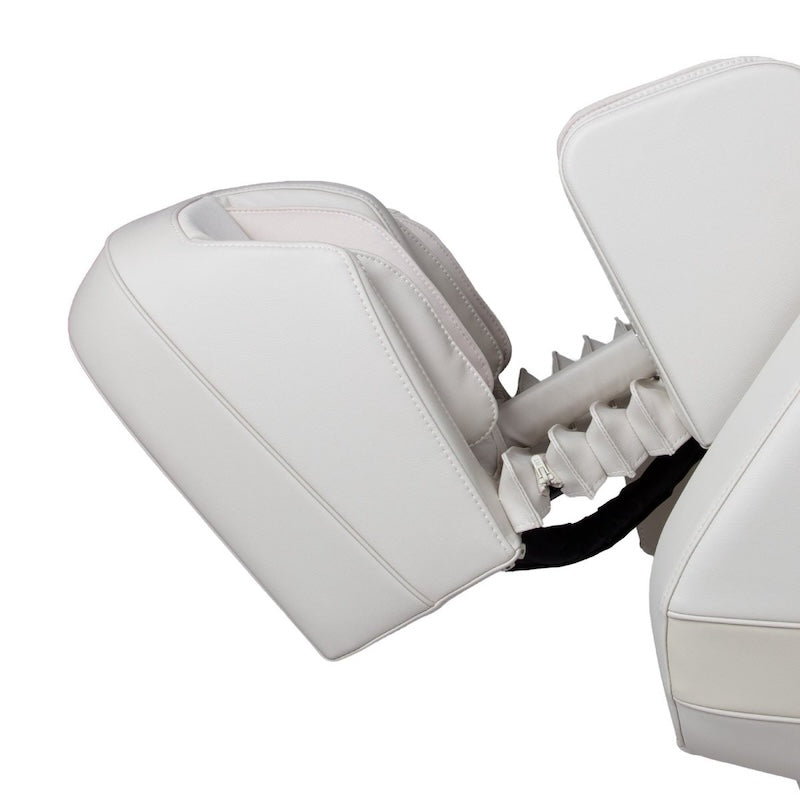

Osaki 4D Helix LE massage chair footrest and calf section

Below the knee

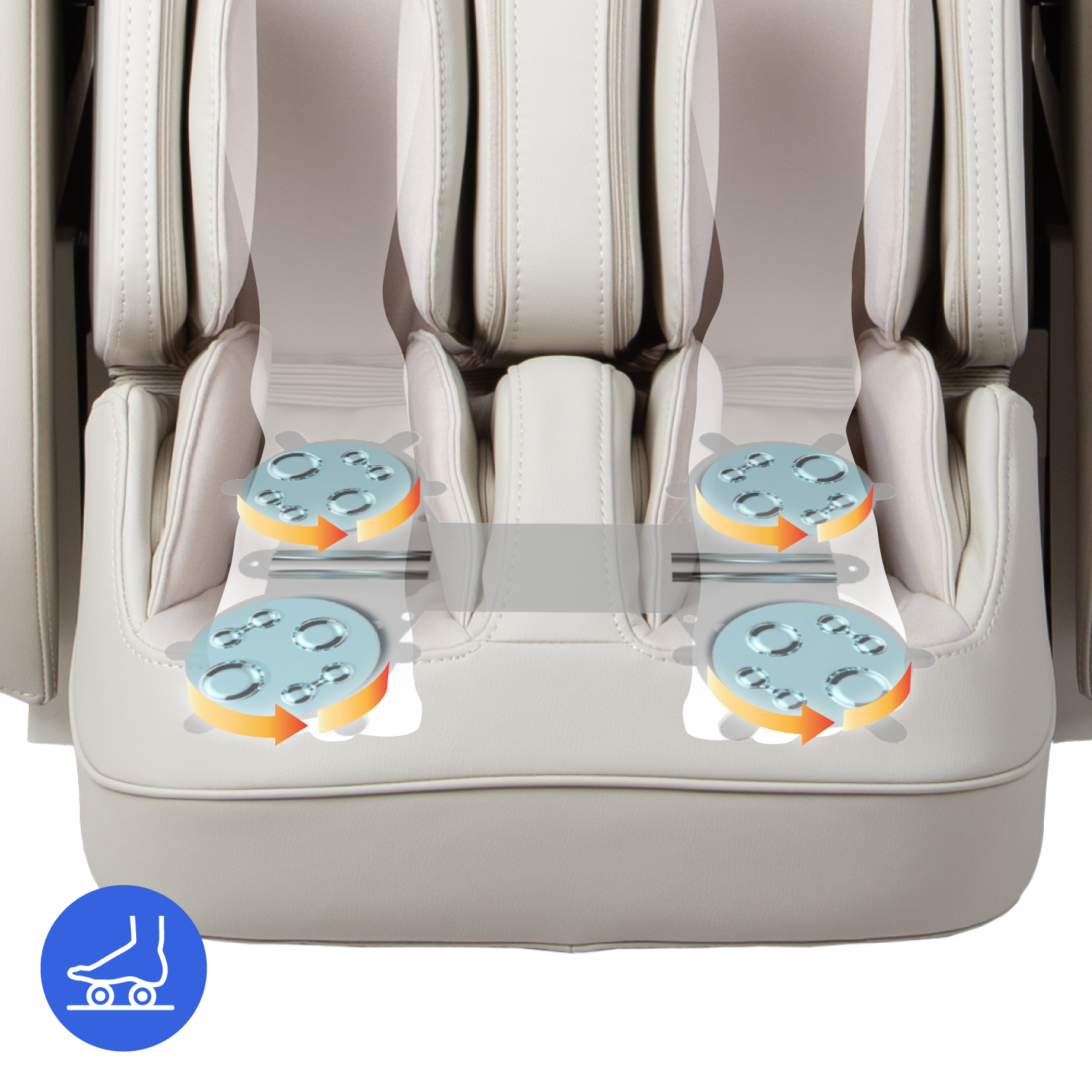

Dual-Row Foot Rollers and a Footrest That Finds Your Length

Two rotating foot rollers sit on each side of the footwell, giving four in total, and they turn under the soles of your feet along the reflex zones and acupuncture points. Two rollers per foot cover more of the sole in a single position than one. The arch and the ball of the foot both get contact without you shifting your feet in the well. The footrest extends automatically by up to 5.7 in. That travel keeps your heels seated on the rollers if you are tall enough that a fixed footrest would leave you reaching for them. It sets its own length, so two people of different heights get the same fit from the same chair with nothing to unlatch between sessions.

Two rotating foot rollers on each side, four in total
Works the reflex zones and acupuncture points on the soles
Automatic footrest extension up to 5.7 in.
Air cells at the legs and feet work around the rollers

Dual-row rollers 5.7 in. extension Automatic

Position

Reclined It Stands Only 33.5 Inches Tall

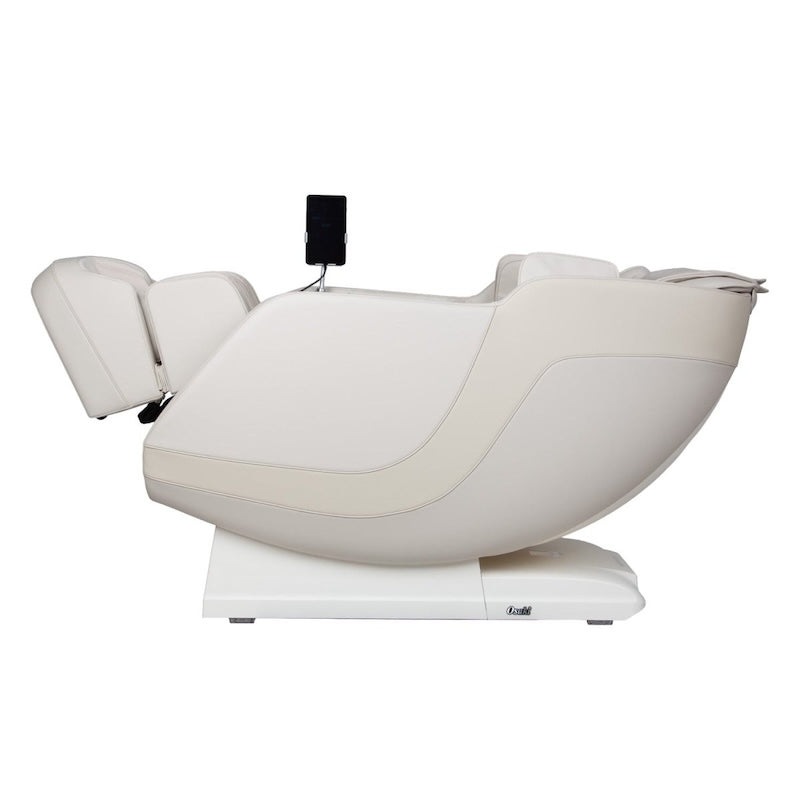

Upright the Helix LE measures 30.5 in. wide by 60 in. long by 44 in. tall, and reclined it measures 30.5 in. wide by 69.5 in. long by 33.5 in. tall. The floor length grows 9.5 in. through the recline and the height drops 10.5 in., so the chair lies down into a low profile that clears a windowsill or a picture rail behind it. Space saving construction slides the base forward as the backrest goes down, which is why it needs only 8 in. between the backrest and the wall to reach a complete recline. At 165.4 lb assembled it is one of the lighter 4D chairs to move into position once it is through the door.

Upright 30.5 in. W x 60 in. L x 44 in. H
Reclined 30.5 in. W x 69.5 in. L x 33.5 in. H
Wall clearance 8 in. at full recline
Minimum door width 30.5 in., chair weight 165.4 lb

Space saving 8 in. clearance 165.4 lb

Compare

Four Osaki Chairs at the Accessible End

These four sit at the accessible end of the Osaki range and a long way apart on mechanism. The Oasis runs 2D back heads with a separate set of glute rollers on a straight track. The Helix LE steps up to a single 4D mechanism driven through positioning gears. The Yoga Flex runs a 4D mechanism of its own and adds an independent leg massager under the seat. The Aeris Duo splits the work between two mechanisms, a 4D upper and a 2D lower, running at the same time on one track.

Osaki Oasis 3D

Pairs back rollers with dedicated glute rollers, covering the posterior chain further down than the rest of the entry tier.

18 + 6 rollers 24 air cells 250 lb capacity 7 in. wall clearance

Shop the Osaki Oasis 3D

You're Here

Osaki 4D Helix LE

The lowest entry point to a true 4D roller, using positioning-gear rollers on a compact frame.

4D rollers 22 air cells 270 lb capacity 8 in. wall clearance

Currently viewing

Osaki 4D Yoga Flex

Built around leg and hip stretch, with a three-stage zero gravity recline that opens the hip flexors further than a single-stage chair.

4D rollers 34 air cells 3-stage zero gravity 280 lb capacity

Shop the Osaki 4D Yoga Flex

Osaki 4D Aeris Duo

The lowest entry point to a dual mechanism, running a 4D upper and a 2D waist-and-hip lower on one 1431 mm track.

4D + 2D dual mech 1431 mm SL track 12 auto programs 7 massage zones

Shop the Osaki 4D Aeris Duo

Questions

From the Positioning Gears to the Doorway Measurement

Positioning-gear back rollers that move with millimeter-level accuracy and deliver a precisely controlled amount of pressure. The gears are what let the chair hold the head at a set depth on a set point, so a program can work one spot on your back at one pressure.

A 2D mechanism moves up and down the track and side to side across it, always the same distance from your back. A 3D mechanism adds in-and-out movement, so how far the rollers push toward you becomes a number you set. A 4D mechanism, which is what the Helix LE runs, varies the speed of that in-and-out movement during a stroke. One pass down your back can change both depth and pace as it travels.

From your neck and shoulders down to your legs, on one continuous rail of laser-crafted steel. An S-track follows the curve of the spine and stops at the lower back. An L-track keeps going past the tailbone and out under the seat. The Helix LE's SL-track is that same unbroken run under a name that points at both of its shapes, so the stroke never breaks where your back meets the seat.

22 air cells placed through the chair for full body compression, running three airbag patterns: kneading, pulsing and alternating. They cover the parts of you the roller track cannot reach, and you pick the pattern from the controller while a back program is running.

One zone, the lumbar, at roughly 75 to 83 degrees F at the pad. It runs independently of the massage program, so heat at your lower back is a switch you flip on its own, with no particular mode to select first.

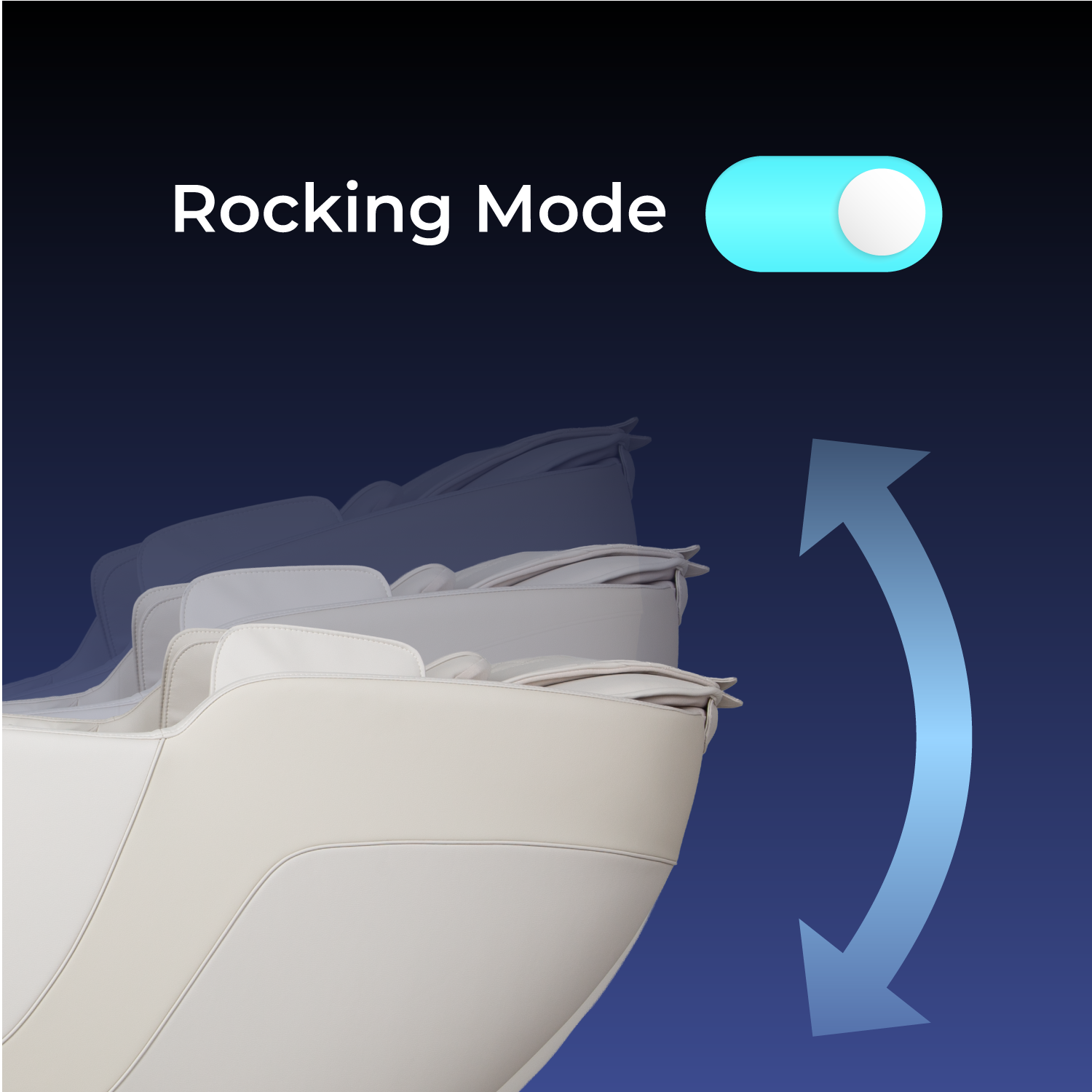

The whole chair rocks gently back and forth on its base, so the movement is the frame itself and not the rollers. It runs alongside the auto and manual programs and switches on from the same touchscreen controller, so the frame can be rocking while a back program is still working the track underneath it.

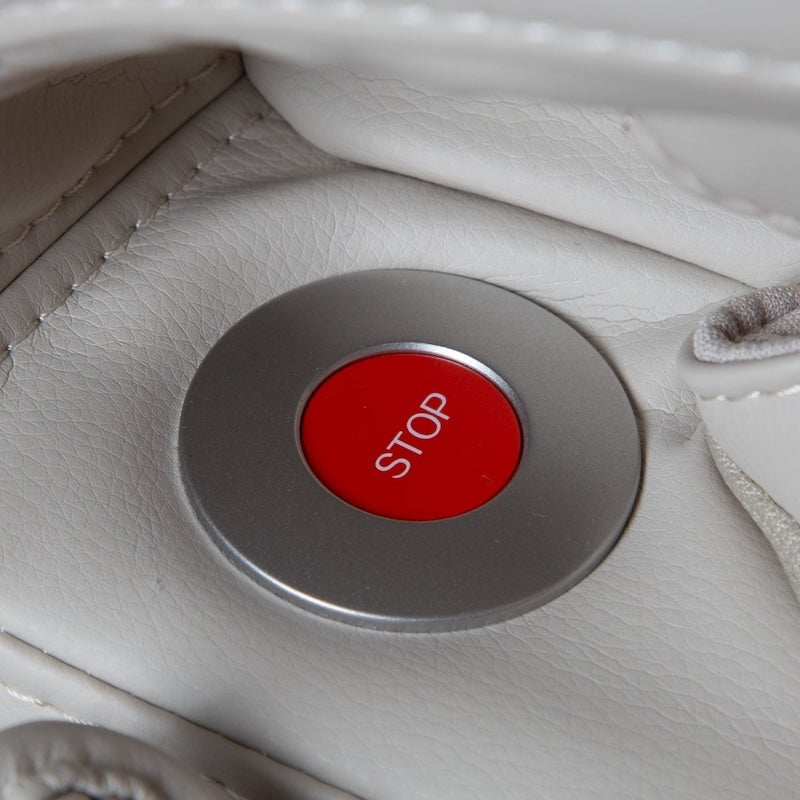

Three of them. Anti-pinch protection on the control-box cover detects moving objects near it. A one-touch emergency stop halts the chair immediately. Automatic reset returns the chair to its original position after a power cut, so it will not be left mid-recline when the power comes back.

15 auto programs and 6 manual techniques. The auto programs include Sports Mode, Recovery Mode, Neck and Shoulder, Back and Spine, and Waist and Hip. The manual techniques are Kneading, Sync, Tapping, Rubbing, Knocking and Shiatsu, and shiatsu is the pressing-and-holding one rather than a rolling one. Each drives a single motion at a point you place it.

The Helix LE takes a user up to 270 lb. For height, the footrest extends automatically by up to 5.7 in. The frame is 24.5 in. across the shoulders and 20 in. across the seat, and the headrest is removable if you want the rollers closer at the neck.

8 in. The base slides forward as the backrest lowers, so the chair reaches a complete recline from that distance without being pulled away from the wall first. Leave room in front for the reclined length of 69.5 in.

Upright: 30.5 in. W x 60 in. L x 44 in. H. Reclined: 30.5 in. W x 69.5 in. L x 33.5 in. H. The length grows 9.5 in. through the recline while the height drops 10.5 in., and the width holds at 30.5 in. in both positions.

You need 30.5 in. of door width, the same as the chair. Assembled it weighs 165.4 lb and it ships in one box measuring 30.3 in. by 60.2 in. by 34.4 in. at 196.2 lb. Measure the whole route, since stair turns and hallway corners catch more deliveries than door frames do.

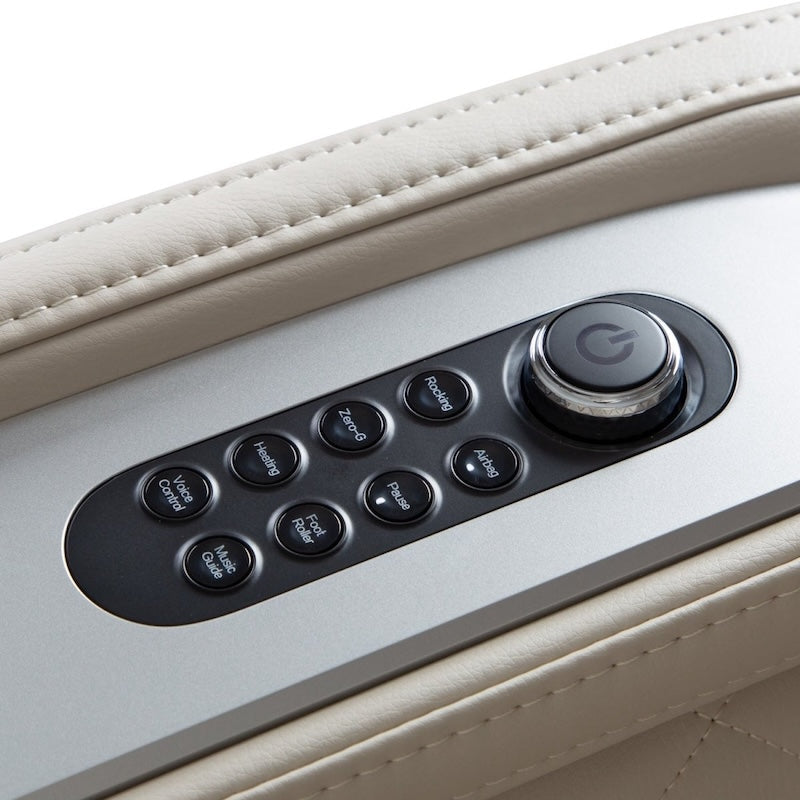

Yes. Voice control runs the chair hands free, which earns its place once the arm airbags have inflated around your forearms. On the chair itself you get a touchscreen controller plus armrest shortcut panels, and the cabin carries Bluetooth speakers, a wireless charging pad and a USB-C port. The chair plugs into a standard household outlet at 110 to 120 V, 50/60 Hz.

Black, Brown and Taupe are the three options, and only the upholstery color separates them. The standard warranty is 1 year parts and labor plus 2nd and 3rd year parts only. Longer parts-and-labor coverage is available separately, and our team can tell you what it covers.

Mechanism: 4D positioning-gear
Track type: SL-track, laser-crafted steel, neck to legs
Air cells: 22
Auto programs: 15
Heat: Lumbar, approx. 75 to 83 degrees F
Footrest extension: Automatic, up to 5.7 in.
Zero gravity: 2-stage
Safety: Anti-pinch, emergency stop, auto reset
User capacity: 270 lb
Chair weight: 165.4 lb
Shoulder width: 24.5 in.
Seat width: 20 in.
Upright dimensions: 30.5 in. W x 60 in. L x 44 in. H
Reclined dimensions: 30.5 in. W x 69.5 in. L x 33.5 in. H
Door clearance: 30.5 in. minimum
Wall clearance: 8 in.

Mechanism: 4D positioning-gear rollers holding millimeter-level accuracy on the point you choose
Track: Laser-crafted steel SL-track running from the neck and shoulders down to the legs
Air massage: 22 cells running kneading, pulsing and alternating patterns
Heat: Lumbar heating pad that runs independently of the massage program
Auto programs: 15 auto programs with 6 manual techniques underneath
Body scan: Automatic body scanning positions the rollers to your frame before a program runs
Foot rollers: Dual-row rotating rollers, two on each side
Footrest: Automatic extension up to 5.7 in.
Zero gravity: 2-stage recline, full recline 8 in. from the wall
Rocking motion: The whole chair rocks gently back and forth on its base

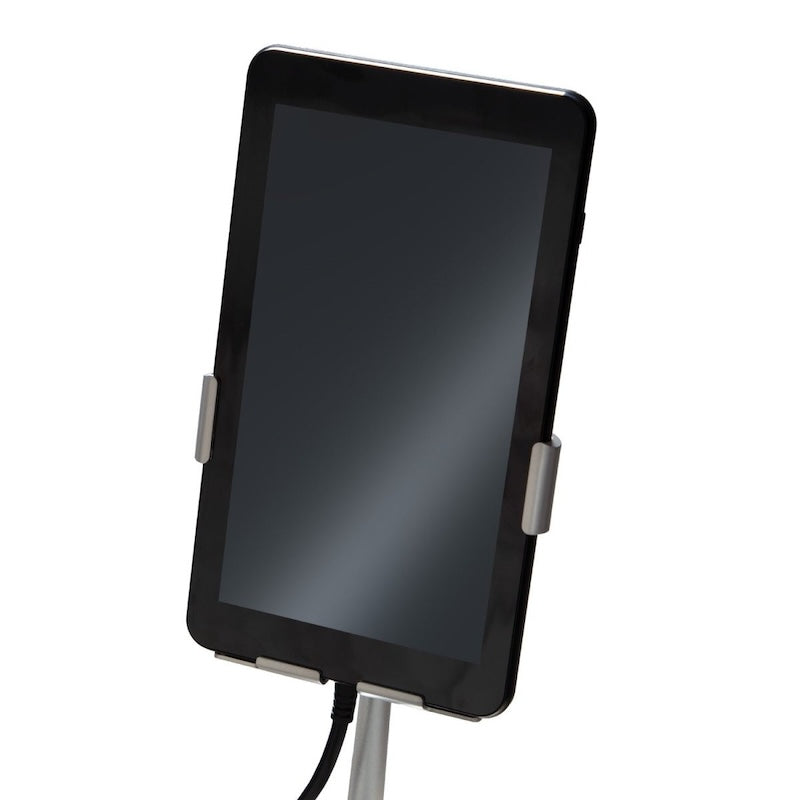

Voice control: Hands-free operation alongside a touchscreen and armrest shortcut panels

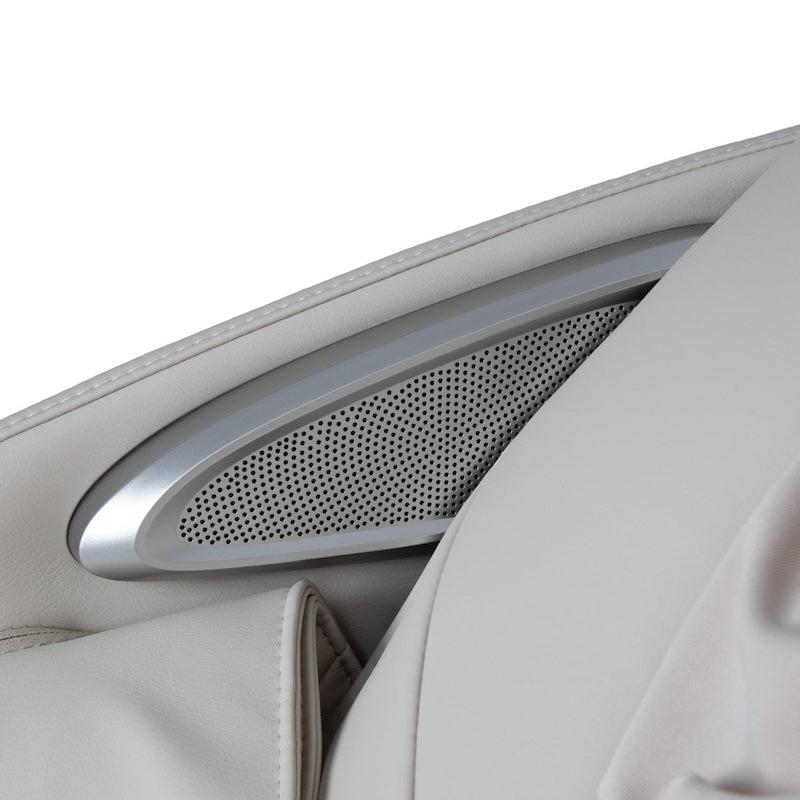

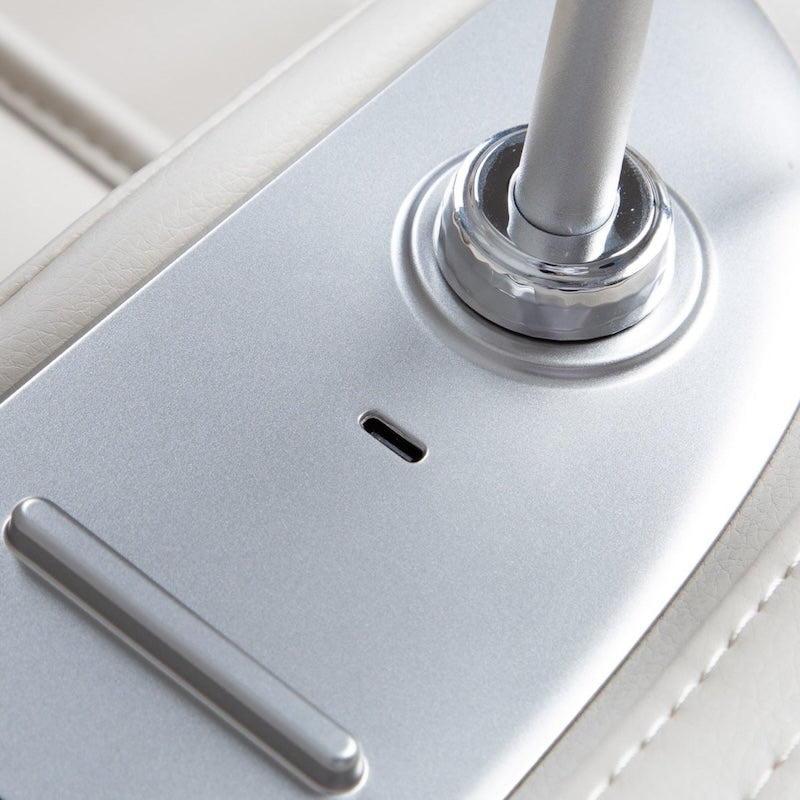

Cabin: Bluetooth speakers, a wireless charging pad and a USB-C port
