OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber
OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber

OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber

by OxyRevo
Save 15% Save 15%
$10,587.00
$10,587.00 - $13,175.00
$10,587.00
$8,999.00
$8,999.00 - $11,199.00
$8,999.00

Class II Medical Device Disclaimer. Learn More

✓ Authorized OxyRevo Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

🎁 FREE Video Call Training & Protocol ($1500 Value)

Soft Lying Hyperbaric Chamber · 1.5 ATA

OxyRevo Apex36 1.5 ATA Portable Hyperbaric Chamber

The Apex36 sits at the top of OxyRevo's soft lying range. It holds 1.5 ATA, the highest working pressure OxyRevo builds into a soft chamber, and it opens the barrel out to a 36-inch diameter across a 90-inch length. Seven large double-layered windows are set into the top, the foot and both sides. On paper and in the room, this is the most chamber OxyRevo sells before you move to a stainless hard shell.

The trade for that size is weight. At 37 lbs the Apex36 is the heaviest soft lying chamber OxyRevo makes, about 4 lbs more than the 32-inch Apex and the 36-inch Elite. The shell is High Strength TPU with high-frequency heat-welded seams, and the cover comes in Black, Blue, Grey or White with OEM colours available. Machines are a choice at checkout: the Pro all-in-one unit, or the Standard set of three separate machines.

Working Pressure
1.5 ATA
Adjustable down to 1.2 ATA
Chamber Size
90" × 36"
230 cm long, 90 cm diameter
Windows
7 Large
Double layered, top, foot & sides
Chamber Weight
37 lbs
17 kg, chamber only
OxyRevo's widest soft lying chamber Four cover colours ≤50 dB Pro or Standard machines
Grey OxyRevo Apex36 portable hyperbaric chamber inflated, three-quarter view showing two large side windows

The Build

What 1.5 ATA Asks Of A Soft Chamber

Higher pressure in a fabric chamber puts the load on four things: the valve that sets the pressure, the glazing, the seams, and the gauges you read while you are sealed in. Here is how the Apex36 handles each one.

🎚
Pressure Converter, 1.2 To 1.5 ATA
A pressure adjustment converter sets the chamber to 1.2, 1.3, 1.4 or 1.5 ATA with one press. OxyRevo's stated reason for the converter is ear comfort during the first sessions, so a new user can start a step or two below the ceiling and work up. Buying the Apex36 buys the top of the range with the lower settings still on the dial.
1.2 / 1.3 / 1.4 / 1.5 ATA
🪟
Seven Double-Layered Windows
Two windows run the length of each side, with more set into the top and the foot of the chamber, seven in total. Every one is built as a double layer. That is two more windows than either Elite chamber carries, and at 36 inches across it is what keeps daylight coming into the interior from four surfaces.
7 Windows, Double Layered
🔩
Heat-Welded TPU Seams
The shell is High Strength TPU and the seams are joined by high-frequency heat welding. OxyRevo's stated reason is durability with no toxic glue and no stitch line: they attribute a pungent smell to glued joints and long-term failure risk to sewn seams. Valve labels are applied by UV laser, so there is no glued paper sticker to peel.
High Strength TPU
📊
Two Gauges, Two Sides Of The Shell
Aviation-grade pressure gauges are fitted inside and outside, so the person in the chamber reads the same number as the person standing next to it. Pressure relief valves are automatic and OxyRevo distributes the airflow across them, which is what they credit for the quieter release. The chamber is rated at ≤50 dB.
Inside & Outside Readings

Why Athletes Choose This

Eight Things You Are Actually Buying

Each line below is a published specification of the Apex36 or a term of the way Recovery For Athletes sells it. None of it is a claim about what hyperbaric oxygen therapy does to a body.

⬆️
1.5 ATA, the soft range ceiling
Highest Soft Pressure
↔️
36-inch diameter
Widest Soft Lying Chamber
🪟
Seven double-layered windows
Top, Foot & Both Sides
🤐
Zippers inside and outside
Solo Operation
🔇
Rated at 50 dB or under
Sound Level
🎨
Four cover colours
Black, Blue, Grey, White
⏱
Emergency exit in 30 seconds
Emergency Valves
🛡
2-year home use warranty
Lifetime Tech Support

Inside The Apex36

A Closer Look At The Big One

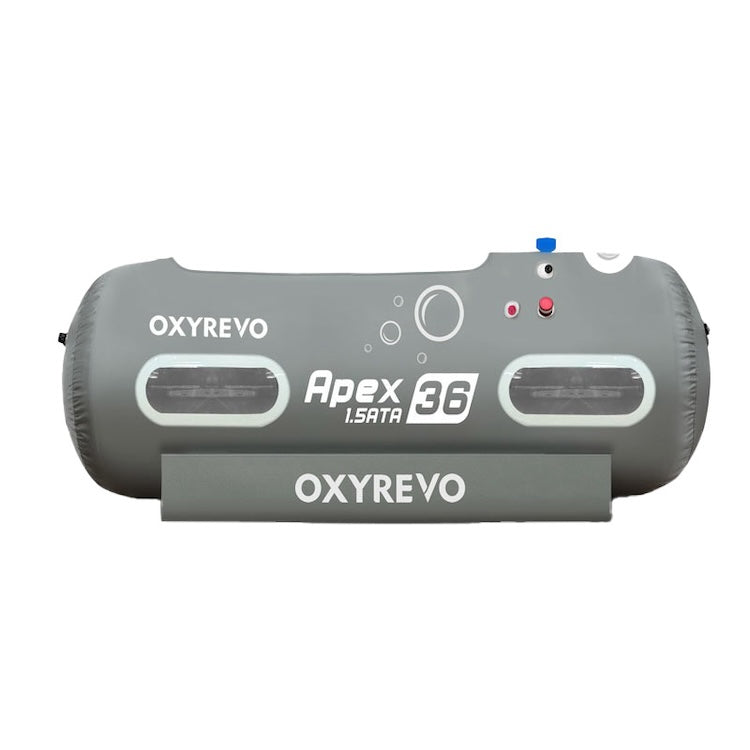

Side profile of the inflated grey OxyRevo Apex36 portable hyperbaric chamber
36-Inch Diameter

Four Extra Inches Across, Four Extra Pounds To Carry

The Apex36 keeps the 90-inch length of the rest of the soft lying range and widens the barrel from 32 to 36 inches. OxyRevo describes the result as roomy enough for one adult and one child. The honest cost of that width is 37 lbs against 33 lbs for the Apex32, which is worth knowing if the chamber will be packed down and carried between rooms.

  • 90 in / 230 cm long, 36 in / 90 cm diameter
  • 37 lbs / 17 kg, the heaviest soft lying chamber OxyRevo makes
  • 1.5 ATA working pressure, steppable down to 1.2 ATA
  • Cover in Black, Blue, Grey or White, OEM colours available
Widest Of The Four High Strength TPU
View from inside an OxyRevo Apex chamber looking out through the windows
Sealed In

Seven Windows, A Gauge And A Zipper Pull Within Reach

Sixty to ninety minutes is a long time in a tube, and the Apex36 is specified around that. Windows on four surfaces let daylight in from more than one angle, and OxyRevo's stated reason for that much glazing is a wide, transparent view with more light entering the chamber. A high-accuracy pressure gauge is fitted inside as well as outside, and a second zipper runs on the inside, so the occupant can open the chamber themselves.

  • Seven large double-layered windows on top, foot and sides
  • Aviation-grade pressure gauges inside and outside the shell
  • Internal and external pressure release valves
  • Curved zipper with a medical-grade silicone seal strip
Internal Pressure Gauge Zip From Inside

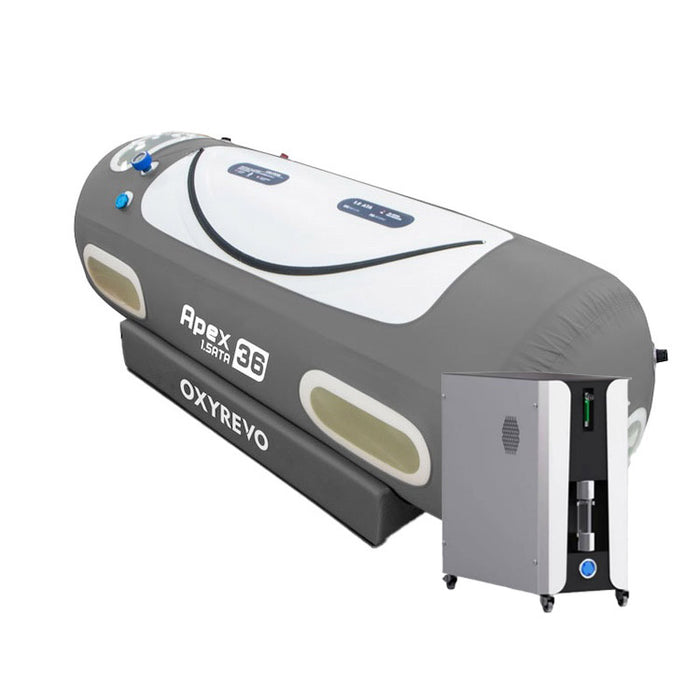

Grey OxyRevo Apex36 chamber with the Pro all-in-one machine unit standing beside it
Pro Or Standard

One Cabinet, Or Three Machines

The chamber is the same either way. What changes is what pressurizes and feeds it. The Pro version arrives as a single All-in-One Machine Unit measuring 27.56" × 13.78" × 29.53" and weighing 80 kg, with one press starting every function. The Standard version splits the same jobs across three units, each set up and started on its own, and it costs less and travels lighter. Both run a 10L oxygen concentrator, so no oxygen tanks are involved.

  • Pro: 1 air compressor, 10L oxygen concentrator, 2 cooling machines, anion generator, timing alarm, oxygen meter, water container and air filters in one cabinet
  • Pro: double activated carbon filters, plus Nano Water Ion technology with an anti-virus system that OxyRevo rates at a 99% virus sterilization rate
  • Standard: air compressor AE01, air cooler ZLA01, oxygen concentrator HG10, with double filters on input and output
  • Oxygen mask, spare filters, fuses, air and oxygen tubing and power cable ship with both
One-Press Activation (Pro) No Oxygen Tanks

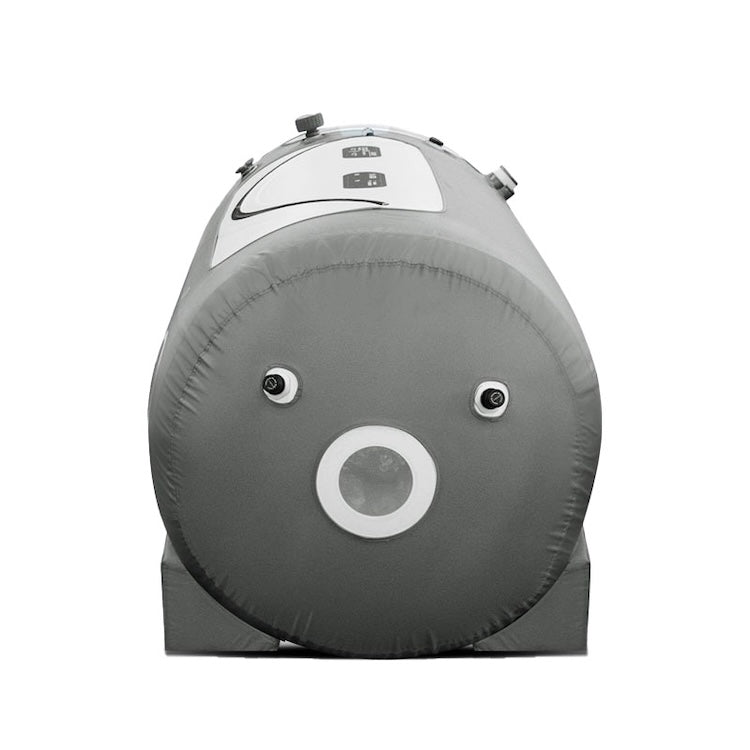

Head-on view of the OxyRevo Apex36 chamber end showing the circular port
Valves & Exits

Every Way Out Works From Both Sides

The Apex36 is pressurized with filtered air. Internal pressure is held by the pressure valve and managed by the relief valves, and the chamber can be depressurized and opened from inside as well as outside. Emergency valves are fitted for a fast exit, which OxyRevo puts at 30 seconds. Valve markings are burned in by UV laser so the labels stay readable for the life of the chamber.

  • Emergency valves, quoted by OxyRevo at a 30-second exit
  • Internal and external pressure release valves
  • High-precision pressure gauges inside and outside
  • UV laser valve labels, no glued paper stickers
Filtered Air Open From Inside

The OxyRevo Soft Lying Range

Four Chambers, Two Pressures, Two Diameters

All four soft lying chambers are 90 inches long, built from High Strength TPU, rated at ≤50 dB, and sold with a Pro or Standard machine set. The grid is simple: Elite holds 1.4 ATA with 5 windows, Apex holds 1.5 ATA with 7, and each pressure comes in a 32-inch or 36-inch diameter. The Apex36 is the corner of that grid with the most of everything.

Grey OxyRevo Elite32 portable hyperbaric chamber, inflated
Elite32
The entry point of the range and the lightest at 28.6 lbs.
1.4 ATA 90" long, 32" diameter 28.6 lbs / 13 kg 5 windows
Shop the Elite32
Grey OxyRevo Elite36 portable hyperbaric chamber, inflated
Elite36
Elite pressure with the barrel opened to 36 inches across.
1.4 ATA 90" long, 36" diameter 33 lbs / 15 kg 5 windows
Shop the Elite36
Grey OxyRevo Apex32 portable hyperbaric chamber, inflated
Apex32
Full 1.5 ATA and 7 windows at the narrower 32-inch diameter.
1.5 ATA 90" long, 32" diameter 33 lbs / 15 kg 7 windows
Shop the Apex32
You're Here
Grey OxyRevo Apex36 portable hyperbaric chamber, inflated
Apex36
Top of the soft range. Highest pressure, widest barrel, most windows, most weight.
1.5 ATA 90" long, 36" diameter 37 lbs / 17 kg 7 windows
Currently viewing

Questions

Frequently Asked Questions

Diameter and weight. Both hold 1.5 ATA, both are 90 inches long, and both carry 7 large double-layered windows. The Apex36 opens the barrel to 36 inches / 90 cm against 32 inches / 80 cm on the Apex32, and weighs 37 lbs against 33 lbs. Choose on how much room you want across your shoulders and how often the chamber will be moved.
Same 90-inch length and same 36-inch diameter. The Apex36 runs a higher working pressure at 1.5 ATA against the Elite36's 1.4 ATA, and carries 7 windows against 5. It weighs 37 lbs where the Elite36 weighs 33 lbs. If pressure and glazing are what you are comparing on, the Apex36 is the upgrade over the Elite36 at the same footprint.
Yes. A pressure adjustment converter sets the chamber to 1.2, 1.3, 1.4 or 1.5 ATA with one press. OxyRevo's stated reason for including it is easing ear pressure discomfort during the first sessions, so you can begin lower and step up as you get used to it.
Inflated, the chamber occupies 90 inches long by 36 inches wide (230 × 90 cm). Allow floor space beside it for the machines. The Pro all-in-one unit is 27.56" L × 13.78" W × 29.53" H; the Standard version needs room for three separate units. Measure the doorway and the route into the room before you order.
The chamber itself is 37 lbs / 17 kg, the heaviest of OxyRevo's soft lying chambers. The machines are the heavier part of the setup: the Pro all-in-one unit weighs 80 kg, while the Standard version splits the same functions across three lighter units that are simpler to transport.
No technician is required for installation. OxyRevo builds these chambers for owner setup, and the chamber can be operated from inside or outside the unit. Separately from installation, talk to your physician before starting hyperbaric sessions, particularly if you have any ear, sinus or lung condition.
Yes. There are zippers on the inside and the outside, so the chamber can be closed and opened by the person using it with nobody standing by. Pressure gauges and pressure release valves are duplicated inside, and the chamber can be depressurized from within. The curved zipper design uses a gravity sink that separates the zippers from the sealing strips, which OxyRevo credits for reduced friction on entry and exit.
Four: Black, Blue, Grey and White. Grey is the standard cover colour and OEM colours are available on request. Colour is selected as an option on this page and does not change any specification of the chamber.
The Pro version is one All-in-One Machine Unit, 27.56" × 13.78" × 29.53" and 80 kg, containing an air compressor, a 10L oxygen concentrator, two cooling machines, an anion generator, timing alarm, oxygen meter, water container and air filters. Every function starts with one press, it runs double activated carbon filters, and it adds Nano Water Ion technology with an anti-virus system that OxyRevo rates at a 99% virus sterilization rate. The Standard version is three separate machines: air compressor AE01, air cooler ZLA01 and oxygen concentrator HG10, each set up and operated individually, with double filters on input and output. Standard costs less and is lighter to move.
No tanks. The oxygen concentrator produces oxygen continuously, so there are no oxygen tanks to buy or refill. Compressor filters are the only components needing routine replacement, every 6 to 12 months depending on use. Spare filters and fuses ship with the chamber, along with the oxygen mask, air and oxygen tubing and power cable.
Cooling is part of the machine set you choose. The Pro unit contains two cooling machines and a water container; the Standard version includes the ZLA01 air cooler. OxyRevo describes this system as removing humidity from the chamber and cooling the air, and it is electrically driven with no ice water and no Freon involved. Set your expectation this way: in a room with working air conditioning, the interior stays comfortable through a session.
The chamber is rated at ≤50 dB. OxyRevo's automatic pressure relief valves distribute airflow across the valves, which is what they credit for lowering release noise. The reason they give for developing those valves is people trying to sleep inside the chamber while the valves vented outside it.
A typical mild hyperbaric session runs 60 to 90 minutes, 4 to 5 times a week. The common pattern is a block of 40 sessions, then a week off before starting the next block.
This varies by individual and is a question for your physician. As a general starting point for wellness use, plan an initial block of 20 sessions and reassess from there. Recovery For Athletes does not make claims about outcomes.
A pressure change in the ears as the chamber pressurizes and depressurizes, similar to a plane taking off or descending. Swallowing or yawning clears it, and ears commonly adjust after the first few sessions. Starting at 1.2 or 1.3 ATA on the pressure converter is one way to ease into it.
Any loose-fitting, comfortable clothing.
Talk to your physician before starting, particularly with any ear, sinus or lung condition. On the equipment side: the chamber is pressurized with filtered air, internal pressure is regulated by the pressure valve and the relief valves, and the chamber can be depressurized and opened from inside and outside. Emergency valves are fitted for a quick exit, quoted by OxyRevo at 30 seconds. All seven viewing windows are double-layered, and high-precision pressure gauges are mounted inside and outside.
Recovery For Athletes makes no claims about hyperbaric oxygen therapy for children or for any condition. That decision belongs with a physician who knows the child. On the equipment side, the 36-inch diameter is the widest in OxyRevo's soft lying range, and OxyRevo describes the interior as having room for one adult and one child.
The CE machinery (non-medical) and ISO13485 certifications OxyRevo publishes apply to its hard shell chambers. We do not list those certifications for the soft chamber range, and the Apex36 is a soft chamber. If a certificate is a requirement for your facility, ask us before ordering and we will get you a straight answer from OxyRevo.
About 3 weeks: roughly 1 week for production and 7 to 10 days for shipping via FedEx Air. Tracking is provided when the order ships.
Two, chosen on this page. Standard Delivery brings the crated chamber to your location and you handle unloading, uncrating and moving it. White Glove Delivery & Chamber Education is full service: unloading, setup and cleanup, and the team walks you through operating the chamber.
1-year commercial and 2-year home use warranty, plus lifetime technical support at no cost. If a quality issue arises in the warranty period and can be repaired, OxyRevo supplies replacement parts free and provides step-by-step repair guidance by photo and video. If it cannot be repaired, they send a new machine at no cost.

What is the difference between the Standard and Pro Versions?

Pro Version

  1. All-in-One Machine Unit:
  • Air Compressor:1 unit
  • Oxygen Concentrator:10L
  • Cooling Machines:2 units
  • Anion Generator
  • Timing Alarm
  • Oxygen Meter
  • Water Container
  • Air Filters
  • 27.56"L x13.78"W x29.53"H
  • 80 kg
  1. Operation:
  • All functions integrated into a single unit, making it more convenient to use.
  • Simplified operation with one press activation for all functions.
  1. Efficiency:
  • Enhanced dehumidifying and cooling system.
  • Continuous oxygen production without the need for an oxygen tank.
  • Double activated carbon filters for better air quality.
  1. Additional Features:
  • Nano Water Ion Technology: Provides pure and clean air, with an anti-virus system for disinfection.
  • Virus Sterilization Rate: 99%.

Standard Version Specifications

  1. Air Compressor: Model AE01
  2. Air Cooler: Model ZLA01
  3. Oxygen Concentrator: Model HG10

Operation

  • Separate units require individual setup and operation.
  • More manual intervention needed for controlling each unit.

Efficiency

  • Effective dehumidifying and cooling system.
  • Continuous oxygen production without the need for an oxygen tank.
  • Double filters for input and output for better air quality.

Common Features

  • Material: High Strength TPU
  • Safety: All chambers include emergency valves, double layers of viewing windows, and internal/external pressure release valves.
  • Pressure Gauges: High-precision display inside and outside for constant monitoring.
  • Unique Curved Zipper Design: Ergonomically designed for easier access and reduced effort in operation.
  • Unique Curved Zipper Shape Design - Oxyrevo has exclusively designed a super smooth and easy-to-use zipper system for its hyperbaric chambers. The curved zipper design incorporates a gravity sink that separates the chamber zippers and sealing strips, thereby reducing mutual friction and making entry and exit of your hyperbaric much smoother and easier.
  • Durable Laser Printing, NO Paper Glued - Cheaply made paper stickers that are glued on will eventually fade and peel off with use, resulting in a poor user experience. To provide our customers a better user experience, Oxyrevo uses UV laser technology to label all valves in clearly, resulting in beautiful, durable, and textured labels, making your use more convenient.
  • Extra Quiet Pressure Relief Valves - It can be quite bothersome when you are trying to sleep inside the hyperbaric chamber and the air relief valves outside are too loud. Oxyrevo has developed quiet automatic pressure relief valves, helps to evenly distribute the airflow, resulting in a significant reduction in noise levels, gives you a peaceful and quiet HBOT benefits environment.
  • Heat Welded: NO Toxic Glues or Sewing - Other manufacturers either use glue to seal chamber joints, which can emit a pungent smell and be harmful to the body, or sew the material seams, which poses a significant risk of damage over time. In contrast, Oxyrevo's portable hyperbaric oxygen chambers have seams that are welded using high-frequency heat welding technology, which is both environmentally friendly and non-toxic, also highly durable.
  • 1.2-1.5ATA Pressure Adjustable - In order to help customers ease the discomfort of ear pressure during initial use of your hyperbaric oxygen chambers, we have created a pressure adjustment converter that allows you to easily set your chamber pressure to 1.2/1.3/1.4/1.5 ATA with just one press. This exclusive design is only available in Oxyrevo Hyperbaric Chambers and enables you to gradually adjust to the increasing pressure levels of your HBOT session.
  • Dual Pressure Data Display In and Out - It can be bothersome when pressure readings only can be seen outside the chamber, which may result in incorrect operational instructions and potential harm to your body. At Oxyrevo, we use two aviation-grade pressure gauges with high accuracy to ensure that the pressure readings remain consistent and without errors inside and outside the chamber, making the use of HBOT safer for you.

Safety Features

  • Large Window - There are 7 large double-layered heated windows located on the top, foot, and sides of the chamber, providing a wide and transparent view that allows more light to enter the chamber, NO more claustrophobia.
  • Curved Zipper - Curved zipper with customized medical grade silicone seal strip, makes opening and closing the chambers' zippers very easy and smooth
  • Dual Pressure Gauge - Two pressure gauges inside and outside conveniently let you know the pressure readings at any time.
  • Emergency Valve - For added safety, the emergency valves allow you to get out of the hyperbaric chamber in 30 seconds in an emergency situation.
  • Slow Rebound Mattress - The high-density sponge material used in our product provides excellent durability and support, preventing the pain and discomfort that can be caused by rebound pressure or inadequate support.

Chamber:

  • Internal/external pressure gauges
  • Pressure-deflating valves
  • Control panels
  • Display screen
  • Communication system
  • Pressure relief valves
  • Reading lights
  • Wheels

Operating Unit:

  • Pro Version: All-in-One Unit
  • Standard Version: Oil-free air compressor
  • Standard Version: 10L oxygen concentrator
  • Standard Version: Cooling machines
  • Standard Version: Anion air purifier
  • Standard Version: Air sterilizer
  • Standard Version: Air filter
  • Standard Version: Humidity water container

Accessories:

  • Oxygen mask
  • Spare filters
  • Fuses
  • Air/oxygen tubes
  • Power cable


All machines and components come with a 1-year Commercial and a 2-year Home Use warranty and lifetime technical support at no cost. If any quality issues occur within the warranty period that can be easily repaired, OxyRevo will provide replacement parts free of charge, along with step-by-step repair guidance through pictures and videos. If the issue cannot be fixed, OxyRevo will promptly send you a new machine at no cost.

Durability:

  • Chamber Capsule: 10,000 hours
  • Air Compressor: 10,000 hours
  • Cooler: 10,000 hours
  • Oxygen Concentrator: 5,000 hours

Overall rating: 5.0 / 5 from 5 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

I use it at least 3 times a week.

"It has been instrumental in my recovery from surgeries. I can feel a difference in my recovery from hard gym workouts. I have it set up in my home office. I am able to study, listen to music, take care of business by text and much more while inside. It's time well spent. At 68, I want to do all I can to sustain a great quality of life. I love it."

— Allen L. (5/5)

Love It

"I like that I don't feel trapped. I'm 6'2" and 250lbs. I can almost sit up; However, I can turn around in it. It's perfect so far."

— David B. (5/5)

Once again its great

"I’ve been buying recovery gear from RFA for years, so when I started researching hyperbaric chambers, I went straight to them. The Apex36 was the perfect match—big enough to be comfortable without taking up too much space. Setup was straightforward, and the chamber feels high quality. After just a couple weeks, I’m already feeling the benefits: more energy, faster recovery, and better sleep. RFA never disappoints—they know their stuff and always take care of you."

— Wesley F. (5/5)

Perfect and Affordable

"I purchased the Apex36 from Recovery for Athletes after outgrowing a smaller chamber, and I’m so glad I made the upgrade. The extra space makes a huge difference—I’m 6'3" and can fully stretch out and relax. The chamber feels durable, zips easily, and runs quietly. RFA was incredibly helpful throughout the buying process, answering all my questions and providing updates during shipping. I use it 5 days a week for recovery and sleep support, and I’ve noticed a real improvement in energy and muscle fatigue."

— Jake T. (5/5)

Thank You

"Love it"

— Robert K. (5/5)

Q&A
