OxyRevo Elite32 1.4 ATA Portable Hyperbaric Chamber

OxyRevo Elite32 1.4 ATA Portable Hyperbaric Chamber

Name: OxyRevo Elite32 1.4 ATA Portable Hyperbaric Chamber
Brand: OxyRevo
SKU: OXYREVO-ELITE32
Price: 7499.0 USD
Availability: InStock

by OxyRevo

Save 15%

$8,822.00

$8,822.00 - $11,528.00

$8,822.00

$7,499.00

$7,499.00 - $9,799.00

$7,499.00

Class II Medical Device Disclaimer. Learn More

✓ Authorized OxyRevo Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

🎁 FREE Video Call Training & Protocol ($1500 Value)

Quantity

Portable Lying Hyperbaric Chamber

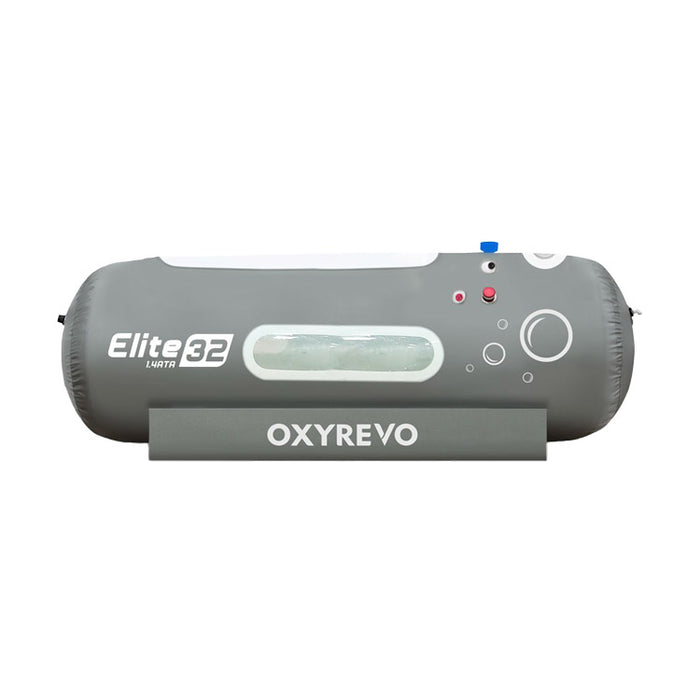

OxyRevo Elite32 1.4 ATA Portable Hyperbaric Chamber

The Elite32 is where the OxyRevo range starts, and at 28.6 lbs it is the lightest OxyRevo chamber Recovery For Athletes carries. That number is the whole argument for this model. One adult can carry the chamber body into a room, lay it out and have it holding pressure without a second pair of hands and without a delivery crew on site.

It is a lying-position soft chamber: 90 inches long, 32 inches in diameter, with a working pressure of 1.4 ATA and five large double-layered windows set into the top, the foot and the sides. The shell is High Strength TPU with heat-welded seams, the rated sound level is 50 dB or below, and the cover comes in grey with OEM colours available. Two ways to run it are offered at checkout: the Pro version with a single all-in-one machine unit, or the Standard version with three separate machines.

28.6 lbs chamber body One-person setup ≤50 dB High Strength TPU

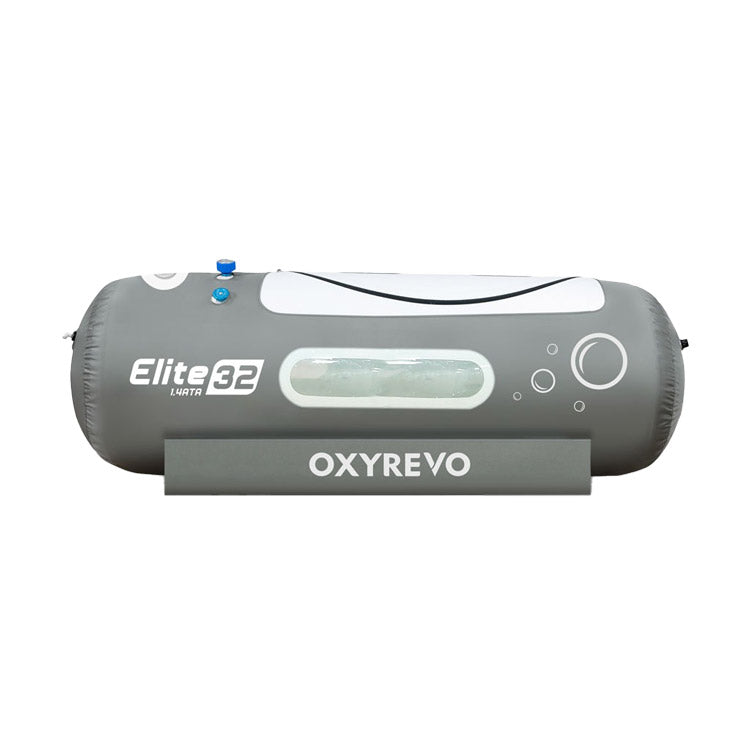

OxyRevo Elite32 portable hyperbaric chamber in grey, inflated, viewed from three-quarters

The Build

Four Details That Make It The Easy One To Live With

A chamber you have to negotiate with gets used less. Four things about the way the Elite32 is built decide how much effort a session costs you: what it weighs, how the pressure is set, how you get in, and how the shell is joined.

🏋

28.6 lbs Of Chamber

Of the OxyRevo chambers Recovery For Athletes carries, from the soft lying models up to the stainless steel ones, nothing is lighter. The Elite36 is 33 lbs, the Apex32 is 33 lbs and the Apex36 is 37 lbs. At 13 kg the Elite32 body is a one-person lift, which is what lets it move between a bedroom and a garage, or come with you to a training camp.

13 kg · Lightest We Carry

🎯

1.2, 1.3 Or 1.4 ATA On One Press

A pressure adjustment converter sets the ceiling at 1.2, 1.3 or 1.4 ATA with a single press. OxyRevo's stated reason for building it is ear pressure on the first few sessions: a new user can hold the chamber at 1.2, then step up as they get used to equalising.

Three Pressure Steps

🧭

Curved Zipper With A Gravity Sink

The zipper line curves, and a gravity sink holds the zipper away from the sealing strip so the two are no longer dragging against each other. The seal strip itself is a customised medical-grade silicone. Getting in and out is a job you do one-handed from either side of the shell.

Medical-Grade Silicone Seal

🔥

Heat-Welded Seams

The High Strength TPU panels are joined with high-frequency heat welding. OxyRevo's stated reason is twofold: glued joints can give off a smell inside a sealed space, and stitched seams give pressure somewhere to work on over the years. Valve labels are applied by UV laser, so there is no glued paper to peel.

High Strength TPU

Why Athletes Choose This

Eight Reasons The Elite32 Is The One People Start With

Everything below is a published specification of this chamber or a term of how Recovery For Athletes and OxyRevo sell it. None of it is a claim about what hyperbaric oxygen therapy does to your body.

🏋

28.6 lbs, one person moves it

13 kg

🎯

Start at 1.2 ATA, work up to 1.4

One-Press Converter

🕷

Five double-layered windows

Top, Foot & Sides

🔈

Rated at 50 dB or below

Quiet Relief Valves

📊

Pressure gauges inside and out

Aviation-Grade

⏯

Emergency exit in 30 seconds

Emergency Valve

💧

No oxygen tanks to refill

10L Concentrator

🛡

2-year home use warranty

Lifetime Tech Support

A Closer Look

Four Things Worth Examining Before You Buy

Glazing

Five Windows On A 32-Inch Shell

The window count matters more on a 32-inch diameter than it does on a wider chamber, because the walls are closer to you. The Elite32 carries five large windows, and OxyRevo lists them as set into the top, the foot and the sides of the shell without breaking down how many sit on each surface. Every pane is double-layered, which is also part of the safety spec on OxyRevo's soft chambers. OxyRevo's stated reason for the extended window design is light and field of view, so the space reads as open from the inside.

5 large double-layered windows
Positioned on the top, the foot and both sides
OxyRevo's stated reason for the glazing count is light and field of view
Cover in grey, OEM colours available

Double-Layered 5 Windows

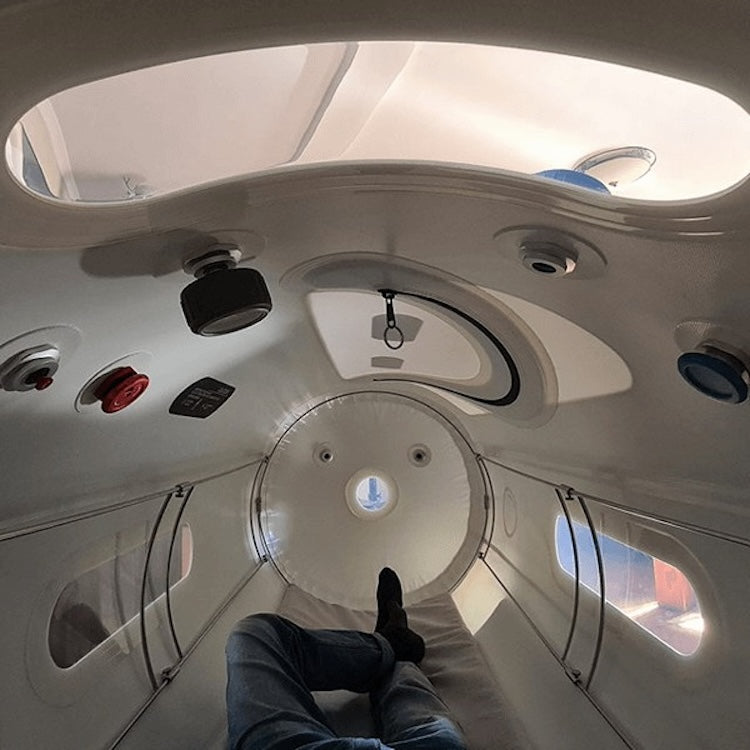

Inside

Ninety Inches Long, And Quiet Enough To Sleep In

The cabin is 90 inches from end to end, so a tall adult lies out flat with room to spare, and 32 inches across. Sound is rated at 50 dB or below. OxyRevo redesigned the automatic pressure relief valves to distribute airflow more evenly, and their stated reason was people trying to rest through a session while the valves vented outside.

90 in / 230 cm long, 32 in / 80 cm diameter
Shell in High Strength TPU with heat-welded seams
Rated sound level 50 dB or below
Quiet automatic pressure relief valves

One Person ≤50 dB

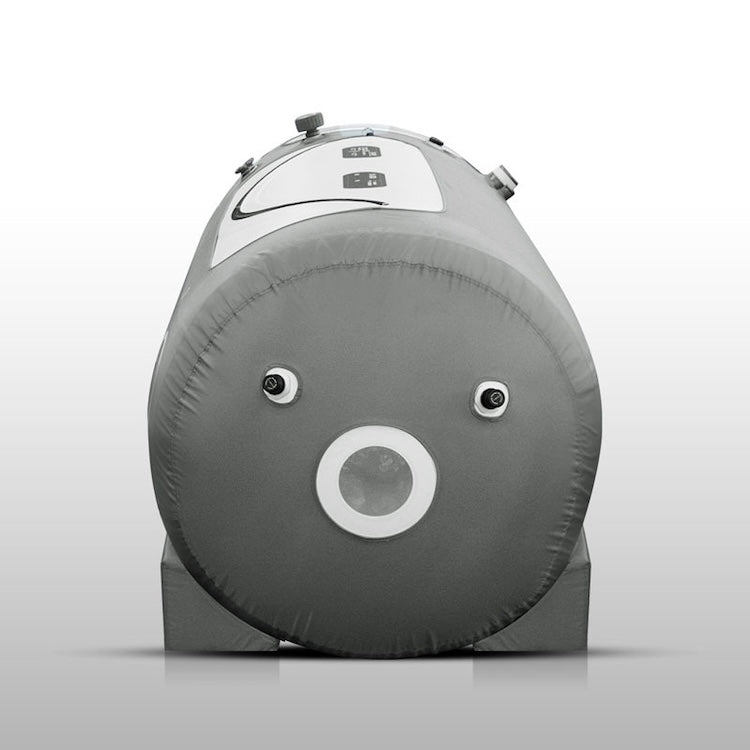

Head-on view of the inflated OxyRevo Elite32 chamber end showing the circular port

Controls & Safety

Everything You Need To Read Or Open Is Reachable From Inside

Two aviation-grade pressure gauges are fitted, one inside the chamber and one outside, so the reading you act on is the reading in front of you. Pressure release valves are duplicated the same way. The emergency valves are specified to get an occupant out in 30 seconds. Every valve is labelled by UV laser, so the markings stay legible for the life of the shell.

High-precision pressure gauges inside and outside
Internal and external pressure release valves
Emergency valves rated for exit in 30 seconds
UV laser valve labelling

Dual Gauges 30-Second Emergency Release

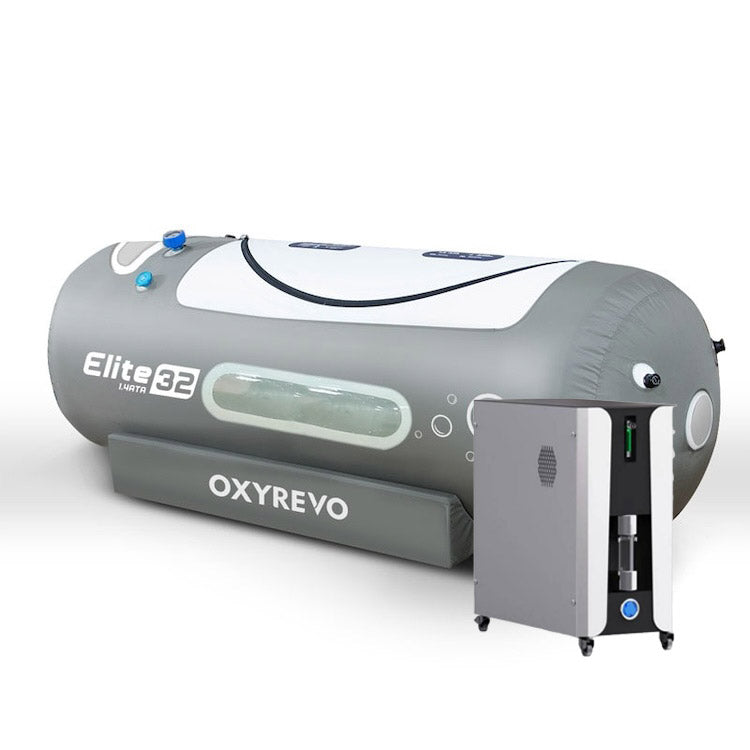

OxyRevo Elite32 chamber with the Pro all-in-one machine unit standing beside it

Operating Unit

Pro Or Standard: The Decision That Changes The Day-To-Day

The chamber is identical either way. What you are choosing is the machinery that feeds it. The Pro puts one air compressor, a 10L oxygen concentrator, two cooling machines, an anion generator, timing alarm, oxygen meter, water container and air filters inside a single cabinet measuring 27.56" × 13.78" × 29.53" at 80 kg, with one press to start everything. The Standard version splits the same job across three machines: air compressor AE01, air cooler ZLA01 and oxygen concentrator HG10, each set up and switched on individually. The Standard costs less and is lighter to shift, which keeps the Elite32's portability intact end to end.

Pro: one cabinet, one-press activation, double activated carbon filters
Pro adds Nano Water Ion technology with an anti-virus system; OxyRevo states a 99% virus sterilization rate
Standard: three separate machines, double filters on input and output
Both produce oxygen continuously, so there are no tanks to buy

10L Oxygen Concentrator Chosen At Checkout

The OxyRevo Soft Lying Range

Four Lying Chambers, Two Pressures, Two Diameters

All four are 90 inches long, run on High Strength TPU with the curved zipper and dual pressure gauges, and sell in Pro and Standard configurations. What separates them is pressure, diameter, window count and weight. The Elite32 is the lightest and the narrowest.

You're Here

Elite32

The lightest OxyRevo chamber we carry at 28.6 lbs, and the one a single person handles alone.

1.4 ATA 90" long, 32" diameter 28.6 lbs (13 kg) 5 windows

Currently viewing

Elite36

Same 1.4 ATA pressure with the diameter opened up to 36 inches for wider shoulders, at 33 lbs.

1.4 ATA 90" long, 36" diameter 33 lbs (15 kg) 5 windows

Shop the Elite36

Apex32

The 32-inch shell taken up to 1.5 ATA, with seven windows.

1.5 ATA 90" long, 32" diameter 33 lbs (15 kg) 7 windows

Shop the Apex32

Apex36

The largest of the four: 1.5 ATA, a 36-inch diameter and seven windows, at 37 lbs.

1.5 ATA 90" long, 36" diameter 37 lbs (17 kg) 7 windows

Shop the Apex36

Questions

Frequently Asked Questions

The chamber body weighs 28.6 lbs (13 kg), which is the lightest in the OxyRevo range and a straightforward one-person carry. Installation is connecting the tubes and cable from the operating unit to the chamber, with no special commissioning process. The one part worth planning for is the operating unit itself: the Pro all-in-one cabinet weighs 80 kg, so if you expect to move the whole system regularly, the three-machine Standard version breaks the load into pieces you can lift.

Diameter and weight. Both are 90 inches long and both run at 1.4 ATA with five double-layered windows. The Elite32 is 32 inches (80 cm) in diameter at 28.6 lbs; the Elite36 is 36 inches (90 cm) at 33 lbs. The 32 is the choice if floor space is tight or if you want the lightest system to move; the 36 buys four more inches across the shoulders.

Pressure, window count and weight. Both are 90 inches long with a 32-inch diameter. The Elite32 works at 1.4 ATA with 5 windows at 28.6 lbs. The Apex32 works at 1.5 ATA with 7 windows at 33 lbs. If the maximum pressure figure is what you are shopping on, look at the Apex; if weight and price are what you are shopping on, the Elite32 is the lighter and less expensive of the two.

Working pressure is 1.4 ATA. A pressure adjustment converter lets you set the chamber to 1.2, 1.3 or 1.4 ATA with one press. OxyRevo's stated reason for including it is ear pressure discomfort in the first sessions, so a new user can hold the chamber lower and step up over time.

Allow for the inflated chamber at 90 inches long by 32 inches in diameter (230 × 80 cm), clear space at the entry end for the zipper, and floor space alongside for the operating unit. The Pro all-in-one unit is 27.56" L × 13.78" W × 29.53" H. Because the chamber deflates and the shell is 28.6 lbs, the footprint is only committed while you are using it.

The chamber is the same. The Pro ships one All-in-One Machine Unit containing an air compressor, a 10L oxygen concentrator, two cooling machines, an anion generator, timing alarm, oxygen meter, water container and air filters, with one-press activation for all functions and double activated carbon filters. It measures 27.56" × 13.78" × 29.53" and weighs 80 kg. It also adds Nano Water Ion technology with an anti-virus system, for which OxyRevo states a 99% virus sterilization rate. The Standard ships three separate machines — air compressor model AE01, air cooler model ZLA01 and oxygen concentrator model HG10 — each needing individual setup and operation, with double filters on input and output. The Standard costs less and is lighter to transport.

About 3 weeks. Roughly one week for production and then 7 to 10 days for shipping via FedEx Air. We send tracking when the order ships.

A 1-year commercial and 2-year home use warranty, plus lifetime technical support at no cost. If a quality issue arises in the warranty period and can be repaired, OxyRevo supplies replacement parts free and provides step-by-step repair guidance by photo and video. If it cannot be repaired, they send a new machine at no cost.

Standard Delivery brings the crated chamber to your location and you handle unloading, uncrating and moving. White Glove Delivery & Chamber Education is full service — unloading, setup and cleanup — and the team walks you through operating the chamber. On a 28.6 lb chamber the physical handling is manageable either way; White Glove is worth it mainly for the walkthrough and for the 80 kg Pro operating unit.

No technician is required for installation. You connect the tubing and power from the operating unit to the chamber and start it. Because pressure gauges and pressure release valves are fitted both inside and outside, one person can run a session and monitor it from within the chamber. On the medical side, talk to your physician before starting hyperbaric sessions.

A typical mild hyperbaric session runs 60 to 90 minutes, 4 to 5 times a week. The common pattern is a block of 40 sessions, then a week off before the next block.

This varies by individual and is a question for your physician. As a general starting point for wellness use, plan an initial block of 20 sessions and reassess. Recovery For Athletes makes no claims about outcomes from hyperbaric oxygen therapy.

A pressure change in the ears as the chamber pressurizes and depressurizes, similar to a plane taking off or descending. Swallowing or yawning clears it, and ears commonly adjust after the first few sessions. Setting the converter to 1.2 or 1.3 ATA for the early sessions gives you a gentler ramp.

Any loose-fitting, comfortable clothing.

Talk to your physician before starting, particularly with any ear, sinus or lung condition. On the equipment side: the chamber is pressurized with filtered air, internal pressure is regulated by the pressure valve and relief valves, and the chamber can be depressurized and opened from inside and outside. The Elite32 also carries emergency valves, double-layered viewing windows and high-precision pressure gauges on both sides of the shell.

That is a decision for a physician, and Recovery For Athletes makes no claims about hyperbaric oxygen therapy for any condition or age group. What we can tell you is the equipment: the cabin is 90 inches by 32 inches and sized for one occupant lying down, and it can be depressurized and opened from outside as well as inside.

The rated sound level is 50 dB or below. OxyRevo redesigned the automatic pressure relief valves to distribute airflow more evenly, and their stated aim was reducing the noise from the valves venting outside the chamber while someone is resting inside.

Cooling ships with both versions: two cooling machines in the Pro all-in-one unit, and the air cooler model ZLA01 in the Standard set. OxyRevo describes this as a dehumidifying and cooling system that takes humidity out of the air feeding the chamber. It is electrically driven, so there is no ice water and no Freon to add. Set expectations this way: in a room with working air conditioning, the interior stays comfortable through a 60 to 90 minute session.

The oxygen concentrator produces oxygen continuously, so there are no oxygen tanks to buy or refill. Compressor filters are the only components needing routine replacement, every 6 to 12 months depending on use. Spare filters and fuses ship with the chamber.

The shell is High Strength TPU with seams joined by high-frequency heat welding. The standard cover colour is grey, and OEM colours are available on request. Full user manuals for both the Standard and Pro versions, plus the OxyRevo soft chamber brochure, are linked in the specifications tab on this page.

Working Pressure: 1.4ATA
Weight: 28.6LBS / 13KG
Length: 90IN / 230CM
Diameter: 32IN / 80CM
Windows: 5 LARGE DOUBLE LAYERED WINDOWS
Sound Level: ≤50 dB
Cover Color: GREY / OEM AVAILABLE
OXYREVO Elite User Manual
OXYREVO Elite User Manual (Pro version)
OXYREVO Soft Chambers Brochure (PDF)

What is the difference between the Standard and Pro Versions?

Pro Version

All-in-One Machine Unit:

Air Compressor:1 unit
Oxygen Concentrator:10L
Cooling Machines:2 units
Anion Generator
Timing Alarm
Oxygen Meter
Water Container
Air Filters
27.56"L x13.78"W x29.53"H
80 kg

Operation:

All functions are integrated into a single unit, making it more convenient to use.
Simplified operation with one press activation for all functions.

Efficiency:

Enhanced dehumidifying and cooling system.
Continuous oxygen production without the need for an oxygen tank.
Double activated carbon filters for better air quality.

Additional Features:

Nano Water Ion Technology:Provides pure and clean air, with an anti-virus system for disinfection.
Virus Sterilization Rate:99%.

Standard Version Specifications

Air Compressor: Model AE01
Air Cooler: Model ZLA01
Oxygen Concentrator: Model HG10

Operation

Separate units require individual setup and operation.
More manual intervention needed for controlling each unit.

Efficiency

Effective dehumidifying and cooling system.
Continuous oxygen production without the need for an oxygen tank.
Double filters for input and output for better air quality.

Common Features

Material: High Strength TPU
Safety: All chambers include emergency valves, double layers of viewing windows, and internal/external pressure release valves.
Pressure Gauges: High-precision display inside and outside for constant monitoring.
Unique Curved Zipper Design: Ergonomically designed for easier access and reduced effort in operation.

Unique Curved Zipper Shape Design - Oxyrevo has exclusively designed a super smooth and easy-to-use zipper system for its hyperbaric chambers. The curved zipper design incorporates a gravity sink that separates the chamber zippers and sealing strips, thereby reducing mutual friction and making entry and exit of your hyperbaric much smoother and easier.
Durable Laser Printing, NO Paper Glued - Cheaply made paper stickers that are glued on will eventually fade and peel off with use, resulting in a poor user experience. To provide our customers a better user experience, Oxyrevo uses UV laser technology to label all valves in clearly, resulting in beautiful, durable, and textured labels, making your use more convenient.
Extra Quiet Pressure Relief Valves - It can be quite bothersome when you are trying to sleep inside the hyperbaric chamber and the air relief valves outside are too loud. Oxyrevo has developed quiet automatic pressure relief valves, helps to evenly distribute the airflow, resulting in a significant reduction in noise levels, gives you a peaceful and quiet HBOT benefits environment.
Heat Welded: NO Toxic Glues or Sewing - Other manufacturers either use glue to seal chamber joints, which can emit a pungent smell and be harmful to the body, or sew the material seams, which poses a significant risk of damage over time. In contrast, Oxyrevo's portable hyperbaric oxygen chambers have seams that are welded using high-frequency heat welding technology, which is both environmentally friendly and non-toxic, also highly durable.
1.2-1.4ATA Pressure Adjustable - In order to help customers ease the discomfort of ear pressure during initial use of your hyperbaric oxygen chambers, we have created a pressure adjustment converter that allows you to easily set your chamber pressure to 1.2, 1.3, or 1.4 ATA with just one press. This exclusive design is only available in Oxyrevo Hyperbaric Chambers and enables you to gradually adjust to the increasing pressure levels of your HBOT session.
Dual Pressure Data Display In and Out - It can be bothersome when pressure readings only can be seen outside the chamber, which may result in incorrect operational instructions and potential harm to your body. At Oxyrevo, we use two aviation-grade pressure gauges with high accuracy to ensure that the pressure readings remain consistent and without errors inside and outside the chamber, making the use of HBOT safer for you.

Safety Features

Large Window - There are 5 large double-layered heated windows located on the top, foot, and sides of the chamber, providing a wide and transparent view that allows more light to enter the chamber, NO more claustrophobia.
Curved Zipper - Curved zipper with customized medical grade silicone seal strip, makes opening and closing the chambers' zippers very easy and smooth
Dual Pressure Gauge - Two pressure gauges inside and outside conveniently let you know the pressure readings at any time.
Emergency Valve - For added safety, the emergency valves allow you to get out of the hyperbaric chamber in 30 seconds in an emergency situation.
Slow Rebound Mattress - The high-density sponge material used in our product provides excellent durability and support, preventing the pain and discomfort that can be caused by rebound pressure or inadequate support.

Chamber:

Internal/external pressure gauges
Pressure deflate valves
Control panels
Display screen
Communication system
Pressure relief valves
Reading lights
Wheels

Operating Unit:

Pro Version: All-in-One Unit
Standard Version: Oil-free air compressor
Standard Version: 10L oxygen concentrator
Standard Version: Cooling machines
Standard Version: Anion air purifier
Standard Version: Air sterilizer
Standard Version: Air filter
Standard Version: Humidity water container

Accessories:

Oxygen mask
Spare filters
Fuses
Air/oxygen tubes
Power cable

All machines and components come with a 1-year Commercial and a 2-year Home Use warranty and lifetime technical support at no cost. If any quality issues occur within the warranty period that can be easily repaired, OxyRevo will provide replacement parts free of charge, along with step-by-step repair guidance through pictures and videos. If the issue cannot be fixed, OxyRevo will promptly send you a new machine at no cost.

Durability:

Chamber Capsule: 10,000 hours
Air Compressor: 10,000 hours
Cooler: 10,000 hours
Oxygen Concentrator: 5,000 hours
