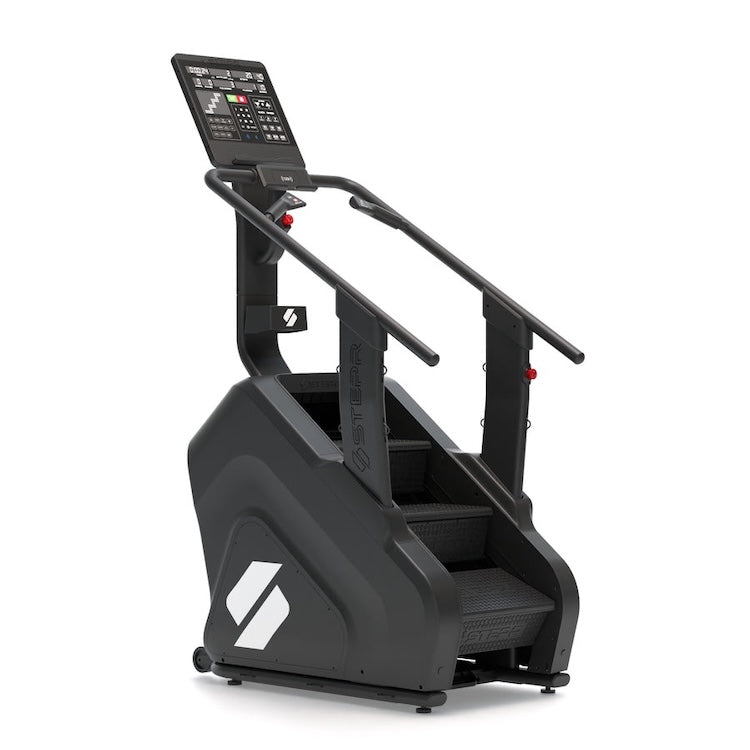

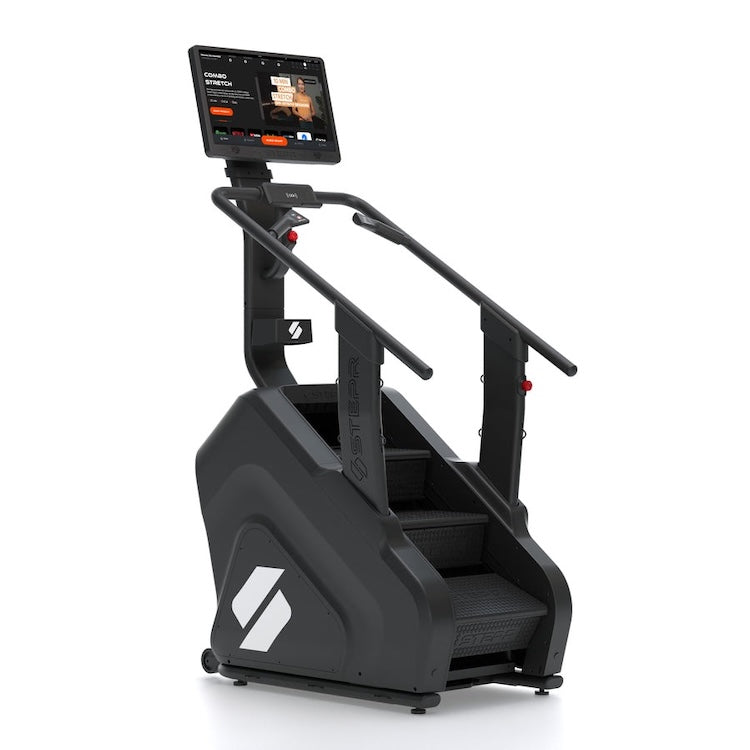

STEPR XL Stair Climber three quarters on with the touchscreen
STEPR XL Stair Climber from the far three quarter angle, LED console
STEPR XL Stair Climber, the nine inch step under every foot
STEPR XL Stair Climber, the 9 to 10 ft of ceiling a room needs

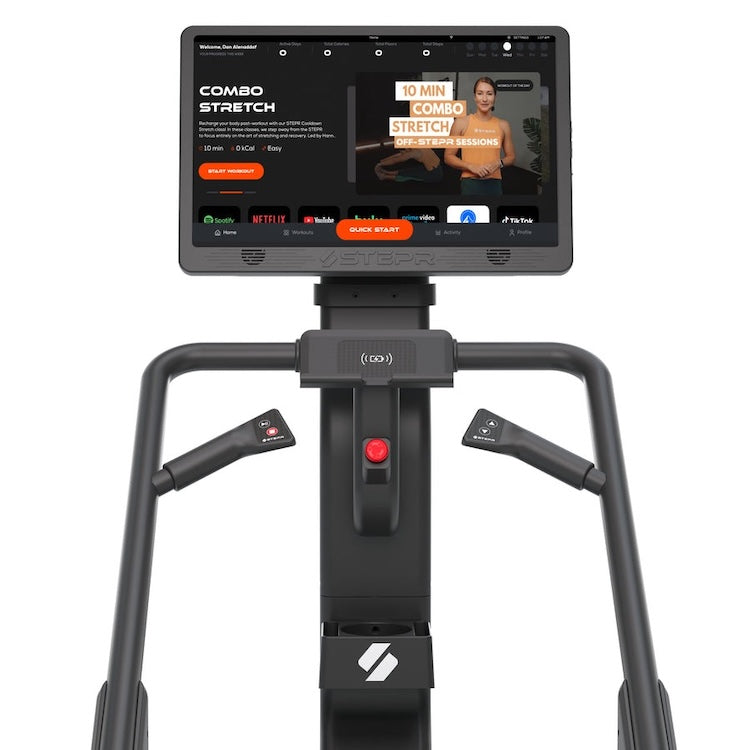

STEPR XL Stair Climber, the touchscreen showing a session tile

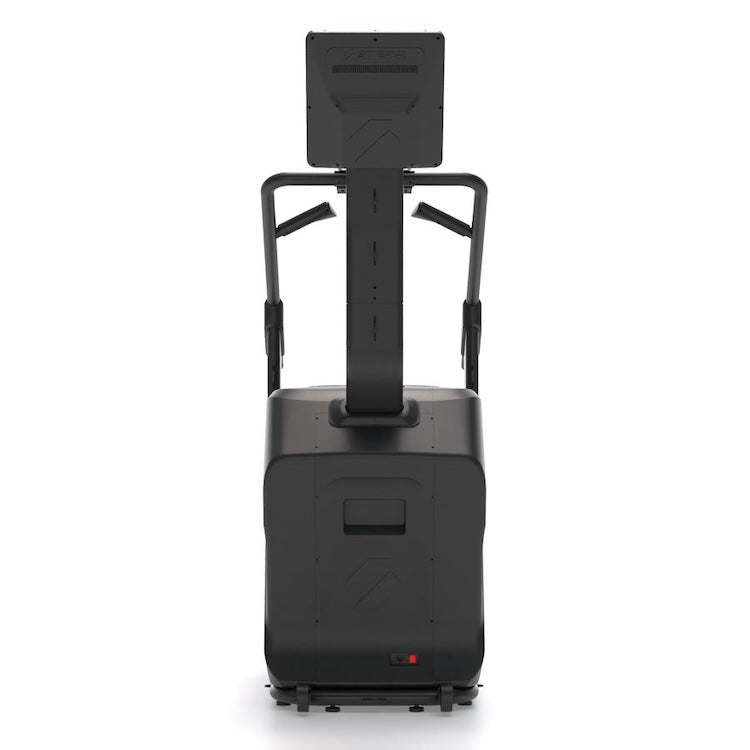

STEPR XL Stair Climber from behind, the LED console and upright

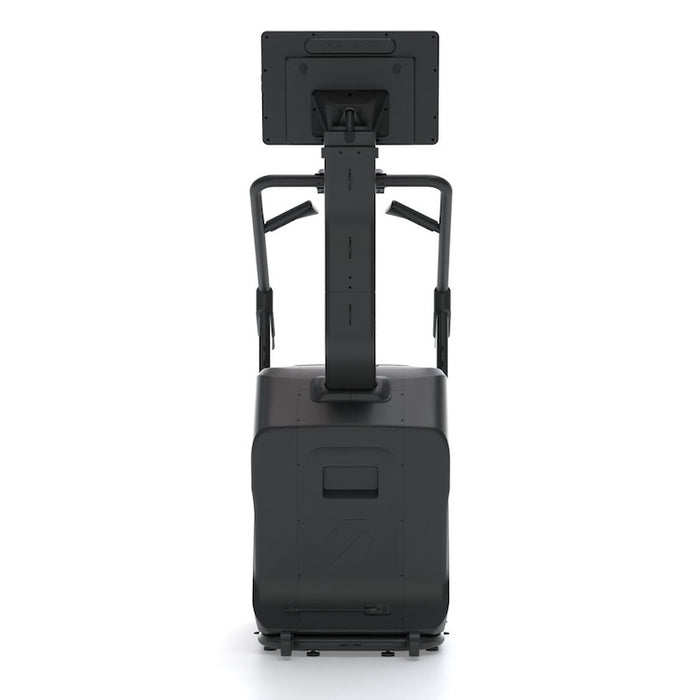

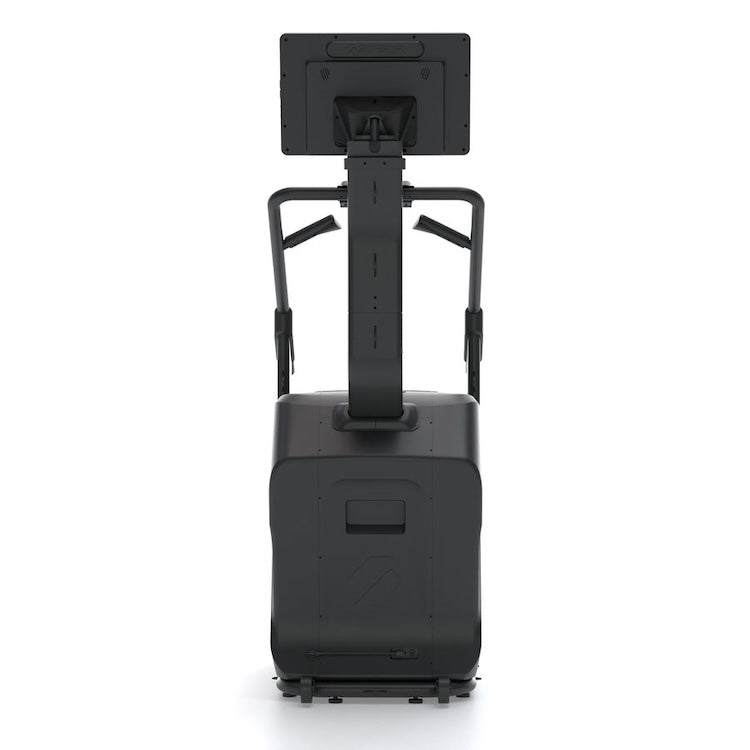

STEPR XL Stair Climber from behind, the touchscreen and upright

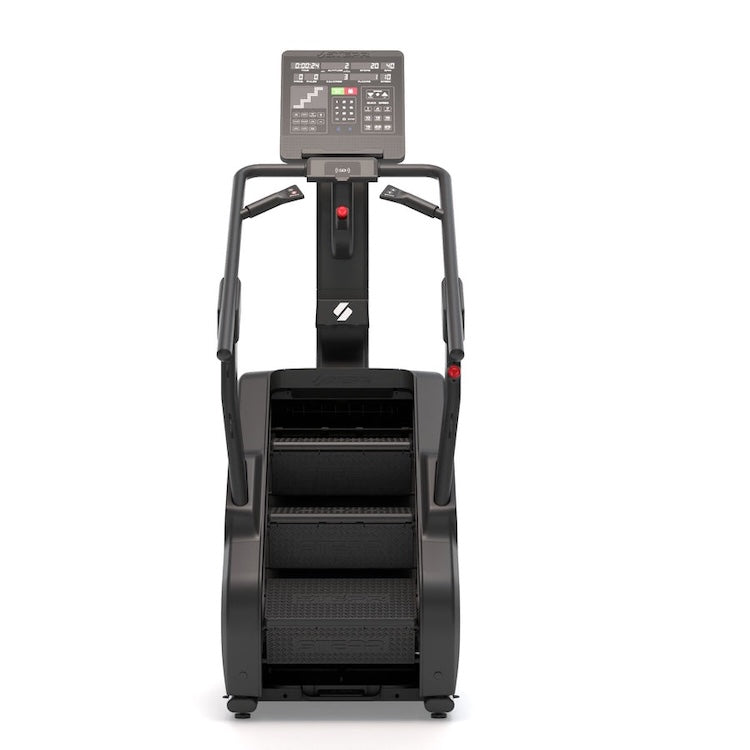

STEPR XL Stair Climber square on, LED console above the rails

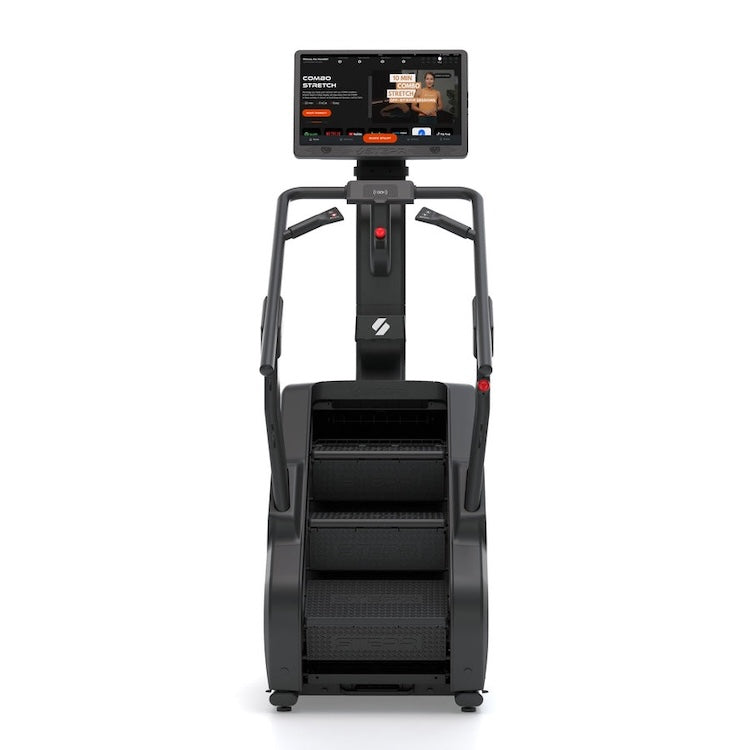

STEPR XL Stair Climber square on with the touchscreen lit
STEPR XL Stair Climber, what each of the two consoles handles

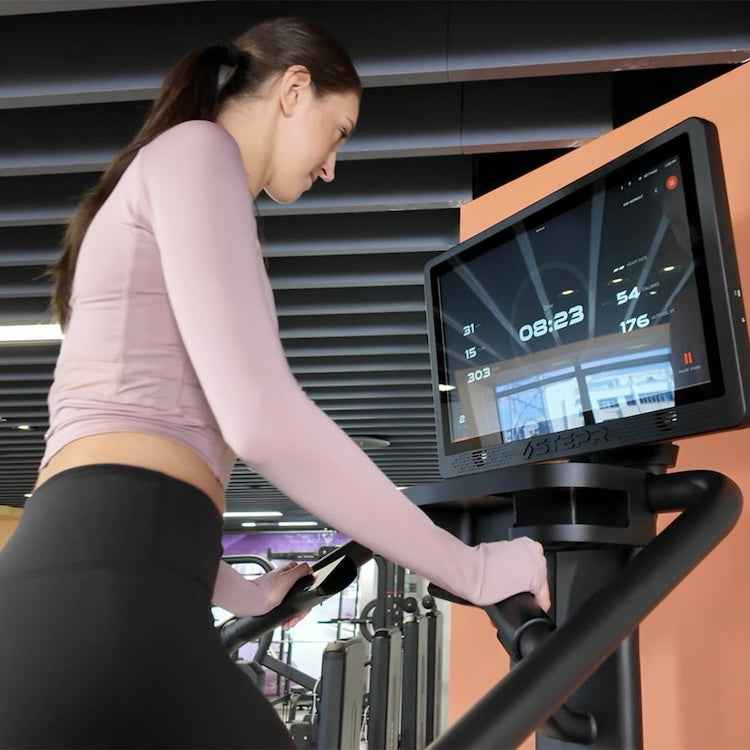

STEPR XL Stair Climber in use in a commercial gym
STEPR XL Stair Climber, the commercial machine with a 9 inch step

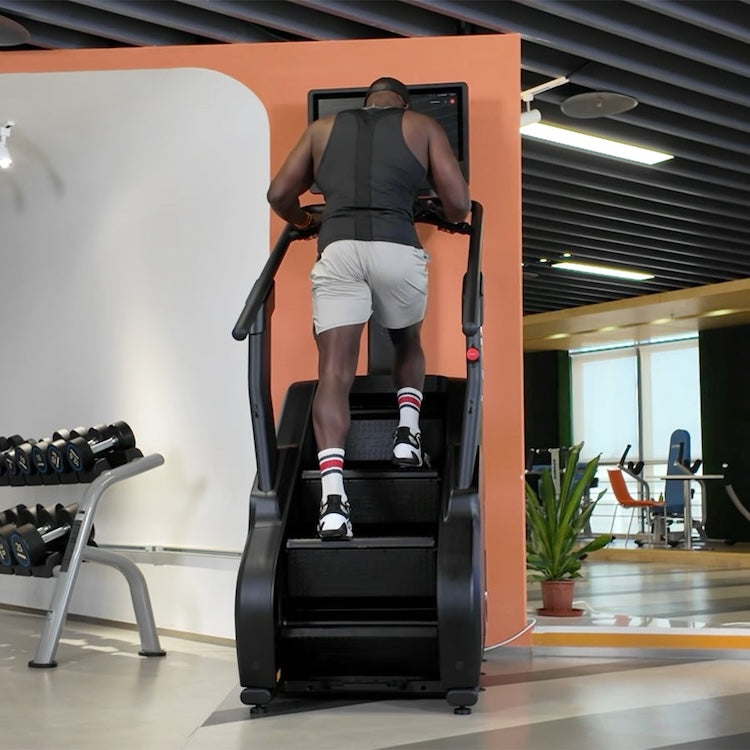

STEPR XL Stair Climber in use in a gym beside a dumbbell rack
STEPR XL Stair Climber, the commercial climber on a 9 inch step
STEPR XL Stair Climber three quarters on with the touchscreen
STEPR XL Stair Climber from the far three quarter angle, LED console
STEPR XL Stair Climber, the nine inch step under every foot
STEPR XL Stair Climber, the 9 to 10 ft of ceiling a room needs
STEPR XL Stair Climber, the touchscreen showing a session tile
STEPR XL Stair Climber from behind, the LED console and upright
STEPR XL Stair Climber from behind, the touchscreen and upright
STEPR XL Stair Climber square on, LED console above the rails
STEPR XL Stair Climber square on with the touchscreen lit
STEPR XL Stair Climber, what each of the two consoles handles
STEPR XL Stair Climber in use in a commercial gym
STEPR XL Stair Climber, the commercial machine with a 9 inch step
STEPR XL Stair Climber in use in a gym beside a dumbbell rack

STEPR XL Stair Climber

by STEPR
Save 33% Save 33%
$11,999.99
$11,999.99 - $12,999.99
$11,999.99
$7,999.99
$7,999.99 - $8,999.99
$7,999.99

✓ Authorized STEPR Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

FREE ALL-IN RUCK with Any STEPR | SAVE UP TO $240

STEPR XL

STEPR XL Stair Climber

The STEPR XL Stair Climber is a commercial stair climber built for the biggest climb in the range: a floating step 9 inches tall on a tread 22 inches wide and 13 inches deep. The step rises two inches above the STEPR PRO and nearly four above the original STEPR, on the largest step surface the range offers. Step rate covers 22 to 190 steps a minute, the same working range as the PRO. A ceiling of 9 to 10 ft gives it room, and the console comes as an LED display or a 27 inch touchscreen.

Both versions carry the same safety set: multiple emergency stops, laser safety sensors and automatic user weight detection, with strength and resistance anchor points on the frame and a built-in wireless phone charger. The console is the only choice to make. STEPR XL CLASSIC | LED CONSOLE keeps an LED display for get-on-and-go sessions, STEPR XL+ | CONNECTED 27" HD TOUCHSCREEN puts a 27 inch screen on the mast, and the two are sold as Classic and Plus.

Step Height
9"
Floating step
Step Surface
22" W x 13" D
Per step
Step Rate
22 - 190 SPM
Same on both consoles
Ceiling Height
9 - 10 ft
Minimum for the room
Standard 110V outlet Full commercial use Wireless phone charger 45 minute set-up
STEPR XL Stair Climber, the commercial climber in the range, built on a 9 inch step

COMMERCIAL SPEC

How it works

A machine on a gym floor gets used by people it has never met, at every size and every level of confidence. The XL answers that with the tallest step in the range, the widest tread, and safety hardware that reads the user before the session starts.

Nine Inch Floating Step
Each floating step rises 9 inches with a surface 22 inches wide and 13 inches deep. It is the tallest and the widest step STEPR builds, and the extra depth is what lets a full range of foot sizes land square on the tread.
22" x 13" tread
Automatic User Weight Detection
The XL senses the user on the steps, and it pairs that with multiple emergency stops and laser safety sensors. On a floor where members climb on unsupervised, that combination is the reason to buy this machine over a lighter one.
Stops and laser sensors
STEPR XL+ | CONNECTED 27" HD TOUCHSCREEN
The Plus console is a 27 inch 1080p touchscreen with 2/4 channel audio and 360 deg swivel and pivot, Bluetooth and WiFi enabled, with a USB-C charging port. Both console versions also carry a built-in wireless phone charger.
27" 1080p screen
Commercial Warranty Cover
The XL carries a commercial warranty of 10 years on the frame, 3 years on parts and 2 years on labor. STEPR CARE+ plans extend it, and the use rating covers a full commercial floor as well as a well equipped home gym.
10 year frame

EVERY XL

Key features

The Classic and the Plus share the step, the frame, the safety hardware and the phone charger. Picking between them is a question about the screen and nothing more.

9 inch floating step
STEP
22 by 13 inch step surface
TREAD
Up to 190 steps per minute
RANGE
Multiple emergency stops
SAFETY
Laser safety sensors
SENSORS
Automatic user weight detection
DETECTION
Built-in wireless phone charger
CHARGING
Strength and resistance anchor points
ANCHORS

DETAIL

How to use it

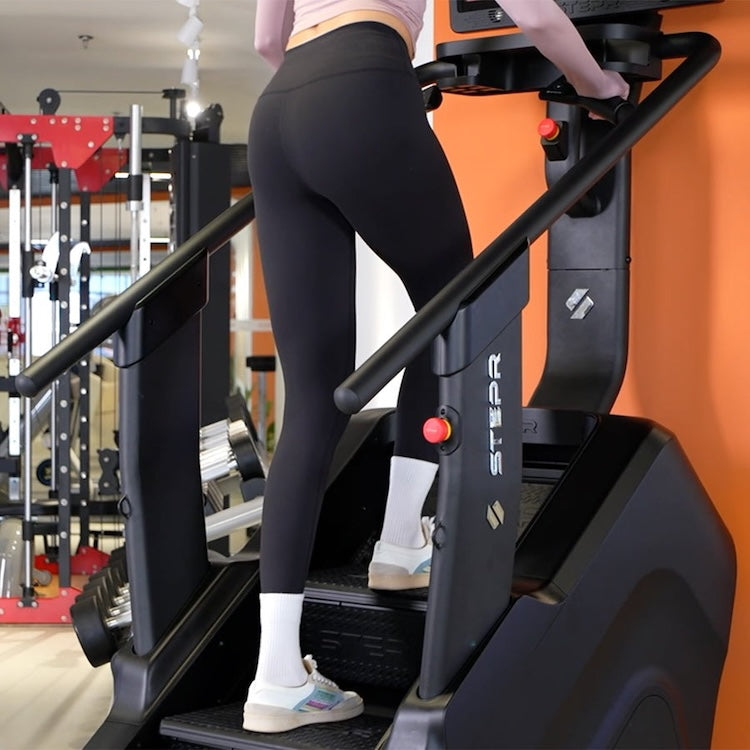

STEPR XL Stair Climber, the nine inch step that sits under every foot
THE STEP

Nine Inches Under Every Foot

The XL climbs 9 inches a step, and the stroke is longer than anything else in the range, and the 22 by 13 inch surface gives the foot somewhere to sit at the top of it. Step rate still runs from 22 a minute for a steady climb up to 190 for the kind of interval work STEPR builds the XL and the PRO to take.

  • 9" step height
  • 22" wide by 13" deep step surface
  • 22 to 190 steps per minute
  • Floating step design
9" rise190 SPM ceiling

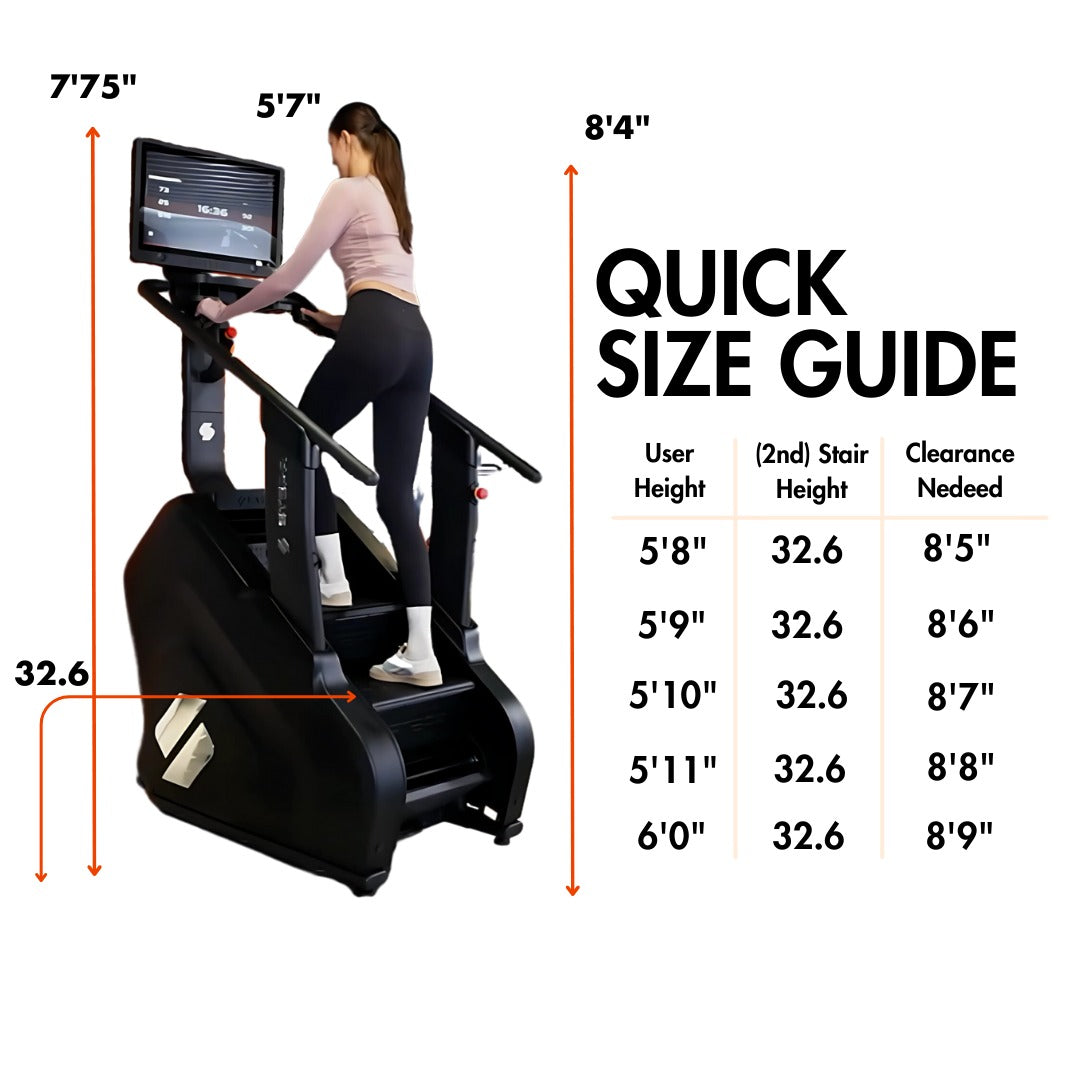

STEPR XL Stair Climber, the 9 to 10 ft of ceiling the room has to plan for
THE ROOM

Plan The Ceiling Before The Floor

A 9 inch step lifts the user higher than the rest of the range does, so the room matters more here than the floor plan. Plan on 9 to 10 ft of ceiling as a minimum. Total clearance works out at 7 ft 9 in for a user of 5 ft, rising to 9 ft 4 in for a user of 6 ft 7 in, so the tallest person who will use the machine is the one who decides whether a room works.

  • 9 to 10 ft minimum ceiling height
  • 7 ft 9 in clearance for a 5 ft user
  • 9 ft 4 in clearance for a 6 ft 7 in user
  • User height range 4 ft 11 in to 7 ft 2 in
9 - 10 ft ceilingsClearance chart

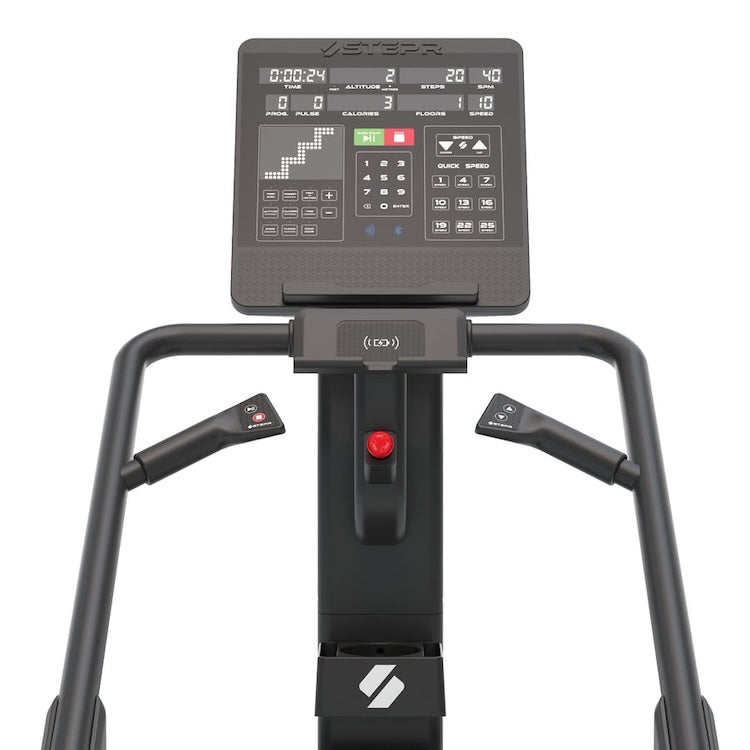

STEPR XL Stair Climber, what the 27 inch touchscreen and the LED console handle
CONSOLE

What The XL Console Handles

On the Plus version the fully connected 27 inch touchscreen carries the training sessions, swivels and pivots through 360 deg and charges a phone from its USB-C port. The Classic keeps an LED console for members who want to press start and climb. Neither one asks for a membership or a subscription to work, and both have the wireless charging pad built in.

  • 27" 1080p touchscreen on the Plus
  • LED console on the Classic
  • Bluetooth and WiFi enabled
  • No membership or subscription required
360 deg swivelUSB-C port

THE RANGE

How it compares

The three climbers share one layout and one console pair, and they part ways on step height, step rate and use rating, with the XL at the top of the range on step height and use rating.

STEPR Stair Climber, the entry climber at 5.2 inches a step and 78 or 82 inches tall
STEPR Stair Climber
The original home climber, with a 5.2 inch stadium step, 22 to 140 steps a minute and an overall height of 78 or 82 inches depending on the console.
5.2" stepUp to 140 SPM375 lb user limit8 ft ceilings
Shop the STEPR
STEPR PRO Stair Climber, the 7 inch step machine rated for home and light commercial use
STEPR PRO Stair Climber
The middle machine, with a 7 inch full floating step on an 18 by 11 inch tread, up to 190 steps a minute and a use rating that covers home and light commercial floors.
7" stepUp to 190 SPM400 lb user limitHome and light commercial
Shop the STEPR PRO
You are here
STEPR XL Stair Climber, the top of the range on step height, step rate and use rating
STEPR XL Stair Climber
The commercial machine, with a 9 inch step on a 22 by 13 inch tread, up to 190 steps a minute, and a room that needs 9 to 10 ft of ceiling to stand it under.
9" stepUp to 190 SPMFull commercial use9 - 10 ft ceilings
Currently viewing

QUESTIONS

Frequently asked questions

Plan for 9 to 10 ft of ceiling as a minimum. Total clearance runs from 7 ft 9 in for a user of 5 ft to 9 ft 4 in for a user of 6 ft 7 in, so work from the tallest person who will use it. This is the main practical difference between the XL and the two smaller climbers, which both sit happily under an 8 ft ceiling.
A taller step and a full commercial rating. The XL steps 9 inches on a 22 by 13 inch surface where the PRO steps 7 inches on 18 by 11, and the XL is rated for full commercial use where the PRO is rated for home and light commercial. Both machines top out at 190 steps a minute, and the XL asks for 9 to 10 ft of ceiling where the PRO works under 8 ft.
Multiple emergency stops, laser safety sensors and automatic user weight detection, on both console versions. The floating step design keeps the tread level through the stroke.
Most commercial floors take Classic | LED Console, STEPR's STEPR XL CLASSIC | LED CONSOLE, because a member can walk up and start without setting anything up. Plus | 27" Connected HD Touchscreen is STEPR's STEPR XL+ | CONNECTED 27" HD TOUCHSCREEN, a 27 inch 1080p screen with 2/4 channel audio, 360 deg swivel and pivot, Bluetooth, WiFi and a USB-C port, which suits a boutique studio or a home gym where the classes get used.
A commercial warranty of 10 years on the frame, 3 years on parts and 2 years on labor. STEPR CARE+ plans are available to extend it. Unlike the base STEPR, the XL carries no home-only restriction on its cover.
Yes, if the room is tall enough. The XL is rated for full commercial use or an elite home set-up, and the 9 to 10 ft ceiling requirement is what usually decides it. A garage or a converted barn tends to work; a standard 8 ft room does not.
No. The XL runs from a standard 110V outlet like the rest of the climber range.
No membership or subscription is required to run the XL or its connected console. Third-party streaming services need the user's own accounts.
Set-up takes about 45 minutes. Delivery runs from curbside drop-off, through threshold and room-of-choice options covering up to two flights of stairs, to Premium White Glove, which places the machine, assembles it and removes the packaging. Hawaii, Alaska and the territories add two to three weeks.
Yes. STEPR Strength and Resistance Anchor Points are built into the frame for band and accessory work alongside the climbing.
  • Step Height: 9"
  • Step Surface Size: 22" W x 13" D
  • Step Rate Range: 22 - 190 SPM
  • Ceiling Height: 9 - 10 ft minimum
  • Clearance Needed: 7'9" for a 5'0" user up to 9'4" for a 6'7" user
  • User Height Range: 4'11" - 7'2"
  • Power: Standard 110V outlet
  • Assembly Time: 45 minutes
  • Floating Step: 9 in step on a 22 x 13 in surface
  • Step Rate: 22 to 190 steps per minute
  • Console Options: STEPR XL CLASSIC | LED CONSOLE or STEPR XL+ | CONNECTED 27" HD TOUCHSCREEN
  • Touchscreen (Plus): 27 in 1080p display with 360 deg swivel and pivot
  • Connectivity (Plus): Bluetooth, WiFi and a USB-C charging port
  • Phone Charging: Built-in wireless phone charger on both console versions
  • Safety: Multiple emergency stops, laser safety sensors and automatic user weight detection
  • Strength: STEPR strength and resistance anchor points
  • Use Rating: Full commercial or elite home
  • Warranty (Commercial): 10 year frame, 3 year parts, 2 year labor

Warranty Included - STEPR XL+ & STEPR XL CLASSIC come with a home or commercial use warranty that includes:

  • 10-Year Frame Warranty
  • 5-year Parts Warranty (Home) or 3-year Parts Warranty (Commerical
  • 2-year Labor Warranty


With our STEPR protection plans you can turn your 2 year parts & 12 month labor warranty into a full 3, 4 or 5 year warranty. Our protection plan will boost your original warranty and offer the most comprehensive coverage, including accidental damage and wear and tear coverage from day one!
