Chattanooga Optiflex Ankle CPM

Chattanooga Optiflex Ankle CPM

by Chattanooga
$8,450.00 - $8,450.00
$8,450.00
$8,450.00 - $8,450.00
$8,450.00

✓ Authorized Chattanooga Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

10% Off Fall Sale with Code: CHATT10

Chattanooga OptiFlex

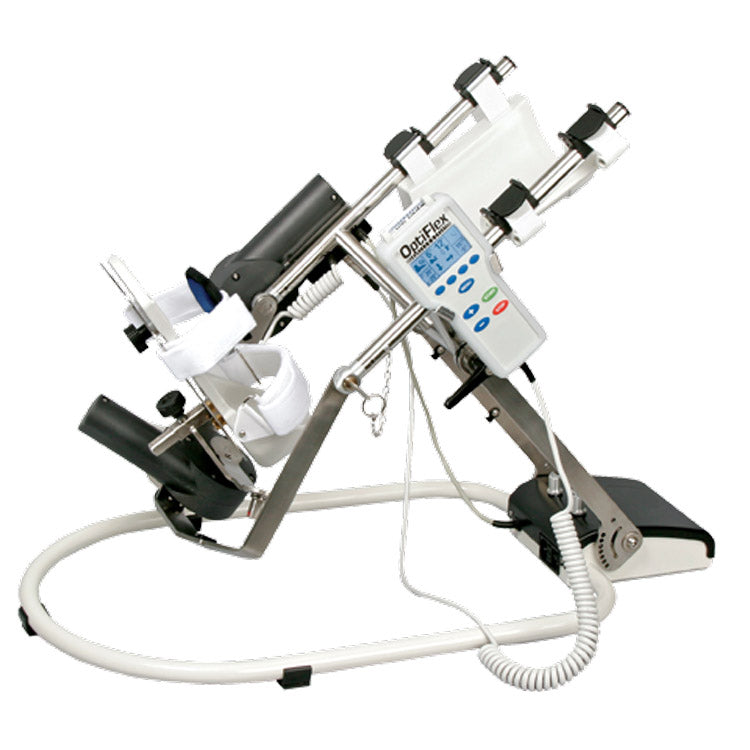

Chattanooga Optiflex Ankle CPM

The Chattanooga Optiflex Ankle CPM is a two-motor continuous passive motion machine for the ankle, giving full ankle range of motion with the foot strapped to one powered footplate. Motor A drives dorsiflexion and plantar flexion across 40-0-60 deg, so the foot travels 40 deg up and 60 deg down from neutral. Motor B adds inversion and eversion across 40-0-20 deg on the same footplate, with no repositioning between planes. The adjustable base works in bed or in a chair, and it is easy to move at 24.25 lb (11 kg). It is safety tested to CSA 601-1-M90 and UL 2601-1 and carries a two-year limited warranty.

The easy-to-use hand control stores treatment parameters on a memory chip card, and the settings return for the same patient at the next session.

Dorsal / plantar
40-0-60 deg
Motor A, 40 deg up, 60 deg down
Inversion / eversion
40-0-20 deg
Motor B, same footplate
Unit weight
24.25 lb
11 kg
Footprint
22 x 18.5 x 28.4 in.
56 x 47 x 72 cm
Two motors, two ankle planes Adjustable base for bed or chair Patented universal left / right design Two-year limited warranty

The motors

How it works

Dorsiflexion and plantar flexion run on one motor and inversion and eversion on the second, each with its own travel limits on the hand control. The base sets up under a bed or a chair without a second frame.

The foot travels 40 deg up and 60 down
Motor A carries the foot through dorsiflexion and plantar flexion, written 40-0-60 deg: 40 deg above neutral and 60 deg below it. Motor B carries inversion and eversion at 40-0-20 deg, and the two motors work the foot in separate planes from the one footplate. Both motors are easy to adjust, and the travel follows each patient's own therapy protocol.
Two motors
Speed settings and memory on one control
The hand control is the only control surface on the machine, and it carries two speed settings, a timer function and the parameter store, and a patient on a repeat course is set up once.
Memory chip card
A base for a bed or a chair
The base adjusts so the same unit works with the patient supine in bed and with the patient seated in a chair, which puts one machine across an inpatient episode, a homecare episode and a clinic session. It sets up against the mattress or under the seat without a second frame.
Bed or chair
Service parts follow the serial plate
Service parts split by generation, not by model name: machines up to serial 19999 take a 1AT fuse and machines from serial 20000 take a 2AT, read off the serial plate on the housing. Ground leakage is set at 500 microamps or less on the earlier units, and touch and patient leakage at 100 microamps or less on the later ones. The US power cord is order number 0.0034.011.
Fuse by serial number

OptiFlex Ankle

Key features

Easy-to-adjust motors and anatomically correct motion lead the OptiFlex Ankle, in a lightweight unit that covers either foot.

Adjustable motors
Both motors are easy to adjust, and the treatment parameters follow the patient's specific therapy protocol.
Anatomically correct motion
The footplate carries the foot through full ankle range of motion in both planes from a single setup.
Easily repeated treatments
The memory chip card in the hand control brings back the same session for the same patient.
Patented universal design
The patented universal left and right design takes either foot on the same footplate.

The CPM range

How it compares

Next to the knee, shoulder and elbow machines in this group, the OptiFlex Ankle is the one that works with the patient in bed and in a chair from the same base. It runs on two speed settings where the other three use a percentage scale.

Chattanooga OptiFlex-K1, knee and hip CPM on one rail
OptiFlex-K1 Knee
Knee and hip on one low rail, knee -10 deg to 120 deg, 23 lb, patient height 4 to 6.5 ft.
Knee -10 deg to 120 deg Hip 0-7-115 deg 23 lb (10.4 kg) 20 lb maximum load on the carriage rail
Shop the OptiFlex-K1 Knee
Chattanooga OptiFlex S, seated shoulder CPM unit
OptiFlex S Shoulder
Seated shoulder unit with three powered axes, 55 lb, and a 330 lb maximum patient weight.
Abduction / adduction 0-30-175 deg Internal / external rotation 90-0-90 deg 330 lb (150 kg) maximum patient weight 55 lb (25 kg), 107 lb shipped
Shop the OptiFlex S Shoulder
Chattanooga Artromot E2, seated elbow CPM unit
Artromot E2 Elbow
Elbow CPM carrying -5 deg to 140 deg of flexion on a 14 to 230 deg/min speed scale.
Extension / flexion -5 deg to 140 deg Pronation / supination -90 deg to 90 deg Speed 1% to 100%, 14 to 230 deg/min 35.2 lb (16 kg) unit weight
Shop the Artromot E2 Elbow
You're Here
Chattanooga OptiFlex Ankle CPM, two-motor ankle unit
OptiFlex Ankle
Two-motor ankle unit for bed or chair at 24.25 lb, with two speed settings on the hand control.
Dorsal / plantar flexion 40-0-60 deg Inversion / eversion 40-0-20 deg 24.25 lb (11 kg) 22 x 18.5 x 28.4 in.
Currently viewing

Questions

Frequently asked questions

The standard accessories are the washable SP2-2M Ankle CPM Patient Kit and a patient data chip card for the hand control. The kit in the carton covers the first patient.

The SP2-2M Ankle CPM Patient Kit, washable and made for one patient at a time. Kits after the first are sold separately.

Yes. The adjustable base works in bed or in a chair, and one unit covers an inpatient or homecare episode and a seated clinic session without a second machine on the inventory.

Yes. The design is a patented universal left and right arrangement, and one machine serves either foot.

Two, selected on the hand control, alongside a timer function on the same pad.

Clinics, inpatient wards and homecare providers running ankle work in both planes on one machine.

Set up, it measures 22 x 18.5 x 28.4 in. (56 x 47 x 72 cm) and weighs 24.25 lb (11 kg). It ships at 46 lb (21 kg).

Chattanooga backs the unit with a two-year limited warranty. It is safety tested to CSA 601-1-M90 and UL 2601-1.

  • Dorsal / plantar flexion: 40-0-60 deg
  • Inversion / eversion: 40-0-20 deg
  • Speed: Two settings on the hand control
  • Timer: Timer function on the hand control
  • Base positions: Patient supine in bed or seated in a chair
  • Left / right: Patented universal design; one unit serves either foot
  • Parameter storage: Memory chip card in the hand control
  • Power cord: US cord, order number 0.0034.011
  • Unit weight: 24.25 lb (11 kg)
  • Shipping weight: 46 lb (21 kg)
  • Dimensions: 22 x 18.5 x 28.4 in. (56 x 47 x 72 cm)
  • Standard accessories: Washable SP2-2M Ankle CPM Patient Kit 20716 and a patient data chip card
  • Fuses: 1AT up to serial 19999; 2AT from serial 20000
  • Ground leakage current: 500 microamps or less, serials up to 19999
  • Touch and patient leakage current: 100 microamps or less, serials 20000 and above
  • Safety tests: CSA 601-1-M90, UL 2601-1
  • Manufacturer SKU: 2027
  • Device type: Two-motor ankle continuous passive motion unit
  • Motor A: Dorsiflexion and plantar flexion
  • Motor B: Inversion and eversion
  • Positioning: Adjustable base for use with the patient in bed or in a chair
  • Handedness: Patented universal left and right design; one unit serves either foot
  • Patient data: Hand control writes treatment parameters to a memory chip card and returns them for the same patient
  • Patient kit: SP2-2M Ankle CPM Patient Kit 20716, per-patient soft goods
  • Kit condition: Washable; ships with the unit as a standard accessory
  • Control surface: Hand control with two speed settings and a timer function
  • Service parts: US power cord 0.0034.011; fuse 1AT to serial 19999; fuse 2AT from serial 20000
  • Warranty: Two-year limited from Chattanooga
  • Patient kit: Washable SP2-2M Ankle CPM Patient Kit 20716
  • Patient data: Patient data chip card for the hand control
