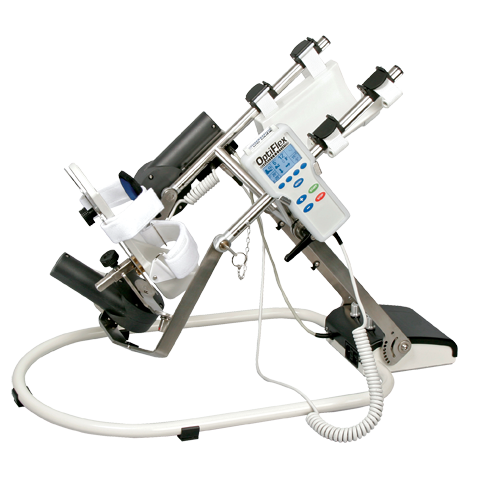

Chattanooga OptiFlex Ankle CPM

Chattanooga OptiFlex Ankle CPM

by Chattanooga
$8,450.00 - $8,450.00
$8,450.00
$8,450.00 - $8,450.00
$8,450.00

✓ Authorized Chattanooga Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

10% Off Fall Sale with Code: CHATT10

Chattanooga OptiFlex

Chattanooga OptiFlex Ankle CPM

The Chattanooga OptiFlex Ankle CPM is a two-motor continuous passive motion unit for the foot and ankle: a powered footplate that moves the joint for the patient, through limits the clinician programs. It covers the full ankle range of motion. Lifting the toes, the footplate reaches 40 deg above neutral, and pointing them it reaches 60 deg below. A second motor tilts the sole inward to 40 deg and outward to 20 deg. Lying in bed or sitting up in a chair, the patient is treated from the same adjustable base, and a two-year limited warranty covers the machine.

The whole unit weighs 24.25 lb (11 kg).

Dorsal / plantar
40-0-60 deg
Motor A
Inversion / eversion
40-0-20 deg
Motor B
Unit weight
24.25 lb
11 kg
Footprint
22 x 18.5 x 28.4 in.
56 x 47 x 72 cm
Dorsal, plantar, inversion and eversion Works in bed or in a chair One unit for either foot Two-year limited warranty

Travel

How it works

A single footplate takes the foot, with a motor for each plane of ankle travel beneath it and one hand control to program them.

Both Ankle Planes on Separate Motors
Dorsal and plantar travel is the job of motor A, while inversion and eversion belong to motor B. The patient stays strapped to one footplate as both planes are worked, and each plane's limits are programmed before the strapping goes on.
Two motors
What the Hand Control Keeps
Speed comes in two settings, with a timer function and each motor's travel limits beside them on the hand control. Those parameters are written to a memory chip card for the patient's next visit.
Memory chip card

OptiFlex Ankle

Key features

Anatomically correct motion through both planes leads the design, with motors that adjust to each patient's protocol and a washable patient kit in the carton.

Anatomically correct motion
The footplate gives anatomically correct motion through dorsal, plantar, inversion and eversion travel.
Motors set to the protocol
Motor travel follows each patient's specific therapy protocol, set from the hand control.
Washable patient kit
A washable SP2-2M Ankle CPM Patient Kit comes in the carton for the first patient on the machine.
Left or right foot
Either foot goes on the same unit, with no separate left or right model to choose.

The CPM range

How it compares

Each of the four CPM machines in this group moves a different joint, and the ankle unit, at 24.25 lb, weighs less than either the shoulder or the elbow machine.

Chattanooga OptiFlex-K1, knee and hip CPM on one rail
OptiFlex-K1 Knee
Knee and hip on one low rail, knee -10 deg to 120 deg, 23 lb, patient height 4 to 6.5 ft.
Knee -10 deg to 120 deg Hip 0-7-115 deg 23 lb (10.4 kg) 20 lb maximum load on the carriage rail
Shop the OptiFlex-K1 Knee
Chattanooga OptiFlex S, seated shoulder CPM unit
OptiFlex S Shoulder
Seated shoulder unit with three powered axes, 55 lb, and a 330 lb maximum patient weight.
Abduction / adduction 0-30-175 deg Internal / external rotation 90-0-90 deg 330 lb (150 kg) maximum patient weight 55 lb (25 kg), 107 lb shipped
Shop the OptiFlex S Shoulder
Chattanooga Artromot E2, seated elbow CPM unit
Artromot E2 Elbow
Elbow CPM carrying -5 deg to 140 deg of flexion on a 14 to 230 deg/min speed scale.
Extension / flexion -5 deg to 140 deg Pronation / supination -90 deg to 90 deg Speed 1% to 100%, 14 to 230 deg/min 35.2 lb (16 kg) unit weight
Shop the Artromot E2 Elbow
You're Here
Chattanooga OptiFlex Ankle CPM, two-motor ankle unit
OptiFlex Ankle
Two-motor ankle unit for bed or chair at 24.25 lb, with two speed settings on the hand control.
Dorsal / plantar flexion 40-0-60 deg Inversion / eversion 40-0-20 deg 24.25 lb (11 kg) 22 x 18.5 x 28.4 in.
Currently viewing

Questions

Frequently asked questions

Against a bed with the patient supine, or under a chair with the patient seated. One adjustable base covers both positions.

They stay on a memory chip card, written from the hand control, and load again when that patient returns.

Yes, one washable SP2-2M Ankle CPM Patient Kit comes with the unit, along with a patient data chip card and the instructions for use. Each later patient takes a kit of their own, sold separately.

Yes, through a patented universal design: the same footplate serves the left side and the right.

It moves between settings: the clinic, the inpatient ward and the patient's home.

Set up for treatment it is 22 in. by 18.5 in. by 28.4 in., or 56 by 47 by 72 cm, and it ships at 46 lb (21 kg).

A 1AT fuse up to serial 19999 and a 2AT from serial 20000, read off the serial plate. Leakage limits change at that serial too, and the US power cord is order number 0.0034.011.

Two years, limited. The unit's safety testing covers CSA 601-1-M90 and UL 2601-1.

  • Dorsal / plantar flexion: 40-0-60 deg
  • Inversion / eversion: 40-0-20 deg
  • Speed: Two settings on the hand control
  • Timer: Timer function on the hand control
  • Base positions: Patient supine in bed or seated in a chair
  • Left / right: Patented universal design; one unit serves either foot
  • Parameter storage: Memory chip card in the hand control
  • Power cord: US cord, order number 0.0034.011
  • Unit weight: 24.25 lb (11 kg)
  • Shipping weight: 46 lb (21 kg)
  • Dimensions: 22 x 18.5 x 28.4 in. (56 x 47 x 72 cm)
  • Standard accessories: Washable SP2-2M Ankle CPM Patient Kit 20716 and a patient data chip card
  • Fuses: 1AT up to serial 19999; 2AT from serial 20000
  • Ground leakage current: 500 microamps or less, serials up to 19999
  • Touch and patient leakage current: 100 microamps or less, serials 20000 and above
  • Safety tests: CSA 601-1-M90, UL 2601-1
  • Manufacturer SKU: 2027
  • Device type: Two-motor ankle continuous passive motion unit
  • Motor A: Dorsiflexion and plantar flexion
  • Motor B: Inversion and eversion
  • Positioning: Adjustable base for use with the patient in bed or in a chair
  • Handedness: Patented universal left and right design; one unit serves either foot
  • Patient data: Hand control writes treatment parameters to a memory chip card and returns them for the same patient
  • Patient kit: SP2-2M Ankle CPM Patient Kit 20716, per-patient soft goods
  • Kit condition: Washable; ships with the unit as a standard accessory
  • Control surface: Hand control with two speed settings and a timer function
  • Service parts: US power cord 0.0034.011; fuse 1AT to serial 19999; fuse 2AT from serial 20000
  • Warranty: Two-year limited from Chattanooga
  • Patient kit: Washable SP2-2M Ankle CPM Patient Kit 20716
  • Patient data: Patient data chip card for the hand control
