Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna
Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna
Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna
Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna
Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna
Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna
Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna
Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna
Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna
Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna
Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna

Finnmark FD-5 Trinity 4-Person Hybrid Indoor Infrared & Traditional Steam Sauna

by Finnmark
$8,995.00 - $8,995.00
$8,995.00
$8,995.00 - $8,995.00
$8,995.00

✓ Authorized Finnmark Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

Shipping & Delivery Information

Free Delivery Damage Insurance Included With Purchase

 Curbside Delivery ships via Freight to the 48 contiguous states. The freight carrier will contact you 24 to 48 hours prior to delivery to set a delivery day and time Monday-Friday, with a 4-hour open window.

      They won’t deliver without speaking to you first. **Shipping times are only approximate, and can change depending on environmental conditions, transit issues, and carrier’s availability. Last minute appointments can occur, and it’s out of our hands since the delivery process is managed by the carrier’s. The sauna will be delivered in 1 box or more, depending on the model. All boxes will be strapped to a pallet. All saunas are delivered in a 53-foot semi-truck with a single driver, who will unload the pallet to your curbside or driveway only. Any delivery questions or issues (remote areas, long driveways, large and low hanging trees, apartment complex, stairs, etc.) should be addressed with us prior to shipping your sauna.

        Once the driver has unloaded the sauna, we ask that you immediately inspect the boxes for any damage. Please indicate any minor scratches, indentations, or scuff marks to the outside of the boxes on the delivery receipt. You do not need to open the boxes to inspect the sauna. The freight company will deliver your sauna to a carport or first-floor entryway. Please check the box dimensions and ensure it will fit through your doorway. Assembly on these saunas are surprisingly easy and can take between 30-45 minutes, depending on the sauna. Assembly instructions are included with the saunas.




Professional Installation Available

Rather not build it yourself? We partner with Pure Install for on-site sauna assembly.

  • Certified technicians assemble to the manufacturer's specification for your model
  • Function and safety check — temperature accuracy, responsiveness, calibration
  • Optional packaging, pallet and debris removal
  • One-year workmanship warranty on every new installation
  • Nationwide network, residential and commercial

See installation details and get started →

Warranty Information

In the USA the “lifetime” of an infrared sauna is considered 7 years. Many sauna brands offering a “lifetime warranty” know this and use it against you after 7 years of ownership. Your Finnmark Design’s sauna comes with a 10-year warranty, giving you piece of mind that after 7 years you are still covered.

Unconditional Lifetime Warranty

Spectrum Plus™  infrared heaters (UL Listed) have an estimated operational life of 40,000 hours and our carbon 360 heaters have an estimated operational life of 30,000 hours. Using your sauna 5 times per week your Spectrum heaters can last up to 130 years.

Our Spectrum Plus™ Incoloy heaters have a unconditional lifetime warranty. No other sauna brand is that confident in their heating elements.

10-Year Sauna Warranty

Your sauna is an asset to your health, protect it wisely.  Finnmark Designs doesn’t offer a questionable warranty like many of our competitors.  You receive an upfront warranty with terms that are easy to understand.

Download Warranty

Indoor Infrared & Traditional Sauna

Finnmark FD-5 Trinity XL 4-Person Infrared & Steam Sauna

The Trinity XL is the biggest room Finnmark build for indoors: 130 cubic feet, an interior 71 inches wide by 57.5 deep by 75.5 high, and an exterior of 75 by 64 by 83 inches. Finnmark rate it for three to four bathers. Where the FD-4 gives you a two-seat hybrid, this one is sized for a group and heated accordingly.

A Harvia KIP45B comes with it — 4.5kW, 240V, single phase, 18.8 nominal amps, weighing 40 lbs, rated by Harvia for 100 to 210 adjusted cubic feet — along with a 44 lb box of Harvia AC3000 stones. Infrared runs on 240V as well, so the whole cabin is a 240V install and needs a licensed electrician. Traditional heat tops out at 190°F, infrared at 170°F.

Capacity
4 Bathers
130 cu ft interior
Exterior
75" × 64"
83" tall
Interior
71" × 57.5"
75.5" tall
Rock Heater
4.5kW
Harvia KIP45B, included
130 cubic feet inside 4.5kW Harvia KIP45B included 44 lbs of AC3000 stones 190°F traditional, 170°F infrared

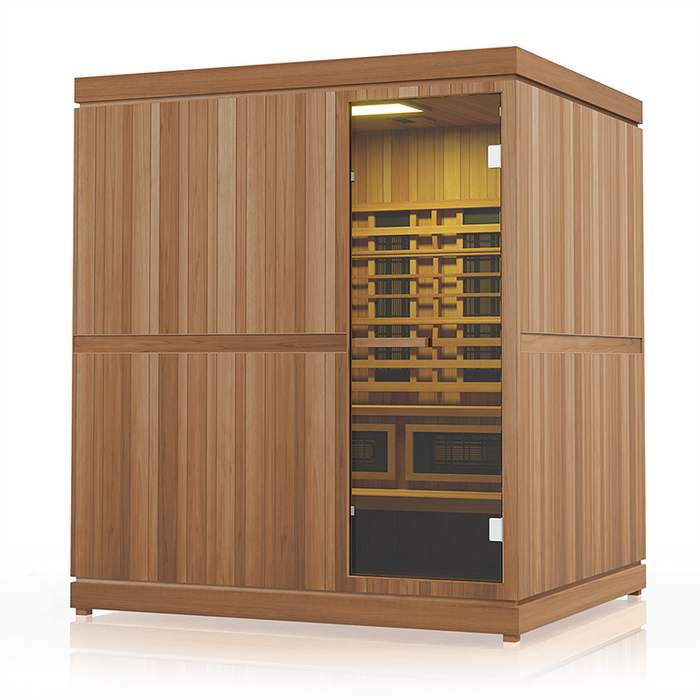

Finnmark FD-5 Trinity XL sauna, three-quarter view with the interior lit red

The Build

What It Takes To Heat 130 Cubic Feet Two Ways

The Trinity XL asks a 4.5kW rock heater and infrared on four walls to cover the largest indoor volume Finnmark offer. It is the only indoor cabin running 240V on both the infrared side and the rock heater.

🪨
Harvia KIP45B, 4.5kW
An electric rock heater at 4.5kW, 240V single phase, 18.8 nominal amps, 40 lbs, rated by Harvia for 100 to 210 adjusted cubic feet. The FD-5's 130 cubic feet sits inside that band with headroom either side. A 44 lb box of Harvia AC3000 stones, 0 to 10cm, ships with it.
Included · 44 lbs Of Stones
🔥
Infrared On Four Walls
Four Spectrum Plus dual wave panels on the back wall, two under the bench, two on each side wall and one on the front wall. UL Listed incoloy short-wave elements producing mid and far infrared, rated .99 emissivity and 40,000 hours.
Lifetime Heater Warranty
🔴
Spectrum Red Light™ Therapy
A 192-diode medical grade LED panel at 650nm, with chromotherapy lighting fitted alongside it. The gallery shows the same cabin lit in red, blue, green and yellow.
192 Diodes At 650nm
⚡
240V Throughout
Both sides of the FD-5 run on 240 volts. Finnmark's requirement for the Harvia alone is a 240v 20a supply installed by an electrician. Get the circuits confirmed before the freight truck is booked.
Licensed Electrician Required

Why Athletes Choose This

Eight Things The XL Adds

Health claims for infrared and red light are Finnmark's own, published with their own FDA disclaimer, and they stay attributed to Finnmark. The eight below come from the FD-5's specification, its included equipment and Finnmark's stated warranty.

📦
130 cubic feet inside
Largest Indoor Cabin
🪨
4.5kW Harvia included
Rated 100–210 Cubic Feet
💨
190°F with steam
Traditional Mode
🔴
192-diode red light panel
650nm Spectrum Red Light™
🔥
Infrared on four walls
Plus Under The Bench
📱
5-inch touchscreen control
V2 LCD With Bluetooth
👥
Seats three to four
71-Inch Interior Width
🛡️
10-year sauna warranty
Lifetime On The Heaters

The Largest Cabin Finnmark Build Indoors

A Closer Look At The Trinity XL

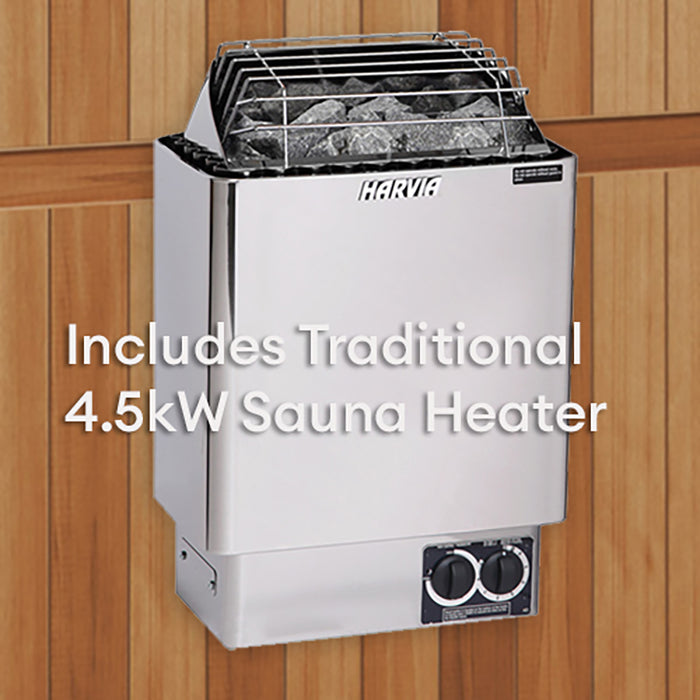

Harvia rock heater supplied with the Finnmark FD-5, captioned Includes Traditional 4.5kW Sauna Heater
Traditional Heat

A 4.5kW Harvia Comes With It

The rock heater is not an option box on this page. Finnmark supply the Harvia KIP45B with the cabin: 4.5kW, 240V, single phase, 18.8 nominal amps, 40 lbs, and rated by Harvia for rooms of 100 to 210 adjusted cubic feet. The FD-5's 130 cubic feet lands comfortably inside that. A single box of Harvia AC3000 stones, sized 0 to 10cm, weighs 44 lbs and ships alongside.

  • Harvia KIP45B included with the sauna
  • 4.5kW, 240V, single phase, 18.8 nominal amps
  • Rated for rooms of 100 to 210 adjusted cubic feet
  • 44 lbs of Harvia AC3000 stones, 0 to 10cm
  • 190°F maximum in traditional mode
Heater Included 4.5kW
Overhead view into the Finnmark FD-5 Trinity XL showing the bench layout and the rock heater
Interior

One Hundred And Thirty Cubic Feet

Seen from above, the Trinity XL is 71 inches of interior width by 57.5 of depth, with 75.5 inches of headroom over it. That is 44 more cubic feet than the two-person FD-4 and 18.7 more than the FD-3, which is the largest infrared-only cabin in the range. Finnmark rate the room for three to four bathers, and the overhead shot shows the bench and the Harvia in the same frame.

  • Interior 71" W × 57.5" D × 75.5" H
  • 130 cubic feet of room volume
  • Finnmark rate it for three to four bathers
  • Largest indoor cabin in the FD line
130 Cu Ft 71" Interior Width

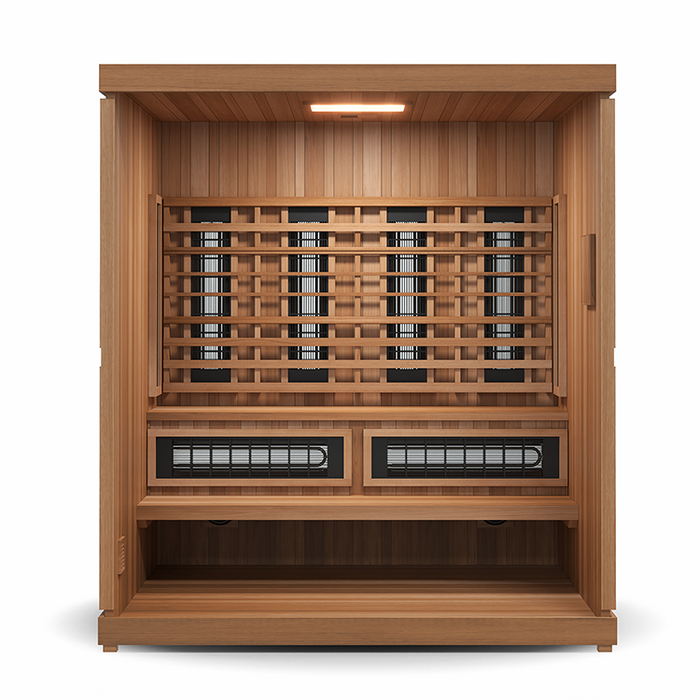

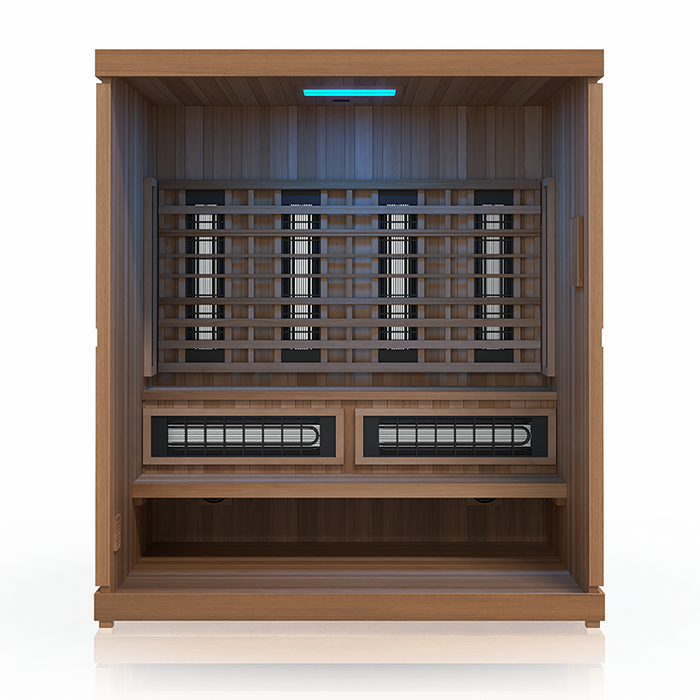

Finnmark FD-5 Trinity XL with the front open showing the bench, the Harvia heater and the controller
Infrared & Control

Panels On Four Walls, One Touchscreen

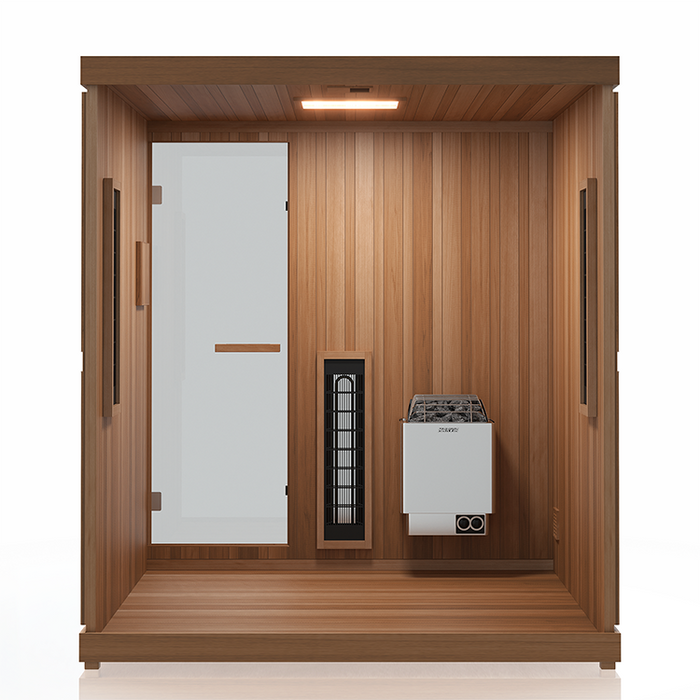

Open the front and the whole system is visible at once. Four Spectrum Plus dual wave panels are set into the back wall, two more sit under the bench, two are fitted to each side wall and one goes on the front wall. The Harvia stands separately, and the V2 LCD Controller — a 5-inch touchscreen with Bluetooth — runs the cabin.

  • Four Spectrum Plus panels on the back wall
  • Two under the bench, two on each side wall, one on the front wall
  • V2 LCD Controller, 5-inch touchscreen with Bluetooth
Far + Mid Infrared Bluetooth Control

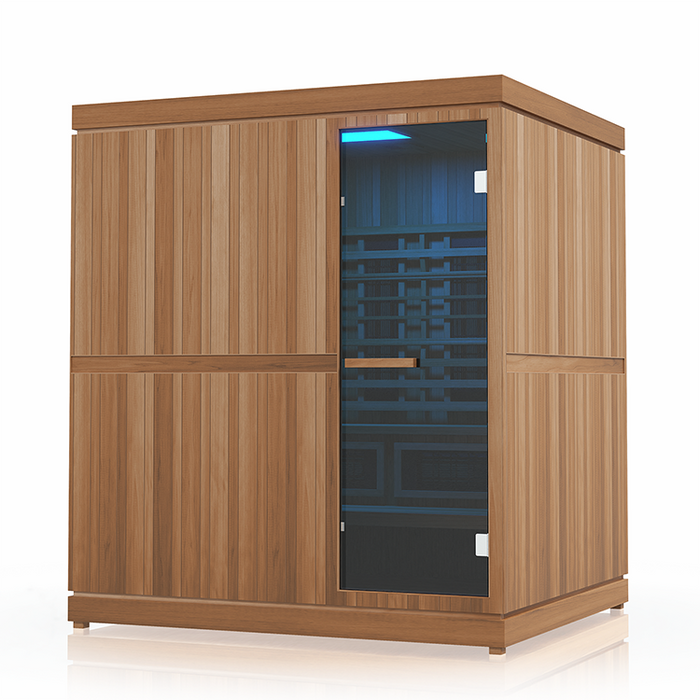

Finnmark FD-5 Trinity XL with the interior lit blue, three-quarter view
Light

Red Light Therapy And Chromotherapy

The FD-5 carries the same Spectrum Red Light™ Therapy panel as the FD-4: 192 medical grade diodes at 650nm. Chromotherapy lighting is fitted with it, and Finnmark's gallery runs the cabin through red, blue, green and yellow. Both are driven from the V2 LCD touchscreen.

  • 192-diode medical grade LED panel at 650nm
  • Chromotherapy lighting included

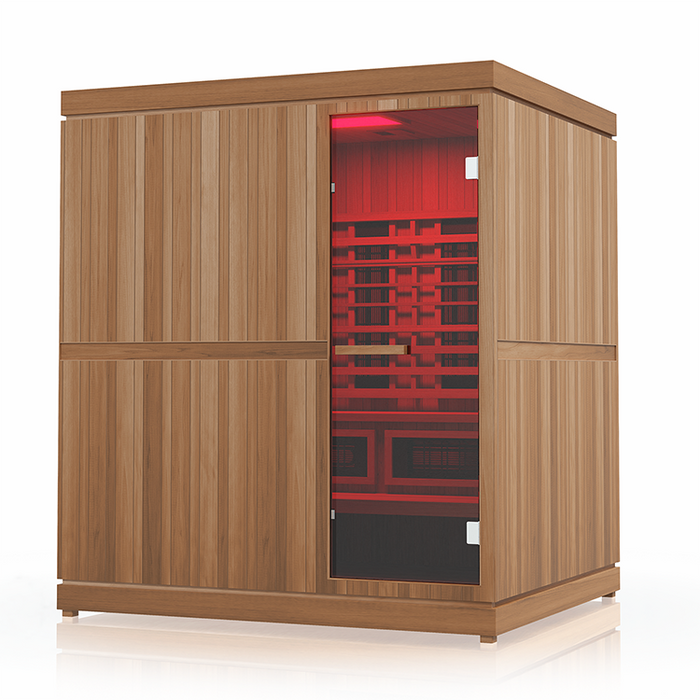

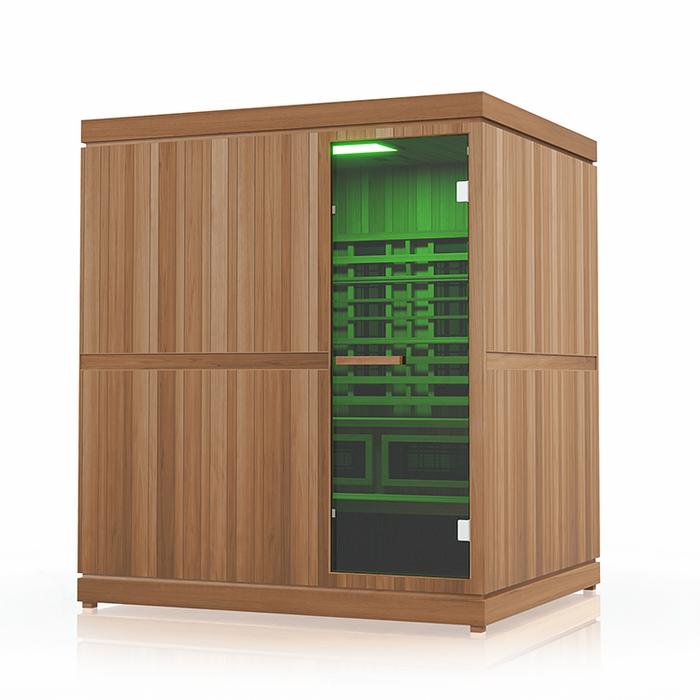

  • Red, blue, green and yellow shown in the gallery
Spectrum Red Light™ Chromotherapy

The Finnmark Indoor Lineup

The Top Of The Indoor Range

Finnmark's five indoor cabins run from one bather to four, and split into three infrared-only models and two Trinity hybrids. The FD-5 is the largest of the five by every measure that counts — 130 cubic feet, 71 inches of interior width, a 4.5kW Harvia included — and the only one running 240V on both the infrared side and the rock heater.

Finnmark FD-1 one-person infrared sauna, three-quarter exterior view
FD-1 — 1 Person
The smallest cabin in the line, 38 inches square, and it runs off a standard household outlet.
Seats 1 bather 38 × 38 × 78 in exterior 32 × 34 × 70 in interior 120V 15A, NEMA 5-15P
Shop the FD-1
Finnmark FD-2 two-person infrared sauna, three-quarter exterior view
FD-2 — 2 Person
Finnmark's best seller, and the only model in the line with a published heat-up test.
Seats 2 bathers 48 × 44 × 78 in exterior 43 × 40 × 70 in interior 54 minutes to 170°F
Shop the FD-2
Finnmark FD-3 three to four person infrared sauna, three-quarter exterior view
FD-3 — 3–4 Person
The size step in the infrared cabins: 67 inches of interior width, on a 240V circuit.
Seats 3–4 bathers 72 × 46 × 78 in exterior 67 × 41 × 70 in interior 240V 15A, NEMA 6-15P
Shop the FD-3
Finnmark FD-4 Trinity sauna cabin beside a glass wall, three-quarter exterior view
FD-4 Trinity — 2 Person
The way into rocks and steam. A Harvia Vega Compact 1900 ships with the sauna.
Seats 2 bathers 48 × 48 × 83 in exterior 44.25 × 45.5 × 75.5 in interior 1.9kW Harvia included
Shop the FD-4
You're Here

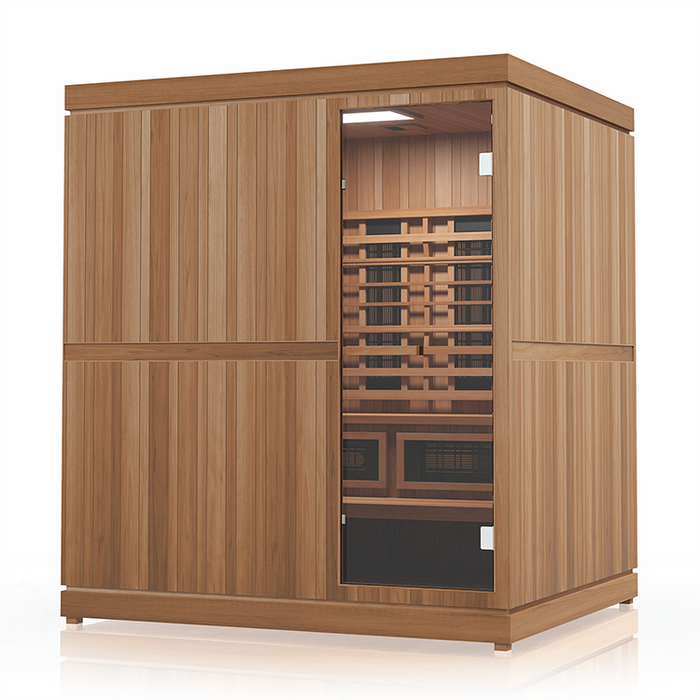

Finnmark FD-5 Trinity XL sauna cabin, three-quarter exterior view
FD-5 Trinity XL — 4 Person
The largest indoor cabin at 130 cubic feet, with a 4.5kW Harvia included.
Seats 4 bathers 75 × 64 × 83 in exterior 71 × 57.5 × 75.5 in interior 4.5kW Harvia included
Currently viewing

Questions

Frequently Asked Questions

Yes. The Harvia KIP45B comes with the sauna — 4.5kW, 240V, single phase, 18.8 nominal amps, 40 lbs, rated by Harvia for rooms of 100 to 210 adjusted cubic feet. One box of Harvia AC3000 stones, 0 to 10cm and weighing 44 lbs, ships with it.
240V throughout, and a licensed electrician is required. Both the infrared side and the Harvia KIP45B run on 240 volts; Finnmark's stated requirement for the heater is a 240v 20a supply installed by an electrician. Have the circuits confirmed and scheduled before the sauna is delivered. Exact figures should be confirmed by your electrician against the Harvia's own documentation.
Finnmark rate the cabin for three to four bathers. The interior measures 71" W × 57.5" D × 75.5" H and holds 130 cubic feet, the largest indoor volume in the FD line.
190°F on traditional, 170°F on infrared. The traditional mode is the one where you pour water over the stones on the Harvia.
Size, heater and electrical. The FD-5 holds 130 cubic feet against the FD-4's 86, is rated for three to four bathers against two, and carries a 4.5kW Harvia KIP45B where the FD-4 has the 1.9kW Vega Compact 1900. The FD-4 runs on 120V across two circuits; the FD-5 is 240V throughout. Red light therapy, chromotherapy and the V2 LCD controller are common to both.
Finnmark's LED panel for the Trinity cabins: 192 medical grade diodes at 650nm, with chromotherapy lighting fitted alongside. Both run from the V2 LCD Controller, a 5-inch touchscreen with Bluetooth. Therapeutic claims for red light on this page belong to Finnmark, who publish their own FDA disclaimer.
A Thermo-Aspen exterior over a Western Canadian Cedar interior, as on the rest of the indoor line. Finnmark's Thermal Plus™ treatment uses heat and steam with no chemicals, and their claim for the treated aspen is that it will not rot, warp, decay or chip. The cedar they describe as naturally antimicrobial, resisting mold, bacteria and fungus.
The exterior is 75" W × 64" D × 83" H. Assembled product weight is 575 lbs and shipping weight is 654 lbs including a 48 lb pallet. This is the heaviest and widest of the indoor cabins, so measure the route in before you order.
Free curbside delivery via freight to the 48 contiguous states, with free delivery damage insurance included. The freight carrier contacts you 24 to 48 hours ahead to set a day and time Monday through Friday inside a 4-hour window, and will not deliver without speaking to you first. The sauna arrives strapped to a pallet on a 53-foot semi-truck with a single driver, who unloads to your curbside or driveway only. Raise anything unusual about your access — long driveway, low branches, stairs, apartment complex — with us before the sauna ships. When the driver unloads, inspect the boxes and note any scratches, dents, or scuff marks on the delivery receipt. You do not need to open the boxes to do that.
Finnmark cover the sauna with a 10-year warranty and the Spectrum Plus™ incoloy infrared heaters with an unconditional lifetime warranty. Finnmark's own framing for the ten-year term is worth repeating: in the USA the working lifetime of an infrared sauna is considered seven years, so a ten-year term still covers you past that point. They state operational life at 40,000 hours for the Spectrum Plus heaters. Full terms are in the Warranty tab. The sauna is ETL certified and made by Finnmark Designs, based in Wheeling, Illinois.
  • External Materials: Thermo-Aspen
  • Interior Materials: Western Canadian Cedar
  • Volts: 240
  • Watts: 2700
  • Amperage: 15 | TBD
  • Plug Type: NEMA 6-15P
  • Maximum Temperature: IR 170F - Traditional 190F
  • Interior Dimensions: 71"W x 57.5"D x 75.5"H
  • Exterior Dimensions: 75"W x 64"D x 83"H
  • Room Volume: 130 cu. ft.
  • Door Dimensions: 23.625"W x 67.875"H
  • Door Handle Dimensions: 1.5"W x 13.25"H
  • Glass Thickness: 8mm W/Gasket
  • Product Weight: 575 lbs
  • Shipping Dimensions: 36"W x 80"D
  • Shipping Weight: 654 lbs W/48 lb Pallet

KIP45B

  • Kilowatt Rating (KW): 4.5kW
  • Primary Fuel: Electric
  • Minimum Adjusted Cubic Feet: 100
  • Maximum Adjusted Cubic Feet: 210
  • Voltage: 240V
  • Phase: 1PH
  • Nominal Amps: 18.8 Amps
  • Heater Weight: 40 lbs
  • Shipping Weight with Sauna Stones: 84 lbs
  • Width In Inches: 16" (406mm)
  • Depth In Inches: 11" (279mm)
  • Height In Inches: 24" (609mm)
  • Sauna Power Requirements: 240V for sauna heater. 120V for interior/exterior lights.
  • Bottom Panel
  • Top Panel
  • Back Panel
  • Front Panel
  • Left Panel
  • Right Panel
  • Glass Door
  • Bench Support
  • Bench Top
  • Heater Cable
  • Floor Cable
  • Screws
  • Power Supply Unit
  • Power Cable
  • Interior Heater Connections with Wood Cover
  • Door Handle (2 Screws)
  • Infrared Sauna Heater Panels
  • Harvia KIP Series B 4.5kW Sauna Heater
  • 1 Box of the Harvia AC3000 0-10cm sauna stones (44 lbs) (Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).)
  • Medical Grade LED Red light therapy with 650nm plus color chromotherapy
  • V2 LCD Controller 5" Touchscreen with Bluetooth
  • ETL Certification
  • Limited Warranty
