Kinvent Advanced Pack

Name: Kinvent Advanced Pack
Brand: Kinvent
SKU: 15-4383
Price: 10290.0 USD
Availability: InStock

by Kinvent

$10,290.00 - $10,290.00

$10,290.00

$10,290.00 - $10,290.00

$10,290.00

✓ Authorized Kinvent Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

Surface EMG Enters The Ladder

Kinvent Advanced Pack

The sensor added at this rung is the K-Myo, supplied with its accessories. It is a surface electromyograph, and it reads the electrical activity of the muscle underneath it. The six sensors below it record how much force was produced and through what range. The K-Myo records which muscle was working while that happened, and when it fired. That is a different class of information, and it is the reason this rung exists.

Its buyer is the practitioner or performance team who has run out of answers a force number alone can give, and who wants activation timing recorded on the same profile as the force. This is also the first rung whose listing names the top of the software ladder: one year of Kinvent Physio on the EXCELLENCE tier. Kinvent hold four rows back for that tier, and all four arrive here.

Surface EMG Group testing CSV raw export Video K-apture

Top Of The Software Ladder

The four rows only Excellence carries

Kinvent's tier table has four features that appear on Excellence alone. This pack ships that tier for twelve months, so all four come with it, and each one changes a working habit rather than a number on a page.

👥

Group testing

Group training starts at Premium, one tier down. Group testing is listed on Excellence by itself, which is the row a squad screening day sits on.

Excellence only

📄

CSV export of raw data

Raw data leaves the app as CSV on this tier. Anyone running their own statistics, feeding a research dataset or reconciling figures in a spreadsheet needs that row, and only Excellence has it.

Raw CSV

📚

Excellence protocols

The Excellence protocol library sits above the Premium one, and both are included at this tier. Seven sensors give the library enough inputs to be worth opening.

Full library

🎥

Video K-apture

Kinvent list Video K-apture on Excellence alone. Video recorded against the trace is what makes an EMG result readable by a colleague who was not in the room.

Excellence only

What The Seven Sensors Report

Nine kinds of reading under one profile

Each figure below is a published output of one sensor in this pack. Eight of them describe a mechanical event. The ninth describes the muscle that caused it.

⚡

Muscle Activation

Surface EMG at the skin, K-Myo

📈

Isometric Force

Peak and average, up to 90 kg on K-Push

🪢

Tensile Force

Traction along an anchored line, K-Pull

✊

Grip Force

Peak grip strength, K-Grip

💨

Air Pressure

Pressure variation read as force, K-Bubble

📐

Joint Angle

Degrees, better than 0.5° on K-Move

⬇️

Ground Reaction Force

Vertical force under each foot, plates

📍

Center Of Pressure

Postural control across a standing trial

↔️

Limb Symmetry Index

Asymmetry as a ratio, K-Force Plates

Sensor Detail

The K-Myo, and what it joins

Surface EMG

K-Myo, the sensor that changes the question

Kinvent classify the K-Myo as a portable surface electromyograph. It is worn on the body, reaches the skin through multi-coloured electrode cables, and captures the electrical activity of the muscle underneath while that muscle is working. Nothing is inserted. Every other sensor in this pack quantifies an external force or an angle, so this is the first one in the ladder that reports on the source of the movement rather than its result.

Muscle activation read at the skin, non-invasively
Multi-coloured electrode cables to the recording site
App reports activation, timing and coordination
One unit with accessories in this pack's contents
Kinvent name clinicians, trainers and researchers as the users

Surface EMG Non-invasive Timing

Kinvent K-Myo recording muscle activation during a movement

Live Trace

The trace runs while the effort does

Kinvent describe the K-Myo as capturing real-time muscle activation data during movement, with real-time EMG feedback in the app. An athlete watching their own trace can be corrected inside the rep rather than after it, which is why Kinvent list motor re-education alongside assessment. With Video K-apture included on this pack's Excellence tier, that trace can be recorded with video beside it, and the session still lands on the profile you had open.

Real-time EMG feedback during the movement
Activation, timing and coordination reported together
Video K-apture available on the included Excellence tier
Recording held on the profile, session against session

Real time Biofeedback Video K-apture

Carried Up

The six mechanical sensors it records alongside

The K-Force Plates arrive from the rung below and read vertical force under each foot at a capacity Kinvent put at roughly 600 kg per platform, returning center of pressure, weight distribution and a Limb Symmetry Index. Run a standing task with the K-Myo applied and the same effort produces a distribution figure and an activation trace at once. The four handheld sensors and the goniometer fill in the rest of the battery.

K-Push for isometric force through a pad, up to 90 kg at 0.1 kg accuracy
K-Pull for tensile force in traction, including IMTP and Nordic hamstring setups
K-Grip for peak grip force, isometric holds and repetition sets
K-Bubble for activation, strength and endurance through air pressure
K-Move for joint range of motion, published better than 0.5 degrees

Seven sensors One profile Kinvent app

Where This Pack Earns Its Place

Six jobs seven sensors and the top tier cover

Each of these is built from capabilities the component sensors publish and rows Kinvent list on the Excellence tier.

🔁

Return-to-sport testing

Single-leg trials and the Limb Symmetry Index come off the plates, symmetry between an injured and a healthy limb comes off K-Move, and the K-Myo shows whether the recovering side is recruiting the muscle at all.

👥

Squad screening days

Group testing is an Excellence row, and the tier allows twenty terminals and twenty patient profiles. That is the combination a screening day with several staff and several stations runs on.

🩺

Post-surgical rehabilitation

K-Bubble covers neck, back and lower limb work through a soft inflatable contact, K-Move tracks the angle back at better than 0.5 degrees, and the K-Myo answers whether the muscle is firing when it should.

🔬

Research protocols

CSV export of raw data is the row that lets a recorded session leave the app for your own analysis. Kinvent publish no sampling rate for the K-Myo, so confirm that figure with them before a protocol depends on it.

🎯

Motor re-education

Kinvent list motor re-education as a use for real-time EMG feedback. Alongside it, K-Move sets game targets as a percentage of a stored maximum across ten difficulty levels, and K-Grip drives its own games on live force.

🏋️

A full strength battery

The isometric mid-thigh pull runs on the plates or through K-Pull, K-Push covers almost 40 muscle groups with its accessory range, and K-Grip adds the hand. All of it reports into the same app under one profile.

The Pack Ladder

Advanced against the rungs either side of it

Every pack pairs a sensor set with twelve months of Kinvent Physio. Advanced is where surface EMG arrives and where the licence reaches its ceiling, so the step above it buys hardware alone.

Evolution Pack

Six sensors, the rung where measurement moves to the floor with the K-Force Plates and a duffle bag.

6 sensors, no EMG K-Force Plates added PREMIUM licence, six terminals Duffle bag supplied

Shop the Evolution Pack

You're Here

Advanced Pack

Seven sensors, adding the K-Myo surface electromyograph with its accessories to the Evolution set.

7 sensors including K-Myo Surface EMG activation data K-Force Plates retained EXCELLENCE licence, twenty terminals

Currently viewing

Expert Pack

Seven sensors built around the K-Deltas, the large-surface plates Kinvent categorise for jump and symmetry work.

7 sensors including K-Deltas K-Myo also included Jump and dynamic force analysis EXCELLENCE licence, same tier

Shop the Expert Pack

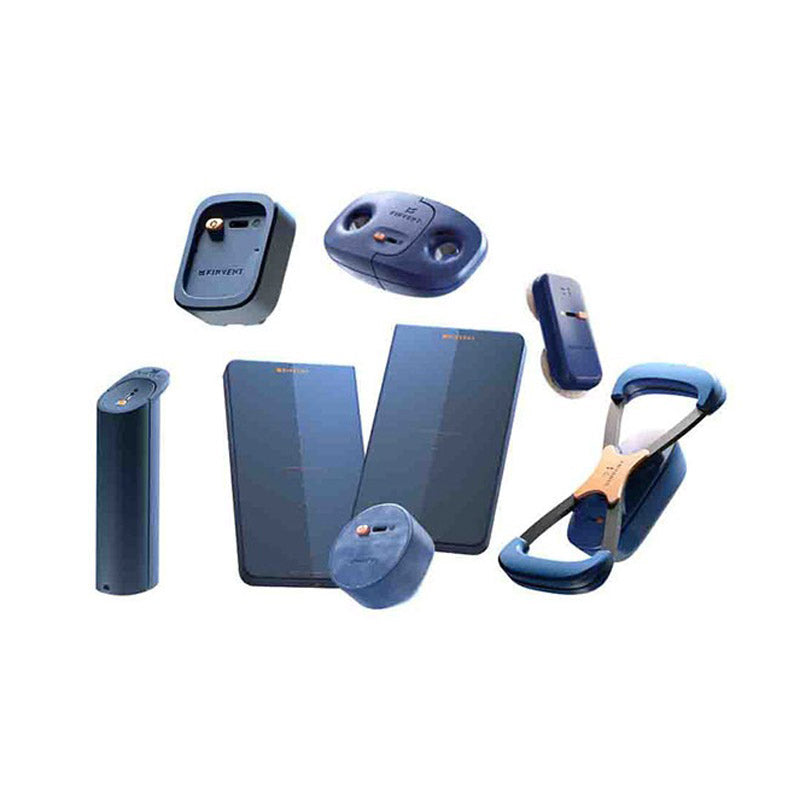

What's In The Box

⚡ K-Myo with accessories Surface electromyograph reading muscle activation, timing and coordination at the skin

⚖️ K-Force Plates Portable plates for vertical force, center of pressure and weight distribution

📈 K-Push Handheld dynamometer for isometric force through compression, up to 90 kg

🪢 K-Pull Traction dynamometer for tensile force along an anchored line

✊ K-Grip with accessory Grip dynamometer for peak grip force, isometric holds and repetition sets

💨 K-Bubble Inflatable pressure sensor for muscle activation, strength and endurance

📐 K-Move Connected goniometer for joint range of motion in a chosen plane

🗓️ Kinvent Physio subscription One year on the EXCELLENCE tier, the highest of the three Kinvent publish

Full Spec Sheet

Specifications

Pack

Sensors included 7

Defining addition K-Myo, one unit with accessories

Software One year Kinvent Physio, EXCELLENCE

SKU 15-4383

Measurements Covered

Neuromuscular Surface EMG muscle activation, timing, coordination

Force Compression, traction, grip, air pressure

Floor Vertical ground reaction force, center of pressure

Kinematic Joint range of motion in degrees

Published Sensor Figures

K-Push Up to 90 kg, accuracy 0.1 kg

K-Move Better than 0.5°, 7 hour battery

K-Force Plates Up to approx. 600 kg per platform

K-Pull Isometric and dynamic, capacity not published

K-Grip Peak grip force, range not published

K-Bubble Pressure variation, range not published

EXCELLENCE Licence

Term 12 months

Terminals 20

Patient profiles 20

Group features Group training and group testing

Data export CSV export of raw data

Video Video K-apture

Protocols Excellence protocol library

Not Published By Kinvent

K-Myo sampling rate Not published

K-Myo battery life Not published

Plate sampling and accuracy Not published

Warranty term Not published

Pack weight and dimensions Not published for the pack as a whole

Trusted & Certified

Kinvent's published certifications

These are the certifications and registrations Kinvent publish for their platform and their quality and information security systems. They cover the company and its medical device and data handling, not a performance claim about this sensor.

CE Mark

European Union conformity

FDA

US Food and Drug Administration

Health Canada

Medical device registration

13485

ISO 13485

Medical device quality management

9001

ISO 9001:2015

Quality management

27001

ISO 27001:2022

Information security management

HDS

French health data hosting

🔒

HIPAA

Healthcare privacy compliance

Who Uses Kinvent

Over 10,000 professionals and organizations

Kinvent name the following among the organizations working with their sensors. The list is theirs, published on their own product pages.

HSS

Hospital for Special Surgery

Orthopedics and sports medicine

MLB

Major League Baseball

Professional baseball

NFL

National Football League

Professional football

NBA

National Basketball Association

Professional basketball

MLS

Major League Soccer

Professional soccer

🎓

Stanford University

Collegiate athletics and research

Questions

Frequently Asked Questions

Seven sensors and a software year. The sensors are K-Myo with accessories, K-Force Plates, K-Push, K-Pull, K-Grip with its accessory, K-Bubble and K-Move, and the software is twelve months of Kinvent Physio on the EXCELLENCE tier. No duffle bag is itemised at this rung.

One sensor and its accessories, the K-Myo surface electromyograph. It is the first sensor in the ladder that records which muscle was working rather than how much force came out, which is a different measurement from anything the other six produce.

A one-year Kinvent Physio subscription on the EXCELLENCE tier, named in this listing. It is the highest of the three tiers Kinvent publish, and this is the first rung of the ladder that carries it.

Four published rows: group testing, CSV export of raw data, the Excellence protocol library and Video K-apture. Terminals and patient profiles also rise from six to twenty.

Twenty of each. Kinvent's table lists twenty terminals and twenty patient profiles on Excellence, against six on Premium and three on the entry tier.

Yes, on this tier. CSV export of raw data is an Excellence row, which is what makes this pack workable for a research protocol or any analysis run outside the app.

All six of them: K-Push, K-Pull, K-Move, K-Grip, K-Bubble and the K-Force Plates. The differences at this rung are the K-Myo and the move from the PREMIUM licence to EXCELLENCE. The Evolution Pack also itemises a duffle bag, which this one does not.

The plate system, and nothing in the software. Expert itemises the K-Deltas, the large-surface plates Kinvent categorise for dynamic force, symmetry and jump analysis, and it carries the same K-Myo and the same EXCELLENCE tier. Read its contents closely, because the K-Force Plates that this pack carries are not itemised in the Expert list.

Yes, every one of them is sold on its own here, and the pack is not the cheaper route to the hardware alone. Priced one at a time on this site with the single K-Myo, the seven come to $9,920 against $10,290 for the pack. The gap of $370 is what the twelve-month Excellence subscription costs you.

The count differs. This pack itemises one unit with accessories. The standalone K-Myo listing carries a Duo Pack of two sensors with two accessory packs, which is what you need if you want two muscles recorded on the same timeline, and a single sensor option under SKU 15-4348.

The electrical activity of the muscle, read at the skin. Kinvent classify the K-Myo as a portable surface electromyograph and report the signal in the app as muscle activation, timing and coordination. Nothing is inserted; the sensor reaches the site through multi-coloured electrode cables and surface electrodes.

Yes. All seven sensors report into the Kinvent app, so an EMG trace, a plate trial, a force reading and a joint angle from one visit sit under the same profile. Kinvent list the plates as compatible with K-Push, K-Pull, K-Power, K-Myo and K-Move.

Several things a buyer would reasonably ask for. Kinvent state a high sampling rate and a long battery life for the K-Myo without giving a figure for either, publish no sampling frequency or accuracy figure for the K-Force Plates, no capacity figure for K-Pull, no force range for K-Grip or K-Bubble, and no warranty term on any of these product pages. We quote what they print and nothing else. Ask us before ordering if one of those numbers decides the purchase, and we will put the question to Kinvent in writing.

The contents state one surface electromyograph plus accessories, and Kinvent name multi-coloured electrode cables among what connects the sensor to the skin. They do not itemise the accessory group further, so we publish it as written and leave that parts list to the manufacturer. Ask us for the current packing list if the exact contents matter.

Sensors: 7, the six-sensor set plus one K-Myo with accessories
Measures: strength, tensile force, joint angle, grip, pressure, balance and force distribution, and muscle activation
Licence included: one-year Kinvent Physio subscription, EXCELLENCE tier
Terminals: 20 devices signed in at once
Patient profiles: 20
Group training: included
Group testing: included, an EXCELLENCE row
Group export of reports: included
CSV export of raw data: included, an EXCELLENCE row
Smart Mode: included, listed for up to 5 sensors
Video K-apture: included, an EXCELLENCE row
Protocols: the Premium and Excellence libraries
App: K-Force app, one record for all seven sensors

Seven sensors: the six-sensor set plus the K-Myo surface electromyograph with its accessories
K-Myo: measures muscle activation by surface EMG, applied to the skin over the target muscle
What it adds: activation and its timing recorded alongside force and joint angle
Live trace: the activation signal appears in the K-Force app while the effort is happening
Licence: a one-year Kinvent Physio subscription on the EXCELLENCE tier, named on the listing
Terminals and profiles: twenty of each at this tier
Group testing: included, in addition to the group training carried from PREMIUM
CSV export of raw data: raw signal leaves the app on this tier for analysis elsewhere
Video K-apture: video captured against the recorded session, an EXCELLENCE feature
Protocols: both the Premium and the Excellence libraries
One record: seven sensors report into the K-Force app under a single profile

1 Hand-Held Dynamometer: K-Push
1 Traction Dynamometer: K-Pull
1 Goniometer: K-Move
1 Grip Dynamometer plus Accessory: K-Grip
1 Pressure Dynamometer: K-Bubble
1 Force Plates: K-Force Plates
1 Surface Electromyograph plus Accessories: K-Myo
Licence: one-year subscription to the Kinvent Physio EXCELLENCE tier
Duffle bag: not itemised for this pack; the Evolution Pack below and the Ultimate Solution Pack above both list one
