Chattanooga Intelect Transport 2 Ultrasound

Name: Chattanooga Intelect Transport 2 Ultrasound
Brand: Chattanooga
SKU: 4782
Price: 1299.0 USD
Availability: InStock

by Chattanooga

Save 19%

$1,600.00

$1,600.00 - $1,600.00

$1,600.00

$1,299.00

$1,299.00 - $1,299.00

$1,299.00

✓ Authorized Chattanooga Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: ETA Late October
✓ Questions? Call an RFA Team Member: 1-855-864-6442

10% Off Fall Sale with Code: CHATT10

Chattanooga Intelect

Chattanooga Intelect Transport 2 Ultrasound

The Chattanooga Intelect Transport 2 Ultrasound is a lightweight, portable ultrasound therapy unit, built for clinic use or on the go. Therapeutic ultrasound runs at 1 MHz or 3.3 MHz, pulsed or continuous. The 4.2 lb case measures 13.6 x 9.8 x 4.7 in., light enough to carry between treatment rooms. A keypad and color LCD set each treatment. With coupling detection on, an LED on the applicator and an audible beep tell you the moment the head becomes decoupled. It runs from mains or the optional Li-Ion pack, and a 5 cm2 applicator comes standard, with 2 and 10 cm2 heads available.

15 user protocols Magnetic cart, no tools Coupling LED on the head

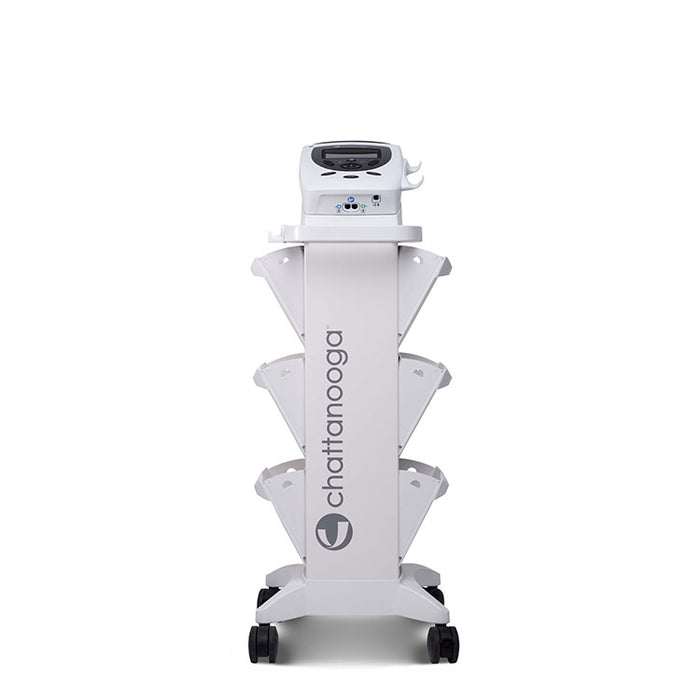

Chattanooga Intelect Transport 2 Ultrasound on the optional cart

Ultrasound only

How it works

Every setting on the Transport 2 Ultrasound belongs to the ultrasound: two frequencies, four duty cycles, three head sizes and a coupling indicator on the applicator itself. Treatment time runs 1 to 30 minutes.

Ultrasound only

The Transport 2 Ultrasound produces therapeutic ultrasound alone and has no stimulation output. The unit is rated IP21 and the applicator IPX7.

IPX7 applicator

Dual-frequency ultrasound

Ultrasound runs at 1 MHz or 3.3 MHz. Duty cycles are 10%, 20%, 50% and continuous, pulse repetition rate is 100 Hz and pulse duration is 1 to 5 ms. The beam is collimating and the beam nonuniformity ratio is under 6:1, and every one of those settings works on all three head sizes.

1 or 3.3 MHz

Head sizes and ERA

On the 2 cm2 head the effective radiating area, the part of the face that actually emits, is 1.5 cm2, rising to 3.0 cm2 on the 5 cm2 head and 5.8 cm2 on the 10 cm2, at both frequencies. Intensity on the 5 cm2 head is 2 W/cm2 continuous and 3 W/cm2 pulsed, which is 6 W continuous and 9 W pulsed in total output. On the 10 cm2 head it is 2.2 W/cm2 continuous at 1 MHz and 1.2 W/cm2 at 3.3 MHz, or 12.7 W and 6.9 W.

ERA 1.5-5.8 cm2

Coupling detection on the head

With US Coupling switched on, the applicator LED stays constantly illuminated while the head is properly coupled and administering ultrasound, and it flashes if the head becomes uncoupled. The unit then stops the treatment timer, sounds an audible beep, or does both, so you read contact without looking away from the patient.

LED on the head

Clinic or on the go

Key features

Optional features include extended battery life and a magnetic cart with storage, so the same unit works on a bench, on the cart or on the road.

Lightweight and portable

4.2 lb in a 13.6 x 9.8 x 4.7 in. case, and 8.5 lb shipping.

Battery life

The optional 18 V, 3350 mAh Li-Ion pack gives 1.5 to 3 hours of treatment per charge, varying with the applicator fitted and with pulsed mode.

Responsive keypad

A faster refresh rate and a more reactive keypad keep the unit quick to set between patients.

User Protocol Library

Up to 15 stored protocols of your own sit on top of the factory set and come back with their parameters on recall.

The range

How it compares

The Transport 2 Ultrasound carries ultrasound alone, and its ultrasound section matches the Transport 2 Combo's down to the 5.8 cm2 effective radiating area on the 10 cm2 head. The Combo adds two stimulation channels to the same chassis, and the Legend 2 and the Vectra Neo build stimulation and ultrasound into a larger bench unit.

You're Here

Transport 2 Ultrasound

Ultrasound only at 4.2 lb, on the same chassis and battery as the Combo but without stimulation channels.

0 channels, ultrasound only 4.2 lb (1.9 kg) ERA 5.8 cm2 on the 10 cm2 head 1.5 to 3 hours of treatment on battery

Currently viewing

Transport 2 Combo

Portable combo at 4.9 lb. Five US waveforms plus ultrasound, 1.5 to 3 hours on battery.

2 stimulation channels 5 waveforms on the US market 4.9 lb (2.2 kg) 1.5 to 3 hours of treatment on battery

Shop the Transport 2 Combo

Intelect Legend 2

Two or four channels in one box. Twelve waveforms, 2&Go home-screen protocols and an optional battery pack.

2-channel or 4-channel build 12 electrotherapy waveforms 6.8 lb 2-channel; 8.2 lb 4-channel 2 years on the device, 1 year on applicators

Shop the Intelect Legend 2

Vectra Neo

Modular cart or tabletop system. Stim, ultrasound, sEMG and laser modules, up to 100 protocols.

Channels 1/2 and 3/4 stimulation modules 12 waveforms, including HAN TENS Ultrasound 1 MHz +/- 5% and 3.3 MHz +/- 5% Head 20.7 lb; cart 29.4 lb

Shop the Vectra Neo

Questions

Frequently asked questions

The unit ships with a 5 cm2 ultrasound applicator and a power cord. The 2 cm2 and 10 cm2 heads, the 18 V Li-Ion pack and the cart are separate orders, and coupling gel, the one consumable on an ultrasound-only unit, is not included.

No. This is the Transport 2, the second-generation platform, and the first-generation Intelect TranSport Ultrasound is a different machine built on the earlier platform. Applicators, batteries, carry bags and cart adapters do not cross between the two.

The Transport 2 family in 2 cm2, 5 cm2 and 10 cm2, sold as the Transport 2 Ultrasound Applicator. There is no 1 cm2 head for the Transport 2, so the smallest head it takes is the 2 cm2, with a 1.5 cm2 effective radiating area.

Frequency at 1 MHz or 3.3 MHz, duty cycle, intensity in W/cm2 and treatment time from 1 to 30 minutes, all from the keypad and the color LCD. Saved protocols come back with their parameters on recall, and US Coupling is switched on at the same screen.

No, it is a bench unit at 13.6 x 9.8 in. The optional Chattanooga Electrotherapy Cart attaches magnetically with no tools, carries storage, and is built for the Legend 2 and the Transport 2 alike. The cart stands 48 cm wide, 52 cm deep and 96 cm high, weighs 10.1 kg and holds the device at 108.5 cm.

Do not use the Transport 2 Ultrasound when cancerous lesions are present in the treatment area, on pregnant women, or over or near implantable neurostimulating cardiac demand pacemakers, ICDs or other implantable electronic devices. Transthoracic and chest application, application over the eye, and application over or near bone growth centres until bone growth is complete are all excluded as well. Chattanooga further warns against turning the unit on or off while it is connected to the patient, and against operating it with accessories other than the ones named for it. Those points are a summary and no substitute for the manual.

Operating range is 5 to 40 deg C at 15% to 90% relative humidity, and storage and transport run -20 to 60 deg C. Mains input is 100 to 240 VAC, 50/60 Hz, 1.0 A, 100 W maximum, and the unit is Electrical Class 1 rated IP21, on mains or on the Li-Ion pack.

Ultrasound only, when the room treats with ultrasound alone: this unit runs the same ultrasound section as the Transport 2 Combo at 4.2 lb. The Combo adds two stimulation channels and five waveforms, and stimulation cannot be added to this model later.

Part number: 4782
Modality: Therapeutic ultrasound only
Ultrasound frequencies: 1 MHz or 3.3 MHz
ERA by head size: 1.5 / 3.0 / 5.8 cm2 for the 2 / 5 / 10 cm2 heads
Ultrasound output, 5 cm2: 6 W continuous, 9 W pulsed, both frequencies
Ultrasound output, 10 cm2: 12.7 W continuous at 1 MHz; 6.9 W at 3.3 MHz
Intensity, 5 cm2: 2 W/cm2 continuous; 3 W/cm2 pulsed
Intensity, 10 cm2: 2.2 W/cm2 at 1 MHz; 1.2 W/cm2 at 3.3 MHz, continuous
Ultrasound duty cycles: 10%, 20%, 50%, continuous
Pulse repetition rate: 100 Hz; pulse duration 1-5 ms
Beam nonuniformity ratio: Under 6:1, collimating beam
Treatment time: 1 to 30 minutes
Battery: 18 V 3350 mAh Li-Ion; 1.5 to 3 hours of treatment per charge
Weight and size: 4.2 lb (1.9 kg); 13.6 x 9.8 x 4.7 in.
Shipping weight: 8.5 lb (3.9 kg)
Mains power: 100-240 VAC, 50/60 Hz, 1.0 A, 100 W max; Class 1, IP21
Operating environment: 5 to 40 deg C, 15% to 90% RH; storage -20 to 60 deg C
Electrical safety class: Class 1, Ultrasound Type B

Configuration: Portable therapeutic ultrasound; no stimulation channels
Part number: 4782; the first-generation Intelect TranSport Ultrasound is 2782
Applicator sizes: 2, 5 and 10 cm2; no 1 cm2 head on this platform
Applicator part numbers: 47334, 47335, 47336
Coupling detection: Applicator LED lit when coupled, flashing when uncoupled; the timer stops or an audible beep sounds
Output modes: Pulsed or continuous, four duty cycle settings
Protocol storage: Up to 15 user protocols
Power: Mains, or optional 18 V Li-Ion pack, part 14-1086, ordered separately
Cart: Optional, part 15-1136, magnetic attachment, no tools
Display: Color LCD with keypad
Consumable: Ultrasound coupling gel

Unit: Intelect Transport 2 Ultrasound
Ultrasound applicator: One 5 cm2 head
Power: Power cord
Battery: Not included; 18 V Li-Ion pack sold separately
Cart: Not included; optional, sold separately
Coupling gel: Not included
