InBody 270S Body Composition Analyzer

Name: InBody 270S Body Composition Analyzer
Brand: InBody
SKU: IB270
Price: 7855.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

by InBody

$7,855.00 - $7,855.00

$7,855.00

$7,855.00 - $7,855.00

$7,855.00

✓ Certified InBody Dealer
✓ Lowest Price Guaranteed
✓ FAST Shipping: In Stock & Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

InBody | 270S

InBody 270S Portable Body Composition Analyzer

The InBody 270S is a professional body composition analyzer that folds up and travels, and it reads the split between fat, muscle and water. It weighs 13.4 kg and stands on a 356 mm base. A camp or a satellite clinic gets a full analyzer for the day. Testing sends a small current through the body at three speeds: 20 kHz, 50 kHz and 100 kHz. Every speed is read at both arms, both legs and the trunk. That comes to fifteen impedance measurements, the resistance the body offers, in about 30 seconds. Eight contact points carry the current, two on each hand and two on each foot.

A finished test prints a result sheet, and the 270S fills it with named values. Weight and Total Body Water open the list. Lean Body Mass, which means everything on you that is not fat, prints with Body Fat Mass. Skeletal Muscle Mass is the muscle that moves your joints, and it sits beside Percent Body Fat. Muscle analysis and body fat analysis come out by region, so each arm, each leg and the trunk carry a figure of their own. Whole Body Phase Angle is the single number the analyzer works out from its impedance readings. Visceral fat level is the deep abdominal fat, the kind you cannot pinch, and it prints on the same sheet. Basal metabolic rate is the energy you use at complete rest, and body fat mass control, an impedance graph and the InBody Score finish the page. The InBody 270S covers 2 to 250 kg and 95 to 220 cm, for ages 3 years and older. It folds for transport and holds up to 100,000 test results in its own database. A 7 in. color TFT LCD runs a voice guidance system that talks a client through the position, on screen and out loud. At 13.4 kg it weighs less than the 16 kg InBody 380 and the 24.4 kg InBody 580, and those two stay where they are installed.

Whole Body Phase Angle Tetrapolar 8-point tactile electrodes About 30 second test Foldable structure

How contact is made

Skin Resistance Stays Out of the Reading

Every reading on the InBody 270S begins at the electrodes. The arrangement here is tetrapolar, which means four poles, laid out as eight tactile contacts with a bar type hand electrode. Where those eight contacts sit decides where each of the fifteen measurements starts and stops. A consumer scale reads foot to foot through the legs and works the rest of you out from there. The 270S reads from the hands and the feet, so both arms and the trunk sit inside the circuit.

What Tetrapolar Means

A four-pole arrangement separates the electrodes that inject the current from the electrodes that read the voltage. Two contacts sit on each hand and two on each foot, eight points in all. The reading contacts carry almost no current, so the resistance of the skin at the contact point stays out of the measured value. Measurement begins from the same two anatomical points on every test, the hands and the feet. Two tests taken weeks apart on the same person therefore start from the same place on the body.

8 contact points

The Bar Type Hand Electrode

The hand electrode on the InBody 270S is a bar the client grips in each hand. The thumb goes on the oval contact at the top and the fingers wrap the handle, which puts two contacts on each hand. Arms are held down and away from the torso for the duration of the test so the arm and the trunk stay electrically separate. The on-screen and spoken guidance walks a client through that position step by step, so a test runs with or without a trained operator standing beside the platform.

Thumb and palm contacts

The Foot Electrodes

Heels sit on the rear round electrodes and the soles of the feet meet the sole electrodes, toes pointed forward, bare, with socks and shoes off. Those four foot contacts complete the eight point system. With hands and feet in place the current has a defined path through the right arm, the left arm, the trunk, the right leg and the left leg. Reading those five paths one at a time is what segmental measurement means on a body composition analyzer.

4 foot contacts

Fifteen Readings Where the 270 Took Ten

Through that electrode arrangement the InBody 270S takes 20 kHz, 50 kHz and 100 kHz readings at each of the five segments, which is fifteen impedance measurements in one test. Frequencies multiply by segments, so each frequency a device carries is worth five more readings. The discontinued InBody 270 runs two frequencies through the same eight point layout for ten measurements, and the InBody 580 runs four for twenty.

3 x 5 = 15

The numbers

Eight Numbers to Check Before the 270S Arrives

Eight figures settle whether the InBody 270S suits the room it is going into and the people who will stand on it. They run from the weight you have to carry to the number of results the device holds on its own.

13.4 kg equipment weight

Folds down for transport

Measures from 2 kg

Range 2 to 250 kg

15 impedance measurements

3 frequencies at 5 segments

20, 50 and 100 kHz

Three measurement frequencies

Whole Body Phase Angle

Reported as one figure

About 30 seconds per test

Start to finish

7 in. color TFT LCD

With voice guidance

100,000 test results stored

Wi-Fi and Bluetooth on board

Closer look

One Person Can Carry It to a Screening Day

InBody 270S portable body composition analyzer with hand electrodes extended

Outputs

Whole Body Phase Angle at This Rung

Whole Body Phase Angle sits on the InBody 270S result sheet. So do Percent Body Fat, Skeletal Muscle Mass, segmental lean analysis, Body Fat Mass, Muscle Mass and Total Body Water. Phase angle is one value worked out from the impedance readings and written in degrees. The refurbished InBody 270 carries no phase angle figure at all, which is the plainest gap between the two output lists. What a given value means for the person on the platform is a reading the professional makes with the full result sheet in front of them.

Whole Body Phase Angle among the reported outputs
Weight, Total Body Water, Lean Body Mass, Body Fat Mass, Skeletal Muscle Mass, Percent Body Fat
Muscle analysis by region and body fat analysis by region across five segments
Additional outputs include Visceral Fat Level, Basal Metabolic Rate, InBody Score, body fat mass control and an impedance graph
ECW/TBW is the share of your body water sitting outside the cells, and it arrives with intracellular and extracellular water on the InBody 380 and InBody 580

Whole body phase angle 5 segments 15 measurements

InBody 270S portable body composition analyzer platform and foot electrodes

Portability

Carry It Out the Door at 13.4 Kilograms

The InBody 270S has a foldable structure, and the numbers behind that are 13.4 kg of equipment weight on a 356 mm wide base. The InBody 380 is 16 kg on 415.5 mm and the InBody 580 is 24.4 kg on 501.9 mm. One person can carry the 270S to a corporate screening day, a team facility or a satellite clinic. It sets up on any level floor near a standard outlet. The trade against the heavier units is measurement depth. Soft lean mass measures lean tissue with the bone mineral subtracted, and it sits further up the range with the water ratio and segmental phase angle. At the other end the 270S measures from 2 kg, where the 380 and the 580 start at 5 kg and the InBody 570 starts at 10 kg.

Equipment weight 13.4 kg
Dimensions 356 mm (W) x 796 mm (L) x 995 mm (H)
Weight range 2 to 250 kg, height range 95 to 220 cm
Age range 3 years and older

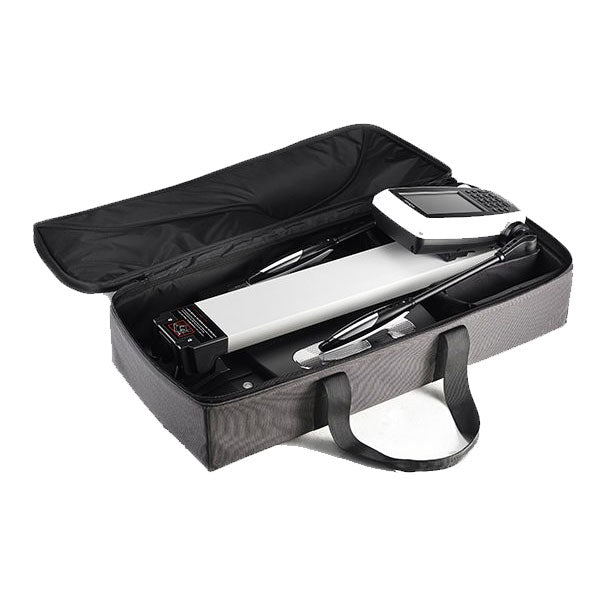

Foldable structure, with an InBody 270S carrying case sold separately

13.4 kg Foldable 2 kg floor

Compare

Where the 270S Sits Among Five InBody Analyzers

Four of the five analyzers in this grid stay in the room they are installed in. The 270S is the one that folds and goes in a case, at 13.4 kg against 16 kg, 24 kg and 24.4 kg on the floor-standing units. Its current speeds are the odd ones out too. The 270S runs 20, 50 and 100 kHz, where the InBody 380 and the refurbished InBody 570 run 5, 50 and 500, and the InBody 580 adds 250 on top of those three. The refurbished InBody 270 keeps 20 and 100 and drops the middle speed.

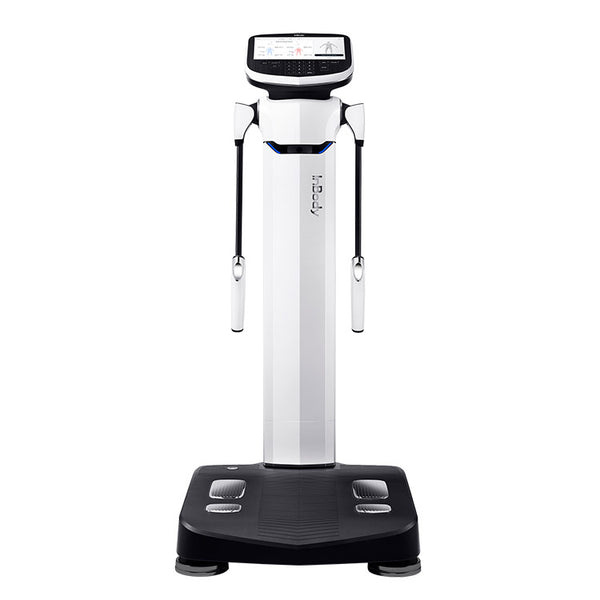

InBody 580

Four frequencies and twenty impedance measurements, with phase angle and the water ratio reported segment by segment on a 10.1 in. color touchscreen.

4 frequencies 20 measurements Segmental phase angle 10.1 in. display

Shop the InBody 580

InBody 380

Three frequencies and fifteen impedance measurements with whole body phase angle as standard, in a 16 kg frame on a 415.5 mm wide base.

3 frequencies 15 measurements Whole body phase angle 16 kg device

Shop the InBody 380

InBody 570 (Refurbished)

A refurbished unit of a model InBody USA no longer sells new, running three frequencies over a 50 second test on a 10 to 270 kg range.

Refurbished 3 frequencies About 50 seconds 10 to 270 kg

Shop the InBody 570 Refurbished

You're Here

InBody 270S

Three frequencies and fifteen impedance measurements in a 13.4 kg folding frame, measuring from 2 kg up to 250 kg with whole body phase angle.

3 frequencies 15 measurements 2 to 250 kg range 13.4 kg device

Currently viewing

InBody 270 (Refurbished)

A refurbished unit of a model InBody USA no longer sells new, running two frequencies and ten impedance measurements over a 15 second test.

Refurbished 2 frequencies 10 measurements 15 second test

Shop the InBody 270 Refurbished

Questions

Questions Buyers Ask About the InBody 270S

No. They are two devices, and they differ on four counts. The 270S runs three frequencies (20, 50, 100 kHz) for 15 impedance measurements over about 30 seconds and reports Whole Body Phase Angle. The 270 runs two frequencies (20, 100 kHz) for 10 impedance measurements over 15 seconds and reports no phase angle. The 270S replaced the 270 in InBody USA's line-up. A new 270 is no longer built, so a refurbished unit is how that model reaches a buyer today.

A bioelectrical impedance analyzer sends a small alternating current through the body and measures the opposition it meets. A single-frequency device sends one current, so it has one reading to work from at each point on the body. The InBody 270S sends 20 kHz, 50 kHz and 100 kHz. kHz is how fast the current alternates, and each speed travels through the body differently. The device therefore has three separate readings at every one of the five segments. Three frequencies at five segments is where the 15 impedance measurements figure comes from. It is also why the 270S reports Whole Body Phase Angle where the two-frequency InBody 270 does not.

2 kg, with an upper limit of 250 kg. The InBody 580 and InBody 380 start at 5 kg, and the InBody 570 and InBody 270 start at 10 kg, so the 270S reaches further down than any of them. Age range is 3 years and older and height range is 95 to 220 cm, so a pediatric or youth-sport caseload is inside the device's stated range.

13.4 kg, on a footprint of 356 mm (W) x 796 mm (L) x 995 mm (H), which is roughly 14.0 in. x 31.3 in. x 39.2 in. Allow about 14 in. of width and 32 in. of length on a level floor and you are covered, with room in front for the client to step on and off. The structure folds for transport and an InBody 270S carrying case is sold separately.

It reports Total Body Water as a single figure. The split between water inside the cells and water outside them arrives further up the range. The InBody 380 reports an ECW ratio, and the InBody 580 reports intracellular and extracellular water as standard outputs, plus segmental ECW/TBW. If a water ratio figure is part of your protocol, step up to the 380.

Segmental analysis means the device measures five parts of the body separately and reports a figure for each one: right arm, left arm, trunk, right leg and left leg. A whole-body reading produces a single number for the person; a segmental reading produces five. Arms and legs are thin and the trunk is thick, so their impedance values are not interchangeable, and reading them one at a time is what produces a per-limb figure. The InBody 270S does this and prints muscle analysis by region and body fat analysis by region across those five segments on every result sheet.

Eight contact points, two on each hand and two on each foot, arranged so the electrodes that inject current are separate from the electrodes that read voltage. That separation keeps skin resistance at the contact point out of the measured value. Because the eight points are fixed at the hands and the feet, measurement starts from the same anatomical landmarks on every test and on every client who stands on the platform.

About 30 seconds, start to finish. The 270S carries a voice guidance system that gives step by step instructions on screen and out loud. The test therefore runs with or without a trained operator standing beside it, on a gym floor or at a screening table.

Wi-Fi and Bluetooth, with LookinBody Web, the InBody App and InBody Touch as the compatible software. LookinBody Web is the cloud database, so a completed test opens from any machine signed in to the account. The device holds up to 100,000 test results internally, which keeps the day's testing safe if the network drops.

Any laser or inkjet printer running PCL3 or above, and SPL. A legacy InBody 230/270 Thermal Printer is also available, and InBody 270S result sheets are stocked separately by the box. In the carton with the analyzer you get a box of 300 InBody tissues and a LookinBody Web credit, and that credit expires 90 days after the device reaches you. The analyzer carries a 1 year manufacturer's warranty from InBody. An InBody USB thumb drive and InBody posters are separate items on their own order lines. Budget for paper the way you would for any device that hands the client a printed page at the end of the session.

Keep the conditions the same. Test bare-footed with the hands on the bar electrodes and the arms held away from the torso, at a similar time of day and a similar point relative to meals, exercise and fluids. The device holds its side of that steady. Its eight contact points are fixed at the hands and the feet, and every value on the sheet is built from impedance measured on the person standing there. The sheet carries no empirical estimations worked out from age, sex, ethnicity or body type.

The InBody 380, if measurement depth is what you are buying. Same 15 impedance measurements and the same three frequency count, plus ECW ratio, Soft Lean Mass, Skeletal Muscle Index and Arm Circumference, on a 5 to 300 kg range. The cost is 2.6 kg of extra equipment weight and a 59 mm wider base. If the analyzer never leaves one room and a water ratio figure is part of your protocol, the 380 is the better buy. If it has to move between sites, the 270S folds and the 380 does not.

Frequencies: 3: 20, 50 and 100 kHz
Impedance Measurements: 15, using 3 frequencies at each of 5 segments
Electrode Arrangement: Tetrapolar 8-point tactile electrodes with a bar type hand electrode
Segments Measured: 5: right arm, left arm, trunk, right leg, left leg
Measurement Time: About 30 seconds
Standard Outputs: Weight, Total Body Water, Lean Body Mass, Body Fat Mass, Skeletal Muscle Mass, Percent Body Fat, muscle analysis by region, body fat analysis by region
Additional Outputs: Body fat mass control, basal metabolic rate, impedance graph, visceral fat level, fat analysis by region, InBody Score
Phase Angle: Whole Body Phase Angle
Weight Range: 2 to 250 kg
Height Range: 95 to 220 cm
Age Range: 3 years and older
Dimensions: 356 mm (W) x 796 mm (L) x 995 mm (H)
Equipment Weight: 13.4 kg
Display: 7 in. color TFT LCD
Connectivity: Wi-Fi and Bluetooth
Compatible Software: LookinBody Web, InBody App, InBody Touch

Frequencies: 20, 50 and 100 kHz, three in every test
Impedance measurements: 15, from 3 frequencies at 5 body segments
Phase angle: Whole Body Phase Angle, one figure for the whole person
Test duration: About 30 seconds, start to finish
Equipment weight: 13.4 kg, on a 356 mm wide base
Measurement floor: 2 kg, with an upper limit of 250 kg
Segmental analysis: Muscle and body fat by region across 5 segments
Electrode arrangement: Tetrapolar 8-point tactile with a bar type hand electrode
Display: 7 in. color TFT LCD with a voice guidance system
On-board storage: Up to 100,000 test results held on the device
Transport: Foldable structure, carrying case sold separately
Connectivity: Wi-Fi and Bluetooth on board

InBody 270S Body Composition Analyzer: 1 unit
LookinBody Web credit: Expires 90 days after receipt if not used
InBody Tissues: 1 box of 300
Manufacturer's warranty: 1 year

Overall rating: 5.0 / 5 from 1 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Love it! It works great!

"Love it! It works great!"

— Cynthia M. (5/5)

Q&A

Does this equipment run on a standard 110v line or does it need 220v? Also is internet/wifi required for operation? Thanks: Hi there, Just a 110V line works. Internet/wifi is not necessary
