Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser
Kavvia Dualis X ND:YAG Laser

Kavvia Dualis X ND:YAG Laser

by Kavvia
Save 9% Save 9%
$36,400.00
$36,400.00 - $36,400.00
$36,400.00
$32,999.00
$32,999.00 - $32,999.00
$32,999.00

✓ Authorized Kavvia Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

KAVVIA

Kavvia Dualis X ND:YAG Laser

The Kavvia Dualis X ND:YAG Laser is a professional nanosecond laser that runs two wavelengths from one console, 1064 nm and 532 nm. Each pulse is 6 ns wide, a few billionths of a second. Single pulse energy reaches 1000 mJ at 1064 nm and 500 mJ at 532 nm. A Genesis long pulse mode stretches that same pulse to 200 us and 2000 mJ on the 1064 nm line. Spot diameter adjusts continuously from 2 to 10 mm. An 8-inch touch screen runs the machine, on a seven-jointed light guide arm, air and water cooled.

The standard configuration is a treatment handle with that adjustable spot, plus a treatment head. Four optional heads extend the platform: a 585 nm dye head, a 650 nm dye head, a DOE fractional handle and an MLA honeycomb handle. Spot mode is high homogeneous, meaning the energy sits evenly across the spot and does not peak in the middle. The firing rate runs from 1 to 10 Hz. Treatments cover freckle removal, tattoo removal, skin rejuvenation and age spots, across an application list of 19 types of pigmented mark.

Wavelengths
1064 and 532 nm
nanosecond ND:YAG
Pulse Energy
1000 mJ
500 mJ at 532 nm
Pulse Width
6 ns
200 us in Genesis mode
Spot Diameter
2 to 10 mm
continuously adjustable
Seven-jointed light guide arm 8-inch touch screen Air and water cooling Genesis long pulse mode

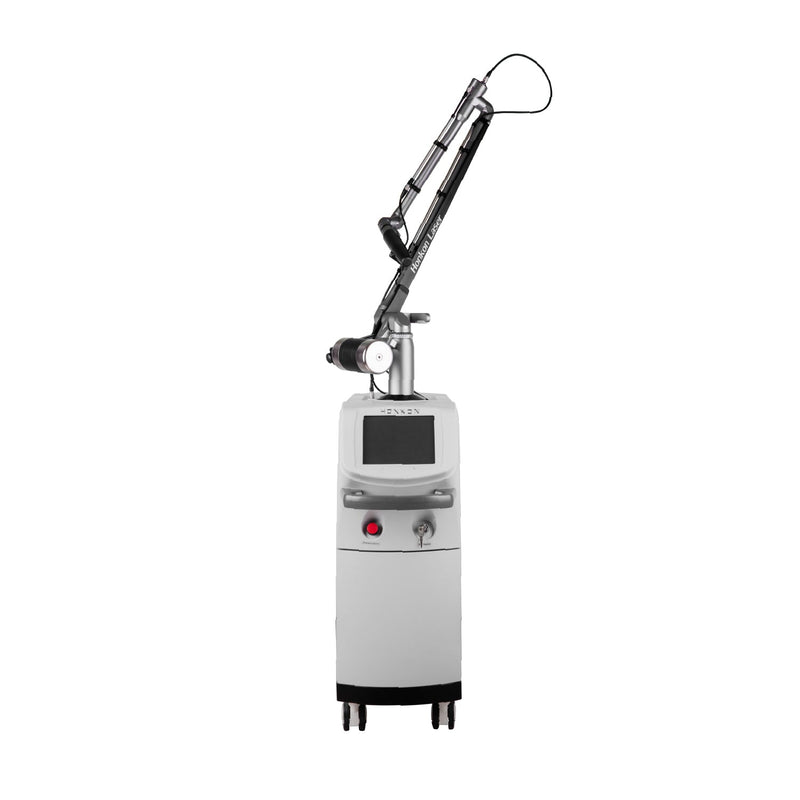

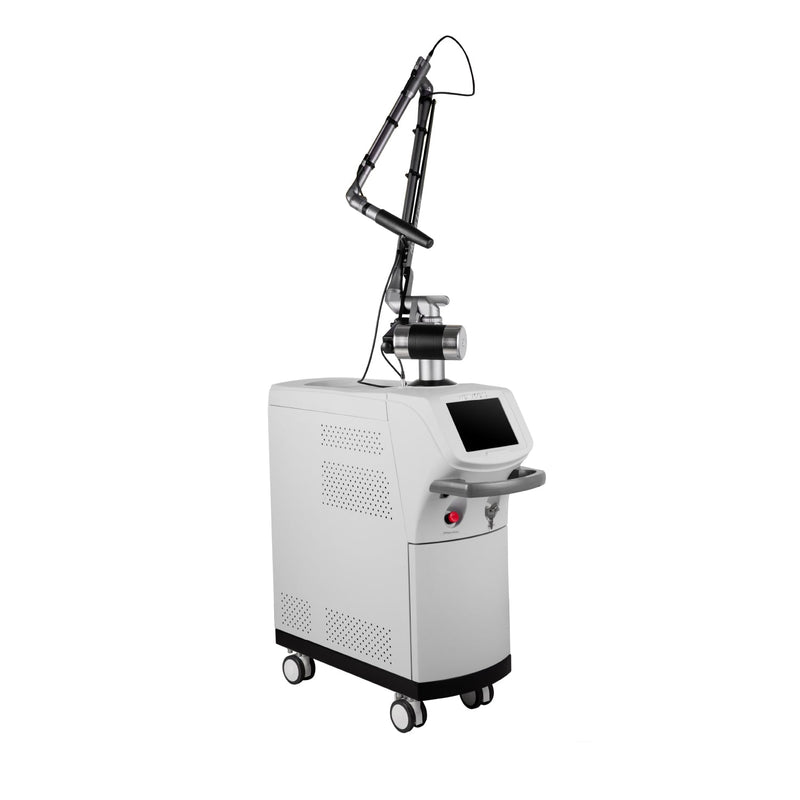

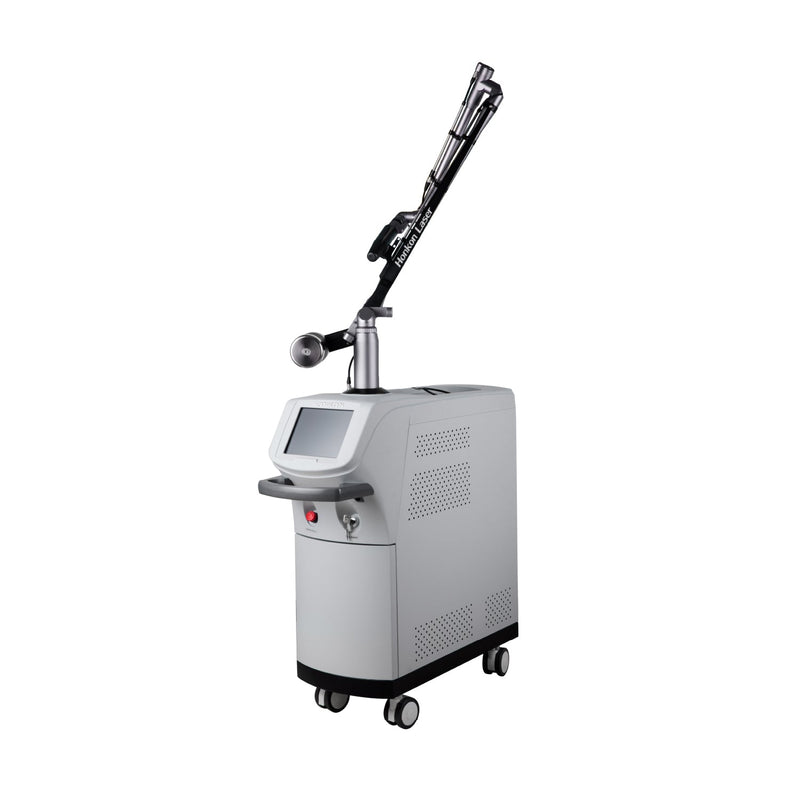

Kavvia Dualis X ND:YAG Laser, the console and articulated arm

SYSTEM

Two wavelengths and two pulse lengths

Everything on the Dualis X comes off one ND:YAG source. What changes between passes is which wavelength is selected, how long the pulse is held open, and how wide the spot is set.

Genesis is the long pulse mode
Genesis runs on the 1064 nm line at a pulse width of 200 us and an energy of 2000 mJ, which is twice the single pulse ceiling of the nanosecond modes.
200 us, 2000 mJ
1064 nm and 532 nm from one source
1064 nm and 532 nm are both available at the console, with a single pulse ceiling of 1000 mJ on the first and 500 mJ on the second.
1064 nm and 532 nm
The spot is set on the handle
The treatment handle adjusts continuously from 2 to 10 mm, so spot size is a dial during a pass and not a change of head between them.
2 to 10 mm
6 ns pulses at up to 10 Hz
The nanosecond modes hold each pulse open for 6 ns, and the machine repeats from 1 to 10 Hz at a rate the operator sets.
6 ns, 1 to 10 Hz

TREATMENTS

What it is used for

The Dualis X is a pigment and tattoo machine before it is anything else. The optional heads reach past that to green tattoos and fine lines.

Freckle removal
PIGMENT
Age spots
PIGMENT
Tattoo removal
TATTOO
Skin rejuvenation
FACE
Wrinkle removal
FACE
Whitening
FACE
Green tattoos
650 NM HEAD
Fine lines
MLA HEAD

RANGE

The Kavvia laser range

No two machines in the Kavvia laser range produce light the same way. The Dualis X is the nanosecond ND:YAG among the six.

Kavvia Resurf CO2 Fractional Laser, fractional CO2 console
Kavvia Resurf CO2 Fractional Laser
Fractional CO2 at 10600 nm, the ablative laser in the range.
10600 nm 50 W Four modes
Shop the Resurf CO2
Currently viewing
Kavvia Dualis X ND:YAG Laser, ND:YAG console
Kavvia Dualis X ND:YAG Laser
An ND:YAG platform for pigment and tattoo work.
ND:YAG 1064 and 532 nm
Currently viewing
Kavvia PicoPulse Picosecond Laser, picosecond console
Kavvia PicoPulse Picosecond Laser
Pulses measured in picoseconds, not nanoseconds.
Picosecond 450 ps
Shop the PicoPulse
Kavvia DermaLux Diode Laser, diode console
Kavvia DermaLux Diode Laser
A diode platform, the first of two in the range.
Diode 808 nm
Shop the DermaLux
Kavvia Luma 808 Diode Laser, 808 nm diode console
Kavvia Luma 808 Diode Laser
The second diode platform, running at 808 nm.
808 nm diode
Shop the Luma 808
Kavvia AuraLight IPL Laser, IPL console
Kavvia AuraLight IPL Laser
Intense pulsed light, a broad-spectrum source.
IPL 1 to 10 Hz
Shop the AuraLight

FAQ

Frequently asked questions

A laser whose pulse is measured in billionths of a second. On the Dualis X each pulse is 6 ns wide, on a Q-switched ND:YAG platform running 1064 nm and 532 nm.
1064 nm and 532 nm. Single pulse energy is 1000 mJ on the 1064 nm line and 500 mJ on the 532 nm line.
A long pulse mode on the 1064 nm line. It widens the pulse to 200 us and raises single pulse energy to 2000 mJ, which is twice what the nanosecond modes deliver.
From 2 to 10 mm, adjusted continuously on the treatment handle. Spot mode is high homogeneous, so the energy sits evenly across the spot.
Freckle removal, tattoo removal, skin rejuvenation and age spots. The standard treatment head is also used for whitening and wrinkle removal, and the application list runs to 19 types of pigmented mark.
Four. A 585 nm dye head, a 650 nm dye head, a DOE fractional handle and an MLA honeycomb handle. The 650 nm head covers skin pigmentation and green tattoos, and the MLA honeycomb handle covers fine lines.
A treatment handle with the 2 to 10 mm continuously adjustable spot, and a treatment head. The dye heads and the pixel handles are options on top of that.
Air and water. The cooling mode runs both together.
Through a seven-jointed light guide arm built in South Korea. The console itself is run from an 8-inch touch screen.
The package measures 95 x 45 x 120 cm, and gross weight is 90 kg, or 198 lb.
  • Laser type: Nanosecond laser
  • Wavelength: 1064nm; 532nm
  • Pulse width: 6ns
  • Pulse energy: 1000mj at 1064nm; 500mj at 532nm
  • Genesis mode: 2000mj at 1064nm, 200us
  • Spot diameter: 2-10mm adjustable
  • Frequency: 1-10Hz
  • Screen size: 8-inch
  • Cooling mode: Air cooling plus water cooling
  • Gross weight: 90Kgs
  • Laser type: Q-switched Nd:YAG running a nanosecond pulse
  • Dual wavelength: 1064nm and 532nm from one console
  • Genesis mode: long pulse stretched to 200us on the 1064nm line
  • Spot control: continuously adjustable 2-10mm at the handle
  • Beam delivery: 7 jointed light guide arm from South Korea
  • Touch screen: 8-inch touch screen on the console
  • Optional heads: 585nm and 650nm dye heads, DOE and MLA pixel handles
  • Treatments: freckle removal, tattoo removal, skin rejuvenation and age spots
  • Treatment handle: included as standard, 2-10mm continuously adjustable
  • Treatment head: included as standard
  • 585nm dye head: optional, not included
  • 650nm dye head: optional, not included
  • DOE pixel handle: optional, not included
  • MLA pixel handle: optional, not included
