Kavvia Resurf CO2 Fractional Laser

Name: Kavvia Resurf CO2 Fractional Laser
Brand: Kavvia
SKU: HKCO001
Price: 27999.0 USD
Availability: InStock

by Kavvia

Save 12%

$31,990.00

$31,990.00 - $31,990.00

$31,990.00

$27,999.00

$27,999.00 - $27,999.00

$27,999.00

✓ Authorized Kavvia Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

KAVVIA

Kavvia Resurf CO2 Fractional Laser

The Kavvia Resurf CO2 Fractional Laser is a professional carbon dioxide laser that works the skin in a grid of points rather than across the whole surface. The beam is 10600 nm from a 50 W radiofrequency-excited tube. Penetration reaches up to 4 mm in a single pulse. The focal spot narrows to 80 um. Four working modes sit at the console, CW, SP, CPG and SM, and the patterned mode draws six different shapes. A 10.4-inch colour touchscreen runs the system, on a seven-joint articulated arm, air cooled.

The four modes are where the range of the machine sits. CW runs continuously from 1 to 50 W. SP and CPG each step energy from 2 to 200 mJ with a pulse interval from 1 to 100 ms. SM runs 20 to 200 mJ in 5 mJ steps, single or continuous, up to 1 Hz. Spot size runs from 80 um to 2000 um with the zoom tube fitted. Treatments cover skin rejuvenation, skin tightening, wrinkle removal, scar reconstruction and superficial pigmentation.

Seven-joint articulated arm 10.4-inch touchscreen Air cooled Six scan patterns

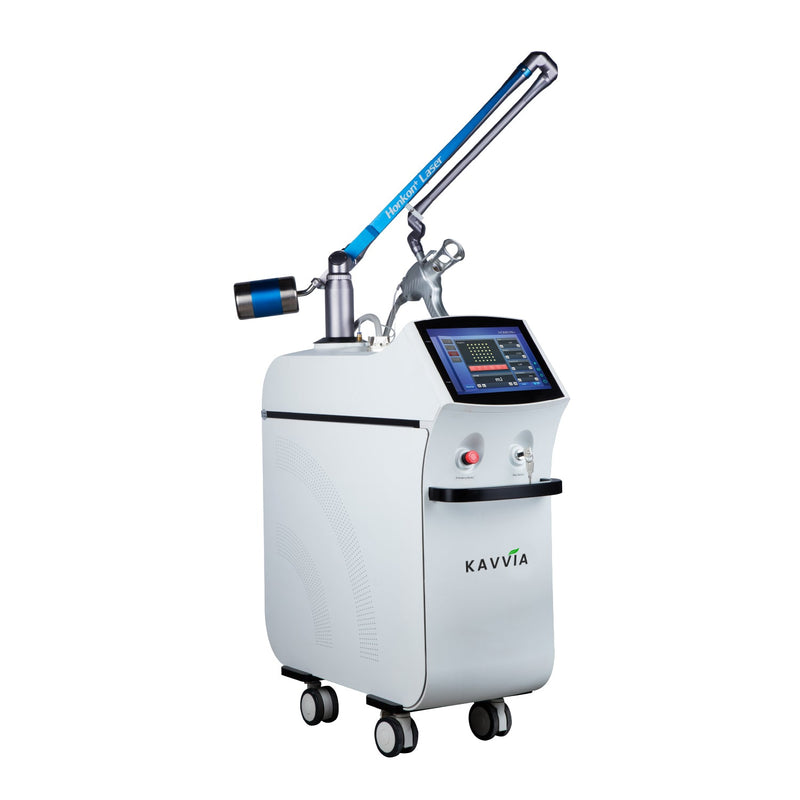

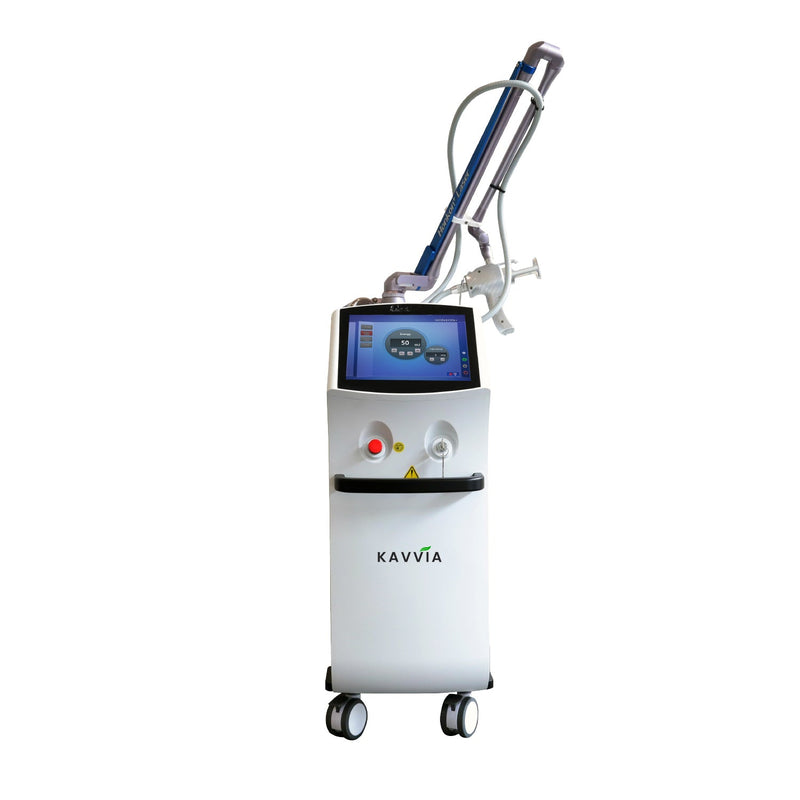

Kavvia Resurf CO2 Fractional Laser, the console and articulated arm

SYSTEM

The four working modes

The Resurf carries four working modes on one tube. They differ in how the energy is timed and whether the beam is scanned, and each has its own range at the console.

CPG draws the pattern

The patterned mode scans a triangle, square, rectangle, diamond, circle or line, over a 1, 2 or 3 cm square area, in order or out of order.

6 shapes, 3 areas

Point density is a setting

Within a patterned area the point count steps through four densities, so coverage is chosen rather than fixed by the handpiece.

6x6 to 24x24 per cm2

Energy and interval set separately

SP and CPG both run 2 to 200 mJ in 2 mJ or 10 mJ steps, with the interval between pulses set anywhere from 1 to 100 ms.

2 to 200 mJ

SM runs single or continuous

The scanning mode steps 20 to 200 mJ in 5 mJ increments and repeats up to once a second when it is left in continuous.

0.1 to 1 Hz

TREATMENTS

What it is used for

Resurfacing work is what a fractional CO2 laser is bought for, and the Resurf covers five kinds of it.

Skin rejuvenation

FACE

Skin tightening

FACE

Wrinkle removal

FACE

Scar reconstruction

FACE AND BODY

Superficial pigmentation

FACE

RANGE

The Kavvia laser range

Six lasers sit in the Kavvia range and each one uses a different wavelength or pulse. The Resurf is the ablative machine among them.

Currently viewing

$Kavvia Resurf CO2 Fractional Laser, fractional CO2 console$

Kavvia Resurf CO2 Fractional Laser

Fractional CO2 at 10600 nm, the ablative laser in the range.

10600 nm 50 W Four modes

Currently viewing

Kavvia Dualis X ND:YAG Laser

An ND:YAG platform for pigment and tattoo work.

ND:YAG 1064 and 532 nm

Shop the Dualis X

Kavvia PicoPulse Picosecond Laser

Pulses measured in picoseconds, not nanoseconds.

Picosecond 450 ps

Shop the PicoPulse

Kavvia DermaLux Diode Laser

A diode platform, the first of two in the range.

Diode 808 nm

Shop the DermaLux

Kavvia Luma 808 Diode Laser

The second diode platform, running at 808 nm.

808 nm diode

Shop the Luma 808

Kavvia AuraLight IPL Laser

Intense pulsed light, a broad-spectrum source.

IPL 1 to 10 Hz

Shop the AuraLight

FAQ

Frequently asked questions

The beam is applied in a grid of small points across an area rather than over the whole surface at once. On the Resurf the grid is set in the CPG mode, from 36 points per square centimetre up to 576.

CW, SP, CPG and SM. CW runs continuously from 1 to 50 W. SP fires single pulses. CPG scans a shape across a set area. SM is the scanning mode, single or repeating to 1 Hz.

Up to 4 mm in a single pulse. The depth reached on any given pass depends on the mode, the energy setting and the spot size in use.

The focal spot is 80 um at its narrowest. Across the patterned mode the spot runs from 80 um up to 2000 um, and the zoom tube is what sets it.

Triangle, square, rectangle, diamond, circle and line. The area is 1 cm, 2 cm or 3 cm square, and the scan runs in order or out of order.

Skin rejuvenation, skin tightening, wrinkle removal, scar reconstruction and superficial pigmentation.

The 360 degree zoom tube is an option rather than part of the base machine. Spot size above 80 um is set by whichever tube is fitted.

Air cooling, with no water circuit to plumb or maintain. The interface is a 10.4-inch colour touchscreen on an embedded ARM control system.

Through a seven-joint articulated arm, so the handpiece moves around the chair while the tube stays in the console.

Laser wavelength: 10600nm
Laser output power: 50W
Working mode: CW, SP, CPG, SM
CW power: 1-50W, stepping 1W / 10W
SP energy: 2-200mJ, stepping 2mJ / 10mJ
CPG energy: 2-200mJ, stepping 2mJ / 10mJ
CPG spot size: 80um-2000um, determined by the zoom tube
Light guide arm: Korean 7 joint articulated arm
Screen size: 10.4 inch colorful touch screen
Cooling system: Air cooling

Laser source: 50W RF excited carbon dioxide tube
Four modes: CW, SP, CPG and SM selectable at the console
CPG graphics: triangle, square, rectangle, diamond, circle and line
CPG scan area: 1cm x 1cm, 2cm x 2cm and 3cm x 3cm
Spot adjuster: zoom tube sets the CPG spot from 80um to 2000um
Penetration: up to 4mm of dermis in a single pulse
Control system: ARM embedded control system on a 10.4 inch touch screen
Treatments: skin rejuvenation, skin tightening, wrinkle removal, scar reconstruction and superficial pigmentation

360 degree zoom tube: optional, not included
