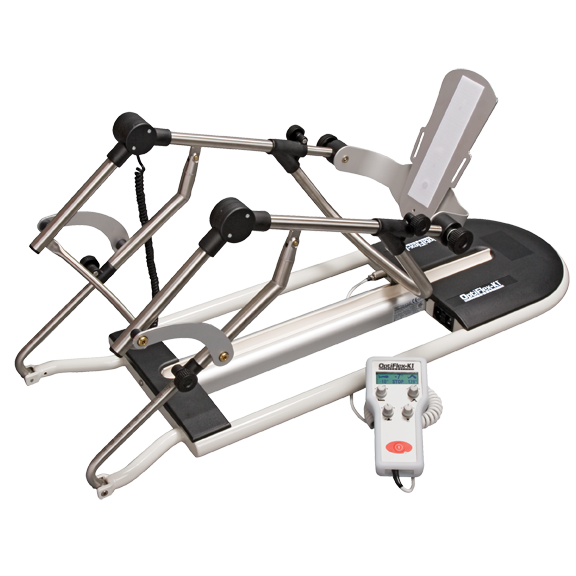

Chattanooga OptiFlex-K1

Chattanooga OptiFlex-K1

by Chattanooga
$3,240.00 - $3,240.00
$3,240.00
$3,240.00 - $3,240.00
$3,240.00

✓ Authorized Chattanooga Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

10% Off 4th of July Sale with Code: CHATT10

OptiFlex-K1

Continuous Passive Motion is a postoperative procedure designed to aid in the recovery after joint surgery. After extensive joint surgery, if a patient fails to move their joint, the tissue around the joint will become stiff and scar tissue will form, resulting in a joint with limited range of motion, which often takes months of physical therapy to recover. OptiFlex-K1 Knee CPM has interchangeable hand controls for maximum versatility.

Patient Kit Sold Separately


Features & Benefits

  • Weighs just 23 lbs (10.4 kg), making it the lightest knee CPM on the market
  • Only 38 inches (97 cm) long
  • Wide low-profile, closed-base frame for stability
  • Faster motor speed
  • Single screw drive
  • Reversible footplate for shorter legs
  • Range of Motion (ROM): -10° to 120°
  • On-board power supply
  • Patient lockout feature
  • Accommodates patients 4 ft to 6.6 ft (1.2 m - 2 m)
  • Two-year warranty

Technical Specs

  • Knee Flexion: 120°
  • Knee Extension: -10°
  • Speed: 25° - 180°/minute
  • Pauses: 0 - 59 seconds
  • Force Reversal: 45 Kp of force* (built-in)
  • Patient Height: 4 - 6.5 ft (1.2 - 2 m)
  • Calf Length Range: 10" - 22" (25.4 - 55.9 cm)
  • Thigh Length Range: 12" - 19" (30.4 - 48.2 cm)
  • Mains Power: 100V-240V, AC 50-60Hz
  • Unit Weight: 23 lb (10.4 kg)
  • Shipping Weight: 54 lb (24.5 kg)
  • Dimensions: 38" x 14" x 9" (97 cm x 36 cm x 23 cm)
  • Electrical Safety Class: Class 1, Type B
  • Safety Tests:
    • IEC 60601, 1:1988 +A1:1991, +A2:1995
    • CAN/CSA C22.2 NO 601.1 M90
    • ANSI/UL 60601-1
    • IEC 60601-1-2
    • IEC 60601-1-4
    • ISO 14971
    • ISO 10993-1
