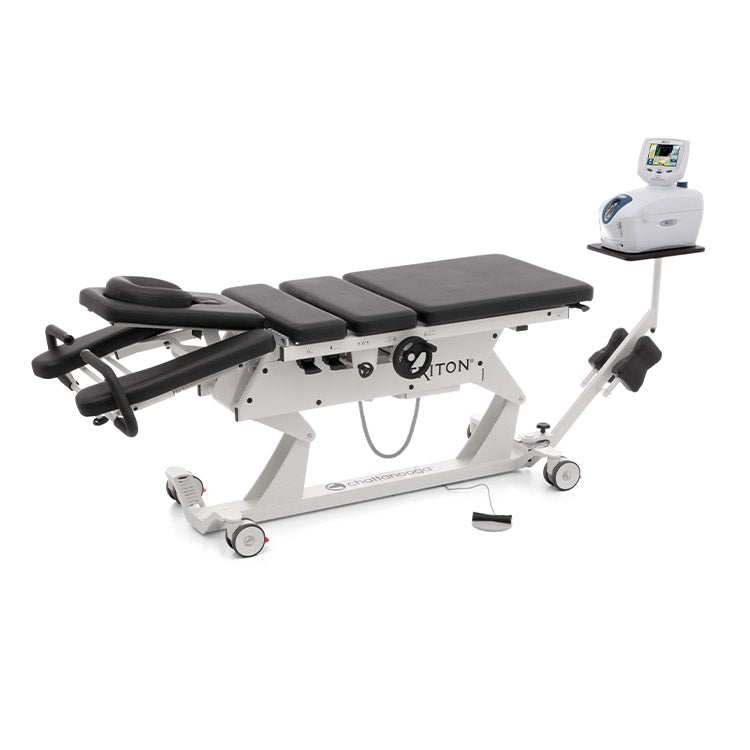

Chattanooga Triton 6M Traction Table with Advanced Accessory Package
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442
This DTS Accessory Package is designed to be used with the Triton 6M and 6E six-section Hi-Lo Traction Tables. This set, when combined with two of the most complete traction tables on the market, form the ultimate traction treatment regimen. The backbone of the kit is the Triton Traction Unit, which offers a total traction solution from a user-friendly and intuitive digital touch screen interface. Offering fully programmable pull patterns that offer static, intermittent and cyclic traction, the Triton restores function by mobilizing the muscles, ligaments and joints decompressing the nerve roots and distracting intervertebral discs. This helps to reduce disc pressure, relieve nerve root compression and improve blood flow. To the patient it feels like the clinician is replicating the feel and effectiveness of direct, hands-on treatment. Patient-centric, the unit also allows for hold, rest and treatment times to be defined by the user. Additionally, Patient Pain Profiles are recorded before and after treatment resulting in an ongoing personalized course of treatment. Once treatment parameters are customized for a patient, clinicians can store them as the default user protocol or as one of twenty user defined protocols.

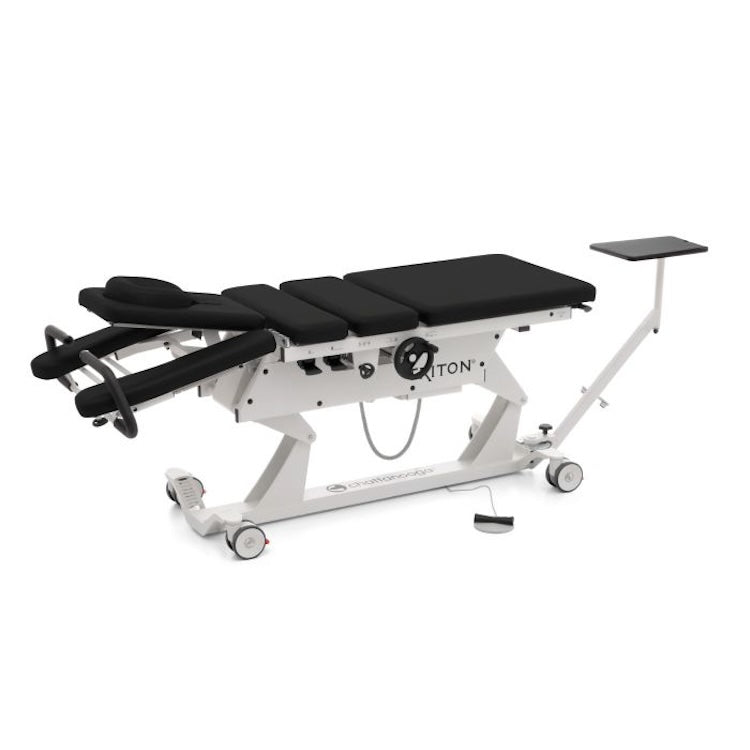

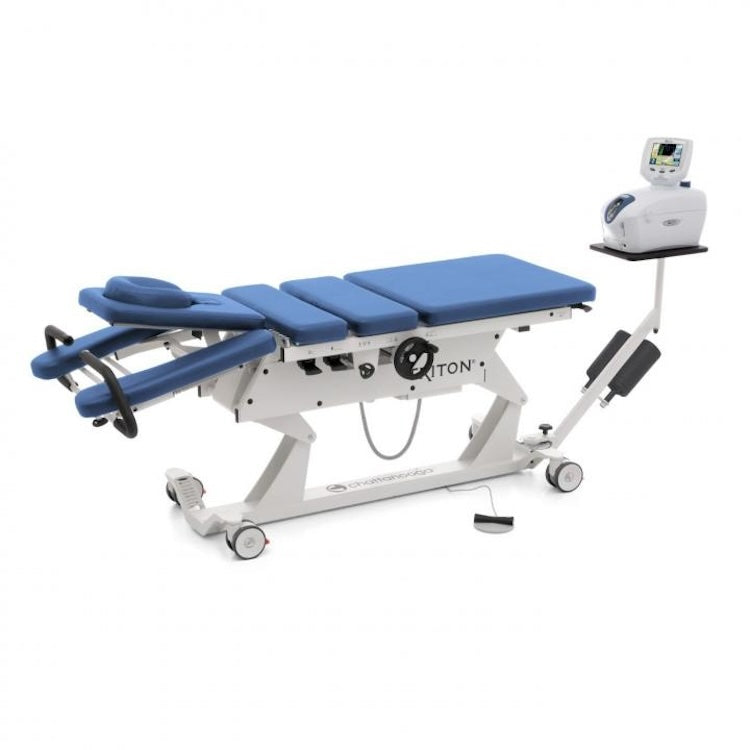

The Triton 6M Traction Table is a multifunctional device comprised of 6 sections and which uses a combination of gas springs and electric power to aid manual adjustment, allowing for easy control of table positioning. Each section is adjustable, providing a wealth of positioning options. A foot/hand controller allows easy adjustment of table height, delivering the strength to lift a maximum of 440 lbs. from a range of 19"-37". This controller also includes a lockable safety mechanism. The table is sized at a generous 90.5" x 37" while the head section is capable of elevation from a range of -15 degrees to +40 degrees. Additionally, the pelvic section can be inclined from 0 degrees to 15 degrees and the leg section from 0 degrees to 45 degrees. Please note this is for the traction table only. The traction unit and cervical traction unit are optional and sold separately. A sturdy frame with four multidirectional wheels allows for easy patient transport. This Triton 6-section table provides maximum patient comfort in prone and supine positions for both manual therapy and traction therapy. The head section features a face hole with a removable face hole cover while the table features tuck-away grab bars for hanging traction without thoracic restraint. Upholstery available in two designer color options - blue and black.

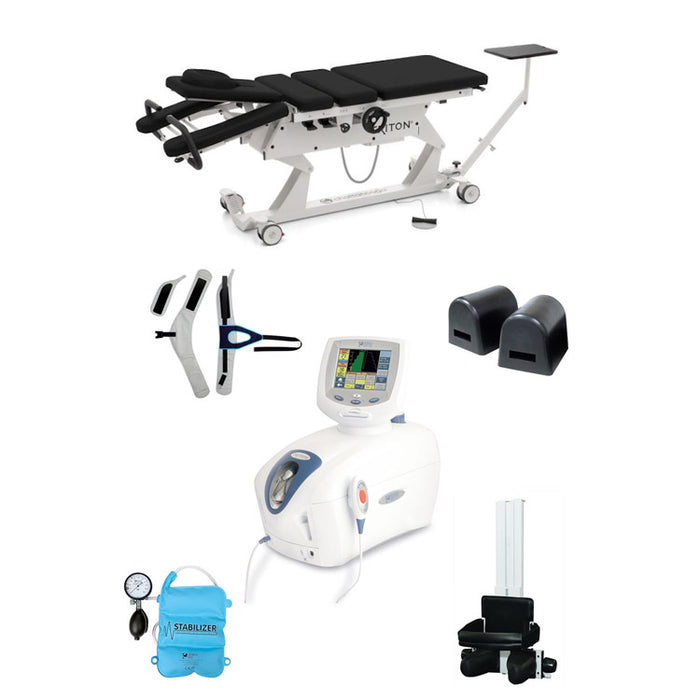

The focus on the patient continues with the inclusion of the Stabilizer Pressure Biofeedback Unit. This tool, which consists of a combined gauge and inflation bulb that's connected to pressure cell, monitors how the patient's body is reacting to treatment. The innovative design of the Knee Bolster Set provides optimal body positioning to aid in multiple treatment applications. The Triton traction unit also incorporates the use of Patient Data Cards. These cards contain patient therapy data from the unit including all therapy session parameters, before and after Patient Pain Profiles and Session Notes. Each Patient Data Card can store multiple sessions and each session can be recalled within the unit. Please note, this equipment is to be used only under the prescription and supervision of a licensed practitioner. The DTS Accessory Package includes the Triton Traction Unit, the QuickWrap DTS Belt Set, Knee Bolster Set, Saunders Cervical Traction Set and the Stabilizer Pressure Biofeedback (PBF) Unit.
Please note, this is the accessory package only. The 6M and 6E traction tables are available separately. Unit includes an emergency Patient Interrupt Switch, allowing the patient to immediately cease treatment and the unit to shut off. Digital touchscreen rotates 270 degrees to allow easy access to the interface no matter which way the unit is facing. The included QuickWrap DTS Belt Set offers a universal fit and is for use with pelvic or lumbar traction applications up to 300 lbs. Knee Bolsters come in a set of two and eliminate the need for a flexion stool. DTS Package includes 5 Data Patient Cards. Additional packs of 25 cards each are available separately.
Mains Power: | 120 V - 50/60 Hz | ||||||||||||
Current: | Max 2A with 120V | ||||||||||||
Dimensions: Total length is 280cm or 110 inches including the arm extension that supports the traction device. |
|
||||||||||||
Adjustment: |
|
||||||||||||
Dynamic lifting capacity: | 440 LBs | ||||||||||||
Maximum workload: | 605 LBs | ||||||||||||
Patient Weight: | 363 LBs | ||||||||||||
Electrical Safety Class: | Class I, Type B | ||||||||||||
Safety Tests: | CE, Class I rule 12 | ||||||||||||
Table Weight: | 428 LBs | ||||||||||||
Average Shipping Weight: | 484 LBs | ||||||||||||
Shipment Dimensions: | 92.5 x 37.4 x 31.5 inches | ||||||||||||
* Dimensions are listed as L x W x H |
