seca mBCA Ultra Medical Body Composition Analyzer

seca mBCA Ultra Medical Body Composition Analyzer

Name: seca mBCA Ultra Medical Body Composition Analyzer
Brand: Seca
SKU: ONIHMIUTNN
Price: 9849.0 USD
Availability: InStock

by Seca

$9,849.00 - $9,849.00

$9,849.00

$9,849.00 - $9,849.00

$9,849.00

✓ Authorized Seca Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

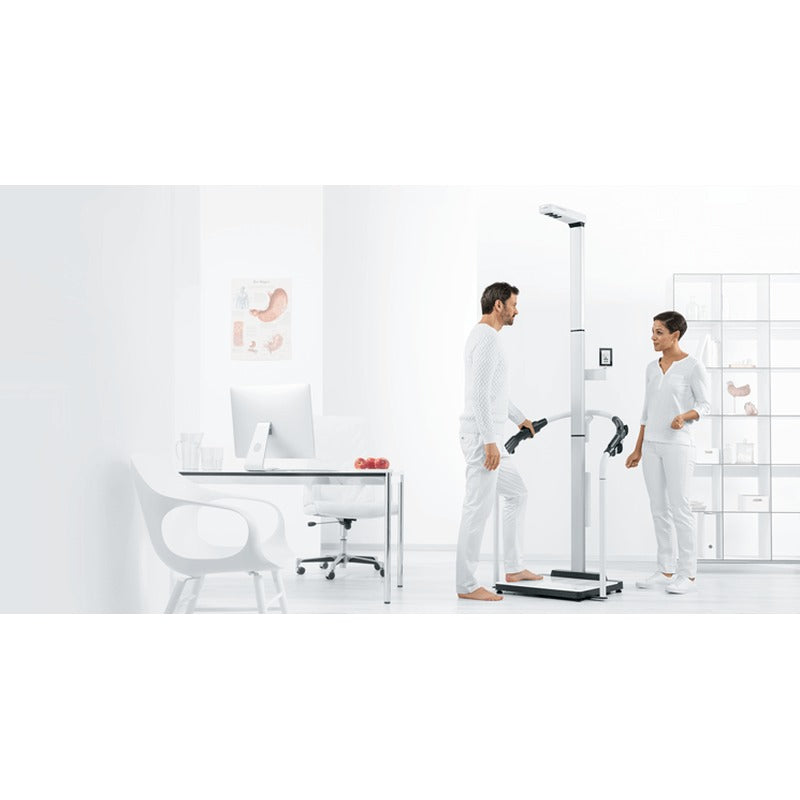

seca mBCA Ultra Medical Body Composition Analyzer with Integrated Ultrasonic Height Measurement

The seca mBCA Ultra is the flagship medical body composition analyzer from seca — built for clinics, hospitals, and performance facilities that demand the highest level of precision, integration, and workflow efficiency. At the core of the mBCA Ultra is the same gold-standard validation methodology found across the entire mBCA line: whole-body MRI for skeletal muscle mass and the 4C model for fat mass, with all validation studies published in peer-reviewed journals including the European Journal of Clinical Nutrition (2013/2017). The result is medically reliable body composition data — skeletal muscle mass, fat mass, visceral fat, phase angle, and more — that practitioners can act on with clinical confidence.

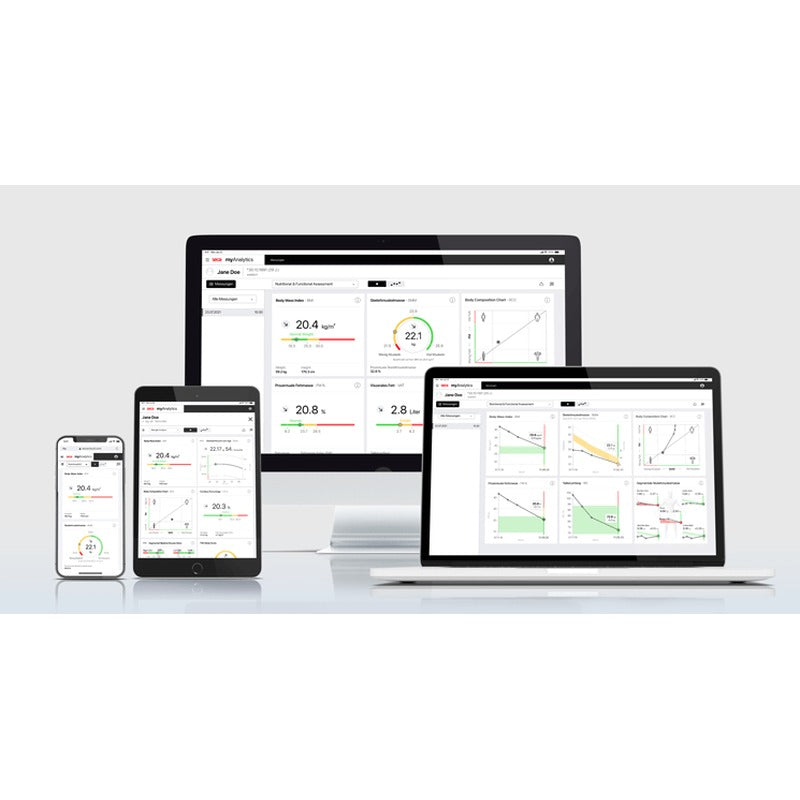

What sets the Ultra apart is its fully integrated contactless ultrasonic height measurement, powered by the seca 257 module. Height is captured automatically and precisely in seconds without any physical contact, streamlining the patient workflow and eliminating manual measurement steps. A handrail with fixed grip positions ensures consistent hand placement on every measurement, maximizing reproducibility. Foot-mounted LEDs embedded in the platform guide patients through proper foot positioning for reliable, accurate BIA readings every time. Connectivity is comprehensive — Ethernet, Wi-Fi, and USB barcode scanner support — and the seca analytics 125 cloud-based software handles documentation, reporting, and patient tracking automatically, keeping full focus on care rather than administration.

seca mBCA Ultra Medical Body Composition Analyzer with Ultrasonic Height Measurement

Physical Dimensions

Product Width: 33.0" (839 mm)

Product Height: 94.0" (2,387 mm)

Product Depth: 25.6" (650 mm)

Platform Width: 23.6" (600 mm)

Platform Height: 2.8" (70 mm)

Platform Depth: 18.4" (467 mm)

Net Weight: 67.2 lbs (30.5 kg)

Capacity & Measurement

Weight Capacity: 800 lbs (360 kg)

Weight Graduation: 50 g

Height Range: 60–220 cm (1'12"–7'2")

Height Range with Handrail: 100–220 cm (40–87 inch)

Height Graduation: 1 mm / 1/8 inch

Age Range: 5–99 years

Minimum Height: ≥ 51 inches

BIA Technology

Measuring Method: 8-point Bioelectrical Impedance Analysis

Measurement Segments: Right arm, left arm, right leg, left leg, right half of body, left half of body, torso

Measuring Period: 24 seconds

Frequencies: 1; 2; 5; 10; 20; 50; 100; 200; 500 kHz

Measuring Current: 100 µA

Connectivity & Software

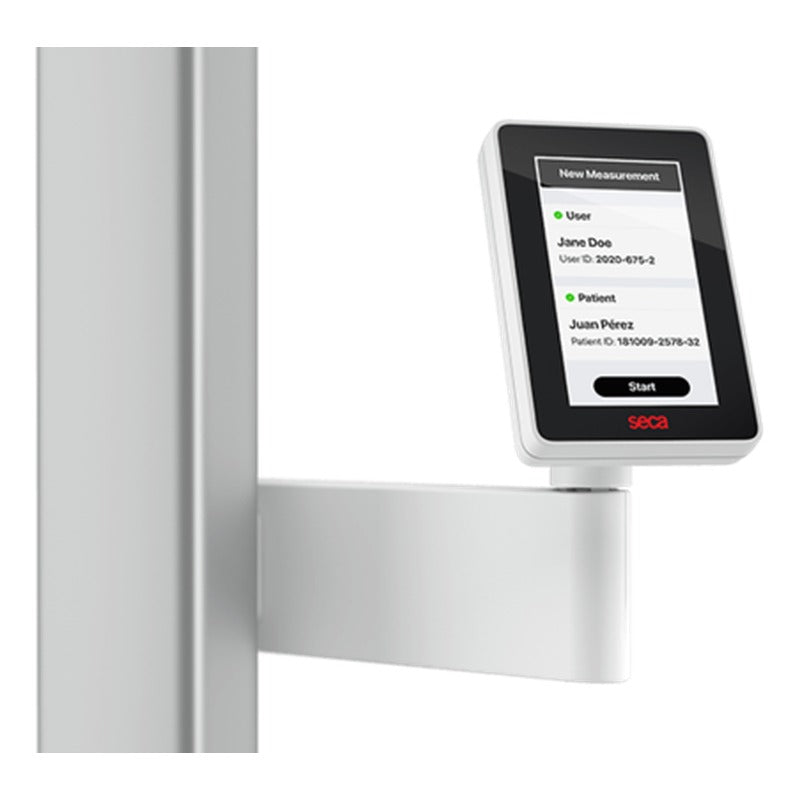

Display: 4.3" tiltable and rotatable touchscreen

Interfaces: Ethernet, Wi-Fi, USB for barcode scanner

Software: seca analytics 125

Turn-Off: No auto switch-off with power adapter

Gold-standard validation: whole-body MRI (skeletal muscle mass) and 4C model (fat mass)
All validation studies published in European Journal of Clinical Nutrition (2013/2017)
Integrated contactless ultrasonic height measurement via seca 257 — no manual measurement needed
Handrail with fixed grip positions for fully reproducible measurement conditions

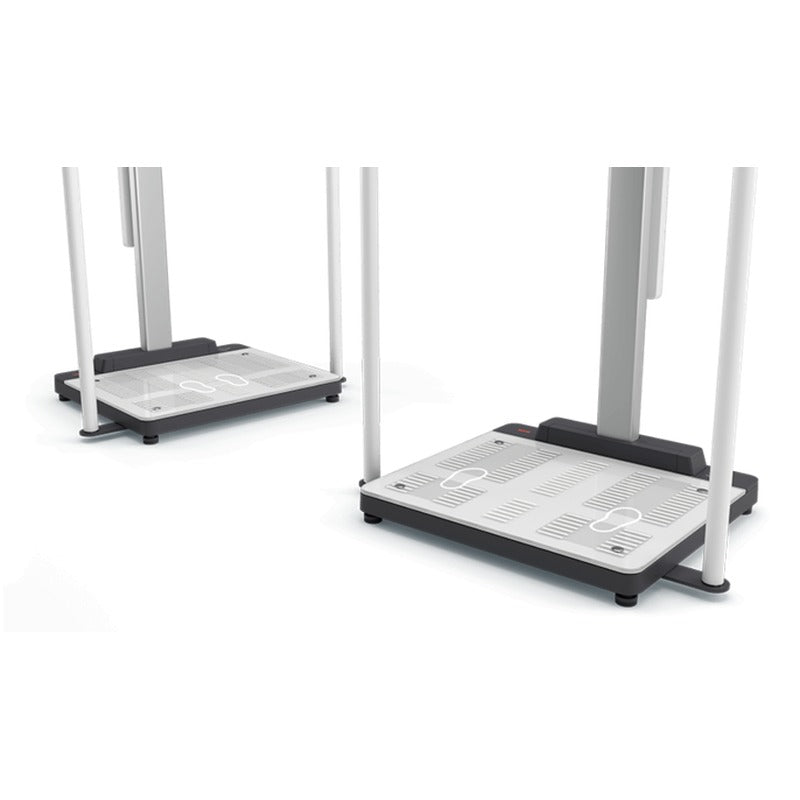

Foot-mounted LEDs in the platform guide patients to correct foot positioning
8-point bioelectrical impedance analysis — 7 segmental body regions
Multi-frequency BIA: 9 frequencies from 1 to 500 kHz
24-second measurement period
Comprehensive personalized normal ranges based on 3,000+ multiethnic subjects
Specialized formulas for children (5+), adults over 65, and patients with obesity
seca analytics 125 cloud-based software — documentation and reporting (additional fees apply)
Connectivity: Ethernet, Wi-Fi, USB barcode scanner
4.3" tiltable and rotatable touchscreen display
Ships within 24 hours

seca mBCA Ultra body composition analyzer
BIA platform seca mBCA 554
BIA handrail seca mBCA 550
ID-Display™
Ultrasonic height measurement seca 257
Power adapter
