Osaki Atlas XL 4D Massage Chair

The Osaki Atlas XL 4D is a 4D massage chair built for a broader frame, and it answers a fit problem before it answers a feature problem. Inside is a single 4D mechanism on an SL-track, the same class of hardware that drives Osaki's other 4D chairs. Everything around that mechanism got bigger, so shoulder width is 26 in., seat width is 23 in., the armrest and calf openings are cut wider, and the legrest drives itself out 11 in. A broader body sits inside the working range of the rollers, where a narrower chair pushes you toward the edges and leaves the rollers tracking the wrong part of your back. Osaki call the whole approach size-accommodating, and the two figures that carry it are the 23 in. seat and the 26 in. shoulders. For comparison, a standard Osaki 4D chair runs a seat around 19 to 20 in. wide, so the Atlas XL adds three to four inches across the part of the chair your hips sit in.

Around that frame you get 48 air cells for full body compression, 20 auto programs with 5 manual programs underneath them, and a smart body scan that maps your back before a program starts. The SL-track runs the rollers in one path from your neck and shoulders through the lower back and down to the hamstrings, where an S-track massage chair would stop where the spine meets the seat. Heat runs at the lumbar and the feet. Your calves sit against 14 air cells and 4 bumpers, your feet against 16 air cells and 6 rollers, so the lower leg gets air, rollers and warmth in the same program. Space saving technology lets the chair recline all the way with 12 in. behind it, the chair weighs 325 lb, and it takes a user up to 280 lb. It comes in Black, Brown or Taupe, with the same specification under all three.

Widened seating and armrests Legrest extends 11 in. 20 auto, 5 manual programs Reclines at 12 in. from the wall

Osaki Atlas XL 4D massage chair in black

Inside the chair

Geometry First, Then the Mechanism

What the Atlas XL is built to do is keep the roller on your back once a larger body is in the seat, and four parts of the build carry that: the widened frame, the 4D mechanism, the scan that aims it, and the 48-cell air system wrapped around all three.

📏

A Frame Cut Wider

Reinforced steel is what lets the frame be built this wide, and you get 26 in. across the shoulders and 23 in. across the seat, with the armrest openings and the calf massagers cut wider to match, so your arms and calves drop into their sleeves without wedging against the sides. An air cell can only compress a limb it has room to close around, which is why the openings matter as much as the cell count. Upright, the chair takes 35.0 in. wide by 62.0 in. long by 47.5 in. tall, and reclined it stretches to 74.0 in. of length.

26 in. shoulders

⚙

The 4D Massage Mechanism

A 4D mechanism controls four things at once: intensity, speed, width and depth of the rollers. Roller head speed shifts while the program runs, so the rhythm changes under you the way a hand changes pace, which is the part a 3D mechanism cannot do because it varies depth without varying tempo. Twenty auto programs drive it from a single press, and five manual programs hand you the technique, the zone and the 4D settings to set yourself.

Depth, speed, width, intensity

🔍

Smart Body Scan System

Before a program starts, the body scan reads the contours of your back and sets roller pressure against them from your neck down to your glutes. On a chair built for a wider range of sizes this is the step that keeps the roller path honest, because the massage lands on the back the chair actually finds.

Neck to glutes

💨

48 Air Cells, Layered

Forty-eight air cells run through the chair and inflate in sequence, so the squeeze builds on you in layers. Fourteen of them work your calves alongside 4 bumpers. Sixteen more sit under your feet with 6 foot rollers. The rest wrap your arms, shoulders and hips, reaching them through the widened armrest openings. Air is how the chair covers the limbs the back rollers never touch: the roller path takes your spine, and the 48 cells take everything on either side of it.

48 cells

The numbers

The Air Cells Squeeze You in Layers

Measure these eight against your own body and your own room, because they are the figures that settle whether the Atlas XL fits you and fits where you want to put it.

📏

26 in. shoulder, 23 in. seat

Armrests and calf wells to match

🏋

280 lb maximum user weight

Reinforced steel frame

🦵

Legrest extends 11 in.

6 in. foot, 5 in. calf

💨

48 air cells full body

Layered compression

📱

20 auto, 5 manual programs

Touchscreen controller

🌡

Heat at lumbar and feet

Two heated zones

🦻

14 calf air cells, 4 bumpers

Deep calf massage

👣

6 foot rollers, 16 air cells

Specialized foot rollers

Closer look

The Three Places Osaki Added Room

Seating

A Seat Measured 23 Inches Across

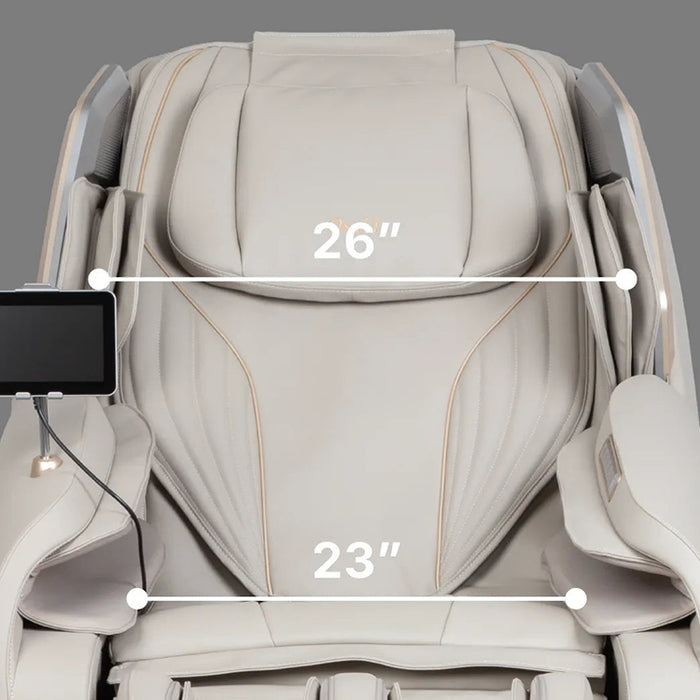

Seat width is 23 in. Shoulder width is 26 in. Both sit on a wider frame in reinforced steel, and those two figures decide how the whole chair feels. A body that fits between the side panels sits square on the track, which puts your spine under the middle of the roller path where the 4D mechanism does its best work. The backrest is extended to match, so a taller torso still has track above the shoulders. To check yourself against it, sit on a dining chair and measure the widest point across your hips, then across your shoulders, and hold both against the 23 in. and 26 in. figures. The frame is rated to a 280 lb user.

Seat width 23 in., shoulder width 26 in.
Wider frame with reinforced steel construction
Extended backrest
Removable headrest for a deeper reach at the neck
Upright footprint 35.0 in. (W) x 62.0 in. (L) x 47.5 in. (H)

23 in. seat 26 in. shoulders Reinforced steel

Osaki Atlas XL 4D massage chair size-accommodating widened armrest

Armrests

Armrest Openings With Room to Drop Into

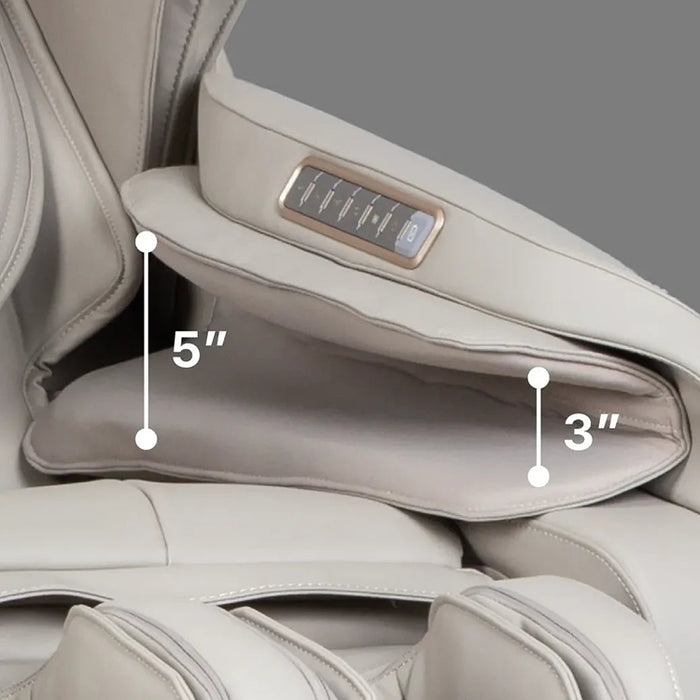

The armrest openings are cut wider for the same reason the seat is. An arm that sits loose in the sleeve lets the air cells wrap it and compress along its length. An arm already pressed against the sides has nowhere to go once the cells inflate, so the squeeze arrives as pressure against the frame. Your armrest also carries the quick side control panel, so you change intensity and programs under your hand while the 4D rollers keep working, with a USB-C port within reach for a phone you left charging.

Wider armrest openings on the size-accommodating frame
Arm air cells part of the 48-cell full body system

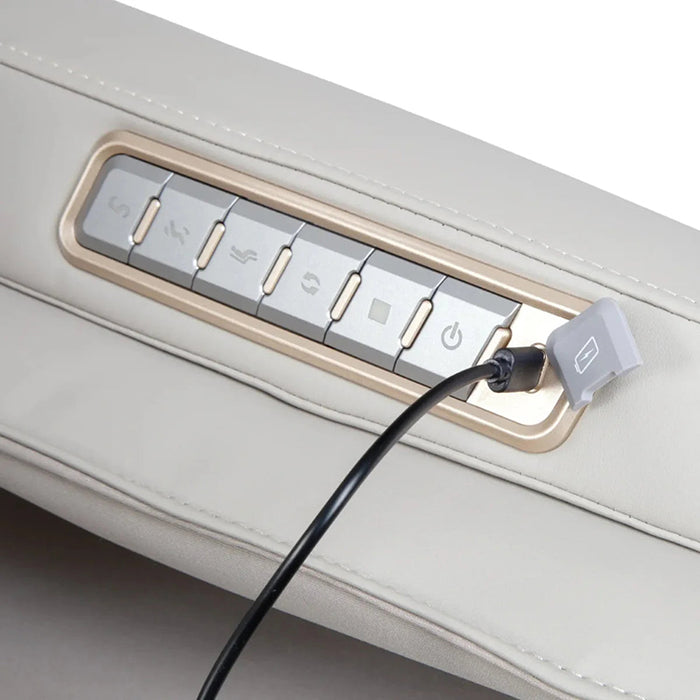

Quick side control panel on the armrest
USB-C charging port

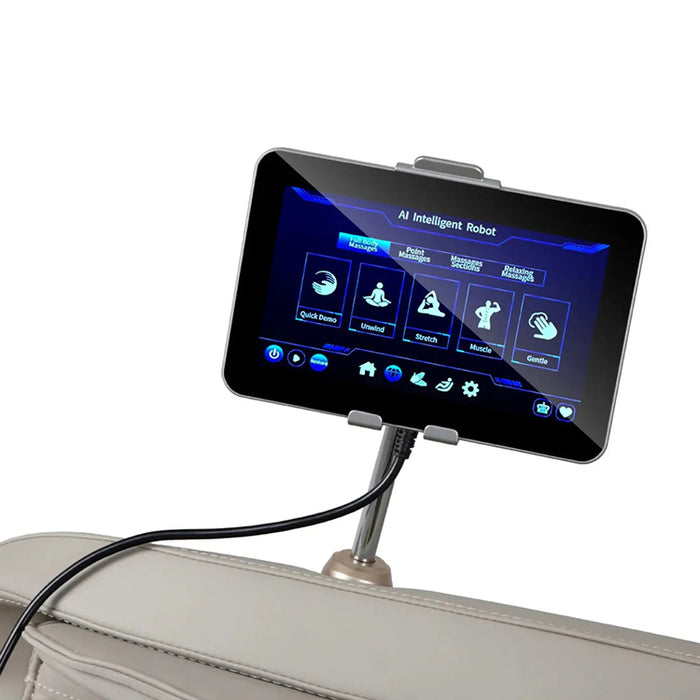

Touchscreen controller for full program navigation

Wider openings Side control panel USB-C

Legrest

Eleven Inches of Extendable Footrest

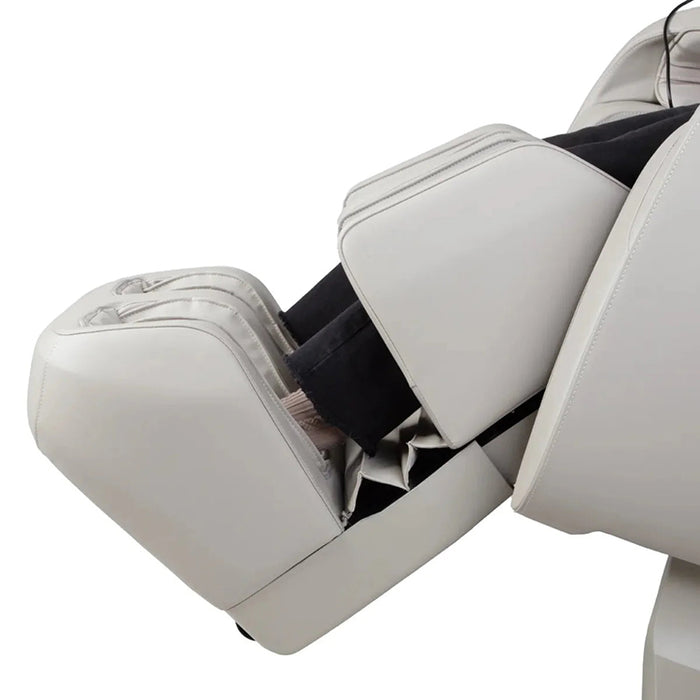

The legrest drives out 11 in., split 6 in. at the foot section and 5 in. at the calf section, so a long leg reaches the foot rollers with your calves still seated in their sleeves. Inside the legrest your calves press against 14 air cells and 4 bumpers. Under your soles, 6 foot rollers work alongside 16 more air cells, and your feet are one of the two places the chair puts heat. The calf openings are cut wide here the same way the armrests are.

Extendable footrest, 11 in. total travel
6 in. at the foot section, 5 in. at the calf section
14 calf air cells with 4 bumpers
16 foot air cells with 6 specialized foot rollers

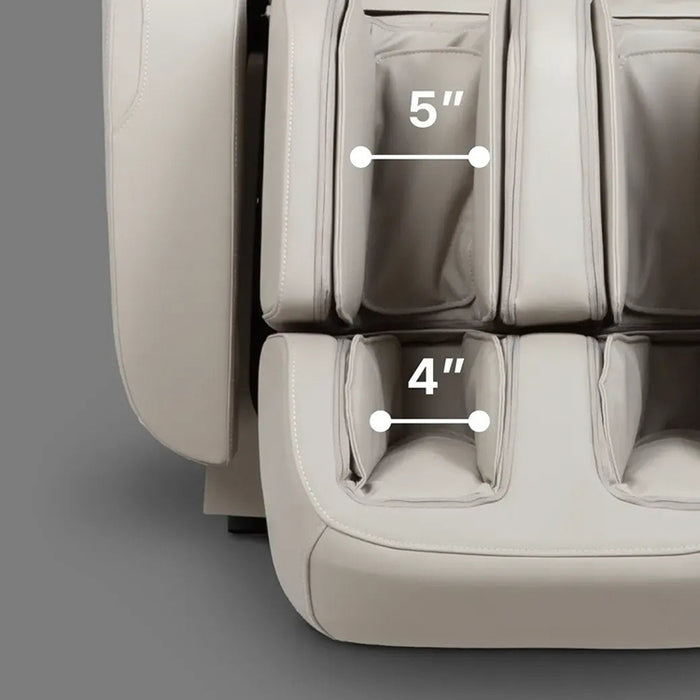

Wider calf openings on the size-accommodating frame

11 in. extension 6 foot rollers Foot heating

Compare

Three Osaki Chairs for Bigger Frames

All three are built around a body the standard chair does not fit. The Atlas XL solves it with geometry, widening the seat, the shoulders, the armrests and the calf openings. The Duke XL solves it with capacity and height, and the DuoMax solves it with a second mechanism on the track.

You're Here

Osaki Atlas XL 4D

Widened seating, armrests and legrest on a single 4D mechanism, for broader frames that do not need a dual-mech chair.

4D rollers 48 air cells 280 lb capacity Widened seating

Currently viewing

Osaki Duke XL 4D

The highest user capacity and tallest fit in the Osaki line, on a reinforced steel frame with an extended backrest.

400 lb capacity Fits to 6 ft 8 in. 48 air cells SL-Flex track

Shop the Osaki Duke XL 4D

Osaki OS-Pro Ai 4D DuoMax

Combines a 330 lb capacity with a dual 4D-plus-3D mechanism and eight roller-track heads, the deepest option for a larger user.

4D + 3D dual mech 330 lb capacity 8 roller-track heads 2 heating cores

Shop the Osaki OS-Pro Ai 4D DuoMax

Questions

Frequently Asked Questions

The Atlas XL is rated to 280 lb on its reinforced steel frame. If you need more capacity than that, the Osaki Duke XL 4D carries a 400 lb rating and fits a user up to 6 ft 8 in. Call us if you want help choosing between the two.

The mechanism is the same idea: a single 4D massage mechanism on an SL-track, which several Osaki chairs run. The shell is where the Atlas XL separates. You get 26 in. shoulder width, 23 in. seat width, wider armrest and calf openings, an extended backrest, and a legrest that drives out 11 in. A broader user sits square on the track, so the rollers follow your spine and stay off the edge of your back.

Seat width is 23 in. Shoulder width is 26 in. Measure your own seated hip width and shoulder width against those two before you order, since they decide the fit more than anything else on the page. If you are close to either figure, the wider armrest and calf openings buy you a little more room than the raw seat number suggests.

Both names describe the same part. Osaki use SL-Track and SL Flex Track for it interchangeably. Either way it is one continuous rail that holds a fixed angle to the backrest and carries the rollers from your neck and shoulders down to your hamstrings.

Four things: intensity, speed, width and depth of the rollers. Roller head speed also varies while a program runs, so the pace changes under you across its length. You reach all of it through 20 auto programs, or through 5 manual programs where you set the technique yourself.

It reads the contours of your back before the program starts and sets roller pressure against them from your neck to your glutes. On a chair sized for a wider range of bodies that scan earns its keep, because the roller path has more room to land in the wrong place if nothing measures your back first.

Up to 11 in. in total, made up of 6 in. at the foot section and 5 in. at the calf section. Inside the legrest your calves get 14 air cells and 4 bumpers, and your feet get 16 air cells and 6 foot rollers.

Yes, in two places: your lumbar and your feet. The heat runs during a program, alongside the rollers and the air cells, so warmth reaches both ends of the chair while the 16 foot air cells and 6 foot rollers are working.

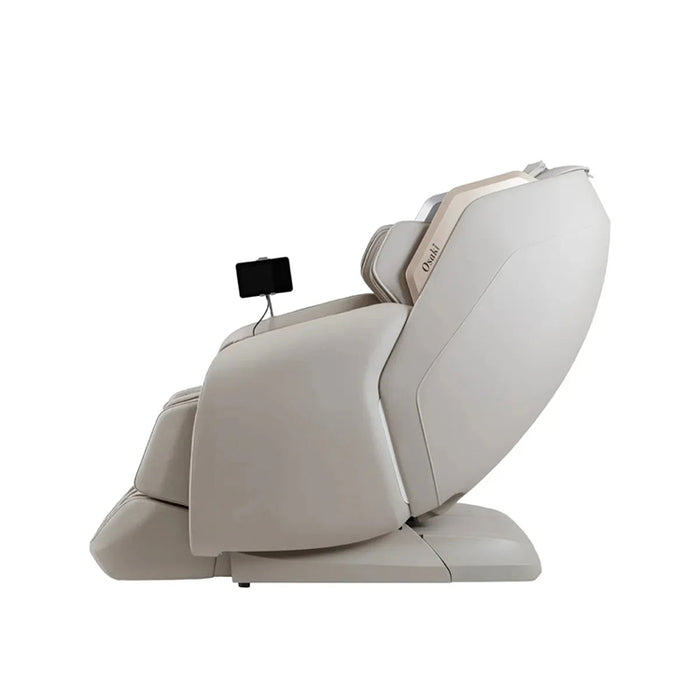

12 in. Space saving technology slides the base forward as the backrest goes down, so you still get a full recline with a foot of clearance behind the chair. The recline itself is a 1-stage zero gravity position, set automatically or adjusted by hand from the remote.

Upright it measures 35.0 in. (W) x 62.0 in. (L) x 47.5 in. (H). Reclined it measures 35.0 in. (W) x 74.0 in. (L) x 43.3 in. (H). Minimum door width is 35 in. assembled and 28.7 in. disassembled. Chair weight is 325 lb. Measure the smallest inner width of your door frame and subtract 2 in., one from each side, to get the usable figure, and walk the whole route once before delivery day because stair turns and hallway corners stop more chairs than doorways do. Full dimensions are in the Dimensions tab.

20 auto programs and 5 manual programs. Auto programs run a fixed sequence across the zones. Manual programs hand you the technique, the zone and the 4D settings directly.

A touchscreen controller, a quick side control panel on the armrest, Bluetooth speakers, a USB-C port, LED lighting and a removable headrest. Take the headrest off and the rollers sit closer to your neck and shoulders for a firmer massage at the top of the track.

Three: Black, Brown and Taupe. Same chair underneath all three, with the same 26 in. shoulder width, the same 48 air cells and the same 11 in. legrest. Power is 110 to 120V at 50/60Hz, which is a standard household outlet with no special wiring.

Mechanism: 4D
Track type: SL-track, also called SL Flex Track
Air cells: 48
Auto programs: 20
Manual modes: 5
Heat: Lumbar and feet
Footrest extension: 11 in. total, 6 in. foot and 5 in. calf
User capacity: 280 lb
Chair weight: 325 lb
Seat width: 23 in.
Shoulder width: 26 in.
Upright dimensions: 35.0 in. W x 62.0 in. L x 47.5 in. H
Reclined dimensions: 35.0 in. W x 74.0 in. L x 43.3 in. H
Door clearance: 35 in. assembled, 28.7 in. disassembled
Wall clearance: 12 in.
Power: 110 to 120 V, 50/60 Hz

Widened seating: 26 in. shoulder width and 23 in. seat width on a size-accommodating frame
Frame: Reinforced steel construction with an extended backrest
Footrest: Extends 11 in., 6 in. at the foot section and 5 in. at the calf section
Air massage: 48 cells inflating in sequence for layered, progressive compression
Auto programs: 20 auto programs with 5 manual programs underneath
Heat: Heating therapy at the lumbar and the feet
Calf massage: 14 air cells with 4 bumpers, in wider calf openings
Foot rollers: 6 specialized rollers with 16 air cells under the soles
Mechanism: 4D mechanism adjusting intensity, speed, width and depth
Body scan: Smart body scan sets roller pressure from the neck to the glutes
Armrests: Wider openings, quick side control panel and a USB-C port
Cabin: Touchscreen controller, Bluetooth speakers, LED lighting, removable headrest
