Chattanooga Galaxy TTET-400 Traction Table

The Chattanooga Galaxy TTET-400 Traction Table is a four-section traction table built to pair with a traction unit for spinal traction work. A roller-mounted surface under the hips and legs slides with the patient, so friction against the upholstery does not eat into the pull. On gas springs, the head and back section rises to +82 deg and the leg section to 73 deg. A separately articulating 9.8 in. pelvic section sits between them, and the HalloTronic+ System lifts the whole top electrically. Seven upholstery colours are on offer.

The table is 79.5 in. long, 103 in. with the traction platform, and 27.5 in. wide. Section lengths are 23 in. head and back, 8 in. middle, 9.8 in. pelvic and 47 in. leg, with 6 in. of leg displacement. Dynamic lifting capacity is 440 lb and maximum workload 605 lb.

Seven upholstery colours 440 lb dynamic lifting capacity Traction unit is a separate purchase Four feet, four retractable wheels

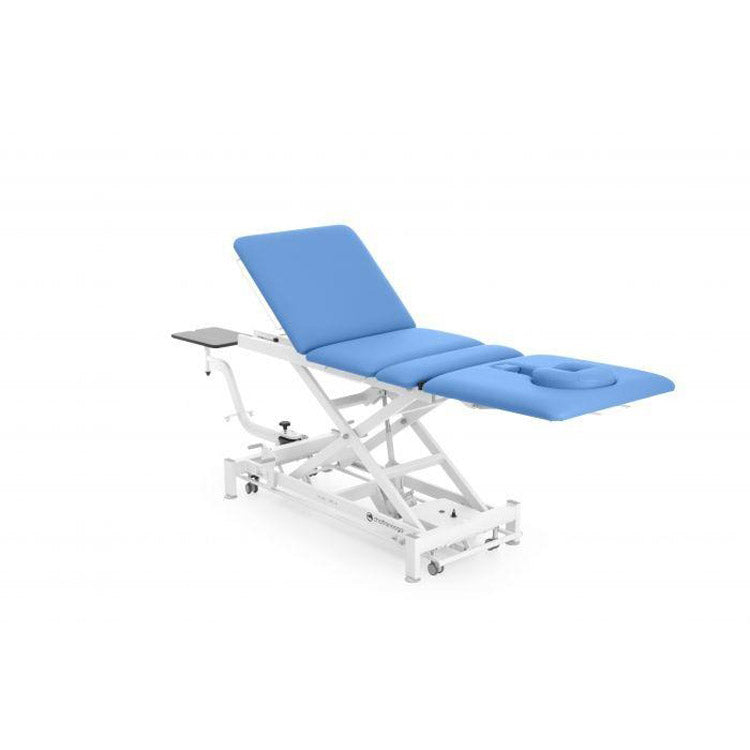

Chattanooga Galaxy TTET-400 Traction Table, set up for traction at the head end

The table

How it works

A pelvic section that articulates on its own and a lower surface that slides on rollers set the TTET-400 up for traction.

A pelvic section and a rising leg section

The 9.8 in. pelvic section articulates on its own, and the 47 in. leg section inclines 0 deg to 73 deg with 6 in. of displacement. Hip and knee position becomes something you set on the table before the pull goes on, and something you can change without unbelting the patient.

0-73 deg

A lower surface that slides

The section under the hips and legs rides on rollers so it travels with the patient, which keeps friction between the body and the upholstery from taking up part of the pull the head applies. The rolling sections lock, and locked they turn the Galaxy back into an ordinary variable-height couch for manual work between traction cases.

Sliding top

Galaxy TTET-400

Key features

The TTET-400 supports a patient face down or face up, comes down low for transfers and takes axilla posts for supine traction.

Patient comfort, prone and supine

The four-section top supports the patient in both positions and leaves the clinician room to work for manual therapy and traction.

Face hole with a removable cover

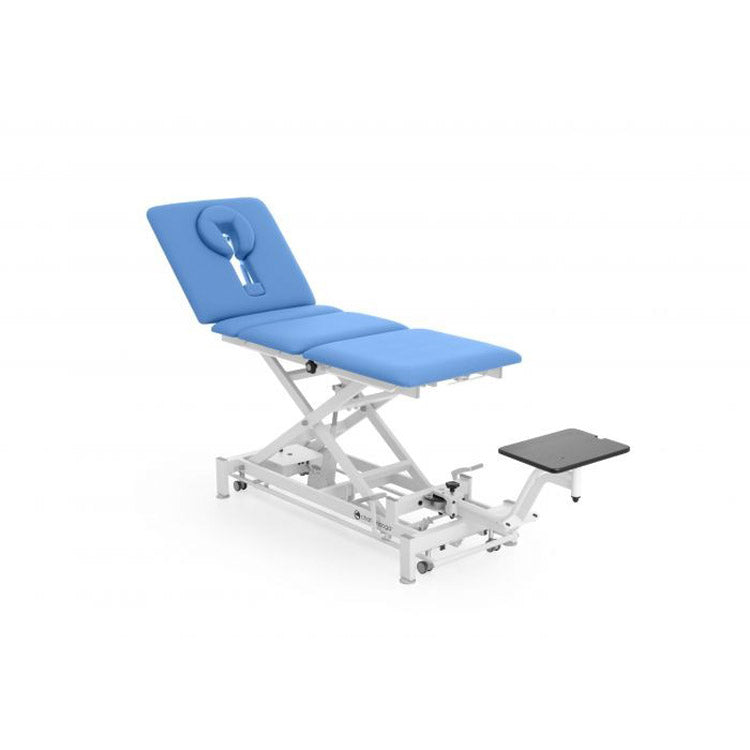

The head section carries a face hole with a removable cover for prone work.

Low enough for transfers

Its 19 in. bottom height is low enough to transfer a patient onto, and 39 in. is high enough to belt up without stooping.

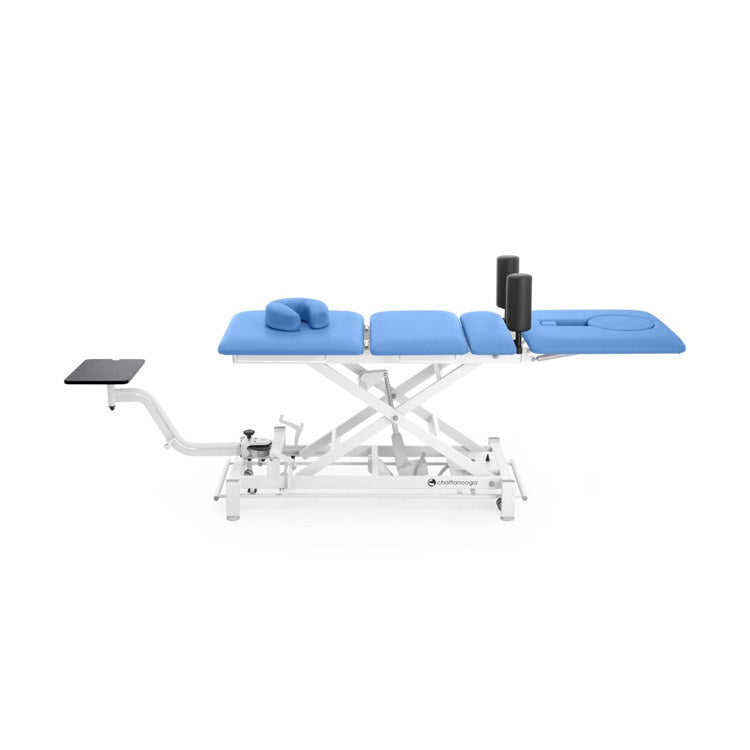

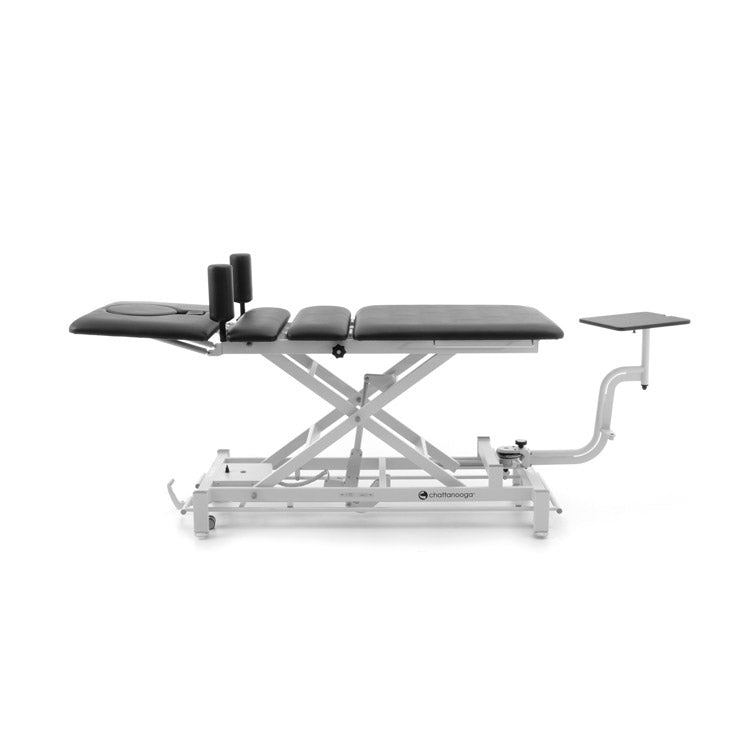

Axilla posts as an option

The optional axilla post package adds two posts, a yoke on the upper frame and docking elements on the traction arm.

In detail

How to use it

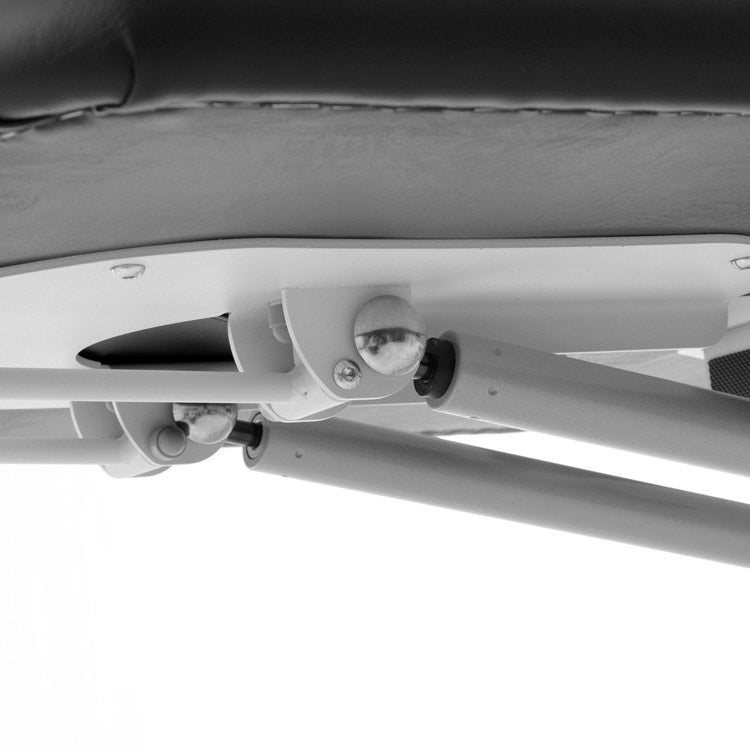

Chattanooga Galaxy TTET-400 Traction Table, section hinge and gas spring

Four sections

Where the pelvic section sits

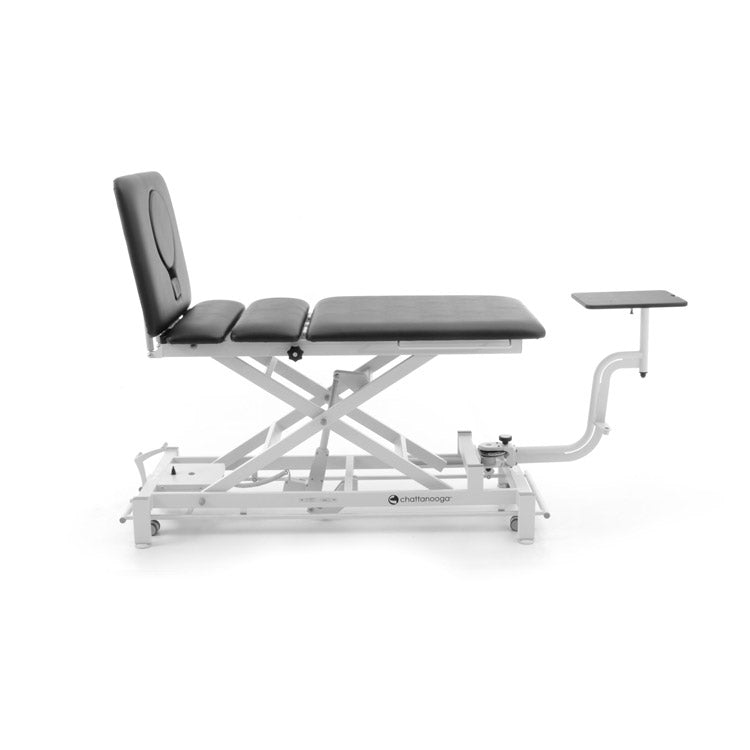

From the head end: a 23 in. head and back section inclining -10 deg to +82 deg, an 8 in. middle section, a 9.8 in. pelvic section, and a 47 in. leg section that inclines 0 deg to 73 deg and displaces 6 in. All four sections are gas-spring assisted and set by hand, and only the height column is powered, so a treatment room has one thing to plug in.

Head and back 23 in., -10 deg to +82 deg
Middle 8 in., pelvic 9.8 in.
Leg 47 in., 0 deg to 73 deg, 6 in. displacement
Gas-spring assisted sections on a powered column

4 sections Pelvic 9.8 in. Leg 0-73 deg

Chattanooga Galaxy TTET-400 Traction Table, raised on its column

Frame and height

A scissor frame that stands or rolls

The HalloTronic+ column raises the whole top and drives no individual section. Underneath, the durable scissor frame carries four stationary feet and four retractable multidirectional wheels, for smooth transport between rooms and secure placement during treatment.

HalloTronic+ column under the whole top
Scissor frame with four feet and four retractable wheels

HalloTronic+ Retractable wheels Scissor frame

Chattanooga Galaxy TTET-400 Traction Table, head section and face hole

Fitment

The head end and the traction platform

The traction head mounts on the platform beyond the head section and does the pulling. The TX unit and the Triton unit are sold on their own, and the Triton DTS unit comes inside the Basic and Advanced accessory packages. Each head needs its own patient interrupt switch in the patient's grasp before it will run. Belting, bolsters, pillows and the flexion stool are ordered separately.

TX Traction Unit, or the matching TX Traction Kit with stool
Triton Traction Unit, or the Triton DTS unit inside the Basic and Advanced packages
QuikWrap DTS Belt Set, or the wider Deluxe Universal Belt System
Clinical Cervical Traction System, which mounts to the head and not to the table
Knee Bolster, Traction Flexion Stool and Pron Pillo

Patient switch TX or Triton Belting and stool

The range

How it compares

The Galaxy tables roll on a scissor frame with a sliding lower surface, and the Tritons carry six sections on a straight frame. The TTET-400 is the Galaxy with a pelvic section and a rising leg section.

You're Here

Galaxy TTET-400

Four sections, adding a 9.8 in. pelvic section and a leg incline of 0 to 73 deg.

4 sections Leg section angle 0 deg to 73 deg Dynamic lifting capacity 440 lb; maximum workload 605 lb 274 lb; shipping 330 lb

Currently viewing

Galaxy TTET-300

Three sections, scissor frame, 274 lb table, 103 in. long with the traction platform.

3 sections Leg section 44.7 in., 6 in. displacement Dynamic lifting capacity 440 lb; maximum workload 605 lb 274 lb; shipping 330 lb

Shop the Galaxy TTET-300

Triton 6M

Six sections on gas springs with one electric column, and a 363 lb patient weight.

6 sections Height 19 to 37 in. Patient weight 363 lb 428 lb; shipping 484 lb

Shop the Triton 6M

Triton 6E

Six sections on six actuators, heated cushions at 95 F and 100.4 F, LED lighting.

6 sections, each powered by one of 6 actuators Head section -30 deg to +40 deg Pelvic section tilt 0 deg to 20 deg 494 lb; shipping 550 lb

Shop the Triton 6E

Questions

Frequently asked questions

Patient weight is 286 lb. The HalloTronic+ column lifts up to 440 lb (dynamic lifting capacity), and the frame takes a maximum workload of 605 lb in total with the table, the patient, the belting and anything else on it.

No. This is the traction table only, and the traction unit and the cervical traction system are separate purchases. The TX Traction Unit, the Triton Traction Unit and the TX Traction Kit all fit, and the kit is built around the Galaxy traction tables and arrives with the belting and a flexion stool.

The QuikWrap DTS Belt Set or the Deluxe Universal Belt System, the Clinical Cervical Traction System, which mounts to the head and not to the table, and the Knee Bolster, Traction Flexion Stool and Pron Pillo.

Yes. The rolling sections lock, and locked the table works as a plain variable-height treatment couch for manual work between traction cases.

The table is 79.5 in. long and 27.5 in. wide, and 103 in. long with the traction platform. Every section is set by hand from beside the table.

It ships crated, at 330 lb in a crate measuring 88.6 x 33.5 x 31.5 in. The table itself weighs 274 lb.

Yes. The scissor frame carries four stationary feet and four retractable multidirectional wheels: down on its feet for stability under load, up on its wheels to roll.

Yes, an optional axilla post package. It fixes the patient against the table so the body does not travel during supine traction, and because it includes frame-level fittings it is ordered with the table.

120 V~, 50/60 Hz, max 2 A at 120 V, electrical safety class I, Type B, CE marked under Class I Rule 12.

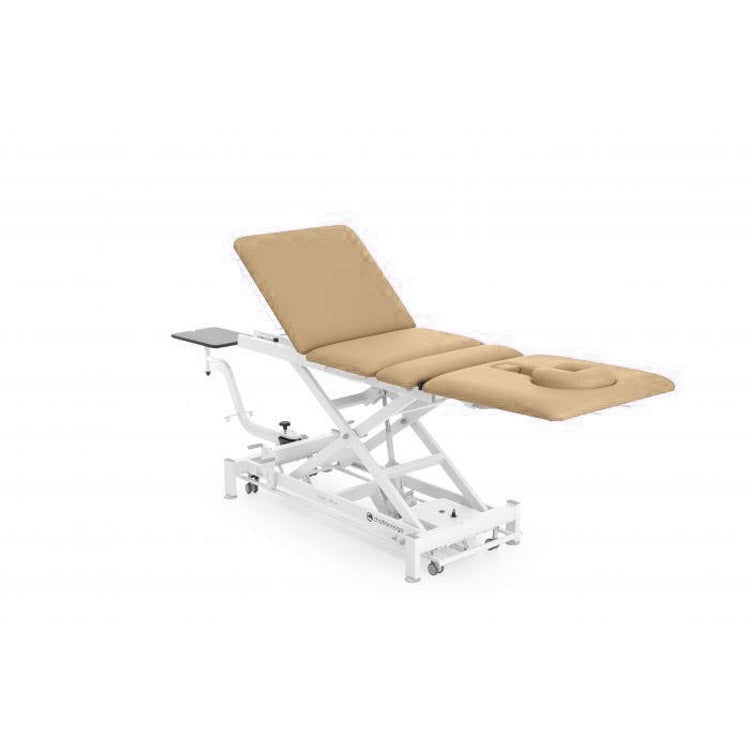

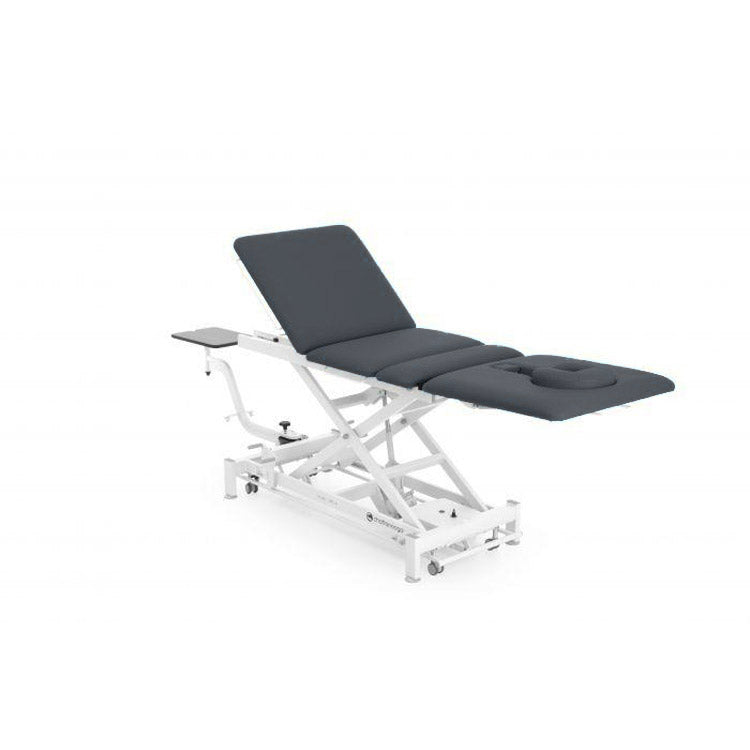

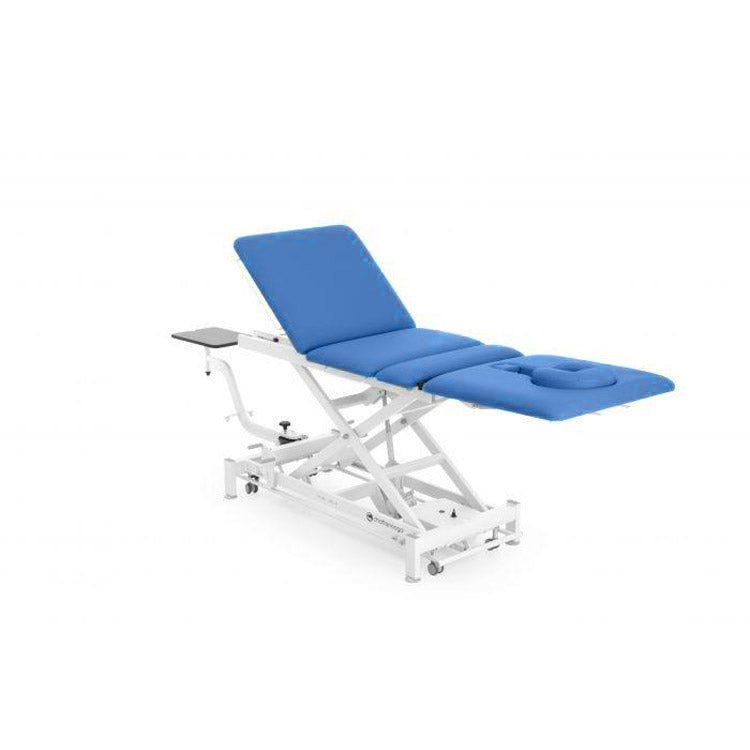

Black, Gray, Graphite Gray, Light Blue, Imperial Blue, Navy Blue and Beige. Each colour is the same table in a different upholstery.

Sections: 4
Section lengths: 23 in. head and back, 8 in. middle, 9.8 in. pelvic, 47 in. leg
Table width: 27.5 in.
Total table length: 79.5 in.
Total length with traction platform: 103 in.
Height range: 19 to 39 in.
Head inclination: -10 deg to +82 deg
Leg inclination: 0 deg to 73 deg
Leg displacement: 6 in.
Dynamic lifting capacity and maximum workload: 440 lb dynamic lifting capacity; 605 lb maximum workload
Patient weight: 286 lb
Table weight: 274 lb; shipping 330 lb, crate 88.6 x 33.5 x 31.5 in.
Mains power: 120 V~, 50/60 Hz, max 2 A at 120 V
Electrical safety class: Class I, Type B; CE, Class I Rule 12

Sections: 4, gas-spring assisted on an electric height column
Pelvic section: 9.8 in., separately articulating
Leg section inclination: 0 deg to 73 deg
Lower surface: Roller-mounted and lockable, so the table doubles as a treatment couch
Height system: HalloTronic+ electric column
Frame: Scissor frame, four stationary feet and four retractable multidirectional wheels
Head and back section angle: -10 deg to +82 deg
Face hole: In the head section, with removable cover
Traction unit: Not included; TX 4759 or Triton 4739 sold separately
Cervical traction: Clinical Cervical Traction System 7040, sold separately
Axilla post package: 37185, optional, ordered with the table
Upholstery: Black, Gray, Graphite Gray, Light Blue, Imperial Blue, Navy Blue and Beige

Face hole cover: Removable, in the head section
Traction unit: Not included; sold separately
Cervical traction system: Not included; sold separately
Axilla post package: Not included; optional, ordered with the table
